Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
D2VW-5K1-1MS SWITCH SNAP ACTION SPDT 5A 125V Omron Electronics Inc-EMC Div	4,492	-	RFQ Sell Excess Inventory	Datasheet	D2VW	Bulk	Active	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	5A (AC/DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	200gf	0.016" (0.4mm)	30gf	0.047" (1.2mm)	0.579" (14.7mm)	0.039" (1.0mm)	-40°C ~ 85°C
83132089 SWITCH SNAP ACTION SPDT 5A 125V Crouzet	3,310	-	RFQ Sell Excess Inventory	Datasheet	83132	Bulk	Active	SPDT (DB/DM)	On-Mom	125 V	-	Lever, Straight	5A (AC)	Chassis Mount	Solder, Quick Connect - 0.110" (2.8mm)	-	Actuator Mounted Left Side	82gf	0.040" (1.0mm)	16gf	0.085" (2.16mm)	0.374" (9.5mm)	-	-20°C ~ 125°C
YZ-2RW82725551-D6 SWITCH SNAP ACT SPST-NO 1A 125V Honeywell Sensing and Productivity Solutions	2,074	-	RFQ Sell Excess Inventory	Datasheet	YZ	Bulk	Obsolete	SPST-NO	Off-Mom	125 V	-	Lever, Roller	1A (AC)	Chassis Mount	Solder, Quick Connect - 0.250" (6.3mm)	Splash Proof	-	99gf	0.040" (1.0mm)	21gf	-	-	0.156" (3.96mm)	-55°C ~ 85°C
BZ-7R331 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	3,440	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Round (Pin Plunger)	15A (AC), 500mA (DC)	Chassis Mount	Solder Lug	-	-	624 ~ 794gf	0.005" (0.13mm)	113gf	0.030" (0.8mm)	0.625" (15.9mm)	0.005" (0.13mm)	-55°C ~ 85°C
11SX21-H58 SWITCH SNAP ACTION SPDT 5A 250V Honeywell Sensing and Productivity Solutions	1,977	-	RFQ Sell Excess Inventory	Datasheet	SX	Bulk	Active	SPDT	On-Mom	250 V	28 V	Round (Pin Plunger)	5A (AC/DC)	Chassis Mount	Quick Connect - 0.058" (Round)	-	-	71 ~ 141gf	0.002" (0.05mm)	28gf	0.020" (0.5mm)	0.320" (8.13mm)	0.004" (0.1mm)	-55°C ~ 125°C
V15W-WP200A05-W303 SWITCH BASIC SPNO Honeywell Sensing and Productivity Solutions	2,565	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

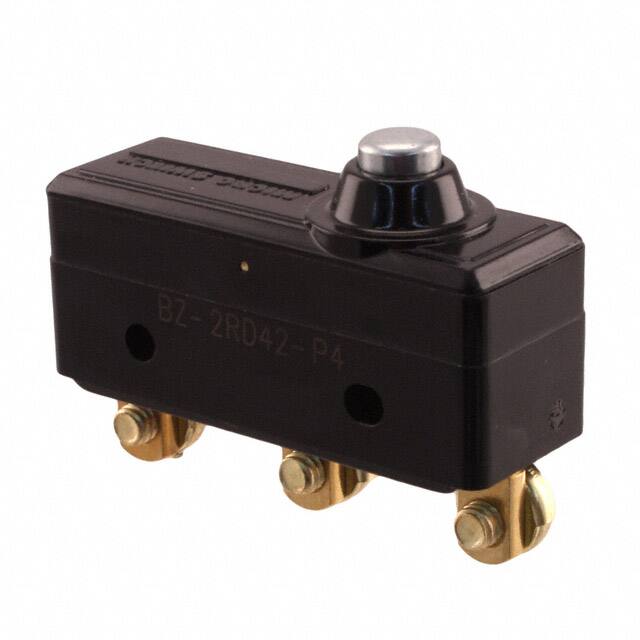

BZ-2RD42-P4 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	1,897	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Round (Pin Plunger)	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	Steel Plunger	255 ~ 368gf	0.002" (0.05mm)	113gf	0.015" (0.4mm)	0.835" (21.2mm)	0.060" (1.5mm)	-55°C ~ 85°C
83160711 SWITCH SNAP ACT SPST-NC 6A 250V Crouzet	4,789	-	RFQ Sell Excess Inventory	Datasheet	83160	Bulk	Active	SPST-NC	On-Mom	250 V	-	Lever, Roller	6A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	-	-	-	-	-	-	-40°C ~ 85°C
83160713 SWITCH SNAP ACTION 6A POS BRK Crouzet	1,255	-	RFQ Sell Excess Inventory	Datasheet	83160	Box	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BZ-3RW8995519-PC2 SWITCH LARGE BASIC Honeywell Sensing and Productivity Solutions	2,907	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
D2VW-5-2M SWITCH SNAP ACTION MINI BASIC Omron Electronics Inc-EMC Div	1,770	-	RFQ Sell Excess Inventory	Datasheet	D2VW	Bulk	Active	SPST-NC	On-Mom	125 V	30 V	Round (Pin Plunger)	5A (AC/DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	200gf	0.016" (0.4mm)	30gf	0.047" (1.2mm)	0.579" (14.7mm)	0.039" (1.0mm)	-40°C ~ 85°C

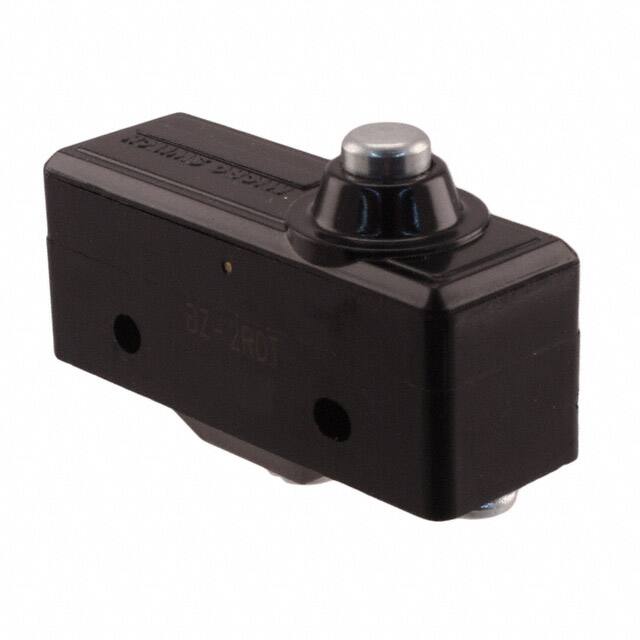

BZ-2RDT SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	3,131	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Round (Pin Plunger)	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	Steel Plunger	368 ~ 538gf	0.002" (0.05mm)	113gf	0.015" (0.4mm)	0.835" (21.2mm)	0.060" (1.5mm)	-55°C ~ 85°C

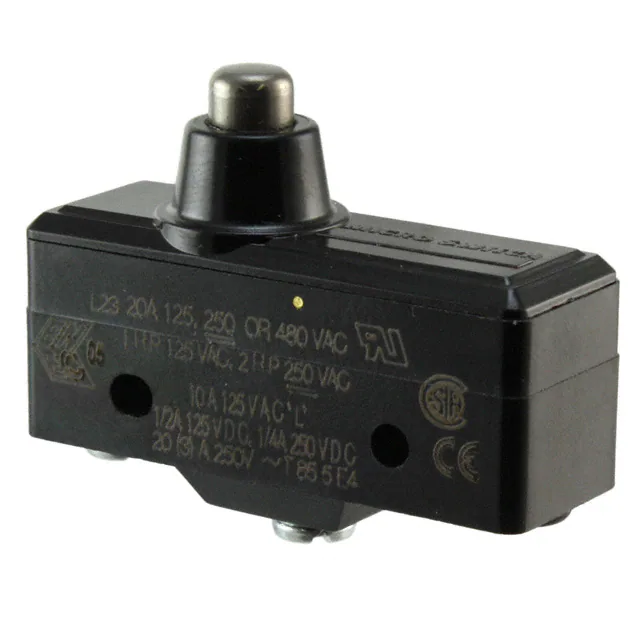

YA-2RBT SWITCH SNAP ACT SPST-NO 20A 125V Honeywell Sensing and Productivity Solutions	1,345	-	RFQ Sell Excess Inventory	Datasheet	YA	Bulk	Obsolete	SPST-NO	Off-Mom	125 V	125 V	Round (Pin Plunger)	20A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	397 ~ 624gf	0.007" (0.18mm)	283gf	0.050" (1.27mm)	1.030" (26.2mm)	0.094" (2.4mm)	-55°C ~ 85°C

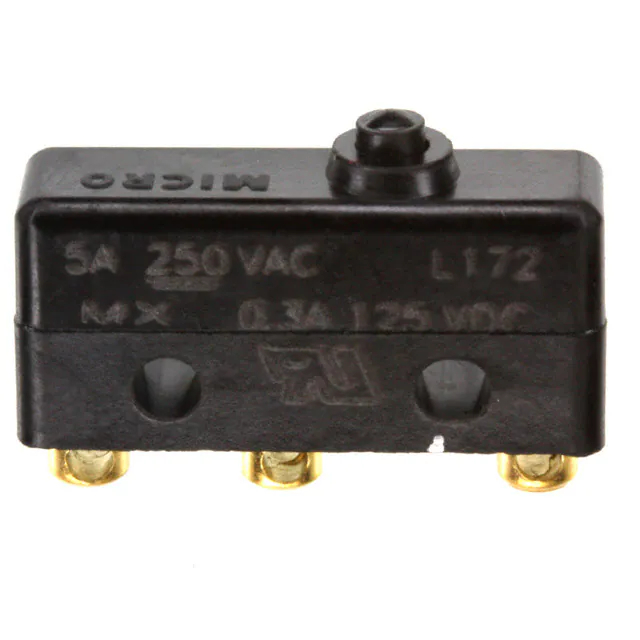

11SM244 SWITCH SNAP ACTION SPDT 5A 250V Honeywell Sensing and Productivity Solutions	4,334	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Active	SPDT	On-Mom	250 V	125 V	Round (Pin Plunger)	5A (AC), 300mA (DC)	Chassis Mount	Solder Lug	-	-	141gf	0.004" (0.1mm)	28gf	0.020" (0.5mm)	0.330" (8.4mm)	0.005" (0.13mm)	-55°C ~ 125°C
YZ-2RW84-A2 SWITCH SNAP ACT SPST-NO 15A 125V Honeywell Sensing and Productivity Solutions	4,635	-	RFQ Sell Excess Inventory	Datasheet	YZ	Bulk	Obsolete	SPST-NO	Off-Mom	125 V	125 V	Lever, Straight	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	28gf	0.050" (1.3mm)	3.500gf	0.328" (8.3mm)	0.750" (19.1mm)	0.219" (5.6mm)	-55°C ~ 85°C
BZ-2RL-A2 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	1,175	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Leaf	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	141gf	0.050" (1.3mm)	14gf	-	0.689" (17.5mm)	0.060" (1.5mm)	-55°C ~ 85°C
D2JW-01K1A2-MD SWITCH SNAP ACT SPST-NC 0.1A 30V Omron Electronics Inc-EMC Div	2,970	-	RFQ Sell Excess Inventory	Datasheet	D2JW	Bulk	Active	SPST-NC	On-Mom	-	30 V	Lever, Straight	100mA (DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	117gf	0.020" (0.5mm)	23gf	0.214" (5.4mm)	0.330" (8.4mm)	0.026" (0.7mm)	-40°C ~ 85°C
831340C2.BL SWITCH SNAP ACTION SPDT 5A 125V Crouzet	2,325	-	RFQ Sell Excess Inventory	Datasheet	83134	Bulk	Active	SPDT (DB/DM)	On-Mom	125 V	-	Lever, Simulated Roller	5A (AC)	Through Hole	PC Pin	-	Actuator Mounted Left Side	87gf	0.037" (0.94mm)	18gf	0.081" (2.05mm)	0.488" (12.4mm)	-	-20°C ~ 125°C
BZ-2RW80290 SWITCH MICRO Honeywell Sensing and Productivity Solutions	1,714	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
11SX22-T SWITCH SNAP ACTION SPDT 5A 115V Honeywell Sensing and Productivity Solutions	4,597	-	RFQ Sell Excess Inventory	Datasheet	SX	Bulk	Active	SPDT	On-Mom	115 V	28 V	Round (Pin Plunger)	5A (AC/DC)	Chassis Mount	Solder Turret	-	-	71 ~ 141gf	0.002" (0.05mm)	28gf	0.020" (0.5mm)	0.320" (8.13mm)	0.004" (0.1mm)	-55°C ~ 125°C
