Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
111SM247 SWITCH SNAP ACTION SPDT 5A 250V Honeywell Sensing and Productivity Solutions	2,490	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Active	SPDT	On-Mom	250 V	30 V	Lever, Straight	5A (AC/DC)	Chassis Mount	Solder Lug	-	-	198gf	0.030" (0.76mm)	57gf	0.218" (5.5mm)	0.350" (8.9mm)	0.030" (0.76mm)	-55°C ~ 125°C
21SM144 SWITCH SNAP ACTION SPDT 5A 250V Honeywell Sensing and Productivity Solutions	3,482	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Active	SPDT	On-Mom	250 V	30 V	Round (Pin Plunger)	5A (AC/DC)	Chassis Mount	Solder Lug	-	-	85gf	0.002" (0.05mm)	28gf	0.030" (0.8mm)	0.330" (8.4mm)	0.005" (0.13mm)	-55°C ~ 125°C
V3-3015 SWITCH SNAP ACT SPDT 15.1A 125V Honeywell Sensing and Productivity Solutions	4,939	-	RFQ Sell Excess Inventory	Datasheet	V3	Bulk	Active	SPDT	On-Mom	125 V	125 V	Round (Pin Plunger)	15.1A (AC), 500mA (DC)	Chassis Mount	Solder Lug	-	-	150gf	0.010" (0.25mm)	15gf	0.050" (1.27mm)	0.578" (14.68mm)	0.050" (1.27mm)	-
SCN-1636SC SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	1,252	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Roller	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	Splash Proof	-	141gf	0.070" (1.8mm)	21gf	-	1.188" (30.2mm)	0.156" (3.96mm)	-55°C ~ 85°C
X0204385 SWITCH SNAP ACTION SPDT 6A 250V Crouzet	2,443	-	RFQ Sell Excess Inventory	Datasheet	83160	Bulk	Active	SPDT	On-Mom	250 V	-	Lever, Roller	6A (AC)	Through Hole, Right Angle	PC Pin	-	Actuator Mounted Left Side	-	-	-	-	-	-	-40°C ~ 85°C
83137006 SWITCH SNAP ACT SPST-NO 5A 125V Crouzet	3,458	-	RFQ Sell Excess Inventory	Datasheet	83137	Bulk	Active	SPST-NO	Off-Mom	125 V	-	Side Rotary, Wire	5A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	0.122gfm	10°	0.029gfm	-	-	12°	-20°C ~ 125°C
83137019 SWITCH SNAP ACTION SPDT 5A 125V Crouzet	4,964	-	RFQ Sell Excess Inventory	Datasheet	83137	Bulk	Active	SPDT	On-Mom	125 V	-	Side Rotary, Wire	5A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	0.122gfm	10°	0.029gfm	-	-	12°	-20°C ~ 125°C
22SM850 SWITCH SNAP ACTION SPDT 5A 250V Honeywell Sensing and Productivity Solutions	1,445	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Active	SPDT	On-Mom	250 V	30 V	Round (Pin Plunger)	5A (AC/DC)	Chassis Mount	Solder Lug	-	-	85gf	0.002" (0.05mm)	28gf	0.020" (0.5mm)	0.330" (8.4mm)	0.005" (0.13mm)	-55°C ~ 125°C
BZ-2R722331 SWITCH SNAP ACTION SPDT 1A 125V Honeywell Sensing and Productivity Solutions	3,332	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	1A (AC)	Chassis Mount	Solder Lug	-	-	255 ~ 368gf	0.002" (0.05mm)	113gf	0.015" (0.4mm)	0.625" (15.9mm)	0.005" (0.13mm)	-55°C ~ 85°C
21SM1-T SWITCH SNAP ACTION SPDT 5A 250V Honeywell Sensing and Productivity Solutions	3,325	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Active	SPDT	On-Mom	250 V	30 V	Round (Pin Plunger)	5A (AC/DC)	Chassis Mount	Solder Turret	-	-	141gf	0.004" (0.1mm)	28gf	0.030" (0.8mm)	0.330" (8.4mm)	0.005" (0.13mm)	-55°C ~ 125°C
BZ-7RD-A2 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	1,630	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Round (Pin Plunger)	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	Steel Plunger	624 ~ 794gf	0.007" (0.18mm)	113gf	0.030" (0.8mm)	0.835" (21.2mm)	0.062" (1.6mm)	-55°C ~ 85°C
BE-2RV-A2 SWITCH SNAP ACTION SPDT 25A 125V Honeywell Sensing and Productivity Solutions	1,175	-	RFQ Sell Excess Inventory	Datasheet	BE	Bulk	Obsolete	SPDT	On-Mom	125 V	-	Lever, Straight	25A (AC)	Chassis Mount	Screw Terminal	-	-	71gf	0.110" (2.8mm)	14gf	0.630" (16.0mm)	0.750" (19.1mm)	0.077" (1.96mm)	-55°C ~ 85°C
BM-1R05314 SWITCH SNAP ACTION SPDT 22A 125V Honeywell Sensing and Productivity Solutions	3,985	-	RFQ Sell Excess Inventory	Datasheet	BM	Bulk	Obsolete	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	22A (AC)	Chassis Mount	Screw Terminal	-	-	482gf	0.0005" (0.013mm)	283gf	0.015" (0.4mm)	0.625" (15.9mm)	0.023" (0.58mm)	-55°C ~ 85°C

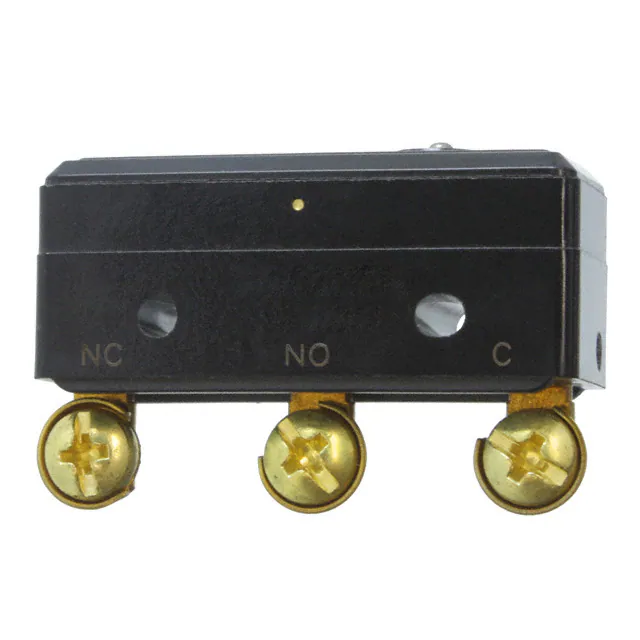

BZ-R370-P5 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	3,400	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	15A (AC)	Chassis Mount	Screw Terminal	-	-	198 ~ 283gf	0.0006" (0.015mm)	113gf	0.012" (0.3mm)	0.625" (15.9mm)	0.005" (0.13mm)	-55°C ~ 85°C
BZ-RX53-B7 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	4,045	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-On	125 V	125 V	Round (Pin Plunger)	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	Reset Plunger on Bottom	198 ~ 255gf	-	-	0.012" (0.3mm)	0.625" (15.9mm)	0.005" (0.13mm)	-55°C ~ 85°C
411SM1 SWITCH SNAP ACTION SPDT 5A 250V Honeywell Sensing and Productivity Solutions	1,028	-	RFQ Sell Excess Inventory	Datasheet	SM	Tray	Active	SPDT	On-Mom	250 V	30 V	Round (Pin Plunger)	5A (AC/DC)	Chassis Mount	Solder Lug	Splash Proof	-	213gf	0.004" (0.1mm)	28gf	0.020" (0.5mm)	0.330" (8.4mm)	0.005" (0.13mm)	-55°C ~ 125°C
WA-1RX-A4 SWITCH SNAP ACT SPST-NC 20A 125V Honeywell Sensing and Productivity Solutions	4,007	-	RFQ Sell Excess Inventory	Datasheet	WA	Bulk	Obsolete	SPST-NC	On-Off	125 V	-	Round (Pin Plunger)	20A (AC)	Chassis Mount	Screw Terminal	-	Reset Plunger on Bottom	567gf	0.008" (0.2mm)	-	-	0.640" (16.3mm)	0.010" (0.25mm)	-55°C ~ 85°C
311SX2-T2 SWITCH SNAP ACTION SPDT 5A 125V Honeywell Sensing and Productivity Solutions	3,948	-	RFQ Sell Excess Inventory	Datasheet	SX	Bulk	Obsolete	SPDT	On-Mom	125 V	28 V	Lever, Straight	5A (AC/DC)	Chassis Mount	Solder Turret	-	-	30gf	0.035" (0.9mm)	5.099gf	0.114" (2.9mm)	0.325" (8.25mm)	0.025" (0.6mm)	-55°C ~ 125°C
BZ-2RDS-A2 SWITCH LARGE BASIC Honeywell Sensing and Productivity Solutions	2,719	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
YA-2RV54321-D6 SWITCH SNAP ACT SPST-NO 20A 125V Honeywell Sensing and Productivity Solutions	4,753	-	RFQ Sell Excess Inventory	Datasheet	YA	Bulk	Obsolete	SPST-NO	Off-Mom	125 V	-	Lever, Straight	20A (AC)	Chassis Mount	Solder, Quick Connect - 0.250" (6.3mm)	-	-	113gf	0.080" (2.0mm)	14gf	0.450" (11.4mm)	0.750" (19.1mm)	0.047" (1.2mm)	-55°C ~ 85°C
