Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
YM-1R-A2 SWITCH SNAP ACTION SPST-NO 22A Honeywell Sensing and Productivity Solutions	4,842	-	RFQ Sell Excess Inventory	Datasheet	YM	Bulk	Obsolete	SPST-NO	Off-Mom	-	-	Round (Pin Plunger)	22A	Chassis Mount	Screw Terminal	-	-	-	-	-	-	-	-	-

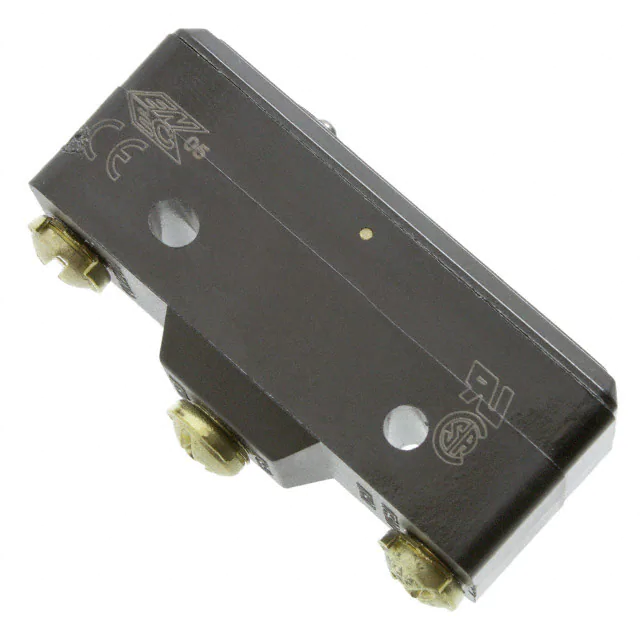

BM-1R-A2 SWITCH SNAP ACTION SPDT 22A 125V Honeywell Sensing and Productivity Solutions	1,419	-	RFQ Sell Excess Inventory	Datasheet	BM	Bulk	Obsolete	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	22A (AC)	Chassis Mount	Screw Terminal	-	-	198gf	0.001" (0.025mm)	113gf	0.015" (0.4mm)	0.625" (15.9mm)	0.005" (0.13mm)	-55°C ~ 85°C
D2VW-5L1B-3MS SWITCH SNAP ACT SPST-NO 5A 125V Omron Electronics Inc-EMC Div	3,570	-	RFQ Sell Excess Inventory	Datasheet	D2VW	Bulk	Active	SPST-NO	Off-Mom	125 V	30 V	Lever, Straight	5A (AC/DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	60gf	0.080" (2.0mm)	5.099gf	0.354" (9.0mm)	0.600" (15.2mm)	0.125" (3.2mm)	-40°C ~ 85°C
BZ-7R35-A4 SWITCH SNAP ACTION SPDT 10A 125V Honeywell Sensing and Productivity Solutions	4,594	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	10A (AC)	Chassis Mount	Screw Terminal	-	-	255 ~ 368gf	0.004" (0.1mm)	113gf	0.040" (1.0mm)	0.625" (15.9mm)	0.005" (0.13mm)	-55°C ~ 85°C
AZH1032 SWITCH SNAP ACTION SPDT 5A 125V Panasonic Industrial Automation Sales	3,259	-	RFQ Sell Excess Inventory	Datasheet	AZH	Bulk	Active	SPDT	On-Mom	125 V	30 V	Roller Plunger	5A (AC/DC)	Panel Mount	Screw Terminal	IP64 - Dust Tight, Water Resistant	-	600gf	0.004" (0.1mm)	100gf	0.060" (1.5mm)	0.922" (23.4mm)	0.118" (3.0mm)	-10°C ~ 80°C
22SM426-T2 SWITCH SNAP ACTION SPDT 5A 250V Honeywell Sensing and Productivity Solutions	1,513	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Obsolete	SPDT	On-Mom	250 V	30 V	Round (Pin Plunger)	5A (AC/DC)	Chassis Mount	Solder Turret	-	-	99gf	0.001" (0.025mm)	28gf	0.020" (0.5mm)	0.330" (8.4mm)	0.003" (0.076mm)	-55°C ~ 125°C
311SM768-T2 SWITCH SNAP ACTION SPDT 1A 125V Honeywell Sensing and Productivity Solutions	4,789	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Obsolete	SPDT	On-Mom	125 V	30 V	Lever, Roller	1A (AC/DC)	Chassis Mount	Solder Turret	-	-	16gf	0.013" (0.33mm)	3.059gf	0.085" (2.16mm)	0.560" (14.2mm)	0.018" (0.45mm)	-55°C ~ 125°C
WZ-R SWITCH SNAP ACT SPST-NC 15A 125V Honeywell Sensing and Productivity Solutions	2,405	-	RFQ Sell Excess Inventory	Datasheet	WZ	Bulk	Obsolete	SPST-NC	On-Mom	125 V	-	Round (Pin Plunger)	15A (AC)	Chassis Mount	Solder Lug	-	-	198 ~ 255gf	0.0003" (0.008mm)	113gf	0.012" (0.3mm)	0.625" (15.9mm)	0.005" (0.13mm)	-55°C ~ 85°C

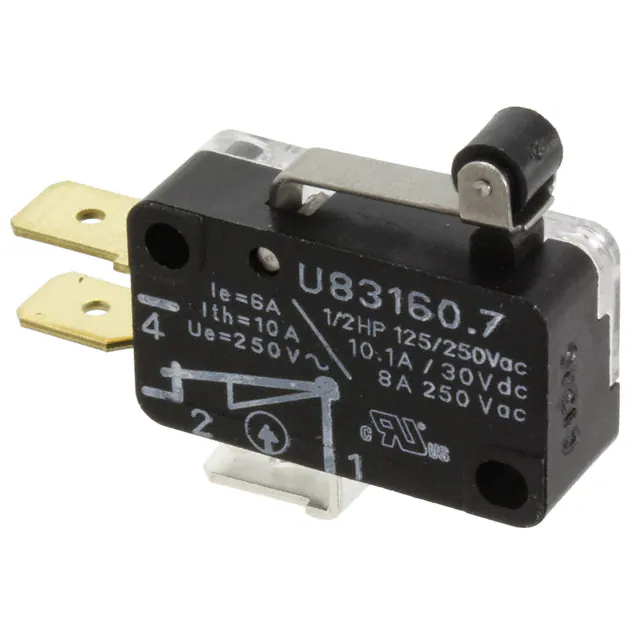

83160710 SWITCH SNAP ACTION SPDT 6A 250V Crouzet	4,662	-	RFQ Sell Excess Inventory	Datasheet	83160	Bulk	Active	SPDT	On-Mom	250 V	-	Lever, Roller	6A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	-	-	-	-	-	-	-40°C ~ 85°C
YM-1R2450 SWITCH SNAP ACT SPST-NO 22A 125V Honeywell Sensing and Productivity Solutions	3,092	-	RFQ Sell Excess Inventory	Datasheet	YM	Bulk	Obsolete	SPST-NO	Off-Mom	125 V	-	Round (Pin Plunger)	22A (AC)	Chassis Mount	Screw Terminal	-	-	312 ~ 624gf	0.0008" (0.020mm)	255gf	0.030" (0.8mm)	0.625" (15.9mm)	0.010" (0.25mm)	-55°C ~ 121°C
BA-2RV336-A2 SWITCH SNAP ACTION SPDT 20A 125V Honeywell Sensing and Productivity Solutions	4,475	-	RFQ Sell Excess Inventory	Datasheet	BA	Bulk	Active	SPDT	On-Mom	125 V	125 V	Lever, Straight	20A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	42 ~ 71gf	0.045" (1.1mm)	28gf	0.470" (11.9mm)	0.750" (19.1mm)	0.100" (2.54mm)	-55°C ~ 85°C
BZ-2RLT SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	4,100	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	125 V	125 V	Lever, Leaf	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	141gf	0.050" (1.3mm)	14gf	-	0.689" (17.5mm)	0.060" (1.5mm)	-55°C ~ 85°C
BZ-R88 SWITCH SNAP ACTION SPDT 10A 125V Honeywell Sensing and Productivity Solutions	2,078	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	10A (AC)	Chassis Mount	Solder Lug	-	-	255gf	0.0007" (0.018mm)	85gf	0.012" (0.3mm)	0.625" (15.9mm)	0.005" (0.13mm)	-55°C ~ 85°C
MN-5100 SWITCH SNAP ACTION SPDT 10A 250V Moujen	1,087	-	RFQ Sell Excess Inventory	Datasheet	MN		Active	SPDT	On-Mom	250 V	125 V	Round (Pin Plunger)	10A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	IP65 - Dust Tight, Water Resistant	Actuator Seal Boot	600gf	0.031" (0.8mm)	100gf	0.079" (2.00mm)	-	0.031" (0.8mm)	-10°C ~ 80°C
21SX39-H58 SWITCH SNAP ACTION SPDT 7A 115V Honeywell Sensing and Productivity Solutions	2,202	-	RFQ Sell Excess Inventory	Datasheet	SX	Bulk	Active	SPDT	On-Mom	115 V	28 V	Round (Pin Plunger)	7A (AC/DC)	Chassis Mount	Quick Connect - 0.058" (Round)	-	-	141gf	0.005" (0.13mm)	28gf	0.020" (0.5mm)	0.320" (8.13mm)	0.004" (0.1mm)	-53°C ~ 85°C
BZ-RW8435161-A2 SWITCH SNAP ACTION SPDT 10A 125V Honeywell Sensing and Productivity Solutions	2,751	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	-	Lever, Straight	10A (AC)	Chassis Mount	Screw Terminal	-	-	7.000gf	0.012" (0.3mm)	-	0.250" (6.35mm)	0.750" (19.1mm)	0.203" (5.15mm)	-55°C ~ 85°C
Z-15GW22S-B7-K SWITCH SNAP ACTION SPDT 15A 125V Omron Automation and Safety	2,559	-	RFQ Sell Excess Inventory	Datasheet	Z	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Roller	15A (AC), 6A (DC)	Chassis Mount	Screw Terminal	IP00	-	-	-	-	-	-	-	-25°C ~ 80°C
BZ-2RW80 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	2,148	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	125 V	125 V	Lever, Straight	15A (AC), 500mA (DC)	Chassis Mount	Solder Lug	-	-	71gf	0.050" (1.3mm)	14gf	-	0.750" (19.1mm)	0.219" (5.6mm)	-55°C ~ 85°C
V7-1H15D8-000-5 SWITCH PIN PLUNGER SPDT QC Honeywell Sensing and Productivity Solutions	1,486	-	RFQ Sell Excess Inventory	Datasheet	V7	Bulk	Obsolete	SPDT	On-Mom	-	-	Round (Pin Plunger)	-	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	150gf	0.010" (0.25mm)	-	0.047" (1.2mm)	0.579" (14.7mm)	0.050" (1.27mm)	-40°C ~ 85°C
YE-2RV22-D5 SWITCH SNAP ACT SPST-NO 25A 125V Honeywell Sensing and Productivity Solutions	3,990	-	RFQ Sell Excess Inventory	Datasheet	YE	Bulk	Obsolete	SPST-NO	Off-Mom	125 V	-	Lever, Roller	25A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	170gf	0.045" (1.1mm)	43gf	0.250" (6.35mm)	1.172" (29.8mm)	0.030" (0.76mm)	-55°C ~ 85°C
