Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature

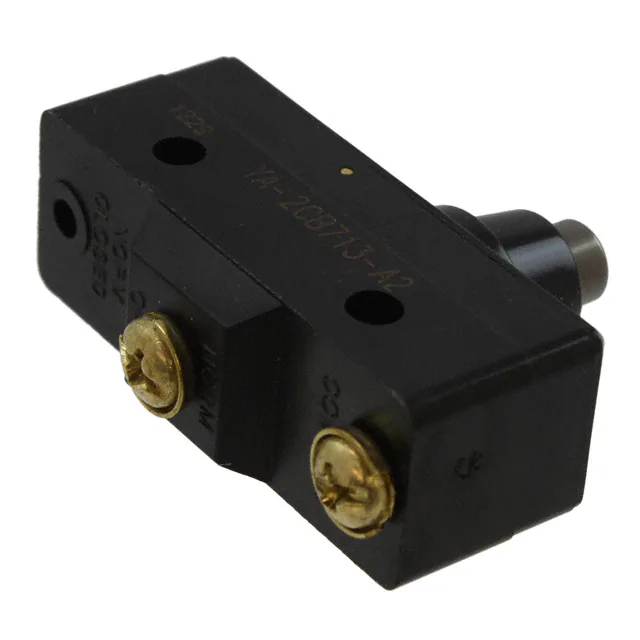

YA-2CB713-A2 SWITCH SNAP ACT SPST-NO 15A 125V Honeywell Sensing and Productivity Solutions	4,430	-	RFQ Sell Excess Inventory	Datasheet	YA	Bulk	Active	SPST-NO	Off-Mom	125 V	125 V	Round (Pin Plunger)	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	397 ~ 624gf	0.007" (0.18mm)	283gf	0.050" (1.27mm)	1.030" (26.2mm)	0.094" (2.4mm)	-55°C ~ 85°C
BZ-RD-A2 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	2,722	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	15A (AC)	Chassis Mount	Screw Terminal	-	Steel Plunger	170 ~ 269gf	0.0005" (0.013mm)	113gf	0.012" (0.3mm)	0.835" (21.2mm)	0.060" (1.5mm)	-55°C ~ 85°C
BZ-1RW82991-T SWITCH LARGE BASIC Honeywell Sensing and Productivity Solutions	3,321	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2DM8 SWITCH SNAP ACT DPST-NO 10A 125V Honeywell Sensing and Productivity Solutions	3,439	-	RFQ Sell Excess Inventory	Datasheet	DM	Bulk	Active	DPST-NO	Off-Mom	125 V	-	Round (Pin Plunger)	10A (AC)	Panel Mount, Snap-In	Quick Connect - 0.187" (4.7mm)	-	-	680gf	0.045" (1.1mm)	170gf	-	0.770" (19.5mm)	0.400" (10.2mm)	-37°C ~ 82°C
YZ-2RW82725551D6-1 SWITCH MICRO Honeywell Sensing and Productivity Solutions	2,234	-	RFQ Sell Excess Inventory	Datasheet	YZ	Bulk	Active	SPST-NO	Off-Mom	-	-	Lever, Leaf	15A	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	-	-	-	-	-	-	-55°C ~ 85°C
BZ-2RD-D5 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	3,853	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Round (Pin Plunger)	15A (AC), 500mA (DC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	Steel Plunger	255 ~ 368gf	0.002" (0.05mm)	113gf	0.015" (0.4mm)	0.835" (21.2mm)	0.060" (1.5mm)	-55°C ~ 85°C
BZ-7RLT04 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	3,562	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	125 V	125 V	Lever, Leaf	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	255gf	0.080" (2.0mm)	14gf	0.219" (5.6mm)	0.689" (17.5mm)	0.060" (1.5mm)	-55°C ~ 85°C
BZ-7RWT822101 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	1,251	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Roller	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	198gf	0.050" (1.3mm)	43gf	-	1.188" (30.2mm)	0.094" (2.4mm)	-55°C ~ 85°C
Z-15GM22 SWITCH SNAP ACTION SPDT 15A 125V Omron Automation and Safety	2,571	-	RFQ Sell Excess Inventory	Datasheet	Z	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Roller	15A (AC), 6A (DC)	Chassis Mount	Solder Lug	IP00	-	538gf	0.011" (0.28mm)	170gf	-	1.156" (29.4mm)	0.079" (2.0mm)	-25°C ~ 80°C
BZ-2RM SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	4,101	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Straight	15A (AC), 500mA (DC)	Chassis Mount	Solder Lug	-	-	170gf	0.004" (0.1mm)	28gf	0.219" (5.6mm)	0.750" (19.1mm)	0.219" (5.6mm)	-55°C ~ 85°C
BA-2RL-A2 SWITCH SNAP ACTION SPDT 20A 125V Honeywell Sensing and Productivity Solutions	3,792	-	RFQ Sell Excess Inventory	Datasheet	BA	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Leaf	20A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	255gf	0.065" (1.7mm)	28gf	-	0.689" (17.5mm)	0.062" (1.6mm)	-55°C ~ 85°C
ZW50F99AW4-C SWITCH SNAP ACT SPDT-NC 6A 125V Honeywell Sensing and Productivity Solutions	1,660	-	RFQ Sell Excess Inventory	Datasheet	ZW	Tray	Active	SPST-NC	On-Mom	125 V	-	Round (Pin Plunger)	6A (AC)	-	-	IP67 - Dust Tight, Waterproof	-	203gf	-	-	-	-	-	-40°C ~ 120°C
BZ-2R710-PC2 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	3,924	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Round (Pin Plunger)	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	255 ~ 368gf	0.002" (0.05mm)	113gf	0.015" (0.4mm)	0.625" (15.9mm)	0.005" (0.13mm)	-55°C ~ 85°C
BZ-2RW8024 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	1,638	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Straight	15A (AC), 500mA (DC)	Chassis Mount	Solder Lug	-	-	71gf	0.050" (1.3mm)	14gf	-	0.750" (19.1mm)	0.219" (5.6mm)	-55°C ~ 85°C
BA-5RV310-A2 SWITCH SNAP ACTION SPDT 20A 125V Honeywell Sensing and Productivity Solutions	3,420	-	RFQ Sell Excess Inventory	Datasheet	BA	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Straight	20A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	49gf	0.200" (5.1mm)	7.087gf	-	0.750" (19.1mm)	0.180" (4.6mm)	-55°C ~ 85°C
BE-R0512-A2 SWITCH SNAP ACTION SPDT 25A 125V Honeywell Sensing and Productivity Solutions	3,186	-	RFQ Sell Excess Inventory	Datasheet	BE	Bulk	Obsolete	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	25A (AC)	Chassis Mount	Screw Terminal	-	-	312 ~ 482gf	0.002" (0.05mm)	283gf	0.040" (1.0mm)	0.640" (16.3mm)	0.010" (0.25mm)	-55°C ~ 85°C
BZ-2R-P5 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	4,669	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Round (Pin Plunger)	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	255 ~ 368gf	0.002" (0.05mm)	113gf	0.015" (0.4mm)	0.625" (15.9mm)	0.005" (0.13mm)	-55°C ~ 85°C
BZ-RW8435 SWITCH SNAP ACTION SPDT 10A 125V Honeywell Sensing and Productivity Solutions	4,789	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	-	Lever, Straight	10A (AC)	Chassis Mount	Solder Lug	-	-	7.000gf	0.015" (0.38mm)	-	0.266" (6.75mm)	0.750" (19.1mm)	0.219" (5.6mm)	-55°C ~ 85°C

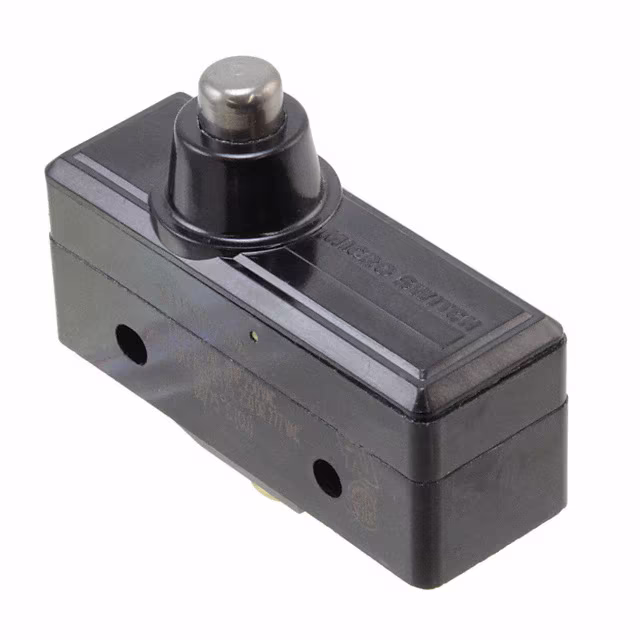

YE-2RB-A4 SWITCH SNAP ACT SPST-NO 25A 125V Honeywell Sensing and Productivity Solutions	4,940	-	RFQ Sell Excess Inventory	Datasheet	YE	Bulk	Obsolete	SPST-NO	Off-Mom	125 V	-	Round (Pin Plunger)	25A (AC)	Chassis Mount	Screw Terminal	-	-	397 ~ 624gf	0.007" (0.18mm)	283gf	0.050" (1.27mm)	1.030" (26.2mm)	0.094" (2.4mm)	-55°C ~ 85°C

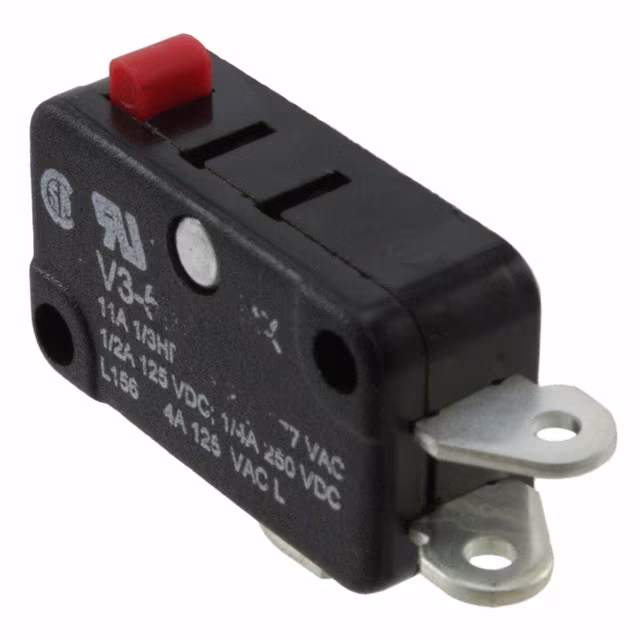

V3-507 SWITCH SNAP ACTION SPDT 11A 125V Honeywell Sensing and Productivity Solutions	1,331	-	RFQ Sell Excess Inventory	Datasheet	V3	Bulk	Active	SPDT	On-Mom	125 V	125 V	Round (Pin Plunger)	11A (AC), 500mA (DC)	Chassis Mount	Solder Lug	-	-	227gf	0.016" (0.4mm)	57gf	0.047" (1.2mm)	0.579" (14.7mm)	0.040" (1.0mm)	-
