Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
141SM2-T2 SWITCH SNAP ACTION SPDT 11A 250V Honeywell Sensing and Productivity Solutions	3,075	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Active	SPDT	On-Mom	250 V	30 V	Lever, Roller	11A (AC), 5A (DC)	Chassis Mount	Solder Turret	-	-	198gf	0.025" (0.6mm)	57gf	0.218" (5.5mm)	0.562" (14.3mm)	0.030" (0.76mm)	-55°C ~ 125°C
HBS2PBB4ST011C SWITCH SNAP ACTION SPDT 20A 125V C&K	1,589	-	RFQ Sell Excess Inventory	Datasheet	HB	Bulk	Active	SPDT	On-Mom	125 V	125 V	Lever, Straight	20A (AC), 500mA (DC)	Chassis Mount	Solder Lug	IP65 - Dust Tight, Water Resistant	-	99gf	0.156" (4.0mm)	14gf	0.380" (9.65mm)	0.720" (18.3mm)	0.190" (4.8mm)	-55°C ~ 150°C
BZ-3RW82134-A2 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	1,722	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Roller	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	99gf	0.035" (0.9mm)	21gf	-	1.188" (30.2mm)	0.156" (3.96mm)	-55°C ~ 85°C
JT-1 SWITCH STRGHT LEVER ASSMBLY Honeywell Sensing and Productivity Solutions	2,841	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
EN-10020 SWITCH AERO SEALED Honeywell Sensing and Productivity Solutions	4,038	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
WZ-2RW84429-P52 SWITCH SNAP ACT SPST-NC 15A 125V Honeywell Sensing and Productivity Solutions	2,671	-	RFQ Sell Excess Inventory	Datasheet	WZ	Bulk	Active	SPST-NC	On-Mom	125 V	125 V	Lever, Straight	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	21gf	0.219" (5.6mm)	14gf	0.625" (15.9mm)	0.720" (18.3mm)	0.141" (3.6mm)	-55°C ~ 85°C
BZ-2RD23-A2 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	4,241	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Round (Pin Plunger)	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	Steel Plunger	255 ~ 368gf	0.002" (0.05mm)	113gf	0.015" (0.4mm)	0.835" (21.2mm)	0.060" (1.5mm)	-55°C ~ 85°C

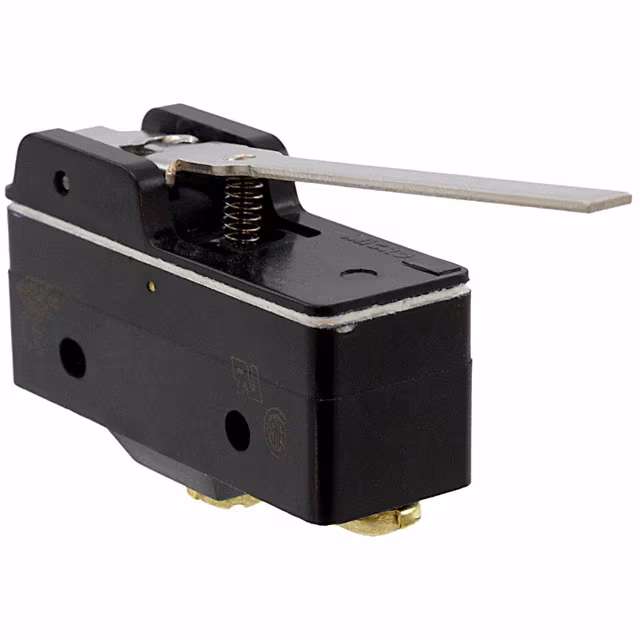

BZ-7RW8055151-A2-S SWITCH SNAP ACTION SPDT 10A 125V Honeywell Sensing and Productivity Solutions	4,192	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Straight	10A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	Splash Proof	-	120gf	0.100" (2.54mm)	21gf	-	0.750" (19.1mm)	0.172" (4.4mm)	-55°C ~ 85°C
BZ-2RW80-D5 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	3,236	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	125 V	125 V	Lever, Straight	15A (AC), 500mA (DC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	71gf	0.050" (1.3mm)	14gf	-	0.750" (19.1mm)	0.219" (5.6mm)	-55°C ~ 85°C
BZ-RW8435-A2 SWITCH SNAP ACTION SPDT 10A 125V Honeywell Sensing and Productivity Solutions	2,605	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	125 V	-	Lever, Straight	10A (AC)	Chassis Mount	Screw Terminal	-	-	7.000gf	0.015" (0.38mm)	-	0.266" (6.75mm)	0.750" (19.1mm)	0.219" (5.6mm)	-55°C ~ 85°C
BA-2RB SWITCH SNAP ACTION SPDT 20A 125V Honeywell Sensing and Productivity Solutions	1,180	-	RFQ Sell Excess Inventory	Datasheet	BA	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Overtravel Plunger	20A (AC), 500mA (DC)	Panel Mount	Solder Lug	-	-	397 ~ 624gf	0.002" (0.05mm)	283gf	0.050" (1.27mm)	1.030" (26.2mm)	0.094" (2.4mm)	-55°C ~ 85°C
BZ-RW842214-P4 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	2,316	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	125 V	-	Lever, Roller	15A (AC)	Chassis Mount	Screw Terminal	-	-	56gf	0.006" (0.15mm)	7.087gf	0.094" (2.4mm)	1.188" (30.2mm)	0.094" (2.4mm)	-55°C ~ 85°C
EX-10881 LIMIT SWITCH Honeywell Sensing and Productivity Solutions	2,766	-	RFQ Sell Excess Inventory	Datasheet	-	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
V3L-112-D8 SWITCH SNAP ACTION SPDT 11A 125V Honeywell Sensing and Productivity Solutions	1,883	-	RFQ Sell Excess Inventory	Datasheet	V3L	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Straight	11A (AC), 500mA (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	46gf	0.098" (2.5mm)	6.000gf	0.344" (8.7mm)	0.595" (15.13mm)	0.115" (2.9mm)	-
BZ-2RW80147-A2 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	4,116	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	125 V	125 V	Lever, Simulated Roller	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	170gf	0.020" (0.5mm)	43gf	-	1.188" (30.2mm)	0.094" (2.4mm)	-55°C ~ 85°C
21SX88 SWITCH SNAP ACTION SPDT 7A 115V Honeywell Sensing and Productivity Solutions	1,934	-	RFQ Sell Excess Inventory	Datasheet	SX	Bulk	Active	SPDT	On-Mom	115 V	28 V	Round (Pin Plunger)	7A (AC/DC)	Chassis Mount	Solder Turret	-	-	141gf	0.005" (0.13mm)	28gf	0.020" (0.5mm)	0.320" (8.13mm)	0.004" (0.1mm)	-53°C ~ 85°C
D2VW-01-2MS-0 SWITCH SNAP ACTION MINI BASIC Omron Electronics Inc-EMC Div	4,323	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Z-15HW-B SWITCH SNAP ACTION SPDT 15A 125V Omron Automation and Safety	2,814	-	RFQ Sell Excess Inventory	Datasheet	Z	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Straight	15A (AC), 2A (DC)	Chassis Mount	Screw Terminal	IP00	-	67gf	0.025" (0.6mm)	14gf	-	0.748" (19.0mm)	0.219" (5.6mm)	-25°C ~ 80°C

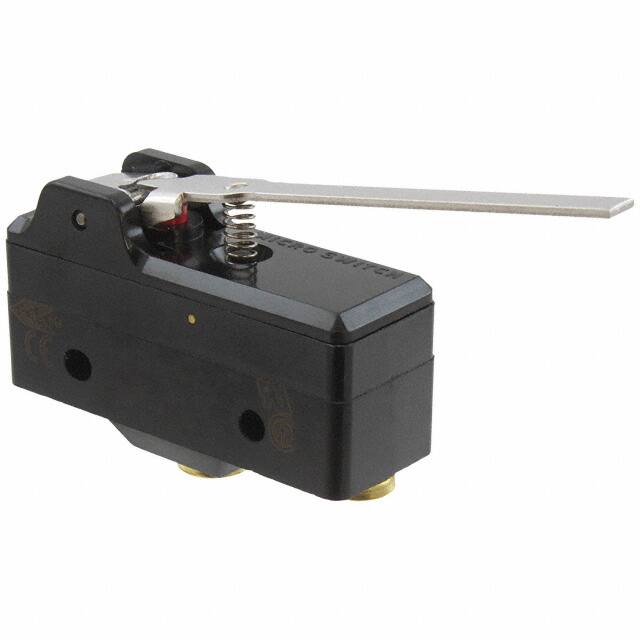

BA-2RV136-A2 SWITCH SNAP ACTION SPDT 20A 125V Honeywell Sensing and Productivity Solutions	4,099	-	RFQ Sell Excess Inventory	Datasheet	BA	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Straight	20A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	227gf	0.070" (1.8mm)	163gf	0.400" (10.1mm)	0.750" (19.1mm)	0.050" (1.27mm)	-55°C ~ 85°C
11SM2454 SWITCH SNAP ACTION SPDT 5A 30V Honeywell Sensing and Productivity Solutions	3,055	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Obsolete	SPDT	On-Mom	-	30 V	Round (Pin Plunger)	5A (DC)	Chassis Mount	Solder Lug	-	-	141gf	0.004" (0.1mm)	28gf	0.020" (0.5mm)	0.330" (8.4mm)	0.005" (0.13mm)	-55°C ~ 125°C
