Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
111SM126-T SWITCH SUBMINI BASIC SPDT Honeywell Sensing and Productivity Solutions	2,835	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Obsolete	SPDT	On-Mom	-	-	Lever, Leaf	-	Chassis Mount	-	-	-	-	-	-	-	-	-	-54°C ~ 121°C
411SM1-H58 SWITCH SNAP ACTION SPDT 5A 250V Honeywell Sensing and Productivity Solutions	1,182	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Active	SPDT	On-Mom	250 V	30 V	Round (Pin Plunger)	5A (AC/DC)	Chassis Mount	Quick Connect - 0.058" (Round)	Splash Proof	-	213gf	0.004" (0.1mm)	28gf	0.020" (0.5mm)	0.330" (8.4mm)	0.005" (0.13mm)	-55°C ~ 125°C
BZ-2RW8435-A2 SWITCH SNAP ACTION SPDT 10A 125V Honeywell Sensing and Productivity Solutions	4,405	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Straight	10A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	14gf	0.050" (1.3mm)	-	0.328" (8.3mm)	0.750" (19.1mm)	0.219" (5.6mm)	-55°C ~ 85°C

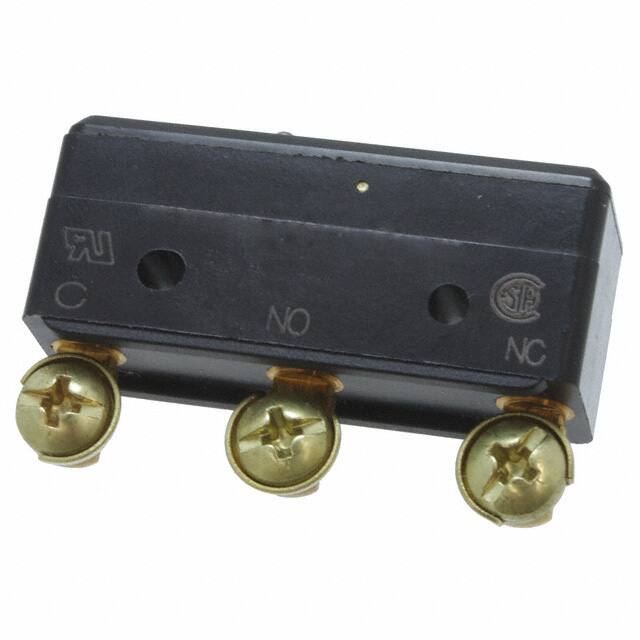

BE-2R-P4 SWITCH SNAP ACTION SPDT 25A 125V Honeywell Sensing and Productivity Solutions	1,482	-	RFQ Sell Excess Inventory	Datasheet	BE	Bulk	Active	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	25A (AC)	Chassis Mount	Screw Terminal	-	-	397 ~ 624gf	0.007" (0.18mm)	283gf	0.050" (1.27mm)	0.640" (16.3mm)	0.010" (0.25mm)	-55°C ~ 85°C
BZ-2RW82 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	1,195	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Roller	15A (AC), 500mA (DC)	Chassis Mount	Solder Lug	-	-	99gf	0.040" (1.0mm)	21gf	-	1.188" (30.2mm)	0.156" (3.96mm)	-55°C ~ 85°C
BZ-2R276-P5 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	4,528	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Round (Pin Plunger)	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	255 ~ 368gf	0.002" (0.05mm)	113gf	0.015" (0.4mm)	0.625" (15.9mm)	0.005" (0.13mm)	-55°C ~ 85°C
BZ-RX47 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	2,054	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-On	125 V	125 V	Round (Pin Plunger)	15A (AC), 500mA (DC)	Chassis Mount	Solder Lug	-	Reset Plunger on Bottom	510 ~ 850gf	-	-	0.012" (0.3mm)	0.625" (15.9mm)	0.005" (0.13mm)	-55°C ~ 85°C
BZ-7RW80189-A2 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	3,689	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	125 V	125 V	Lever, Simulated Roller	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	482gf	0.050" (1.3mm)	43gf	-	1.188" (30.2mm)	0.094" (2.4mm)	-55°C ~ 85°C
BZ-7RWT80 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	3,285	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	125 V	125 V	Lever, Straight	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	99gf	0.125" (3.2mm)	14gf	-	0.750" (19.1mm)	0.219" (5.6mm)	-55°C ~ 85°C
AZH2044 SWITCH SNAP ACTION SPDT 5A 125V Panasonic Industrial Automation Sales	4,356	-	RFQ Sell Excess Inventory	Datasheet	AZH	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Roller	5A (AC/DC)	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	-	400gf	0.012" (0.3mm)	80gf	0.080" (2.0mm)	0.909" (23.1mm)	0.158" (4.0mm)	-10°C ~ 80°C
AZH2224 SWITCH SNAP ACT SPDT 0.1A 125V Panasonic Industrial Automation Sales	2,925	-	RFQ Sell Excess Inventory	Datasheet	AZH	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Roller	100mA (AC/DC)	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	-	250gf	0.025" (0.6mm)	40gf	0.157" (4.0mm)	1.350" (34.3mm)	0.276" (7.0mm)	-10°C ~ 80°C
AZH2244 SWITCH SNAP ACT SPDT 0.1A 125V Panasonic Industrial Automation Sales	4,557	-	RFQ Sell Excess Inventory	Datasheet	AZH	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Roller	100mA (AC/DC)	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	-	400gf	0.012" (0.3mm)	80gf	0.080" (2.0mm)	0.909" (23.1mm)	0.158" (4.0mm)	-10°C ~ 80°C
YZ-2RW863-A2 SWITCH SNAP ACT SPST-NO 15A 125V Honeywell Sensing and Productivity Solutions	1,010	-	RFQ Sell Excess Inventory	Datasheet	YZ	Bulk	Obsolete	SPST-NO	Off-Mom	125 V	125 V	Lever, Straight	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	28gf	0.145" (3.7mm)	-	-	0.750" (19.1mm)	0.500" (12.7mm)	-55°C ~ 85°C
GLLC06B SWITCH SNAP ACT DPST-NC 10A 300V Honeywell Sensing and Productivity Solutions	2,380	-	RFQ Sell Excess Inventory	Datasheet	GLL	Bulk	Obsolete	DPST-NC	On-Mom	300 V	250 V	Round (Pin Plunger)	10A (AC/DC)	Chassis Mount	Screw Terminal	IP66 - Dust Tight, Water Resistant	-	612gf	-	153gf	0.080" (2.0mm)	0.730" (18.5mm)	0.118" (3.0mm)	-10°C ~ 80°C
311SM1017-T SWITCH SNAP ACT SPDT 0.1A 125V Honeywell Sensing and Productivity Solutions	3,872	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Obsolete	SPDT	On-Mom	125 V	30 V	Lever, Straight	100mA (AC/DC)	Chassis Mount	Solder Turret	-	-	15gf	0.110" (2.8mm)	2.039gfm	0.310" (7.9mm)	0.280" (7.1mm)	0.057" (1.45mm)	-55°C ~ 125°C
YZ-2RW82272551D682 SWITCH LARGE BASIC Honeywell Sensing and Productivity Solutions	3,218	-	RFQ Sell Excess Inventory	Datasheet	YZ	Bulk	Active	SPST-NO	Off-Mom	-	-	Lever, Leaf	15A	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	-	-	-	-	-	-	-55°C ~ 85°C
BZ-2RW805551292-A2 SWITCH BASIC Honeywell Sensing and Productivity Solutions	3,478	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
YA-2RV-A2 SWITCH SNAP ACT SPST-NO 20A 125V Honeywell Sensing and Productivity Solutions	2,734	-	RFQ Sell Excess Inventory	Datasheet	YA	Bulk	Obsolete	SPST-NO	Off-Mom	125 V	125 V	Lever, Straight	20A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	71gf	0.110" (2.8mm)	14gf	0.625" (15.9mm)	0.750" (19.1mm)	0.079" (2.0mm)	-55°C ~ 85°C
11SX96-T SWITCH SNAP ACTION SPDT 5A 115V Honeywell Sensing and Productivity Solutions	2,238	-	RFQ Sell Excess Inventory	Datasheet	SX	Bulk	Active	SPDT	On-Mom	115 V	28 V	Round (Pin Plunger)	5A (AC/DC)	Chassis Mount	Solder Turret	-	-	170gf	0.001" (0.025mm)	14gf	0.020" (0.5mm)	0.320" (8.13mm)	0.010" (0.25mm)	-55°C ~ 125°C
BZ-2RW84118-A41 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	1,986	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Straight	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	28gf	0.060" (1.5mm)	7.087gf	-	0.715" (18.2mm)	0.266" (6.75mm)	-55°C ~ 85°C
