Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
BZ-2RD-D6 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	2,219	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	125 V	125 V	Round (Pin Plunger)	15A (AC), 500mA (DC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	Steel Plunger	255 ~ 368gf	0.002" (0.05mm)	113gf	0.015" (0.4mm)	0.835" (21.2mm)	0.060" (1.5mm)	-55°C ~ 85°C
BE-2RL-A4 SWITCH SNAP ACTION SPDT 25A 125V Honeywell Sensing and Productivity Solutions	4,137	-	RFQ Sell Excess Inventory	Datasheet	BE	Bulk	Obsolete	SPDT	On-Mom	125 V	-	Lever, Leaf	25A (AC)	Chassis Mount	Screw Terminal	-	-	255gf	0.062" (1.6mm)	28gf	-	0.689" (17.5mm)	0.060" (1.5mm)	-55°C ~ 85°C
BZ-2RQ1017-A2 SWITCH LARGE BASIC Honeywell Sensing and Productivity Solutions	1,028	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
WA-1RX12-A41 SWITCH SNAP ACT SPST-NC 20A 125V Honeywell Sensing and Productivity Solutions	3,729	-	RFQ Sell Excess Inventory	Datasheet	WA	Bulk	Obsolete	SPST-NC	On-Off	125 V	-	Round (Pin Plunger)	20A (AC)	Chassis Mount	Screw Terminal	-	Reset Plunger on Bottom	113 ~ 454gf	-	-	-	0.660" (16.76mm)	0.010" (0.25mm)	-55°C ~ 85°C
8486-05 SWITCH STOPLAMP Littelfuse Inc.	2,564	-	RFQ Sell Excess Inventory	Datasheet	-	Bulk	Obsolete	SPST-NC	-	-	-	Arm Lever	-	-	Solder Turret	-	-	-	-	-	-	-	-	-
BZ-2RW881T SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	4,632	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Straight	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	99gf	0.040" (1.0mm)	14gf	-	0.750" (19.1mm)	0.172" (4.4mm)	-55°C ~ 85°C
MS24547-4 SWITCH Honeywell Sensing and Productivity Solutions	2,468	-	RFQ Sell Excess Inventory	Datasheet	MS	Bulk	Active	SPDT	On-On	115 V	24 V	Round (Pin Plunger)	7A (AC/DC)	Chassis Mount	PC Pin	-	-	142gf	0.005" (0.13mm)	29gf	0.020" (0.5mm)	0.320" (8.13mm)	0.004" (0.1mm)	-54°C ~ 82°C
D2VW-5L2-3MS SWITCH SNAP ACT SPST-NO 5A 125V Omron Electronics Inc-EMC Div	1,443	-	RFQ Sell Excess Inventory	Datasheet	D2VW	Bulk	Active	SPST-NO	Off-Mom	125 V	30 V	Lever, Roller	5A (AC/DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	120gf	0.031" (0.8mm)	15gf	0.157" (4.0mm)	0.815" (20.7mm)	0.062" (1.6mm)	-40°C ~ 85°C

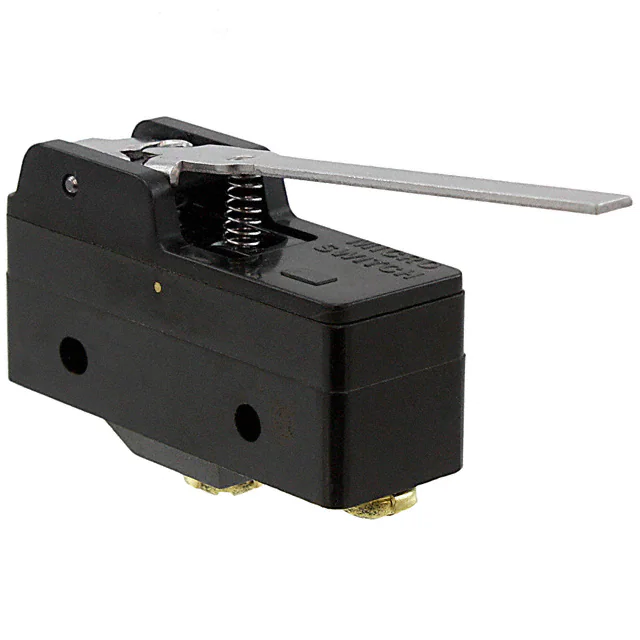

BZ-2RW8244-A2 SWITCH SNAP ACTION SPDT 5A 125V Honeywell Sensing and Productivity Solutions	2,815	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	125 V	125 V	Lever, Straight	5A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	71gf	0.050" (1.3mm)	14gf	-	0.750" (19.1mm)	0.219" (5.6mm)	-55°C ~ 204°C
311SM718-H58 SWITCH SNAP ACTION SPDT 1A 125V Honeywell Sensing and Productivity Solutions	4,744	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Obsolete	SPDT	On-Mom	125 V	30 V	Lever, Formed	1A (AC/DC)	Chassis Mount	Quick Connect - 0.058" (Round)	-	-	8.000gf	0.023" (0.58mm)	2.000gf	0.170" (4.3mm)	0.720" (18.3mm)	0.039" (1.0mm)	-55°C ~ 125°C
311SM781-H58 SWITCH SNAP ACTION SPDT 1A 125V Honeywell Sensing and Productivity Solutions	2,275	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Obsolete	SPDT	On-Mom	125 V	30 V	Lever, Formed	1A (AC/DC)	Chassis Mount	Quick Connect - 0.058" (Round)	-	-	8.000gf	0.025" (0.6mm)	2.000gf	0.183" (4.6mm)	0.720" (18.3mm)	0.040" (1.0mm)	-55°C ~ 125°C
1SM46-T SWITCH SNAP ACTION SPDT 1A 30V Honeywell Sensing and Productivity Solutions	4,144	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Active	SPDT	On-Mom	-	30 V	Round (Pin Plunger)	1A (DC)	Chassis Mount	Solder Turret	-	-	141gf	0.004" (0.1mm)	28gf	0.030" (0.8mm)	0.330" (8.4mm)	0.005" (0.13mm)	-55°C ~ 125°C
BZ-2RD44-PC2 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	4,895	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Round (Pin Plunger)	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	Steel Plunger	255 ~ 368gf	0.002" (0.05mm)	113gf	0.015" (0.4mm)	0.835" (21.2mm)	0.060" (1.5mm)	-55°C ~ 85°C
21SX83-H340 SWITCH SNAP ACTION SPDT 7A 115V Honeywell Sensing and Productivity Solutions	3,044	-	RFQ Sell Excess Inventory	Datasheet	SX	Bulk	Active	SPDT	On-Mom	115 V	28 V	Round (Pin Plunger)	7A (AC/DC)	Through Hole	PC Pin	-	-	141gf	0.005" (0.13mm)	28gf	0.020" (0.5mm)	0.320" (8.13mm)	0.004" (0.1mm)	-53°C ~ 85°C
10BS212 SWITCH SNAP ACTION SPDT 20A 125V Honeywell Sensing and Productivity Solutions	3,537	-	RFQ Sell Excess Inventory	Datasheet	BS	Bulk	Obsolete	SPDT	On-Mom	125 V	-	Adjustable Plunger	20A (AC)	Chassis Mount	Screw Terminal	-	-	907gf	0.007" (0.18mm)	283gf	-	0.640" (16.3mm)	0.010" (0.25mm)	-
91SX39-T2 SWITCH SNAP ACTION SPDT 7A 115V Honeywell Sensing and Productivity Solutions	3,551	-	RFQ Sell Excess Inventory	Datasheet	SX	Bulk	Active	SPDT	On-Mom	115 V	28 V	Round (Pin Plunger)	7A (AC/DC)	Chassis Mount	Solder Turret	-	-	141gf	0.005" (0.13mm)	28gf	0.020" (0.5mm)	0.320" (8.13mm)	0.004" (0.1mm)	-53°C ~ 85°C
BZ-7R396-P5 SWITCH LARGE BASIC Honeywell Sensing and Productivity Solutions	2,147	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
831115C3.0 SWITCH SNAP ACTION SPDT 10A 250V Crouzet	3,082	-	RFQ Sell Excess Inventory	Datasheet	83111	Bulk	Obsolete	SPDT (DB/DM)	On-Mom	250 V	-	Round (Pin Plunger)	10A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	408gf	0.020" (0.5mm)	102gf	-	0.451" (11.45mm)	0.026" (0.7mm)	-20°C ~ 85°C
BA-2RB35-A2 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	3,968	-	RFQ Sell Excess Inventory	Datasheet	BA	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Overtravel Plunger	15A (AC), 500mA (DC)	Panel Mount	Screw Terminal	-	-	340gf	0.002" (0.05mm)	113gf	0.050" (1.27mm)	1.030" (26.2mm)	0.094" (2.4mm)	-55°C ~ 85°C
BZ-2RW80172-A2 SWITCH SNAP ACTION SPDT 5A 125V Honeywell Sensing and Productivity Solutions	1,596	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Straight	5A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	71gf	0.050" (1.3mm)	14gf	-	0.750" (19.1mm)	0.219" (5.6mm)	-55°C ~ 85°C
