Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
11SM401-H58 SWITCH SNAP ACTION SPDT 5A 250V Honeywell Sensing and Productivity Solutions	2,609	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Active	SPDT	On-Mom	250 V	30 V	Round (Pin Plunger)	5A (AC/DC)	Chassis Mount	Quick Connect - 0.058" (Round)	-	-	99gf	0.001" (0.025mm)	28gf	0.020" (0.5mm)	0.330" (8.4mm)	0.005" (0.13mm)	-55°C ~ 125°C
BZ-7RL367T SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	1,787	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Leaf	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	850gf	0.200" (5.1mm)	14gf	-	0.689" (17.5mm)	0.060" (1.5mm)	-55°C ~ 85°C
BZ-2RL-P4 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	4,109	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Leaf	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	141gf	0.050" (1.3mm)	14gf	-	0.689" (17.5mm)	0.060" (1.5mm)	-55°C ~ 85°C

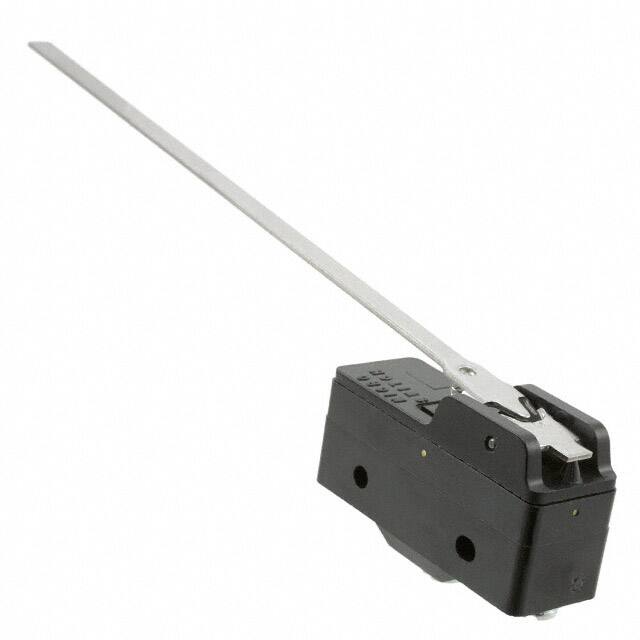

BZ-2RW863T SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	2,182	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Straight	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	28gf	0.145" (3.7mm)	-	-	0.750" (19.1mm)	0.500" (12.7mm)	-55°C ~ 85°C

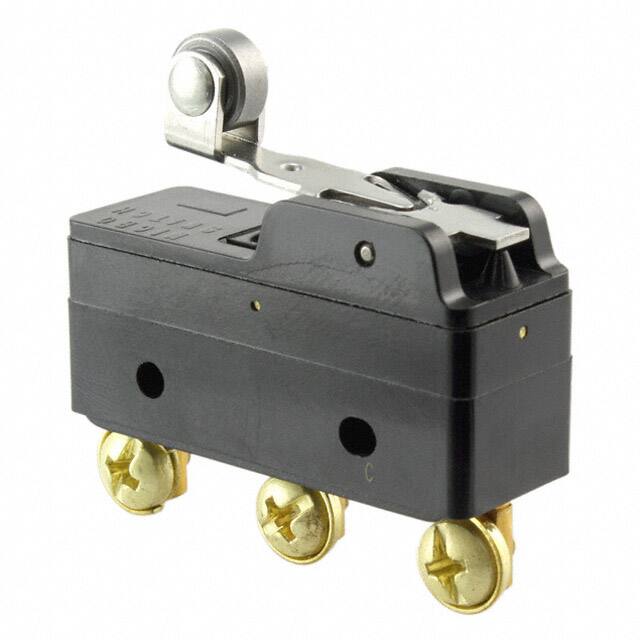

BZ-RW842214-P5 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	1,584	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	-	Lever, Roller	15A (AC)	Chassis Mount	Screw Terminal	-	-	56gf	0.006" (0.15mm)	7.087gf	0.094" (2.4mm)	1.188" (30.2mm)	0.094" (2.4mm)	-55°C ~ 85°C
BE-2RB-A4 SWITCH SNAP ACTION SPDT 25A 125V Honeywell Sensing and Productivity Solutions	4,377	-	RFQ Sell Excess Inventory	Datasheet	BE	Bulk	Active	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	25A (AC)	Chassis Mount	Screw Terminal	-	Stainless Steel Plunger	397 ~ 624gf	0.007" (0.18mm)	283gf	0.050" (1.27mm)	1.030" (26.2mm)	0.094" (2.4mm)	-55°C ~ 85°C
BA-2RV191-A2 SWITCH SNAP ACTION SPDT 20A 125V Honeywell Sensing and Productivity Solutions	4,130	-	RFQ Sell Excess Inventory	Datasheet	BA	Bulk	Active	SPDT	On-Mom	125 V	125 V	Lever, Straight	20A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	283gf	0.070" (1.8mm)	92gf	0.400" (10.1mm)	0.750" (19.1mm)	0.050" (1.27mm)	-55°C ~ 85°C
2SX5-H58 SWITCH SUBMINI BASIC Honeywell Sensing and Productivity Solutions	2,521	-	RFQ Sell Excess Inventory	Datasheet	SX	Bulk	Obsolete	SPDT	On-Mom	-	-	Round (Pin Plunger)	-	Chassis Mount	Quick Connect - 0.058" (Round)	-	-	-	-	-	-	-	-	-55°C ~ 125°C
BE-2RB232-A4 SWITCH BASIC LARGE Honeywell Sensing and Productivity Solutions	3,216	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
D2VW-01L1B-3M SWITCH SNAP ACTION MINI BASIC Omron Electronics Inc-EMC Div	3,519	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
91SX56 SWITCH SUBMINI BASIC Honeywell Sensing and Productivity Solutions	2,947	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BZ-2RT SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	3,176	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Round (Pin Plunger)	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	255 ~ 368gf	0.002" (0.05mm)	113gf	0.015" (0.4mm)	0.625" (15.9mm)	0.005" (0.13mm)	-55°C ~ 85°C
BZ-2RW82444-A2 SWITCH SNAP ACTION SPDT 5A 125V Honeywell Sensing and Productivity Solutions	2,041	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Straight	5A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	71gf	0.050" (1.3mm)	14gf	-	0.750" (19.1mm)	0.219" (5.6mm)	-55°C ~ 85°C
11SX55-H58 SWITCH SNAP ACTION SPDT 5A 115V Honeywell Sensing and Productivity Solutions	3,679	-	RFQ Sell Excess Inventory	Datasheet	SX	Bulk	Active	SPDT	On-Mom	115 V	28 V	Round (Pin Plunger)	5A (AC/DC)	Chassis Mount	Quick Connect - 0.058" (Round)	-	-	99gf	0.001" (0.025mm)	21gf	0.020" (0.5mm)	0.320" (8.13mm)	0.004" (0.1mm)	-55°C ~ 125°C
311SX5-H58 SWITCH SNAP ACTION SPDT 5A 125V Honeywell Sensing and Productivity Solutions	3,273	-	RFQ Sell Excess Inventory	Datasheet	SX	Bulk	Obsolete	SPDT	On-Mom	125 V	28 V	Lever, Simulated Roller	5A (AC/DC)	Chassis Mount	Quick Connect - 0.058" (Round)	-	-	30gf	0.035" (0.9mm)	5.099gf	0.106" (2.7mm)	0.585" (14.86mm)	0.022" (0.55mm)	-55°C ~ 125°C
11SM723-T SWITCH SNAP ACTION SPDT 1A 125V Honeywell Sensing and Productivity Solutions	4,327	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Active	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	1A (AC/DC)	Chassis Mount	Solder Turret	-	-	56gf	0.002" (0.05mm)	14gf	0.020" (0.5mm)	0.330" (8.4mm)	0.005" (0.13mm)	-55°C ~ 125°C
51.620G FMPEDAL GRAY Altech Corporation	2,818	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
X0226703 SWITCH SNAP ACTION SPDT 5A 125V Crouzet	4,110	-	RFQ Sell Excess Inventory	Datasheet	83133	Bulk	Active	SPDT (DB/DM)	On-Mom	125 V	-	Lever, Roller	5A (AC)	Chassis Mount	Solder, Quick Connect - 0.110" (2.8mm)	-	Actuator Mounted Left Side	163gf	0.020" (0.5mm)	33gf	0.043" (1.1mm)	0.560" (14.2mm)	-	-20°C ~ 125°C
AM1504K SWITCH SNAP ACTION SPDT 15A 125V Panasonic Electric Works	3,094	-	RFQ Sell Excess Inventory	Datasheet	AM1	-	Obsolete	SPDT	On-Mom	125 V	-	Lever, Roller	15A (AC)	Chassis Mount	Solder Lug	-	-	-	-	-	-	-	-	-

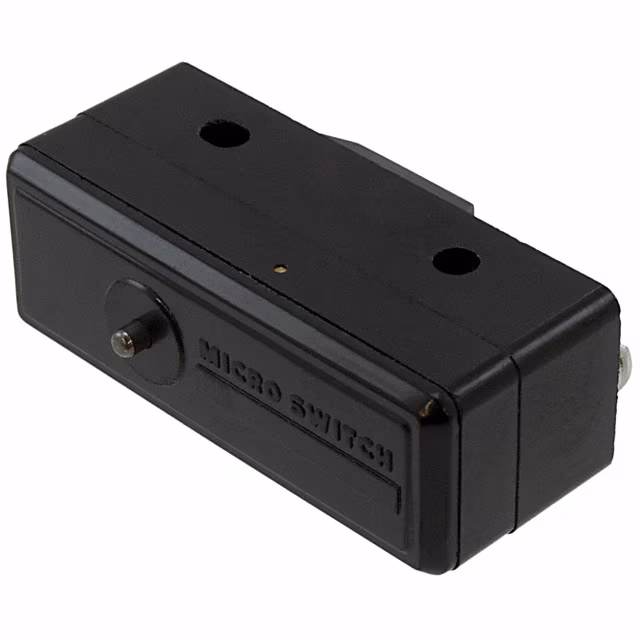

BA-2RT SWITCH SNAP ACTION SPDT 20A 125V Honeywell Sensing and Productivity Solutions	2,142	-	RFQ Sell Excess Inventory	Datasheet	BA	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Round (Pin Plunger)	20A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	397 ~ 624gf	0.002" (0.05mm)	283gf	0.050" (1.27mm)	0.640" (16.3mm)	0.010" (0.25mm)	-55°C ~ 85°C
