Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
AZH2011 SWITCH SNAP ACTION SPDT 5A 125V Panasonic Industrial Automation Sales	3,244	-	RFQ Sell Excess Inventory	Datasheet	AZH	Bulk	Active	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	5A (AC/DC)	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	-	1200gf	0.004" (0.1mm)	500gf	0.060" (1.5mm)	1.180" (30.0mm)	0.118" (3.0mm)	-10°C ~ 80°C
AZH2033 SWITCH SNAP ACTION SPDT 5A 125V Panasonic Industrial Automation Sales	4,380	-	RFQ Sell Excess Inventory	Datasheet	AZH	Bulk	Active	SPDT	On-Mom	125 V	30 V	Cross Roller Plunger	5A (AC/DC)	Panel Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	-	1200gf	0.004" (0.1mm)	500gf	0.060" (1.5mm)	0.922" (23.4mm)	0.118" (3.0mm)	-10°C ~ 80°C
YZ-RX58-D5 SWITCH SNAP ACT SPST-NO 15A 125V Honeywell Sensing and Productivity Solutions	3,168	-	RFQ Sell Excess Inventory	Datasheet	YZ	Bulk	Active	SPST-NO	Off-On	125 V	125 V	Round (Pin Plunger)	15A (AC), 500mA (DC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	Reset Plunger on Bottom	113gf	-	-	0.012" (0.3mm)	0.625" (15.9mm)	0.005" (0.13mm)	-55°C ~ 85°C
BZ-2RW8435145T SWITCH SNAP ACTION SPDT 10A 125V Honeywell Sensing and Productivity Solutions	1,702	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	125 V	125 V	Round (Pin Plunger)	10A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	85 ~ 141gf	0.002" (0.05mm)	-	0.015" (0.4mm)	0.710" (18.0mm)	0.005" (0.13mm)	-55°C ~ 85°C
311SX4-H33 SWITCH SNAP ACTION SPDT 5A 125V Honeywell Sensing and Productivity Solutions	2,005	-	RFQ Sell Excess Inventory	Datasheet	SX	Bulk	Active	SPDT	On-Mom	125 V	28 V	Lever, Simulated Roller	5A (AC/DC)	Through Hole	PC Pin	-	-	60gf	0.015" (0.38mm)	11gf	0.050" (1.27mm)	0.557" (14.15mm)	0.010" (0.25mm)	-55°C ~ 125°C
YA-2RL-A6 SWITCH SNAP ACT SPST-NO 20A 125V Honeywell Sensing and Productivity Solutions	3,919	-	RFQ Sell Excess Inventory	Datasheet	YA	Bulk	Obsolete	SPST-NO	Off-Mom	125 V	125 V	Lever, Leaf	20A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	255gf	0.065" (1.7mm)	28gf	-	0.689" (17.5mm)	0.060" (1.5mm)	-55°C ~ 125°C
831537C6.0 SWITCH SNAP ACTION SPDT HI-TEMP Crouzet	4,581	-	RFQ Sell Excess Inventory	Datasheet	83153	Box	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
YA-2RB18-A21 SWITCH SNAP ACT SPST-NO 20A 125V Honeywell Sensing and Productivity Solutions	2,148	-	RFQ Sell Excess Inventory	Datasheet	YA	Bulk	Obsolete	SPST-NO	Off-Mom	125 V	125 V	Round (Pin Plunger)	20A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	White Actuator	397 ~ 624gf	0.007" (0.18mm)	283gf	0.050" (1.27mm)	1.030" (26.2mm)	0.094" (2.4mm)	-55°C ~ 85°C
HBS2KAB4ST011C SWITCH SNAP ACTION SPDT 20A 125V C&K	3,997	-	RFQ Sell Excess Inventory	Datasheet	HB	Bulk	Active	SPDT	On-Mom	125 V	125 V	Lever, Straight	20A (AC), 500mA (DC)	Chassis Mount	Solder Lug	IP65 - Dust Tight, Water Resistant	-	56gf	0.047" (1.2mm)	14gf	0.380" (9.65mm)	0.720" (18.3mm)	0.190" (4.8mm)	-55°C ~ 150°C
BZ-2RL SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	4,543	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Leaf	15A (AC), 500mA (DC)	Chassis Mount	Solder Lug	-	-	141gf	0.050" (1.3mm)	14gf	-	0.689" (17.5mm)	0.060" (1.5mm)	-55°C ~ 85°C
BZ-RW80-A2 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	1,725	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Straight	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	64gf	0.015" (0.38mm)	14gf	-	0.750" (19.1mm)	0.219" (5.6mm)	-55°C ~ 85°C
83290009 SWITCH SNAP ACTION SPDT 10A 250V Crouzet	1,997	-	RFQ Sell Excess Inventory	Datasheet	V3DS	Bulk	Active	SPDT	On-Mom	250 V	-	Round (Pin Plunger)	10A (AC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	459gf	0.020" (0.5mm)	82gf	-	0.579" (14.7mm)	0.040" (1.0mm)	-40°C ~ 85°C
JS-10389 SWITCH SUBMINI BASIC Honeywell Sensing and Productivity Solutions	3,808	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BZ-2RL2T04 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	4,049	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Roller	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	106 ~ 141gf	0.050" (1.3mm)	14gf	0.157" (4.0mm)	1.125" (28.6mm)	0.060" (1.5mm)	-55°C ~ 85°C

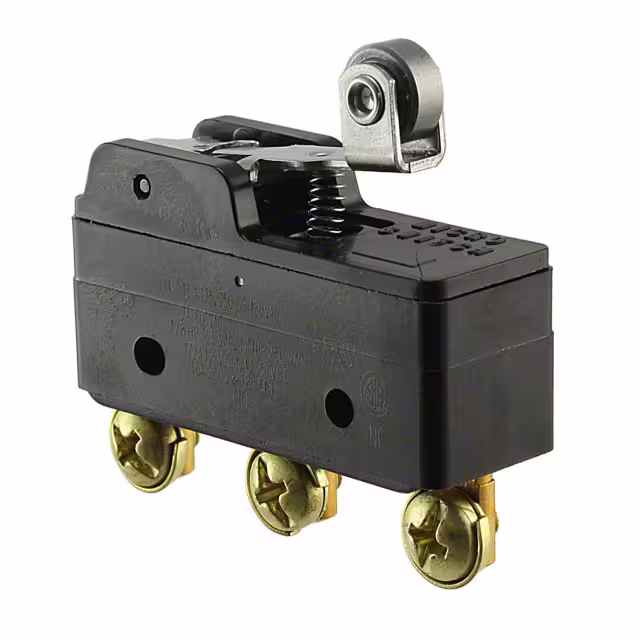

BZ-2RW822-P4 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	3,824	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Roller	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	170gf	0.020" (0.5mm)	43gf	-	1.188" (30.2mm)	0.094" (2.4mm)	-55°C ~ 85°C

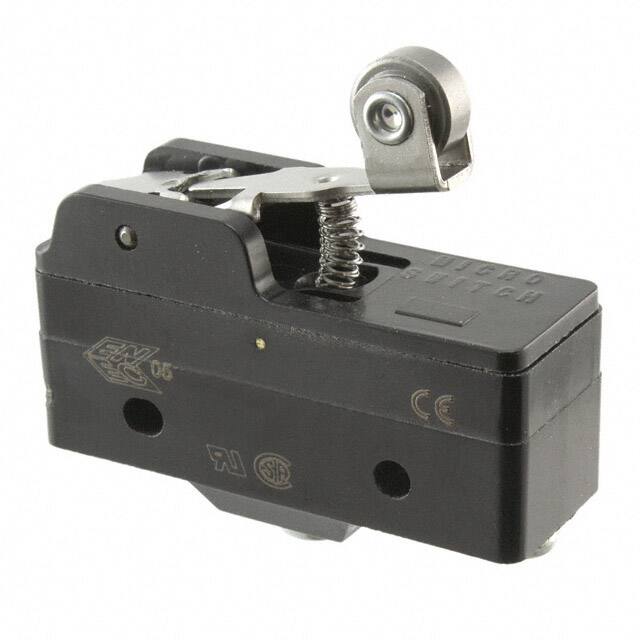

BZ-3RW822T SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	1,972	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Roller	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	184gf	0.030" (0.76mm)	43gf	-	1.188" (30.2mm)	0.094" (2.4mm)	-55°C ~ 85°C
BZ-2RW82212T SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	1,390	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	125 V	125 V	Lever, Roller	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	170gf	0.020" (0.5mm)	43gf	-	1.188" (30.2mm)	0.094" (2.4mm)	-55°C ~ 85°C
BE-R24-A4 SWITCH SNAP ACTION SPDT 25A 125V Honeywell Sensing and Productivity Solutions	4,032	-	RFQ Sell Excess Inventory	Datasheet	BE	Bulk	Obsolete	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	25A (AC)	Chassis Mount	Screw Terminal	-	-	312 ~ 482gf	0.002" (0.05mm)	283gf	0.040" (1.0mm)	0.640" (16.3mm)	0.010" (0.25mm)	-55°C ~ 135°C
BZ-2RD331 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	2,990	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Round (Pin Plunger)	15A (AC), 500mA (DC)	Chassis Mount	Solder Lug	-	Steel Plunger	255 ~ 368gf	0.002" (0.05mm)	113gf	0.015" (0.4mm)	0.835" (21.2mm)	0.060" (1.5mm)	-55°C ~ 85°C
BZ-7R24-A2 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	1,855	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Round (Pin Plunger)	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	624 ~ 794gf	0.005" (0.13mm)	113gf	0.030" (0.8mm)	0.625" (15.9mm)	0.005" (0.13mm)	-55°C ~ 121°C
