Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
BA-2SBT SWITCH SNAP ACTION SPDT 20A 125V Honeywell Sensing and Productivity Solutions	3,307	-	RFQ Sell Excess Inventory	Datasheet	BA	Bulk	Obsolete	SPDT (DB/DM)	On-Mom	125 V	125 V	Overtravel Plunger	20A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	624 ~ 850gf	0.004" (0.1mm)	283gf	0.050" (1.27mm)	1.030" (26.2mm)	0.094" (2.4mm)	-55°C ~ 85°C
BZ-2R5551-P4 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	1,969	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Round (Pin Plunger)	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	IP64 - Dust Tight, Water Resistant	-	227 ~ 425gf	0.002" (0.05mm)	113gf	-	0.625" (15.9mm)	0.005" (0.13mm)	-55°C ~ 85°C
1SX100-H58 SWITCH SNAP ACTION SPDT 7A 250V Honeywell Sensing and Productivity Solutions	2,923	-	RFQ Sell Excess Inventory	Datasheet	SX	Bulk	Active	SPDT	On-Mom	250 V	28 V	Round (Pin Plunger)	7A (AC), 3.5A (DC)	Chassis Mount	Quick Connect - 0.058" (Round)	-	-	170gf	0.005" (0.13mm)	28gf	0.020" (0.5mm)	0.320" (8.13mm)	0.004" (0.1mm)	-55°C ~ 125°C
BZ-R291-P1 SWITCH LARGE BASIC Honeywell Sensing and Productivity Solutions	3,712	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BZ-RW84461-A2 SWITCH SNAP ACTION SPDT 5A 125V Honeywell Sensing and Productivity Solutions	4,788	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	-	Lever, Straight	5A (AC)	Chassis Mount	Screw Terminal	-	-	14gf	0.027" (0.7mm)	3.500gf	0.484" (12.3mm)	0.750" (19.1mm)	0.406" (10.3mm)	-55°C ~ 85°C
83160705 SWITCH SNAP ACT SPST-NC 6A 250V Crouzet	3,807	-	RFQ Sell Excess Inventory	Datasheet	83160	Bulk	Active	SPST-NC	On-Mom	250 V	-	Round (Pin Plunger)	6A (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	408gf	-	153gf	-	0.583" (14.8mm)	0.051" (1.3mm)	-40°C ~ 85°C
311SM25-H4 SWITCH SNAP ACTION SPDT 1A 125V Honeywell Sensing and Productivity Solutions	3,673	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Simulated Roller	1A (AC/DC)	Chassis Mount	Solder, Quick Connect - 0.110" (2.8mm)	-	-	40gf	0.020" (0.5mm)	7.138gf	0.085" (2.16mm)	0.460" (11.7mm)	0.018" (0.45mm)	-55°C ~ 125°C
D2VW-01L1B-3MS SWITCH SNP ACT SPST-NO 0.1A 125V Omron Electronics Inc-EMC Div	1,942	-	RFQ Sell Excess Inventory	Datasheet	D2VW	Tray	Active	SPST-NO	Off-Mom	125 V	30 V	Lever, Straight	100mA (AC/DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	60gf	0.080" (2.0mm)	5.099gf	0.354" (9.0mm)	0.600" (15.2mm)	0.125" (3.2mm)	-40°C ~ 85°C
BZ-2RQ722233-A2 SWITCH SNAP ACTION SPDT 1A 125V Honeywell Sensing and Productivity Solutions	1,693	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	125 V	-	Overtravel Plunger	1A (AC)	Panel Mount	Screw Terminal	-	Steel Plunger	255 ~ 368gf	0.002" (0.05mm)	113gf	0.015" (0.4mm)	0.859" (21.8mm)	0.219" (5.6mm)	-55°C ~ 85°C
BZ-2RW899-A2 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	1,639	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	125 V	125 V	Lever, Straight	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	71gf	0.050" (1.3mm)	14gf	-	0.670" (17.0mm)	0.125" (3.2mm)	-55°C ~ 85°C
BZ-R21 SWITCH SNAP ACTION SPDT 10A 125V Honeywell Sensing and Productivity Solutions	2,117	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	10A (AC)	Chassis Mount	Solder Lug	-	-	113gf	0.0005" (0.013mm)	71gf	0.012" (0.3mm)	0.625" (15.9mm)	0.005" (0.13mm)	-55°C ~ 85°C
601.6369.049 DOOR CONTACT SWITCH SEL2-A1ZP Altech Corporation	4,670	-	RFQ Sell Excess Inventory	Datasheet	*	Box	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

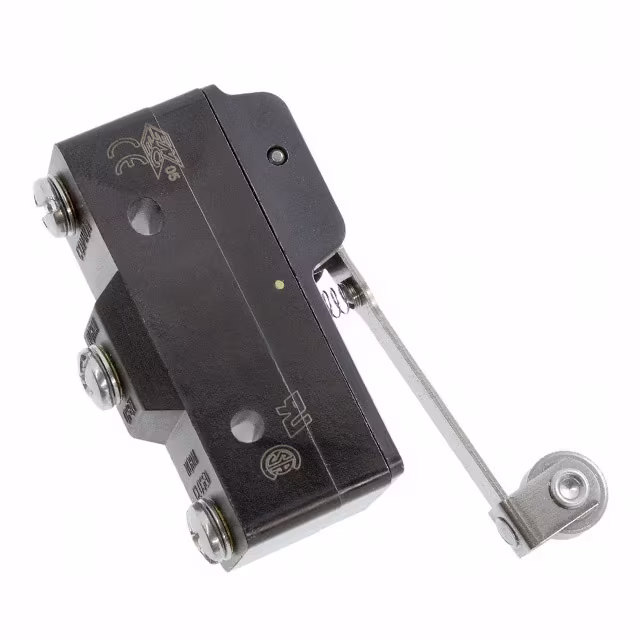

BZ-2RW82T SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	3,999	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Roller	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	99gf	0.040" (1.0mm)	21gf	-	1.188" (30.2mm)	0.156" (3.96mm)	-55°C ~ 85°C
GLLC04F SWITCH SNAP ACTION SPDT 10A 300V Honeywell Sensing and Productivity Solutions	4,986	-	RFQ Sell Excess Inventory	Datasheet	GLL	Bulk	Obsolete	SPDT (MBB)	On-Mom	300 V	250 V	Lever, Roller	10A (AC/DC)	Chassis Mount	Screw Terminal	IP66 - Dust Tight, Water Resistant	-	510gf	0.080" (2.0mm)	153gf	0.197" (5.0mm)	-	0.197" (5.0mm)	-10°C ~ 80°C
GLLC04D SWITCH SNAP ACTION SPDT 10A 300V Honeywell Sensing and Productivity Solutions	3,932	-	RFQ Sell Excess Inventory	Datasheet	GLL	Bulk	Obsolete	SPDT (MBB)	On-Mom	300 V	250 V	Lever, Roller	10A (AC/DC)	Chassis Mount	Screw Terminal	IP66 - Dust Tight, Water Resistant	-	510gf	0.060" (1.5mm)	153gf	0.138" (3.5mm)	0.630" (16.0mm)	0.175" (4.5mm)	-10°C ~ 80°C
GLLA04D SWITCH SNAP ACTION SPDT 10A 300V Honeywell Sensing and Productivity Solutions	3,702	-	RFQ Sell Excess Inventory	Datasheet	GLL	Bulk	Obsolete	SPDT (MBB)	On-Mom	300 V	250 V	Lever, Roller	10A (AC/DC)	Chassis Mount	Screw Terminal	IP66 - Dust Tight, Water Resistant	-	510gf	0.060" (1.5mm)	153gf	0.138" (3.5mm)	0.630" (16.0mm)	0.175" (4.5mm)	-10°C ~ 80°C
WZ-RX-A2F1 SWITCH LARGE BASIC Honeywell Sensing and Productivity Solutions	1,716	-	RFQ Sell Excess Inventory	Datasheet	WZ	Bulk	Active	SPST-NC	On-Mom	-	-	Round (Pin Plunger)	15A	Chassis Mount	Screw Terminal	-	-	-	-	-	-	-	-	-55°C ~ 85°C
X0230726 SWITCH SNAP ACTION SPDT 5A 125V Crouzet	4,473	-	RFQ Sell Excess Inventory	Datasheet	-	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BZ-2RW863 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	4,219	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Straight	15A (AC), 500mA (DC)	Chassis Mount	Solder Lug	-	-	28gf	0.140" (3.55mm)	-	-	0.750" (19.1mm)	0.500" (12.7mm)	-55°C ~ 85°C
BZ-2RL712 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	2,676	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Roller	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	-	0.050" (1.3mm)	-	-	0.780" (19.8mm)	0.060" (1.5mm)	-55°C ~ 85°C
