Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature

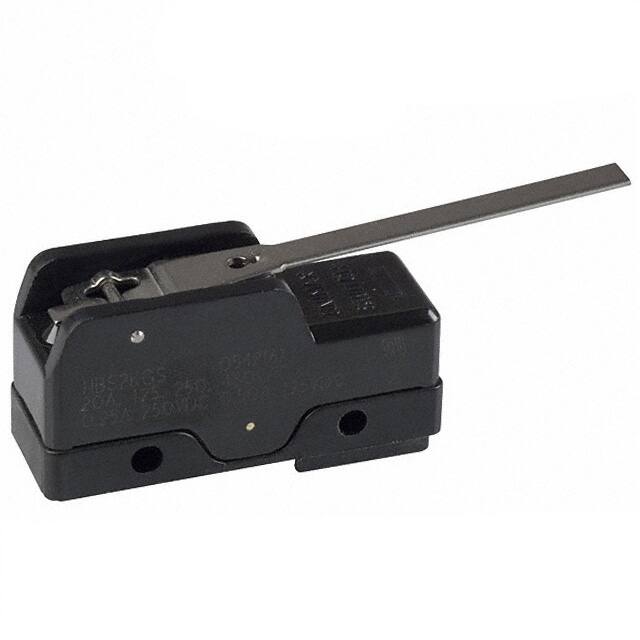

HBS2KGB4ST011C SWITCH SNAP ACTION SPDT 20A 125V C&K	4,801	-	RFQ Sell Excess Inventory	Datasheet	HB	Bulk	Active	SPDT	On-Mom	125 V	125 V	Lever, Straight	20A (AC), 500mA (DC)	Chassis Mount	Solder Lug	IP65 - Dust Tight, Water Resistant	-	71gf	0.080" (2.0mm)	14gf	0.380" (9.65mm)	0.720" (18.3mm)	0.190" (4.8mm)	-55°C ~ 150°C
YA-2RV196-D63 SWITCH SNAP ACT SPST-NO 20A 125V Honeywell Sensing and Productivity Solutions	1,033	-	RFQ Sell Excess Inventory	Datasheet	YA	Bulk	Obsolete	SPST-NO	Off-Mom	125 V	125 V	Lever, Straight	20A (AC), 500mA (DC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	85gf	0.075" (1.9mm)	14gf	-	0.785" (19.9mm)	0.090" (2.3mm)	-55°C ~ 85°C
BZ-2RW80555196T SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	1,762	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Simulated Roller	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	IP64 - Dust Tight, Water Resistant	-	99gf	0.040" (1.0mm)	21gf	-	1.188" (30.2mm)	0.156" (3.96mm)	-55°C ~ 85°C
83160069 SWITCH SNAP ACTION SPDT 16A 250V Crouzet	4,710	-	RFQ Sell Excess Inventory	Datasheet	83160	Bulk	Active	SPDT	On-Mom	250 V	-	Lever, Roller	16A (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	408gf	0.012" (0.3mm)	102gf	0.047" (1.2mm)	-	0.051" (1.3mm)	-20°C ~ 125°C
BZ-2RM-A2 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	1,265	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Straight	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	170gf	0.004" (0.1mm)	28gf	0.219" (5.6mm)	0.750" (19.1mm)	0.219" (5.6mm)	-55°C ~ 85°C
YZ-2RW822-A2 SWITCH SNAP ACT SPST-NO 15A 125V Honeywell Sensing and Productivity Solutions	3,198	-	RFQ Sell Excess Inventory	Datasheet	YZ	Bulk	Obsolete	SPST-NO	Off-Mom	125 V	125 V	Lever, Roller	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	170gf	0.020" (0.5mm)	43gf	-	1.188" (30.2mm)	0.094" (2.4mm)	-55°C ~ 85°C
D2RV-L22E SWITCH SNAP SPST-NO 0.25A 100V Omron Electronics Inc-EMC Div	3,192	-	RFQ Sell Excess Inventory	Datasheet	D2RV	Bulk	Active	SPST-NO	Off-Mom	-	100 V	Lever, Roller	250mA (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	IP40	-	25gf	0.040" (1.0mm)	-	0.071" (1.8mm)	0.803" (20.4mm)	0.015" (0.4mm)	-10°C ~ 60°C
BZ-2RW8219-A2 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	1,369	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Roller	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	99gf	0.040" (1.0mm)	21gf	-	1.281" (32.5mm)	0.250" (6.35mm)	-55°C ~ 85°C
BZ-RX43 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	4,267	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-On	125 V	125 V	Round (Pin Plunger)	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	Reset Plunger on Bottom	198 ~ 255gf	-	-	0.012" (0.3mm)	0.625" (15.9mm)	0.005" (0.13mm)	-55°C ~ 85°C
MMGGD1L2R SWITCH SNAP ACTION SPDT 7A 250V C&K	4,230	-	RFQ Sell Excess Inventory	Datasheet	MM	Bulk	Active	SPDT	On-Mom	250 V	-	Lever, Straight	7A (AC)	Through Hole, Right Angle	PC Pin	-	-	170gf	0.012" (0.3mm)	20gf	0.075" (1.9mm)	0.330" (8.4mm)	0.015" (0.4mm)	-55°C ~ 135°C
Z-15GW32-B SWITCH SNAP ACT LEVER SPDT 15A Omron Automation and Safety	3,348	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
YZ-2RDS5551-D6 SWITCH SNAP ACT SPST-NO 15A 125V Honeywell Sensing and Productivity Solutions	3,050	-	RFQ Sell Excess Inventory	Datasheet	YZ	Bulk	Obsolete	SPST-NO	Off-Mom	125 V	125 V	Round (Pin Plunger)	15A (AC), 500mA (DC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	Splash Proof	-	368 ~ 538gf	0.002" (0.05mm)	113gf	-	1.110" (28.2mm)	0.060" (1.5mm)	-55°C ~ 85°C
BZ-2RM2-A2 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	4,208	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Roller	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	240gf	0.003" (0.075mm)	57gf	0.170" (4.3mm)	1.188" (30.2mm)	0.156" (3.96mm)	-55°C ~ 85°C

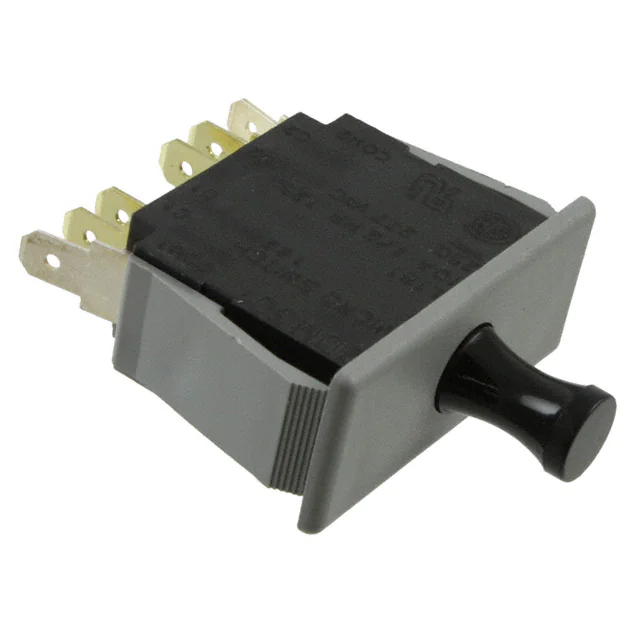

2DM301 SWITCH SNAP ACTION DPDT 10A 125V Honeywell Sensing and Productivity Solutions	2,889	-	RFQ Sell Excess Inventory	Datasheet	DM	Bulk	Active	DPDT	On-On	125 V	-	Push-Pull Plunger	10A (AC)	Panel Mount, Snap-In	Quick Connect - 0.187" (4.7mm)	-	-	680gf	0.045" (1.1mm)	170gf	-	-	0.625" (15.9mm)	-37°C ~ 82°C
GK-85236 LIMIT SWITCH Honeywell Sensing and Productivity Solutions	4,823	-	RFQ Sell Excess Inventory	Datasheet	-	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BM-1RS-A2 SWITCH SNAP ACTION SPDT 22A 125V Honeywell Sensing and Productivity Solutions	2,448	-	RFQ Sell Excess Inventory	Datasheet	BM	Bulk	Obsolete	SPDT	On-Mom	125 V	-	Overtravel Plunger	22A (AC)	Chassis Mount	Screw Terminal	-	Steel Plunger	198 ~ 283gf	0.001" (0.025mm)	113gf	0.015" (0.4mm)	1.110" (28.2mm)	0.060" (1.5mm)	-55°C ~ 85°C
83133052 SWITCH SNAP ACTION SPDT 5A 125V Crouzet	4,772	-	RFQ Sell Excess Inventory	Datasheet	83133	Bulk	Active	SPDT (DB/DM)	On-Mom	125 V	-	Round (Pin Plunger)	5A (AC)	Through Hole	PC Pin	-	-	-	-	-	-	-	-	-20°C ~ 125°C
BE-2R25-A4 SWITCH SNAP ACTION SPDT 25A 125V Honeywell Sensing and Productivity Solutions	3,517	-	RFQ Sell Excess Inventory	Datasheet	BE	Bulk	Obsolete	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	25A (AC)	Chassis Mount	Screw Terminal	-	-	397 ~ 624gf	0.004" (0.1mm)	283gf	0.050" (1.27mm)	0.640" (16.3mm)	0.010" (0.25mm)	-55°C ~ 85°C
9242-01 SWITCH BALL PLNG SPST-NO 20A 24V Littelfuse/Commercial Vehicle Products	2,268	-	RFQ Sell Excess Inventory	Datasheet	-	Bulk	Active	SPST-NO	Off-Mom	-	24 V	Ball Bearing Plunger	20A (DC)	Panel Mount	Connector	-	-	-	-	-	-	-	-	-
313SX1-T SWITCH SNAP ACTION SPDT 1A 125V Honeywell Sensing and Productivity Solutions	1,057	-	RFQ Sell Excess Inventory	Datasheet	SX	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Straight	1A (AC/DC)	Chassis Mount	Solder Turret	-	-	50gf	0.020" (0.5mm)	9.177gf	0.065" (1.65mm)	0.332" (8.43mm)	0.014" (0.35mm)	-55°C ~ 125°C
