Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
BZ-2RW80283-PC2 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	1,016	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	125 V	125 V	Lever, Straight	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	56gf	0.026" (0.65mm)	7.087gf	0.157" (4.0mm)	0.750" (19.1mm)	0.050" (1.27mm)	-55°C ~ 85°C
BE-2R2425 SWITCH SNAP ACTION SPDT 25A 125V Honeywell Sensing and Productivity Solutions	3,212	-	RFQ Sell Excess Inventory	Datasheet	BE	Bulk	Obsolete	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	25A (AC)	Chassis Mount	Screw Terminal	-	-	709gf	0.001" (0.025mm)	283gf	0.050" (1.27mm)	0.640" (16.3mm)	0.010" (0.25mm)	-55°C ~ 121°C
111SM1-T2 SWITCH SNAP ACTION SPDT 5A 250V Honeywell Sensing and Productivity Solutions	4,016	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Active	SPDT	On-Mom	250 V	30 V	Lever, Straight	5A (AC/DC)	Chassis Mount	Solder Turret	-	-	198gf	0.030" (0.76mm)	57gf	0.218" (5.5mm)	0.350" (8.9mm)	0.030" (0.76mm)	-55°C ~ 125°C
WZ-R141 SWITCH SNAP ACT SPST-NC 15A 125V Honeywell Sensing and Productivity Solutions	1,444	-	RFQ Sell Excess Inventory	Datasheet	WZ	Bulk	Obsolete	SPST-NC	On-Mom	125 V	-	Round (Pin Plunger)	15A (AC)	Chassis Mount	Screw Terminal	-	-	198 ~ 255gf	0.0006" (0.015mm)	113gf	0.012" (0.3mm)	0.625" (15.9mm)	0.005" (0.13mm)	-55°C ~ 85°C
83160065 SWITCH SNAP ACTION SPDT 16A 250V Crouzet	2,174	-	RFQ Sell Excess Inventory	Datasheet	83160	Bulk	Active	SPDT	On-Mom	250 V	-	Lever, Roller	16A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	204gf	0.025" (0.6mm)	41gf	0.100" (2.5mm)	-	0.051" (1.3mm)	-20°C ~ 125°C
83186014 SWITCH SNAP ACTION SPDT 6A 250V Crouzet	1,537	-	RFQ Sell Excess Inventory	Datasheet	83180	Bulk	Active	SPDT	On-Mom	250 V	-	Round (Pin Plunger)	6A (AC)	Chassis Mount	Cable Leads	IP67/IP69K - Dust Tight, Water Resistant, Waterproof	-	255gf	0.006" (0.15mm)	82gf	-	0.330" (8.4mm)	0.025" (0.6mm)	-40°C ~ 125°C

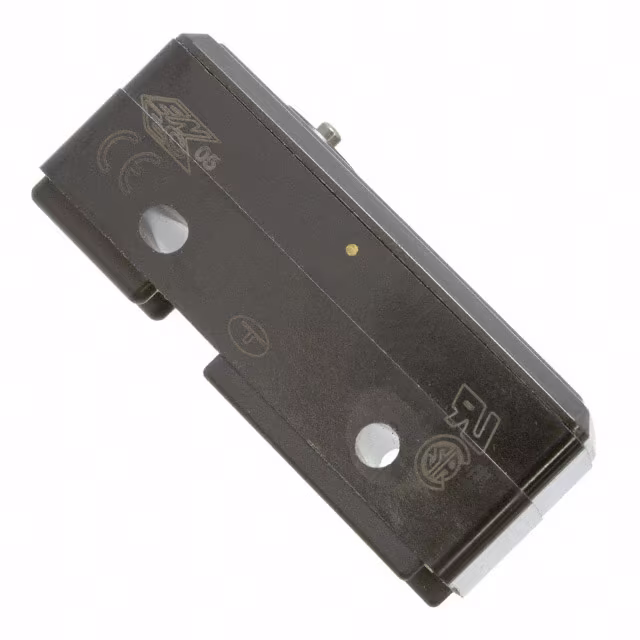

BM-1R2420 SWITCH SNAP ACTION SPDT 22A 125V Honeywell Sensing and Productivity Solutions	4,164	-	RFQ Sell Excess Inventory	Datasheet	BM	Bulk	Obsolete	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	22A (AC)	Chassis Mount	Screw Terminal	-	-	198 ~ 283gf	0.001" (0.025mm)	113gf	0.015" (0.4mm)	0.625" (15.9mm)	0.005" (0.13mm)	-55°C ~ 121°C
LCGHX1T10HCU SWITCH SNAP ACTION SPDT 1A 125V C&K	3,211	-	RFQ Sell Excess Inventory	Datasheet	LC	Bulk	Not For New Designs	SPDT	On-Mom	125 V	30 V	Lever, Straight	1A (AC/DC)	Chassis Mount	Quick Connect - 0.110" (2.8mm)	-	-	60gf	0.035" (0.9mm)	11gf	0.140" (3.6mm)	0.340" (8.6mm)	0.029" (0.74mm)	-25°C ~ 85°C
D2VW-5L2-2MS-0 SWITCH SNAP ACT SPST-NC 5A 125V Omron Electronics Inc-EMC Div	2,561	-	RFQ Sell Excess Inventory	Datasheet	D2VW	Bulk	Active	SPST-NC	On-Mom	125 V	30 V	Lever, Roller	5A (AC/DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	120gf	0.031" (0.8mm)	15gf	0.157" (4.0mm)	0.815" (20.7mm)	0.062" (1.6mm)	-40°C ~ 85°C

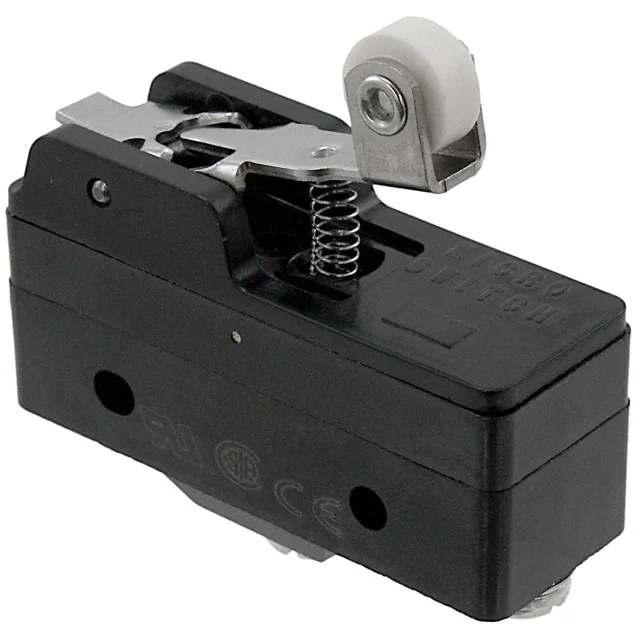

BZ-3RW822158-A46 SWITCH SNAP ACTION SPDT 10A 125V Honeywell Sensing and Productivity Solutions	2,174	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Roller	10A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	184gf	0.030" (0.76mm)	43gf	-	1.188" (30.2mm)	0.094" (2.4mm)	-55°C ~ 85°C
BA-2R281-A2 SWITCH SNAP ACTION SPDT 20A 125V Honeywell Sensing and Productivity Solutions	2,189	-	RFQ Sell Excess Inventory	Datasheet	BA	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Round (Pin Plunger)	20A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	397 ~ 624gf	0.002" (0.05mm)	283gf	0.050" (1.27mm)	0.640" (16.3mm)	0.010" (0.25mm)	-55°C ~ 85°C
41SM28-H2 SWITCH SNAP ACTION SPDT 11A 250V Honeywell Sensing and Productivity Solutions	3,423	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Active	SPDT	On-Mom	250 V	30 V	Round (Pin Plunger)	11A (AC), 5A (DC)	Through Hole	PC Pin	-	-	141gf	0.003" (0.075mm)	28gf	0.030" (0.8mm)	0.330" (8.4mm)	0.005" (0.13mm)	-55°C ~ 125°C
BZ-RW843515 SWITCH SNAP ACTION SPDT 10A 125V Honeywell Sensing and Productivity Solutions	1,547	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	-	Lever, Straight	10A (AC)	Chassis Mount	Solder Lug	-	-	7.000gf	0.015" (0.38mm)	-	0.266" (6.75mm)	0.750" (19.1mm)	0.219" (5.6mm)	-55°C ~ 85°C
D2VW-5L3-3MS SWITCH SNAP ACTION MINI BASIC Omron Electronics Inc-EMC Div	4,469	-	RFQ Sell Excess Inventory	Datasheet	D2VW	Bulk	Active	SPST-NO	Off-Mom	125 V	30 V	Lever, Simulated Roller	5A (AC/DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	120gf	0.031" (0.80mm)	15gf	0.157" (4.0mm)	0.736" (18.7mm)	0.063" (1.6mm)	-40°C ~ 85°C
BZ-2RW8225551-A2 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	4,703	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	125 V	125 V	Lever, Roller	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	IP64 - Dust Tight, Water Resistant	-	170gf	0.020" (0.5mm)	43gf	-	1.188" (30.2mm)	0.094" (2.4mm)	-55°C ~ 85°C
DS2D6CQ3 SWITCH SNAP ACTION DPDT 10A 125V C&K	3,579	-	RFQ Sell Excess Inventory	Datasheet	DS	Bulk	Active	DPDT	On-Mom	125 V	-	Push-Pull Plunger	10A (AC)	Panel Mount, Snap-In	Quick Connect - 0.250" (6.3mm)	-	Pull On Lock	560gf	-	-	-	0.660" (16.76mm)	0.520" (13.2mm)	-40°C ~ 85°C
83134001 SWITCH SNAP ACTION SPDT 5A 125V Crouzet	1,109	-	RFQ Sell Excess Inventory	Datasheet	83134	Bulk	Active	SPDT (DB/DM)	On-Mom	125 V	-	Round (Pin Plunger)	5A (AC)	Through Hole	PC Pin	-	-	163gf	0.018" (0.45mm)	41gf	-	0.291" (7.4mm)	0.011" (0.3mm)	-20°C ~ 125°C
111SM244 SWITCH SNAP ACTION SPDT 5A 250V Honeywell Sensing and Productivity Solutions	2,436	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Active	SPDT	On-Mom	250 V	30 V	Lever, Straight	5A (AC/DC)	Chassis Mount	Solder Lug	-	-	198gf	0.030" (0.76mm)	57gf	0.218" (5.5mm)	0.350" (8.9mm)	0.030" (0.76mm)	-55°C ~ 125°C
BZ-2RW8761-A2 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	3,856	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	125 V	125 V	Lever, Straight	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	170gf	0.025" (0.6mm)	43gf	-	0.750" (19.1mm)	0.141" (3.6mm)	-55°C ~ 85°C
1DM38 SWITCH SNAP ACTION SPDT 10A 125V Honeywell Sensing and Productivity Solutions	2,970	-	RFQ Sell Excess Inventory	Datasheet	DM	Bulk	Active	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	10A (AC)	Panel Mount, Snap-In	Quick Connect - 0.187" (4.7mm)	-	-	425gf	0.045" (1.1mm)	85gf	-	0.355" (9.0mm)	0.235" (6.0mm)	-37°C ~ 82°C
