Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
BA-2R62-A2 SWITCH BASIC LARGE Honeywell Sensing and Productivity Solutions	3,103	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BM-1R231-A4 SWITCH SNAP ACTION SPDT 22A 125V Honeywell Sensing and Productivity Solutions	2,669	-	RFQ Sell Excess Inventory	Datasheet	BM	Bulk	Active	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	22A (AC)	Chassis Mount	Screw Terminal	-	-	198 ~ 283gf	0.001" (0.025mm)	-	0.015" (0.4mm)	0.625" (15.9mm)	0.005" (0.13mm)	-55°C ~ 85°C
BZ-2RQ124-D6 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	3,039	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	125 V	125 V	Overtravel Plunger	15A (AC), 500mA (DC)	Panel Mount	Quick Connect - 0.250" (6.3mm)	-	Steel Plunger	255 ~ 368gf	0.002" (0.05mm)	113gf	0.015" (0.4mm)	0.859" (21.8mm)	0.219" (5.6mm)	-55°C ~ 121°C
ADPFF3T04AC SWITCH SNAP ACTION DPDT 25A 125V C&K	2,185	-	RFQ Sell Excess Inventory	Datasheet	A	Tray	Active	DPDT	On-Mom	125 V	24 V	Lever, Straight	25A (AC), 2A (DC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	283gf	-	28gf	0.312" (7.9mm)	0.312" (7.9mm)	0.187" (4.75mm)	-55°C ~ 85°C
311SM1005-T SWITCH SNAP ACT SPDT 0.1A 125V Honeywell Sensing and Productivity Solutions	4,810	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Obsolete	SPDT	On-Mom	125 V	30 V	Lever, Simulated Roller	100mA (AC/DC)	Chassis Mount	Solder Turret	-	-	30gf	0.027" (0.7mm)	5.099gf	0.120" (3.0mm)	0.453" (11.5mm)	0.026" (0.7mm)	-55°C ~ 125°C
83160702 SWITCH SNAP ACTION SPDT 6A 250V Crouzet	4,497	-	RFQ Sell Excess Inventory	Datasheet	83160	Bulk	Active	SPDT	On-Mom	250 V	-	Round (Pin Plunger)	6A (AC)	Chassis Mount	Solder Lug	-	-	408gf	-	153gf	-	0.583" (14.8mm)	0.051" (1.3mm)	-40°C ~ 85°C
83160602 SWITCH SNAP ACTION SPDT 16A 250V Crouzet	3,054	-	RFQ Sell Excess Inventory	Datasheet	83160	Bulk	Active	SPDT	On-Mom	250 V	-	Round (Pin Plunger)	16A (AC)	Chassis Mount	-	-	-	510gf	0.060" (1.5mm)	77gf	0.125" (3.2mm)	-	0.051" (1.3mm)	-20°C ~ 125°C

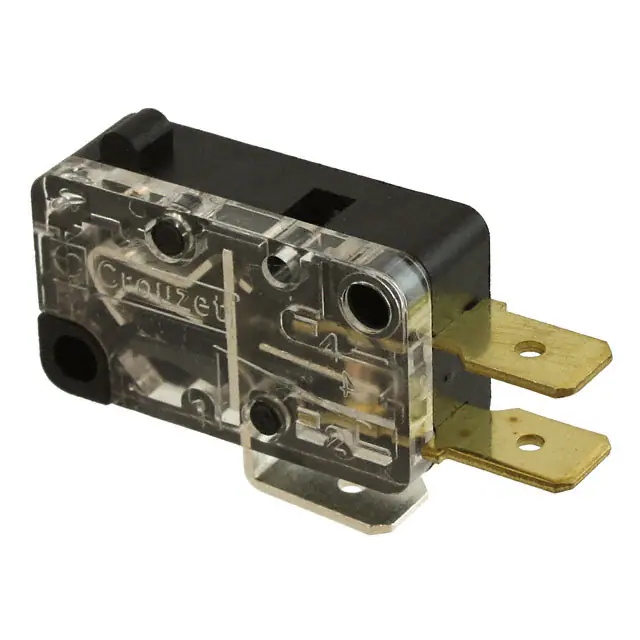

83160704 SWITCH SNAP ACTION SPDT 16A 250V Crouzet	4,781	-	RFQ Sell Excess Inventory	Datasheet	83160	Bulk	Active	SPDT	On-Mom	250 V	250 V	Telescopic Plunger	16A (AC)	Panel Mount, Snap-In	Quick Connect - 0.250" (6.3mm)	-	-	-	-	-	-	-	0.051" (1.3mm)	-20°C ~ 125°C
D2HW-C271MS SWITCH SNAP ACTION SUBMINI BASIC Omron Electronics Inc-EMC Div	1,741	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
LCGGV6P00SCUE SWITCH SNAP ACTION SPDT 5A 125V C&K	1,362	-	RFQ Sell Excess Inventory	Datasheet	LC	Bulk	Not For New Designs	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	5A (AC)	Through Hole	PC Pin	-	Epoxy Sealed Terminals	142gf	0.004" (0.1mm)	28gf	0.030" (0.8mm)	0.330" (8.4mm)	0.010" (0.25mm)	-25°C ~ 85°C
BZ-2RW80237-A2 SWITCH LARGE BASIC Honeywell Sensing and Productivity Solutions	4,590	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
D2SW-3L1MS-0 SWITCH SNAP ACTION MINI BASIC Omron Electronics Inc-EMC Div	1,862	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BZ-R2433-A2 SWITCH LARGE BASIC Honeywell Sensing and Productivity Solutions	2,542	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BZ-R812 SWITCH SNAP ACTION SPDT 10A 125V Honeywell Sensing and Productivity Solutions	2,126	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	10A (AC)	Chassis Mount	Solder Lug	-	-	198gf	0.0007" (0.018mm)	85gf	0.012" (0.3mm)	0.625" (15.9mm)	0.005" (0.13mm)	-55°C ~ 85°C

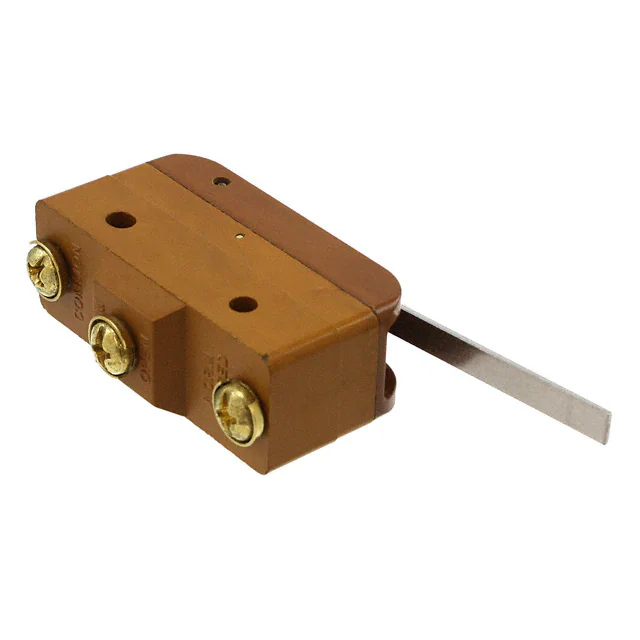

BZ-RW84431-A2 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	2,001	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	125 V	-	Lever, Straight	15A (AC)	Chassis Mount	Screw Terminal	-	-	283gf	0.015" (0.38mm)	-	-	0.750" (19.1mm)	0.125" (3.2mm)	-55°C ~ 85°C

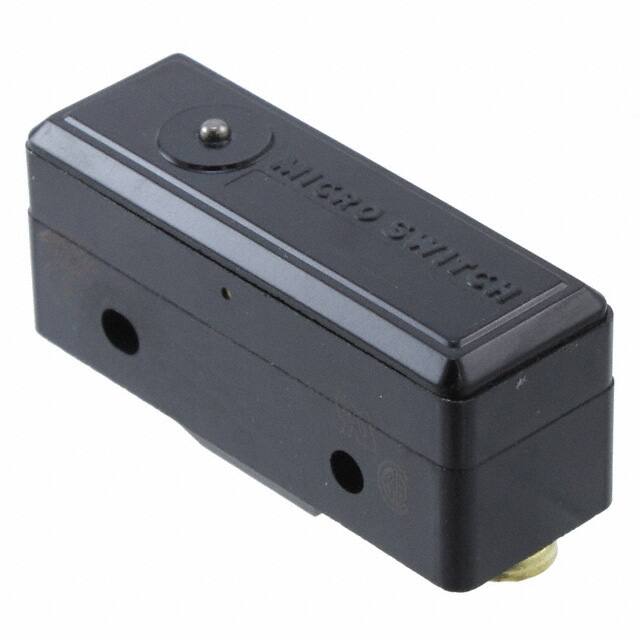

BZ-2R268-A2 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	2,631	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	125 V	125 V	Round (Pin Plunger)	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	227 ~ 368gf	0.002" (0.05mm)	43 ~ 99gf	0.015" (0.4mm)	0.625" (15.9mm)	0.005" (0.13mm)	-55°C ~ 85°C
DS2F5BQ3 SWITCH SNAP ACT DPDT 100MA 125V C&K	2,150	-	RFQ Sell Excess Inventory	Datasheet	DS	Bulk	Active	DPDT	On-Mom	125 V	-	Round (Pin Plunger)	100mA (AC)	Panel Mount, Snap-In	Quick Connect - 0.250" (6.3mm)	-	-	680gf	-	-	-	0.770" (19.5mm)	0.398" (10.1mm)	-40°C ~ 85°C
WA-2R-A21 SWITCH SNAP ACT SPST-NC 20A 125V Honeywell Sensing and Productivity Solutions	1,860	-	RFQ Sell Excess Inventory	Datasheet	WA	Bulk	Active	SPST-NC	On-Mom	125 V	-	Round (Pin Plunger)	20A (AC)	Chassis Mount	Screw Terminal	-	-	397 ~ 624gf	0.007" (0.18mm)	283gf	0.050" (1.27mm)	0.640" (16.3mm)	0.010" (0.25mm)	-55°C ~ 85°C
BA-2R62 SWITCH LARGE BASIC Honeywell Sensing and Productivity Solutions	1,851	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

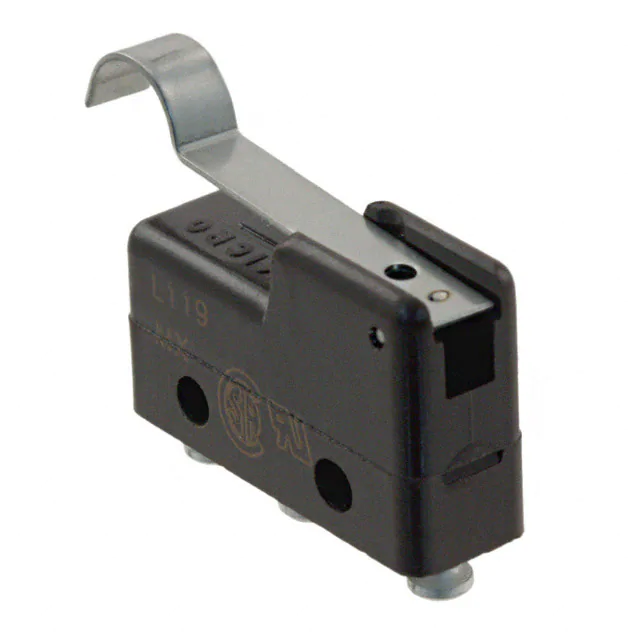

311SM704-T SWITCH SNAP ACTION SPDT 4A 250V Honeywell Sensing and Productivity Solutions	2,675	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Active	SPDT	On-Mom	250 V	30 V	Lever, Simulated Roller	4A (AC), 5A (DC)	Chassis Mount	Solder Turret	-	-	16gf	0.013" (0.33mm)	3.059gf	0.085" (2.16mm)	0.460" (11.7mm)	0.018" (0.45mm)	-55°C ~ 125°C
