Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
D2SW-3-3MS-0 SWITCH SNAP ACT SPST-NO 3A 125V Omron Electronics Inc-EMC Div	1,868	-	RFQ Sell Excess Inventory	Datasheet	D2SW	Bulk	Active	SPST-NO	Off-Mom	125 V	-	Round (Pin Plunger)	3A (AC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	180gf	0.004" (0.1mm)	30gf	0.025" (0.65mm)	0.330" (8.4mm)	0.020" (0.5mm)	-40°C ~ 85°C
BA-2R233-A4 SWITCH BASIC LARGE Honeywell Sensing and Productivity Solutions	1,357	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
41SM301 SWITCH SNAP ACTION SPDT 11A 250V Honeywell Sensing and Productivity Solutions	4,183	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Obsolete	SPDT	On-Mom	250 V	30 V	Round (Pin Plunger)	11A (AC), 5A (DC)	Chassis Mount	Solder Lug	-	-	141gf	0.004" (0.1mm)	28gf	0.030" (0.8mm)	0.330" (8.4mm)	0.005" (0.13mm)	-55°C ~ 125°C
D2MC-5F1 SWITCH SNAP ACTION SPDT 5A 125V Omron Electronics Inc-EMC Div	3,844	-	RFQ Sell Excess Inventory	Datasheet	D2MC	Bulk	Active	SPDT	On-Mom	125 V	-	Without	5A (AC)	Chassis Mount	Quick Connect - 0.205" (5.2mm)	IP40	-	0.076gfm	3°	0.009gfm	21°	-	17°	-25°C ~ 80°C
YE-2R-A4 SWITCH SNAP ACTION SPST-NO 25A Honeywell Sensing and Productivity Solutions	1,673	-	RFQ Sell Excess Inventory	Datasheet	YE	Bulk	Obsolete	SPST-NO	Off-Mom	-	-	Round (Pin Plunger)	25A	Chassis Mount	Screw Terminal	-	-	-	-	-	-	-	-	-
AZH1224 SWITCH SNAP ACT SPDT 0.1A 125V Panasonic Industrial Automation Sales	3,834	-	RFQ Sell Excess Inventory	Datasheet	AZH	Bulk	Obsolete	SPDT	On-Mom	125 V	30 V	Lever, Roller	100mA (AC/DC)	Chassis Mount	Screw Terminal	IP64 - Dust Tight, Water Resistant	-	250gf	0.025" (0.6mm)	40gf	0.157" (4.0mm)	1.350" (34.3mm)	0.276" (7.0mm)	-10°C ~ 80°C
AZH1244 SWITCH SNAP ACT SPDT 0.1A 125V Panasonic Industrial Automation Sales	1,151	-	RFQ Sell Excess Inventory	Datasheet	AZH	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Roller	100mA (AC/DC)	Chassis Mount	Screw Terminal	IP64 - Dust Tight, Water Resistant	-	400gf	0.012" (0.3mm)	80gf	0.080" (2.0mm)	0.909" (23.1mm)	0.158" (4.0mm)	-10°C ~ 80°C
BM-1R392-A2 SWITCH BASIC Honeywell Sensing and Productivity Solutions	1,251	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
S-3-BE SWITCH MICRO SPDT 6A 250V Festo Corporation	1,805	-	RFQ Sell Excess Inventory	Datasheet	-	Bulk	Active	SPDT	On-Mom	250 V	250 V	Round (Pin Plunger)	6A (AC/DC)	Chassis Mount	Solder, Quick Connect - 0.110" (2.8mm)	IP40	-	-	-	-	-	-	-	-20°C ~ 85°C

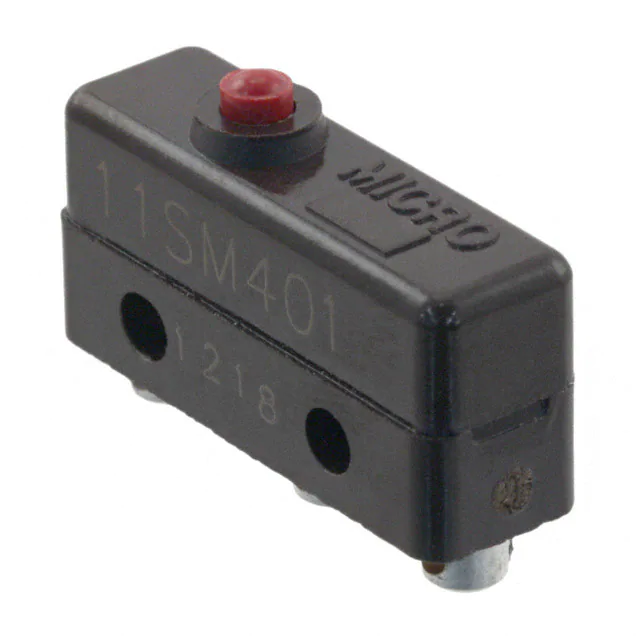

11SM401 SWITCH SNAP ACTION SPDT 5A 250V Honeywell Sensing and Productivity Solutions	4,273	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Active	SPDT	On-Mom	250 V	30 V	Round (Pin Plunger)	5A (AC/DC)	Chassis Mount	Solder Lug	-	-	99gf	0.001" (0.025mm)	28gf	0.020" (0.5mm)	0.330" (8.4mm)	0.005" (0.13mm)	-55°C ~ 125°C
83132030 SWITCH SNAP ACTION SPDT 5A 250V Crouzet	2,948	-	RFQ Sell Excess Inventory	Datasheet	83132	Bulk	Active	SPDT (DB/DM)	On-Mom	250 V	-	Round (Pin Plunger)	5A (AC)	Chassis Mount	Solder, Quick Connect - 0.110" (2.8mm)	-	-	163gf	0.018" (0.45mm)	41gf	-	0.303" (7.7mm)	0.011" (0.3mm)	-20°C ~ 125°C

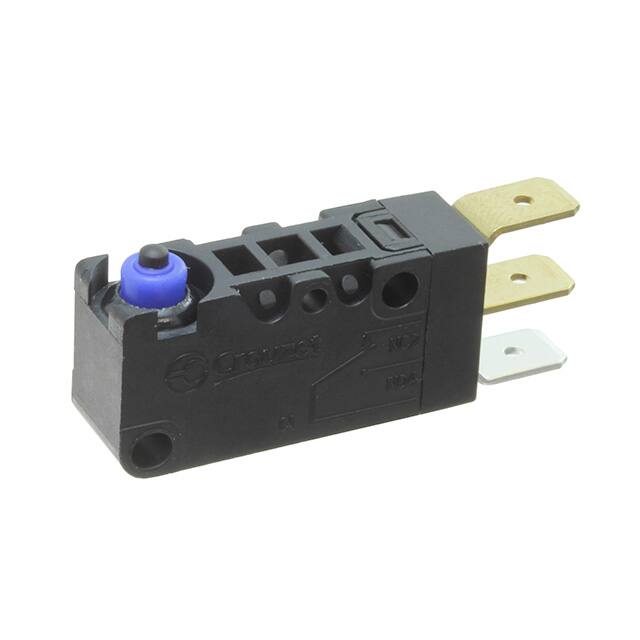

83299001 SWITCH SNAP ACTION SPDT 3A 250V Crouzet	4,924	-	RFQ Sell Excess Inventory	Datasheet	V3DS	Bulk	Active	SPDT	On-Mom	250 V	-	Round (Pin Plunger)	3A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	IP67 - Dust Tight, Waterproof	-	102gf	0.020" (0.5mm)	10gf	-	0.579" (14.7mm)	0.040" (1.0mm)	-40°C ~ 85°C
83180004 SWITCH SNAP ACTION SPDT 10A 250V Crouzet	2,777	-	RFQ Sell Excess Inventory	Datasheet	83180	Bulk	Active	SPDT	On-Mom	250 V	24 V	Round (Pin Plunger)	10A (AC/DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	Cable Length 0.5m	347gf	0.004" (0.1mm)	102gf	-	0.330" (8.4mm)	0.025" (0.6mm)	-40°C ~ 105°C
83180005 SWITCH SNAP ACTION SPDT 10A 250V Crouzet	2,112	-	RFQ Sell Excess Inventory	Datasheet	83180	Bulk	Active	SPDT	On-Mom	250 V	24 V	Round (Pin Plunger)	10A (AC/DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	Cable Length 0.5m	347gf	0.004" (0.1mm)	102gf	-	0.330" (8.4mm)	0.025" (0.6mm)	-40°C ~ 105°C
BZ-R173-A4 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	1,228	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	15A (AC)	Chassis Mount	Screw Terminal	-	-	198 ~ 283gf	0.0005" (0.013mm)	-	0.012" (0.3mm)	0.625" (15.9mm)	0.005" (0.13mm)	-55°C ~ 85°C
2DM438 SWITCH SNAP ACTION DPDT 10A 125V Honeywell Sensing and Productivity Solutions	2,807	-	RFQ Sell Excess Inventory	Datasheet	DM	Bulk	Obsolete	DPDT	On-Mom	125 V	-	Push-Pull Plunger	10A (AC)	Panel Mount, Snap-In	Quick Connect - 0.187" (4.7mm)	-	Pull On Lock	680gf	-	-	-	0.745" (18.9mm)	0.590" (15.0mm)	-37°C ~ 82°C
ADPDC2A24AC SWITCH SNAP ACTION DPDT 15A 125V C&K	1,349	-	RFQ Sell Excess Inventory	Datasheet	A	Tray	Active	DPDT	On-Mom	125 V	-	Lever, Roller	15A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	170gf	-	28gf	0.250" (6.35mm)	0.718" (18.24mm)	0.141" (3.6mm)	-55°C ~ 85°C
11SM1-TN189 SUBMINIATURE BASIC SWITCH Honeywell Sensing and Productivity Solutions	1,327	-	RFQ Sell Excess Inventory	Datasheet	-	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ZW50F92SW1-A SWITCH SNAP ACTION SPDT 6A 125V Honeywell Sensing and Productivity Solutions	1,587	-	RFQ Sell Excess Inventory	Datasheet	ZW	Box	Obsolete	SPDT	On-Mom	125 V	-	-	6A (AC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	-	-	-	-	-	-	-40°C ~ 120°C
BZ-R294 SWITCH LARGE BASIC Honeywell Sensing and Productivity Solutions	2,955	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
