Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
VM3SAGF3003L04 SWITCH LIMIT SPST-NO 10A 125V CIT Relay and Switch	4,672	-	RFQ Sell Excess Inventory	Datasheet	VM3S	Box	Active	SPST-NO	Off-Mom	125 V	36 V	Lever, Straight	10A (AC), 6A (DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	300gf	0.040" (1.0mm)	250gf	0.080" (2.0mm)	0.591" (15.00mm)	0.020" (0.5mm)	-40°C ~ 120°C
VM3SAGF3003L02 SWITCH LIMIT SPST-NO 10A 125V CIT Relay and Switch	4,442	-	RFQ Sell Excess Inventory	Datasheet	VM3S	Box	Active	SPST-NO	Off-Mom	125 V	36 V	Lever, Simulated Roller	10A (AC), 6A (DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	200gf	0.060" (1.5mm)	180gf	0.118" (3.0mm)	0.720" (18.3mm)	0.024" (0.6mm)	-40°C ~ 120°C
VM3SAGF3003L03 SWITCH LIMIT SPST-NO 10A 125V CIT Relay and Switch	3,193	-	RFQ Sell Excess Inventory	Datasheet	VM3S	Box	Active	SPST-NO	Off-Mom	125 V	36 V	Lever, Straight	10A (AC), 6A (DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	180gf	0.060" (1.5mm)	80gf	0.138" (3.5mm)	0.587" (14.90mm)	0.039" (1.0mm)	-40°C ~ 120°C
BZ-RW84-A2N157 SWITCH LARGE BASIC Honeywell Sensing and Productivity Solutions	1,642	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
VM3SBGF3003L04 SWITCH LIMIT SPST-NC 10A 125V CIT Relay and Switch	1,632	-	RFQ Sell Excess Inventory	Datasheet	VM3S	Box	Active	SPST-NC	On-Mom	125 V	36 V	Lever, Straight	10A (AC), 6A (DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	300gf	0.040" (1.0mm)	250gf	0.080" (2.0mm)	0.591" (15.00mm)	0.020" (0.5mm)	-40°C ~ 120°C
VM3SBGF3003L02 SWITCH LIMIT SPST-NC 10A 125V CIT Relay and Switch	2,235	-	RFQ Sell Excess Inventory	Datasheet	VM3S	Box	Active	SPST-NC	On-Mom	125 V	36 V	Lever, Simulated Roller	10A (AC), 6A (DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	200gf	0.060" (1.5mm)	180gf	0.118" (3.0mm)	0.720" (18.3mm)	0.024" (0.6mm)	-40°C ~ 120°C
VM3SBGF3003L03 SWITCH LIMIT SPST-NC 10A 125V CIT Relay and Switch	1,277	-	RFQ Sell Excess Inventory	Datasheet	VM3S	Box	Active	SPST-NC	On-Mom	125 V	36 V	Lever, Straight	10A (AC), 6A (DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	180gf	0.060" (1.5mm)	80gf	0.138" (3.5mm)	0.587" (14.90mm)	0.039" (1.0mm)	-40°C ~ 120°C
VM3SAGF3003L06 SWITCH LIMIT SPST-NO 10A 125V CIT Relay and Switch	2,683	-	RFQ Sell Excess Inventory	Datasheet	VM3S	Box	Active	SPST-NO	Off-Mom	125 V	36 V	Lever, Roller	10A (AC), 6A (DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	380gf	0.040" (1.0mm)	160gf	0.067" (1.7mm)	0.799" (20.3mm)	0.012" (0.3mm)	-40°C ~ 120°C
GPTBNH11 SWITCH SNAP ACTION SPDT 20A 125V ZF Electronics	4,582	-	RFQ Sell Excess Inventory	Datasheet	GP	Bulk	Active	SPDT	On-Mom	125 V	-	Overtravel Plunger	20A (AC)	Panel Mount	Screw Terminal	-	-	649gf	0.008" (0.2mm)	201gf	0.028" (0.7mm)	0.825" (21.0mm)	0.217" (5.5mm)	0°C ~ 55°C
311SM4 SWITCH SNAP ACTION SPDT 5A 250V Honeywell Sensing and Productivity Solutions	1,862	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Active	SPDT	On-Mom	250 V	30 V	Lever, Simulated Roller	5A (AC/DC)	Chassis Mount	Solder Lug	-	-	40gf	0.020" (0.5mm)	7.138gf	0.085" (2.16mm)	0.460" (11.7mm)	0.018" (0.45mm)	-55°C ~ 125°C
VM3SAGF3003L01 SWITCH LIMIT SPST-NO 10A 125V CIT Relay and Switch	2,567	-	RFQ Sell Excess Inventory	Datasheet	VM3S	Box	Active	SPST-NO	Off-Mom	125 V	36 V	Lever, Roller	10A (AC), 6A (DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	210gf	0.050" (1.3mm)	100gf	0.118" (3.0mm)	0.795" (20.2mm)	0.031" (0.8mm)	-40°C ~ 120°C
BE-2R-A4 SWITCH SNAP ACTION SPDT 25A 125V Honeywell Sensing and Productivity Solutions	2,247	-	RFQ Sell Excess Inventory	Datasheet	BE	Bulk	Active	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	25A (AC)	Chassis Mount	Screw Terminal	-	-	397 ~ 624gf	0.007" (0.18mm)	283gf	0.050" (1.27mm)	0.640" (16.3mm)	0.010" (0.25mm)	-55°C ~ 85°C
VM3SBGF3003L06 SWITCH LIMIT SPST-NC 10A 125V CIT Relay and Switch	2,536	-	RFQ Sell Excess Inventory	Datasheet	VM3S	Box	Active	SPST-NC	On-Mom	125 V	36 V	Lever, Roller	10A (AC), 6A (DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	380gf	0.040" (1.0mm)	160gf	0.067" (1.7mm)	0.799" (20.3mm)	0.012" (0.3mm)	-40°C ~ 120°C
ADPFF3J04AC SWITCH SNAP ACTION DPDT 25A 125V C&K	4,941	-	RFQ Sell Excess Inventory	Datasheet	A	Tray	Active	DPDT	On-Mom	125 V	24 V	Overtravel Plunger	25A (AC), 2A (DC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	1134gf	-	170gf	0.050" (1.27mm)	-	0.187" (4.75mm)	-55°C ~ 85°C
BZ-1R374-P4 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	4,094	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	15A (AC)	Chassis Mount	Screw Terminal	-	-	227 ~ 283gf	0.001" (0.025mm)	113 ~ 142gf	0.015" (0.4mm)	0.625" (15.9mm)	0.015" (0.4mm)	-55°C ~ 85°C

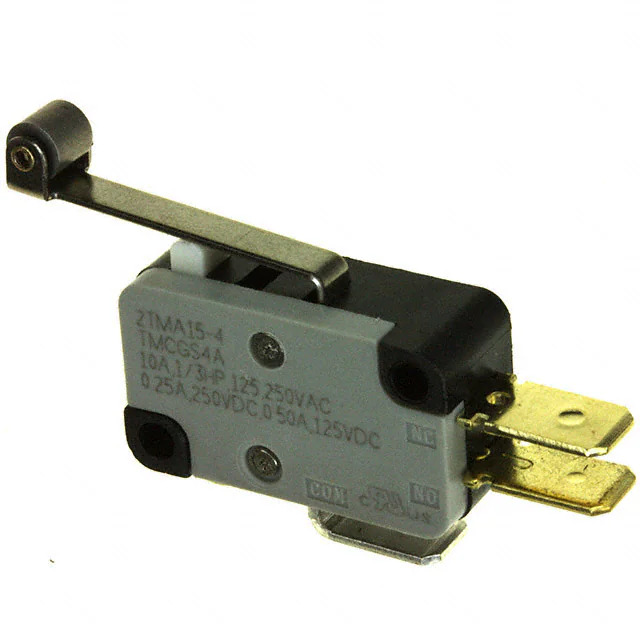

TMCGD6SA154AC SWITCH SNAP ACTION SPDT 10A 125V C&K	4,650	-	RFQ Sell Excess Inventory	Datasheet	TM	Bulk	Active	SPDT	On-Mom	125 V	125 V	Lever, Roller	10A (AC), 500mA (DC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	45gf	0.030" (0.76mm)	10gf	0.161" (4.1mm)	0.812" (20.6mm)	0.065" (1.7mm)	-55°C ~ 150°C
83160701 SWITCH SNAP ACT SPST-NC 6A 250V Crouzet	1,966	-	RFQ Sell Excess Inventory	Datasheet	83160	Bulk	Active	SPST-NC	On-Mom	250 V	-	Round (Pin Plunger)	6A (AC)	Chassis Mount	Solder Lug	-	-	408gf	-	153gf	-	0.583" (14.8mm)	0.051" (1.3mm)	-40°C ~ 85°C
83160703 SWITCH SNAP ACT SPST-NC 6A 250V Crouzet	2,882	-	RFQ Sell Excess Inventory	Datasheet	83160	Bulk	Active	SPST-NC	On-Mom	250 V	-	Round (Pin Plunger)	6A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	408gf	-	153gf	-	0.583" (14.8mm)	0.051" (1.3mm)	-40°C ~ 85°C
X0219141 SEALED MICROSWITCH V4 831830 Crouzet	3,512	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
VM3SBGF3003L01 SWITCH LIMIT SPST-NC 10A 125V CIT Relay and Switch	3,915	-	RFQ Sell Excess Inventory	Datasheet	VM3S	Box	Active	SPST-NC	On-Mom	125 V	36 V	Lever, Roller	10A (AC), 6A (DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	210gf	0.050" (1.3mm)	100gf	0.118" (3.0mm)	0.795" (20.2mm)	0.031" (0.8mm)	-40°C ~ 120°C
