Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
XCMN2115L1 SWITCH LIMIT DPST 1.5A 240V Telemecanique Sensors	2,028	-	RFQ Sell Excess Inventory	Datasheet	XC	Box	Active	DPST-NO/NC	On-Mom, Off-Mom	240 V	250 V	Side Rotary, Roller	1.5A (AC), 100mA (DC)	Chassis Mount	Cable Leads	IP65 - Dust Tight, Water Resistant	-	-	-	-	-	-	-	-25°C ~ 70°C
83139003 SWITCH SNAP ACTION SPDT 5A 125V Crouzet	4,791	-	RFQ Sell Excess Inventory	Datasheet	83139	Bulk	Active	SPDT (DB/DM)	On-Mom	125 V	-	Round (Pin Plunger)	5A (AC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	Cable Length 0.5m	306gf	0.014" (0.35mm)	61gf	-	0.303" (7.7mm)	0.011" (0.3mm)	0°C ~ 85°C
83139503 SWITCH SNAP ACTION SPDT 5A 125V Crouzet	4,870	-	RFQ Sell Excess Inventory	Datasheet	83139	Bulk	Active	SPDT (DB/DM)	On-Mom	125 V	-	Round (Pin Plunger)	5A (AC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	Cable Length 0.5m	306gf	0.014" (0.35mm)	61gf	-	0.303" (7.7mm)	0.011" (0.3mm)	0°C ~ 85°C

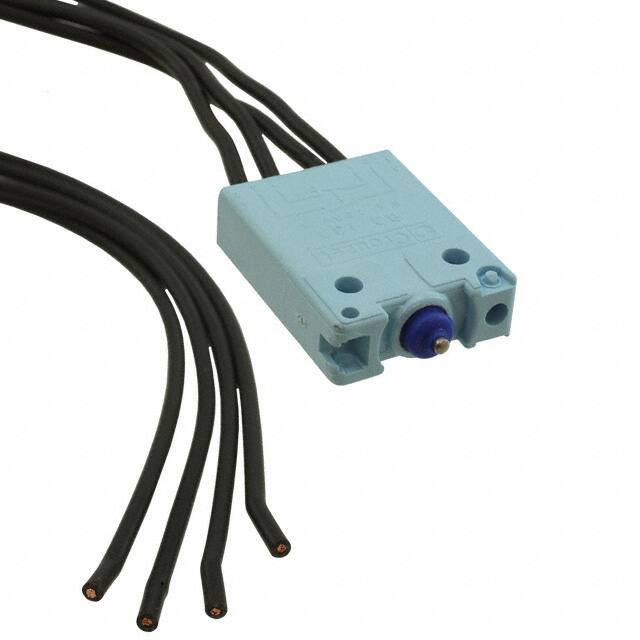

83139518 SWITCH SNAP ACTION SPDT 5A 125V Crouzet	4,980	-	RFQ Sell Excess Inventory	Datasheet	83139	Bulk	Active	SPDT (DB/DM)	On-Mom	125 V	-	Round (Pin Plunger)	5A (AC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	Cable Length 0.5m	306gf	0.014" (0.35mm)	61gf	-	0.343" (8.7mm)	0.011" (0.3mm)	0°C ~ 85°C
83111064 SWITCH SNAP ACTION SPDT 10A 250V Crouzet	1,288	-	RFQ Sell Excess Inventory	Datasheet	83111	Bulk	Active	SPDT (DB/DM)	On-Mom	250 V	-	Round (Pin Plunger)	10A (AC)	Chassis Mount	Solder Lug	-	-	408gf	0.020" (0.5mm)	102gf	0.028" (0.7mm)	-	0.026" (0.7mm)	-40°C ~ 85°C
83131701 SWITCH SNAP ACT QC ROLLER PLNG Crouzet	2,502	-	RFQ Sell Excess Inventory	Datasheet	83131	Box	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
3SE03RA SWITCH LIMIT RECEPTACLE 1NO/1NC Siemens	3,648	-	RFQ Sell Excess Inventory	Datasheet	-	Box	Active	SPST-NC	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
NGCPB10AX01B SWITCH SNAP ACTION DPST 6A 120V Honeywell Sensing and Productivity Solutions	1,734	-	RFQ Sell Excess Inventory	Datasheet	NGC	Bulk	Active	DPST-NO/NC	On-Mom, Off-Mom	120 V	125 V	Round (Pin Plunger)	6A (AC), 550mA (DC)	Chassis Mount	Cable Leads	IP67 - Dust Tight, Waterproof	-	1122gf	0.047" (1.2mm)	306gf	0.083" (2.1mm)	0.083" (2.1mm)	0.193" (4.9mm)	-25°C ~ 75°C
6SX3-T SWITCH SUBMINI BASIC Honeywell Sensing and Productivity Solutions	4,727	-	RFQ Sell Excess Inventory	Datasheet	SX	Bulk	Obsolete	SPDT	On-Mom	-	-	Round (Pin Plunger)	-	Chassis Mount	Solder Turret	-	-	-	-	-	-	-	-	-53°C ~ 204°C
D4N-1220 SWITCH SNAP ACT DPST-NC 3A 240V Omron Automation and Safety	1,434	-	RFQ Sell Excess Inventory	Datasheet	D4N	Bulk	Active	DPST-NC	On-Mom	240 V	250 V	Side Rotary, Roller	3A (AC), 270mA (DC)	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	Resin Lever, Resin Roller	510gf	14°	51gf	18°	-	40°	-30°C ~ 70°C
D4N-4E32 SWITCH SNAP ACTION DPST 3A 240V Omron Automation and Safety	3,987	-	RFQ Sell Excess Inventory	Datasheet	D4N	Bulk	Active	DPST-NO/NC (MBB)	On-Mom, Off-Mom	240 V	250 V	Roller Plunger	3A (AC), 270mA (DC)	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	-	663gf	-	153gf	0.110" (2.8mm)	1.100" (28.0mm)	0.158" (4.0mm)	-30°C ~ 70°C
Z-15GW-BT SWITCH SNAP ACTION SPDT 15A 125V Omron Automation and Safety	2,633	-	RFQ Sell Excess Inventory	Datasheet	Z	Bulk	Obsolete	SPDT	On-Mom	125 V	30 V	Lever, Roller	15A (AC), 6A (DC)	Chassis Mount	Screw Terminal	IP00	-	-	-	-	-	-	-	-25°C ~ 80°C
BFL1-AW2-BP SWITCH SNAP ACTION SPDT 5A 125V Honeywell Sensing and Productivity Solutions	4,204	-	RFQ Sell Excess Inventory	Datasheet	BF	Bulk	Not For New Designs	SPDT	On-Mom	125 V	-	Spring, Rod	5A (AC)	Chassis Mount	Screw Terminal	-	Actuator Mounted Left Side	198gf	-	-	-	15°	-	-32°C ~ 71°C
NGCPB07BX07A6A SWITCH COMPACT LIMIT Honeywell Sensing and Productivity Solutions	4,124	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
12SX15-T SWITCH SNAP ACTION SPDT 1A 28V Honeywell Sensing and Productivity Solutions	3,007	-	RFQ Sell Excess Inventory	Datasheet	SX	Bulk	Obsolete	SPDT	On-Mom	-	28 V	Round (Pin Plunger)	1A (DC)	Chassis Mount	Solder Turret	-	-	141gf	0.003" (0.075mm)	28gf	0.020" (0.5mm)	0.320" (8.13mm)	0.003" (0.076mm)	-55°C ~ 125°C
608.1100.272 SWITCH LIMIT BODY ONLY Altech Corporation	1,665	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
GLDA06D SWITCH SNAP ACTION DPST 6A 120V Honeywell Sensing and Productivity Solutions	2,303	-	RFQ Sell Excess Inventory	Datasheet	GLS	Bulk	Obsolete	DPST-NC (DB)	On-Mom	120 V	125 V	Lever, Roller	6A (AC), 550mA (DC)	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	-	953gf	0.050" (1.3mm)	-	0.138" (3.5mm)	1.409" (35.8mm)	0.205" (5.2mm)	-40°C ~ 85°C
NGCPB10AX01A2B SWITCH SNAP ACTION Honeywell Sensing and Productivity Solutions	1,519	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
XCMN2910L1 SWITCH SNP ACT DPST-NC 1.5A 240V Telemecanique Sensors	3,690	-	RFQ Sell Excess Inventory	Datasheet	XC	Box	Active	DPST-NC	On-Mom	240 V	250 V	Round (Pin Plunger)	1.5A (AC), 100mA (DC)	Chassis Mount	Cable Leads	IP65 - Dust Tight, Water Resistant	-	-	-	-	-	-	-	-25°C ~ 70°C
NGCMB00NX01C SWITCH SNAP ACTION DPST 6A 120V Honeywell Sensing and Productivity Solutions	4,890	-	RFQ Sell Excess Inventory	Datasheet	NGC	Bulk	Active	DPST-NO/NC	On-Mom, Off-Mom	120 V	125 V	Roller Plunger	6A (AC), 550mA (DC)	Chassis Mount	Connector	IP67 - Dust Tight, Waterproof	-	1122gf	0.047" (1.2mm)	306gf	0.083" (2.1mm)	0.083" (2.1mm)	0.193" (4.9mm)	-25°C ~ 75°C
