Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
PS21L-NS11P0-M00 SWITCH SNAP ACT DPST 5.5A 130V Carlo Gavazzi Inc.	2,909	-	RFQ Sell Excess Inventory	Datasheet	PS21L	Bulk	Active	DPST-NO/NC	On-Mom, Off-Mom	130 V	24 V	Round (Pin Plunger)	5.5A (AC), 2.8A (DC)	Chassis Mount	Screw Terminal	IP66 - Dust Tight, Water Resistant	-	3059gf	-	-	-	-	-	-25°C ~ 70°C
BZ-2RQ18-P4 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	1,627	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Roller Plunger	15A (AC), 500mA (DC)	Panel Mount	Screw Terminal	-	-	255 ~ 368gf	0.002" (0.05mm)	113gf	0.015" (0.4mm)	1.313" (33.4mm)	0.141" (3.6mm)	-55°C ~ 85°C
XCMH2110L2 LS PL MINI MTL PLUGR NCNO SNAP 2 Telemecanique Sensors	2,410	-	RFQ Sell Excess Inventory	Datasheet	XCMH	Bulk	Active	DPST-NO/NC	On-Off, Off-On	240 V	250 V	Round (Pin Plunger)	750mA (AC), 100mA (DC)	Chassis Mount	Cable Leads	IP66/IP67 - Dust Tight, Water Resistant, Waterproof	-	-	-	-	-	-	-	-25°C ~ 70°C
XCMH2159L1 LS PL MINI PLASTIC ROD NCNO SNAP Telemecanique Sensors	2,170	-	RFQ Sell Excess Inventory	Datasheet	XCMH	Bulk	Active	DPST-NO/NC	On-Off, Off-On	240 V	250 V	Side Rotary, Adjustable Rod	750mA (AC), 100mA (DC)	Chassis Mount	Cable Leads	IP66/IP67 - Dust Tight, Water Resistant, Waterproof	-	-	-	-	-	-	-	-25°C ~ 70°C
11SM423-H2 SWITCH SNAP ACTION SPDT 1A 125V Honeywell Sensing and Productivity Solutions	2,618	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Active	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	1A (AC/DC)	Through Hole	PC Pin	-	-	99gf	0.001" (0.025mm)	28gf	0.020" (0.5mm)	0.330" (8.4mm)	0.005" (0.13mm)	-55°C ~ 125°C
11SM423-H4 SWITCH SNAP ACTION SPDT 1A 125V Honeywell Sensing and Productivity Solutions	1,582	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Active	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	1A (AC/DC)	Chassis Mount	Solder, Quick Connect - 0.110" (2.8mm)	-	-	99gf	0.001" (0.025mm)	28gf	0.020" (0.5mm)	0.330" (8.4mm)	0.005" (0.13mm)	-55°C ~ 125°C
XCKN2118G11 SWITCH LIMIT DPST 3A 240V Telemecanique Sensors	3,057	-	RFQ Sell Excess Inventory	Datasheet	XC	Box	Active	DPST-NO/NC	On-Mom, Off-Mom	240 V	250 V	Side Rotary, Roller	3A (AC), 100mA (DC)	Chassis Mount	Screw Terminal	IP65 - Dust Tight, Water Resistant	-	-	-	-	-	-	-	-25°C ~ 70°C
XCKN2510P20 SWITCH SNAP ACTION DPST 3A 240V Telemecanique Sensors	1,539	-	RFQ Sell Excess Inventory	Datasheet	XC	Box	Active	DPST-NO/NC	On-Mom, Off-Mom	240 V	250 V	Round (Pin Plunger)	3A (AC), 100mA (DC)	Chassis Mount	Screw Terminal	IP65 - Dust Tight, Water Resistant	-	-	-	-	-	-	-	-25°C ~ 70°C
D4N-3162 SWITCH SNAP ACTION DPST 3A 240V Omron Automation and Safety	1,526	-	RFQ Sell Excess Inventory	Datasheet	D4N	Bulk	Obsolete	DPST-NO/NC	On-Mom, Off-Mom	240 V	250 V	Lever, Roller	3A (AC), 270mA (DC)	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	-	510gf	0.060" (1.5mm)	82gf	0.157" (4.0mm)	1.457" (37.0mm)	0.197" (5.0mm)	-30°C ~ 70°C
XCKN2121P20 SWITCH LIMIT DPST 3A 240V Telemecanique Sensors	2,014	-	RFQ Sell Excess Inventory	Datasheet	XC	Box	Active	DPST-NO/NC	On-Mom, Off-Mom	240 V	250 V	Lever, Roller	3A (AC), 100mA (DC)	Chassis Mount	Screw Terminal	IP65 - Dust Tight, Water Resistant	-	-	-	-	-	-	-	-25°C ~ 70°C
XCKN2106P20 SWITCH LIMIT DPST 3A 240V Telemecanique Sensors	4,492	-	RFQ Sell Excess Inventory	Datasheet	XC	Box	Active	DPST-NO/NC	On-Mom, Off-Mom	240 V	250 V	Spring, Cat Whisker	3A (AC), 100mA (DC)	Chassis Mount	Screw Terminal	IP65 - Dust Tight, Water Resistant	-	-	-	-	-	-	-	-25°C ~ 70°C
XCKN2103G11 SWITCH SNAP ACTION DPST 3A 240V Telemecanique Sensors	3,419	-	RFQ Sell Excess Inventory	Datasheet	XC	Box	Active	DPST-NO/NC	On-Mom, Off-Mom	240 V	250 V	Roller Plunger	3A (AC), 100mA (DC)	Chassis Mount	Screw Terminal	IP65 - Dust Tight, Water Resistant	-	-	-	-	-	-	-	-25°C ~ 70°C

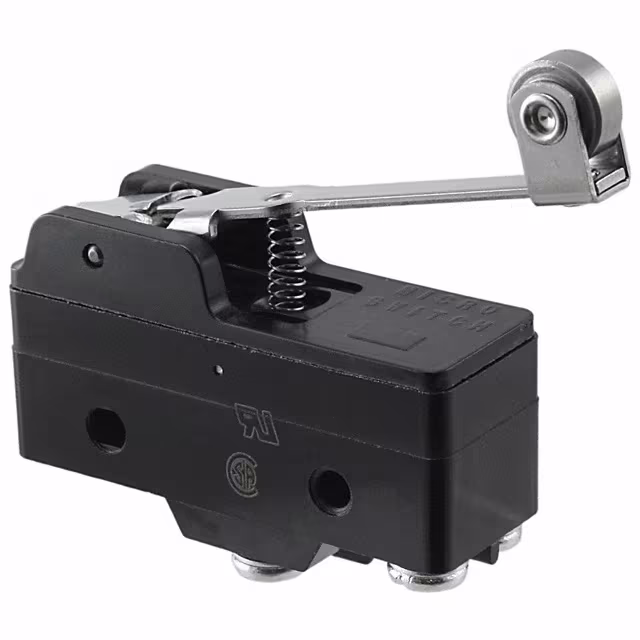

BZ-3YWT82 SWITCH SNAP ACTION SPDT 5A 250V Honeywell Sensing and Productivity Solutions	2,620	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	250 V	-	Lever, Roller	5A (AC)	Chassis Mount	Screw Terminal	-	-	127gf	0.075" (1.9mm)	21gf	-	1.188" (30.2mm)	0.156" (3.96mm)	-55°C ~ 85°C
608.3000.201 SWITCH LIMIT Altech Corporation	1,843	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
608.3000.205 SWITCH LIMIT Altech Corporation	4,356	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
608.3000.206 SWITCH LIMIT Altech Corporation	3,252	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
1SM282-1525 SWITCH SNAP ACTION SPDT 5A 250V Honeywell Sensing and Productivity Solutions	2,190	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Active	SPDT	On-Mom	250 V	30 V	Round (Pin Plunger)	5A (AC/DC)	Chassis Mount	Solder Lug	-	-	141gf	0.002" (0.05mm)	28gf	0.030" (0.8mm)	0.330" (8.4mm)	0.005" (0.13mm)	-55°C ~ 125°C
83240020 SWITCH SNAP ACTION DPST 6A 250V Crouzet	4,195	-	RFQ Sell Excess Inventory	Datasheet	PBX	Bulk	Active	DPST-NO/NC	On-Mom, Off-Mom	250 V	250 V	Round (Pin Plunger)	6A (AC), 600mA (DC)	Chassis Mount	Screw Terminal	IP40	-	459gf	0.040" (1.0mm)	-	-	0.260" (6.6mm)	-	-50°C ~ 85°C
83242020 SWITCH SNAP ACTION DPST 6A 250V Crouzet	1,407	-	RFQ Sell Excess Inventory	Datasheet	PBX	Bulk	Active	DPST-NO/NC	On-Mom, Off-Mom	250 V	250 V	Round (Pin Plunger)	6A (AC), 600mA (DC)	Chassis Mount	Screw Terminal	IP40	-	663gf	0.040" (1.0mm)	-	-	0.260" (6.6mm)	-	-50°C ~ 85°C
D4V-8166Z-N SWITCH SNAP ACTION SPDT 5A 125V Omron Automation and Safety	1,450	-	RFQ Sell Excess Inventory	Datasheet	D4V	Bulk	Active	SPDT	On-Mom	125 V	24 V	Spring, Coil	5A (AC/DC)	Chassis Mount	Screw Terminal	IP65 - Dust Tight, Water Resistant	-	90gf	-	-	1.181" (30.0mm)	-	-	-20°C ~ 60°C
