Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
9224-07 SWITCH BALL PLNGR SPST-NC 3A 24V Littelfuse Inc.	3,965	-	RFQ Sell Excess Inventory	Datasheet	-	Bulk	Obsolete	SPST-NC	On-Mom	-	24 V	Ball Bearing Plunger	3A (DC)	Panel Mount	Screw Terminal	-	-	-	-	-	-	-	-	-
NGCMB30AX01B SWITCH COMPACT LIMIT Honeywell Sensing and Productivity Solutions	4,866	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
NGCPB10AX01A1B SWITCH COMPACT LIMIT Honeywell Sensing and Productivity Solutions	3,435	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

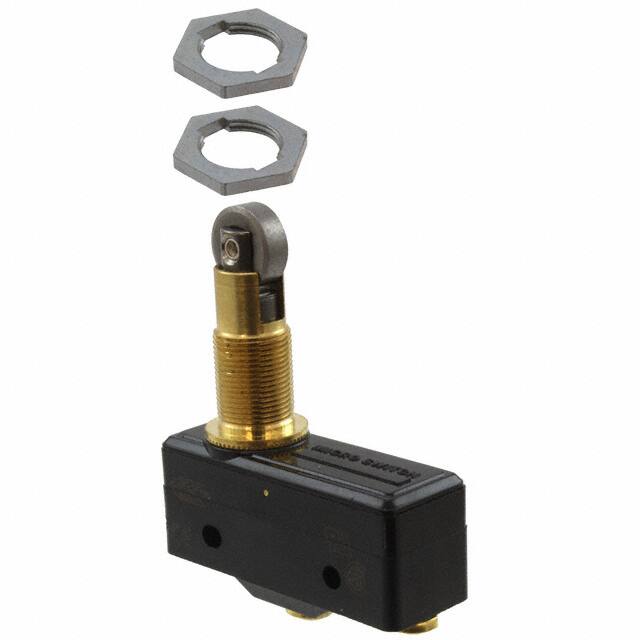

BZ-2RQ1872-A2 SWITCH SNAP ACTION SPDT 1A 125V Honeywell Sensing and Productivity Solutions	1,578	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	125 V	-	Roller Plunger	1A (AC)	Panel Mount	Screw Terminal	-	-	255 ~ 368gf	0.002" (0.05mm)	113gf	0.015" (0.4mm)	1.313" (33.4mm)	0.141" (3.6mm)	-55°C ~ 85°C
D4N-3131 SWITCH SNAP ACTION DPST 3A 240V Omron Automation and Safety	4,586	-	RFQ Sell Excess Inventory	Datasheet	D4N	Bulk	Obsolete	DPST-NO/NC	On-Mom, Off-Mom	240 V	250 V	Round (Pin Plunger)	3A (AC), 270mA (DC)	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	-	663gf	0.040" (1.0mm)	153gf	0.080" (2.0mm)	0.715" (18.2mm)	0.158" (4.0mm)	-30°C ~ 70°C
12BS211 SWITC ADJ PLUNGER SPDT 15A SCREW Honeywell Sensing and Productivity Solutions	1,197	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
D4N-3132 SWITCH SNAP ACTION DPST 3A 240V Omron Automation and Safety	3,225	-	RFQ Sell Excess Inventory	Datasheet	D4N	Bulk	Obsolete	DPST-NO/NC	On-Mom, Off-Mom	240 V	250 V	Roller Plunger	3A (AC), 270mA (DC)	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	-	663gf	0.040" (1.0mm)	153gf	0.080" (2.0mm)	1.125" (28.6mm)	0.158" (4.0mm)	-30°C ~ 70°C
83131904 SWITCH SNAP ACT QC PSH BTN ACT Crouzet	3,536	-	RFQ Sell Excess Inventory	Datasheet	83131	Box	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Z-10FWY-B SWITCH SNAP ACTION SPDT 10A 125V Omron Automation and Safety	3,006	-	RFQ Sell Excess Inventory	Datasheet	Z	Bulk	Active	SPDT (DB/DM)	On-Mom	125 V	30 V	Lever, Straight	10A (AC/DC)	Chassis Mount	Screw Terminal	IP00	-	90gf	0.094" (2.4mm)	14gf	-	0.748" (19.0mm)	0.219" (5.6mm)	-25°C ~ 80°C
Z-15GW44A55-B5V SWITCH SNAP ACTION SPDT 15A 125V Omron Automation and Safety	3,422	-	RFQ Sell Excess Inventory	Datasheet	Z	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Straight	15A (AC), 6A (DC)	Chassis Mount	Screw Terminal	IP62	-	90gf	0.138" (3.5mm)	14gf	-	0.748" (19.0mm)	0.219" (5.6mm)	-15°C ~ 80°C
XCMN2115L10D SWITCH LIMIT THERMOPLASTIC RLLR Telemecanique Sensors	3,095	-	RFQ Sell Excess Inventory	Datasheet	XCMN	Box	Active	DPST-NO/NC	On-Off, Off-On	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
32NT92-10 SEALED OI SWITCH Honeywell Sensing and Productivity Solutions	4,206	-	RFQ Sell Excess Inventory	Datasheet	-	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
600.8101.007 SWITCH LIMIT PLASTIC BODY Altech Corporation	2,746	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BZ-7RL36872T SWITCH LARGE BASIC Honeywell Sensing and Productivity Solutions	4,111	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
XCMN2110L1 SWITCH LIMIT DPST 1.5A 240V Telemecanique Sensors	3,320	-	RFQ Sell Excess Inventory	Datasheet	XC	Box	Active	DPST-NO/NC	On-Mom, Off-Mom	240 V	250 V	Round (Pin Plunger)	1.5A (AC), 100mA (DC)	Chassis Mount	Cable Leads	IP65 - Dust Tight, Water Resistant	-	-	-	-	-	-	-	-25°C ~ 70°C
XEP4E1W7A454 SWITCH SNAP ACT SPDT 1.5A 240V Telemecanique Sensors	3,265	-	RFQ Sell Excess Inventory	Datasheet	OsiSense XC	Box	Active	SPDT	On-On	240 V	250 V	Lever, Roller	1.5A (AC), 100mA (DC)	Chassis Mount	Cable Leads	IP67 - Dust Tight, Waterproof	-	-	-	-	-	-	-	-40°C ~ 125°C
XEP3S2W2B524 SWITCH SNAP ACT SPDT 1.5A 240V Telemecanique Sensors	1,365	-	RFQ Sell Excess Inventory	Datasheet	OsiSense XC	Box	Active	SPDT	On-On	240 V	250 V	Lever, Straight	1.5A (AC), 300mA (DC)	Chassis Mount	Solder Lug	IP40	-	-	-	-	-	-	-	-25°C ~ 125°C
XEP3S1W2B524 SWITCH SNAP ACT SPDT 1.5A 240V Telemecanique Sensors	4,032	-	RFQ Sell Excess Inventory	Datasheet	OsiSense XC	Box	Active	SPDT	On-On	240 V	250 V	Lever, Straight	1.5A (AC), 100mA (DC)	Chassis Mount	Solder Lug	IP40	-	-	-	-	-	-	-	-25°C ~ 125°C
XEP3S2W3B524 SWITCH SNAP ACT SPDT 1.5A 240V Telemecanique Sensors	3,065	-	RFQ Sell Excess Inventory	Datasheet	OsiSense XC	Box	Active	SPDT	On-On	240 V	250 V	Lever, Straight	1.5A (AC), 300mA (DC)	Chassis Mount	Cable Leads	IP40	-	-	-	-	-	-	-	-25°C ~ 125°C
XEP3S1W3B524 SWITCH SNAP ACT SPDT 1.5A 240V Telemecanique Sensors	2,230	-	RFQ Sell Excess Inventory	Datasheet	OsiSense XC	Box	Active	SPDT	On-On	240 V	250 V	Lever, Straight	1.5A (AC), 100mA (DC)	Chassis Mount	Cable Leads	IP40	-	-	-	-	-	-	-	-25°C ~ 125°C
