Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
Z-15GW4455 SWITCH SNAP ACTION SPDT 15A 125V Omron Automation and Safety	4,975	-	RFQ Sell Excess Inventory	Datasheet	Z	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Straight	15A (AC), 6A (DC)	Chassis Mount	Solder Lug	IP62	-	90gf	0.138" (3.5mm)	14gf	-	0.748" (19.0mm)	0.219" (5.6mm)	-15°C ~ 80°C
Z-15HQ21 SWITCH SNAP ACTION SPDT 15A 125V Omron Automation and Safety	3,184	-	RFQ Sell Excess Inventory	Datasheet	Z	Bulk	Active	SPDT	On-Mom	125 V	30 V	Cross Roller Plunger	15A (AC), 2A (DC)	Panel Mount	Solder Lug	IP00	-	-	-	-	-	-	-	-25°C ~ 80°C
D4N-3172 SWITCH SNAP ACTION DPST 3A 240V Omron Automation and Safety	3,995	-	RFQ Sell Excess Inventory	Datasheet	D4N	Bulk	Obsolete	DPST-NO/NC	On-Mom, Off-Mom	240 V	250 V	Lever, Roller	3A (AC), 270mA (DC)	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	-	510gf	0.060" (1.5mm)	82gf	0.157" (4.0mm)	1.063" (27.0mm)	0.197" (5.0mm)	-30°C ~ 70°C
1SM314-H2 SWITCH SNAP ACTION SPDT 5A 250V Honeywell Sensing and Productivity Solutions	1,423	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Obsolete	SPDT	On-Mom	250 V	30 V	Round (Pin Plunger)	5A (AC/DC)	Through Hole	PC Pin	-	-	141gf	0.004" (0.1mm)	28gf	0.030" (0.8mm)	0.330" (8.4mm)	0.011" (0.3mm)	-55°C ~ 125°C
8647 SWITCH FUEL PUMP Littelfuse Inc.	2,129	-	RFQ Sell Excess Inventory	Datasheet	-	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

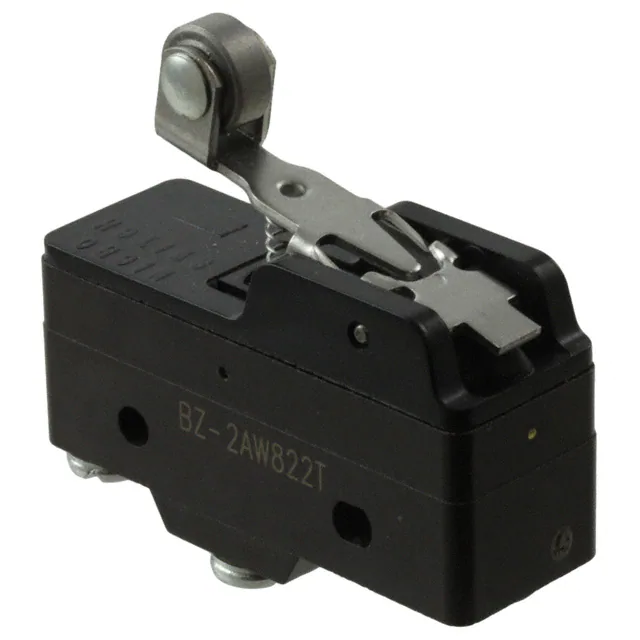

BZ-2AW822T SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	1,379	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT (DB/DM)	On-Mom	125 V	125 V	Lever, Straight	15A (AC), 1A (DC)	Chassis Mount	Screw Terminal	-	-	240gf	0.008" (0.2mm)	43gf	-	1.188" (30.2mm)	0.094" (2.4mm)	-55°C ~ 85°C
BZ-2RQ1008-A2 SWITCH SNAP ACTION SPDT 10A 125V Honeywell Sensing and Productivity Solutions	3,509	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Overtravel Plunger	10A (AC), 500mA (DC)	Panel Mount	Screw Terminal	-	Steel Plunger	141gf	0.002" (0.05mm)	71gf	0.015" (0.4mm)	0.859" (21.8mm)	0.219" (5.6mm)	-55°C ~ 85°C
11SM727 SWITCH SNAP ACTION SPDT 4A 250V Honeywell Sensing and Productivity Solutions	4,408	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Obsolete	SPDT	On-Mom	250 V	30 V	Round (Pin Plunger)	4A (AC), 5A (DC)	Chassis Mount	Solder Lug	-	-	56gf	0.002" (0.05mm)	14gf	0.020" (0.5mm)	0.330" (8.4mm)	0.005" (0.13mm)	-55°C ~ 125°C
BM-1RQ1-A2 SWITCH SNAP ACTION SPDT 22A 125V Honeywell Sensing and Productivity Solutions	2,514	-	RFQ Sell Excess Inventory	Datasheet	BM	Bulk	Obsolete	SPDT	On-Mom	125 V	-	Overtravel Plunger	22A (AC)	Chassis Mount	Screw Terminal	-	Steel Plunger	198 ~ 283gf	0.001" (0.025mm)	113gf	0.015" (0.4mm)	0.859" (21.8mm)	0.219" (5.6mm)	-55°C ~ 85°C
BZ-2RDST-S SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	2,347	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Round (Pin Plunger)	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	Steel Plunger	368 ~ 538gf	0.002" (0.05mm)	113gf	-	1.110" (28.2mm)	0.062" (1.6mm)	-55°C ~ 85°C
83853101 SWITCH SNAP ACTION DPST 6A 250V Crouzet	3,192	-	RFQ Sell Excess Inventory	Datasheet	83853	Bulk	Obsolete	DPST-NO/NC	On-Mom, Off-Mom	250 V	24 V	Lever, Roller	6A (AC), 3A (DC)	Chassis Mount	Screw Terminal	IP66 - Dust Tight, Water Resistant	-	918gf	0.060" (1.5mm)	-	-	-	-	-25°C ~ 80°C
BA-2R708-P7 SWITCH SNAP ACTION SPDT 20A 125V Honeywell Sensing and Productivity Solutions	3,922	-	RFQ Sell Excess Inventory	Datasheet	BA	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Round (Pin Plunger)	20A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	397 ~ 624gf	0.002" (0.05mm)	283gf	0.050" (1.27mm)	0.640" (16.3mm)	0.010" (0.25mm)	-55°C ~ 85°C
BZ-2RW855 SWITCH LARGE BASIC Honeywell Sensing and Productivity Solutions	1,032	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
V3L-2905 SWITCH SNAP ACTION SPDT 25A 277V Honeywell Sensing and Productivity Solutions	4,396	-	RFQ Sell Excess Inventory	Datasheet	V3	Bulk	Active	SPDT	On-Mom	277 V	-	Lever, Straight	25A (AC)	Chassis Mount	Solder Lug	-	-	271gf	0.012" (0.3mm)	24gf	0.055" (1.4mm)	0.602" (15.3mm)	0.032" (0.81mm)	-
XCMH211AL05 LS PL MINI MTL PLUGR NCNO SNAP . Telemecanique Sensors	1,884	-	RFQ Sell Excess Inventory	Datasheet	XCMH	Bulk	Active	DPST-NO/NC	On-Off, Off-On	240 V	250 V	Round (Pin Plunger)	750mA (AC), 100mA (DC)	Chassis Mount	Cable Leads	IP66/IP67 - Dust Tight, Water Resistant, Waterproof	-	-	-	-	-	-	-	-25°C ~ 70°C
17AC1-T SWITCH SNAP ACTION SPDT 5A 250V Honeywell Sensing and Productivity Solutions	3,231	-	RFQ Sell Excess Inventory	Datasheet	AC	Bulk	Active	SPDT	On-Mom	250 V	30 V	Push-Pull Plunger	5A (AC/DC)	Chassis Mount	Solder Turret	-	-	907gf	-	-	-	0.220" (5.6mm)	0.175" (4.5mm)	-53°C ~ 121°C
BZ-RQ1T04 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	1,506	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	-	Overtravel Plunger	15A (AC)	Panel Mount	Screw Terminal	-	Steel Plunger	198 ~ 283gf	0.001" (0.025mm)	170gf	0.012" (0.3mm)	0.859" (21.8mm)	0.219" (5.6mm)	-55°C ~ 85°C
12SM83-H2 SWITCH SNAP ACTION SPDT 1A 125V Honeywell Sensing and Productivity Solutions	4,835	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Obsolete	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	1A (AC/DC)	Through Hole	PC Pin	-	-	141gf	0.004" (0.1mm)	28gf	0.020" (0.5mm)	0.330" (8.4mm)	0.003" (0.076mm)	-55°C ~ 125°C
XEP3S2W6 SWITCH SNAP ACTION 250V Telemecanique Sensors	2,660	-	RFQ Sell Excess Inventory	Datasheet	OsiSense XC	Box	Active	SPDT	On-Mom	-	-	Round (Pin Plunger)	-	Chassis Mount	Cable Leads	IP40	-	-	-	-	-	-	-	-25°C ~ 125°C
XEP3S2W3 SWITCH SNAP ACT SPDT 1.5A 240V Telemecanique Sensors	1,796	-	RFQ Sell Excess Inventory	Datasheet	OsiSense XC	Box	Active	SPDT	On-On	240 V	250 V	Round (Pin Plunger)	1.5A (AC), 300mA (DC)	Chassis Mount	Cable Leads	IP40	-	-	-	-	-	-	-	-25°C ~ 125°C
