Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
XEP3S1W2 SWITCH SNAP ACT SPDT 1.5A 240V Telemecanique Sensors	3,999	-	RFQ Sell Excess Inventory	Datasheet	OsiSense XC	Box	Active	SPDT	On-On	240 V	250 V	Round (Pin Plunger)	1.5A (AC), 100mA (DC)	Chassis Mount	Solder Lug	IP40	-	-	-	-	-	-	-	-25°C ~ 125°C
313SX30-H33 SWITCH SNAP ACTION SPDT 1A 125V Honeywell Sensing and Productivity Solutions	1,608	-	RFQ Sell Excess Inventory	Datasheet	SX	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Roller	1A (AC/DC)	Through Hole	PC Pin	-	-	68gf	0.015" (0.38mm)	11gf	0.050" (1.27mm)	0.557" (14.15mm)	0.010" (0.25mm)	-55°C ~ 125°C
YZ-2RW80725551-D6 SWITCH SNAP ACT SPST-NO 1A 125V Honeywell Sensing and Productivity Solutions	3,042	-	RFQ Sell Excess Inventory	Datasheet	YZ	Bulk	Obsolete	SPST-NO	Off-Mom	125 V	-	Lever, Simulated Roller	1A (AC)	Chassis Mount	Solder, Quick Connect - 0.250" (6.3mm)	Splash Proof	-	99gf	0.040" (1.0mm)	21gf	-	1.188" (30.2mm)	0.156" (3.96mm)	-55°C ~ 85°C

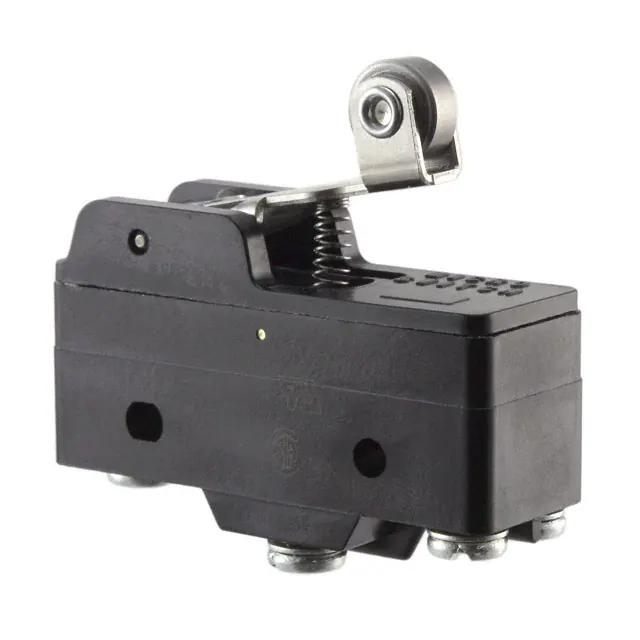

BZ-3YWT822 SWITCH SNAP ACTION SPDT 5A 250V Honeywell Sensing and Productivity Solutions	1,386	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	250 V	-	Lever, Roller	5A (AC)	Chassis Mount	Screw Terminal	-	-	198gf	0.040" (1.0mm)	43gf	-	1.188" (30.2mm)	0.094" (2.4mm)	-55°C ~ 85°C
D4N-1272 SWITCH SNAP ACT DPST-NC 3A 240V Omron Automation and Safety	4,807	-	RFQ Sell Excess Inventory	Datasheet	D4N	Bulk	Active	DPST-NC	On-Mom	240 V	250 V	Lever, Roller	3A (AC), 270mA (DC)	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	-	510gf	0.060" (1.5mm)	82gf	0.157" (4.0mm)	1.063" (27.0mm)	0.197" (5.0mm)	-30°C ~ 70°C
D4N-4272 SWITCH SNAP ACT DPST-NC 3A 240V Omron Automation and Safety	2,876	-	RFQ Sell Excess Inventory	Datasheet	D4N	Bulk	Active	DPST-NC	On-Mom	240 V	250 V	Lever, Roller	3A (AC), 270mA (DC)	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	-	510gf	0.060" (1.5mm)	82gf	0.157" (4.0mm)	1.063" (27.0mm)	0.197" (5.0mm)	-30°C ~ 70°C
D4N-4B32 SWITCH SNAP ACT DPST-NC 3A 240V Omron Automation and Safety	2,960	-	RFQ Sell Excess Inventory	Datasheet	D4N	Bulk	Active	DPST-NC	On-Mom	240 V	250 V	Roller Plunger	3A (AC), 270mA (DC)	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	-	663gf	0.040" (1.0mm)	153gf	0.080" (2.0mm)	1.125" (28.6mm)	0.158" (4.0mm)	-30°C ~ 70°C
Z-15EW2S55-B7-K SWITCH SNAP ACTION SPDT 15A 125V Omron Automation and Safety	1,171	-	RFQ Sell Excess Inventory	Datasheet	Z	Bulk	Obsolete	SPDT	On-Mom	125 V	30 V	-	15A (AC), 6A (DC)	Chassis Mount	Screw Terminal	IP62	-	-	-	-	-	-	-	-15°C ~ 80°C
GLLA06A2Y SWITCH SNAP ACT DPST-NC 10A 300V Honeywell Sensing and Productivity Solutions	3,978	-	RFQ Sell Excess Inventory	Datasheet	GLL	Bulk	Active	DPST-NC	On-Mom	300 V	250 V	Side Rotary, Adjustable Roller	10A (AC/DC)	Chassis Mount	Screw Terminal	IP66 - Dust Tight, Water Resistant	Rubber Roller	8.157gfm	-	2.039gfm	20°	15°	40°	-10°C ~ 80°C
BZ-3AW805551T SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	3,376	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	125 V	125 V	Round (Pin Plunger)	15A (AC), 1A (DC)	Chassis Mount	Screw Terminal	IP64 - Dust Tight, Water Resistant	-	92gf	0.100" (2.54mm)	14gf	-	0.750" (19.1mm)	0.219" (5.6mm)	-55°C ~ 85°C
75125 SWITCH REV ALARM Littelfuse Inc.	3,945	-	RFQ Sell Excess Inventory	Datasheet	-	Bulk	Obsolete	SPST-NO	Off-Mom	-	-	Spring, Cable	-	Chassis Mount	Screw Terminal	-	-	-	-	-	-	-	-	-
311SM7-H58 SWITCH SNAP ACTION SPDT 5A 250V Honeywell Sensing and Productivity Solutions	4,600	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Obsolete	SPDT	On-Mom	250 V	30 V	Lever, Roller	5A (AC/DC)	Chassis Mount	Quick Connect - 0.058" (Round)	-	-	30gf	0.027" (0.7mm)	5.099gf	0.120" (3.0mm)	0.555" (14.1mm)	0.026" (0.7mm)	-55°C ~ 125°C
AZ40079 SWITCH SNAP ACTION SPDT 5A 125V Panasonic Industrial Automation Sales	2,163	-	RFQ Sell Excess Inventory	Datasheet	AZ4	Bulk	Active	SPDT	On-Mom	125 V	30 V	Side Rotary, Adjustable Rod	5A (AC/DC)	Chassis Mount	Solder, Quick Connect - 0.110" (2.8mm)	IP64 - Dust Tight, Water Resistant	-	113 ~ 450gf	3°	6.118 ~ 25gf	15°	-	-	-20°C ~ 60°C
MS25085-1 "SWITCHES, SENSITIVE, SPDT Honeywell Sensing and Productivity Solutions	4,016	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Active	SPDT	On-Mom	-	28 V	Round (Pin Plunger)	5A (DC)	Chassis Mount	Solder Turret	-	-	85 ~ 142gf	0.004" (0.1mm)	29gf	0.030" (0.8mm)	0.330" (8.4mm)	0.005" (0.13mm)	-54°C ~ 121°C

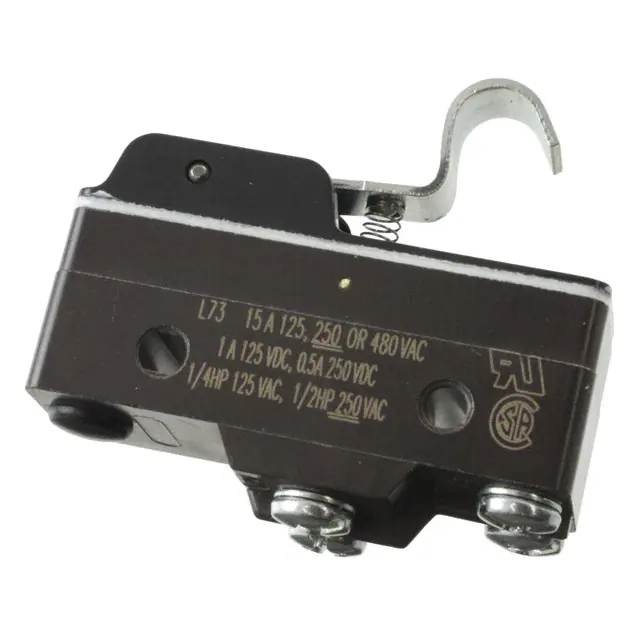

BZ-2AW855T1 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	4,592	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT (DB/DM)	On-Mom	125 V	125 V	Lever, Simulated Roller	15A (AC), 1A (DC)	Chassis Mount	Screw Terminal	-	-	240gf	0.008" (0.2mm)	43gf	-	1.188" (30.2mm)	0.094" (2.4mm)	-55°C ~ 85°C
BZ-2RW8225551-W103 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	1,911	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	125 V	125 V	Lever, Roller	15A (AC), 500mA (DC)	Chassis Mount	Cable with Connector	IP64 - Dust Tight, Water Resistant	-	170gf	0.020" (0.5mm)	43gf	-	1.188" (30.2mm)	0.094" (2.4mm)	-55°C ~ 85°C
BZ-2RN702 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	2,782	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	125 V	125 V	Overtravel Plunger	15A (AC), 500mA (DC)	Panel Mount	Screw Terminal	-	Steel Plunger	255 ~ 368gf	0.002" (0.05mm)	113gf	0.015" (0.4mm)	1.906" (48.4mm)	0.125" (3.2mm)	-55°C ~ 85°C
NGCPB02AX01N SWITCH COMPACT LIMIT Honeywell Sensing and Productivity Solutions	3,175	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
V3-32 SWITCH SNAP SPST-NO 15.1A 125V Honeywell Sensing and Productivity Solutions	2,532	-	RFQ Sell Excess Inventory	Datasheet	V3	Bulk	Active	SPST-NO	Off-Mom	125 V	125 V	Round (Pin Plunger)	15.1A (AC), 500mA (DC)	Chassis Mount	Solder Lug	-	-	170 ~ 397gf	0.016" (0.4mm)	113.392gf	0.050" (1.27mm)	0.578" (14.68mm)	0.040" (1.02mm)	-
LSZ59L SWITCH LIMIT LEVER Honeywell Sensing and Productivity Solutions	2,134	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Discontinued	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
