Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
BZ-3YDT SWITCH SNAP ACTION SPDT 5A 250V Honeywell Sensing and Productivity Solutions	4,009	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	250 V	-	Round (Pin Plunger)	5A (AC)	Chassis Mount	Screw Terminal	-	Steel Plunger	454 ~ 737gf	0.006" (0.15mm)	113gf	0.030" (0.8mm)	0.835" (21.2mm)	0.062" (1.6mm)	-55°C ~ 85°C
23SX83-H340 SWITCH SNAP ACTION SPDT 1A 125V Honeywell Sensing and Productivity Solutions	3,451	-	RFQ Sell Excess Inventory	Datasheet	SX	Bulk	Active	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	1A (AC/DC)	Through Hole	PC Pin	-	-	141gf	0.005" (0.13mm)	28gf	0.020" (0.5mm)	0.320" (8.13mm)	0.004" (0.1mm)	-53°C ~ 85°C

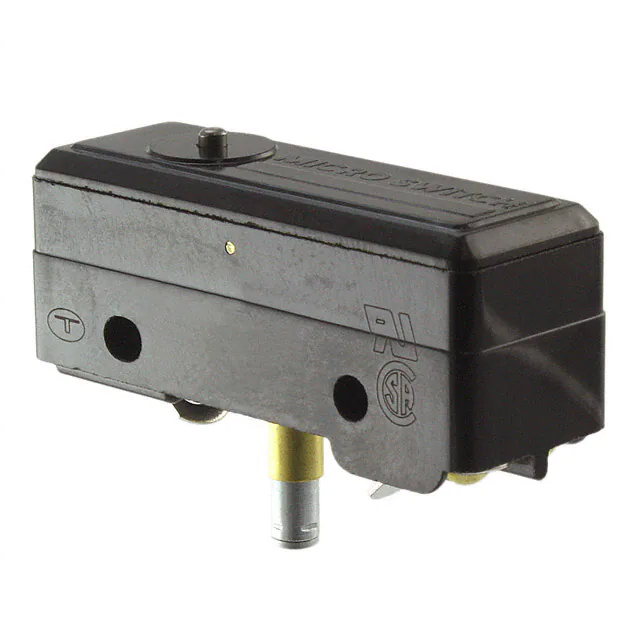

BZ-RX243 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	4,230	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-On	125 V	125 V	Round (Pin Plunger)	15A (AC), 500mA (DC)	Chassis Mount	Solder Lug	-	Reset Plunger on Bottom	198 ~ 255gf	-	-	0.012" (0.3mm)	0.625" (15.9mm)	0.005" (0.13mm)	-55°C ~ 85°C
311SM7017-T SWITCH SNAP ACTION SPDT 1A 125V Honeywell Sensing and Productivity Solutions	1,796	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Obsolete	SPDT	On-Mom	125 V	30 V	Lever, Straight	1A (AC/DC)	Chassis Mount	Solder Turret	-	-	14gf	0.014" (0.35mm)	3.059gf	0.106" (2.7mm)	0.335" (8.5mm)	0.022" (0.55mm)	-55°C ~ 125°C
Z-15HW7855-B SWITCH SNAP ACTION SPDT 10A 125V Omron Automation and Safety	3,291	-	RFQ Sell Excess Inventory	Datasheet	Z	Bulk	Active	SPDT	On-Mom	125 V	30 V	Wire Lever	10A (AC), 2A (DC)	Chassis Mount	Screw Terminal	IP62	-	4.000gf	-	0.300gf	0.394" (10.0mm)	0.787" (20.0mm)	0.235" (6.0mm)	-15°C ~ 80°C
YA-2RQ18248-D6 SWITCH SNAP ACTION SPST-NO 20A Honeywell Sensing and Productivity Solutions	2,066	-	RFQ Sell Excess Inventory	Datasheet	YA	Bulk	Obsolete	SPST-NO	Off-Mom	-	-	Overtravel Plunger	20A	Panel Mount	Quick Connect - 0.250" (6.3mm)	-	-	-	-	-	-	-	-	-
BZ-3RW8221555513T SWITCH SNAP ACTION SPDT 10A 125V Honeywell Sensing and Productivity Solutions	3,460	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Roller	10A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	IP64 - Dust Tight, Water Resistant	-	184gf	0.030" (0.76mm)	43gf	-	1.188" (30.2mm)	0.094" (2.4mm)	-55°C ~ 85°C
BZ-2RW82255T-S SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	2,103	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Roller	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	Splash Proof	-	170gf	0.020" (0.5mm)	43gf	-	1.188" (30.2mm)	0.094" (2.4mm)	-55°C ~ 85°C
GLLA01A2Y SWITCH SNAP ACTION SPDT 10A 300V Honeywell Sensing and Productivity Solutions	3,135	-	RFQ Sell Excess Inventory	Datasheet	GLL	Bulk	Active	SPDT	On-Mom	300 V	250 V	Side Rotary, Adjustable Roller	10A (AC/DC)	Chassis Mount	Screw Terminal	IP66 - Dust Tight, Water Resistant	Rubber Roller	12gfm	18°	2.039gfm	30°	30°	40°	-10°C ~ 80°C

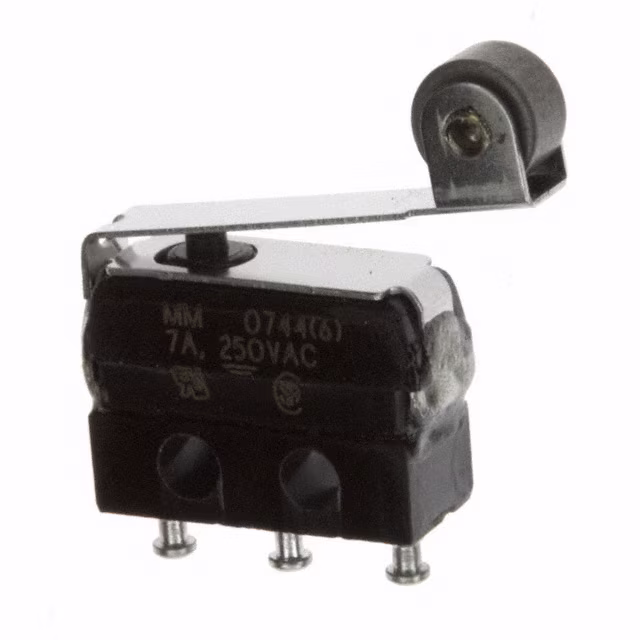

MMGGD1W0C SWITCH SNAP ACTION SPDT 7A 250V C&K	4,367	-	RFQ Sell Excess Inventory	Datasheet	MM	Bulk	Active	SPDT	On-Mom	250 V	-	Lever, Roller	7A (AC)	Chassis Mount	Solder Turret	-	-	115gf	0.026" (0.65mm)	20gf	0.090" (2.3mm)	0.531" (13.5mm)	0.045" (1.1mm)	-55°C ~ 135°C
7SX1-T SWITCH SNAP ACTION SPDT 1A 125V Honeywell Sensing and Productivity Solutions	3,428	-	RFQ Sell Excess Inventory	Datasheet	SX	Bulk	Active	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	1A (AC/DC)	Chassis Mount	Solder Turret	-	-	85gf	0.005" (0.13mm)	28gf	0.020" (0.5mm)	0.320" (8.13mm)	0.004" (0.1mm)	-55°C ~ 125°C
BZ-RQX SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	3,040	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-On	125 V	125 V	Overtravel Plunger	15A (AC), 500mA (DC)	Chassis Mount	Solder Lug	-	Reset Plunger on Bottom	170 ~ 269gf	-	-	0.012" (0.3mm)	1.562" (39.7mm)	0.219" (5.6mm)	-55°C ~ 85°C
X-10GW-B-2 SWITCH BASIC Omron Automation and Safety	3,916	-	RFQ Sell Excess Inventory	Datasheet	X	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
GLLC01D SWITCH SNAP ACTION SPDT 10A 300V Honeywell Sensing and Productivity Solutions	1,462	-	RFQ Sell Excess Inventory	Datasheet	GLL	Bulk	Active	SPDT	On-Mom	300 V	250 V	Lever, Roller	10A (AC/DC)	Chassis Mount	Screw Terminal	IP66 - Dust Tight, Water Resistant	-	816gf	0.065" (1.7mm)	153gf	0.138" (3.5mm)	0.630" (16.0mm)	0.175" (4.5mm)	-10°C ~ 80°C
12SX31-T SWITCH SNAP ACTION SPDT 1A 125V Honeywell Sensing and Productivity Solutions	2,564	-	RFQ Sell Excess Inventory	Datasheet	SX	Bulk	Active	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	1A (AC/DC)	Chassis Mount	Solder Turret	-	-	71 ~ 141gf	0.001" (0.025mm)	28gf	0.020" (0.5mm)	0.320" (8.13mm)	0.004" (0.1mm)	-55°C ~ 125°C
LSZ65DB SWITCH LIMIT Honeywell Sensing and Productivity Solutions	3,431	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
AZH2313 SWITCH SNAP ACT SPDT 0.1A 125V Panasonic Industrial Automation Sales	4,467	-	RFQ Sell Excess Inventory	Datasheet	AZH	Bulk	Active	SPDT	On-Mom	125 V	30 V	Cross Roller Plunger	100mA (AC/DC)	Chassis Mount	Connector	IP67 - Dust Tight, Waterproof	-	1200gf	0.004" (0.1mm)	500gf	0.060" (1.5mm)	1.625" (41.3mm)	0.118" (3.0mm)	-10°C ~ 80°C
BZ-2RQ68 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	3,040	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	125 V	125 V	Overtravel Plunger	15A (AC), 500mA (DC)	Panel Mount	Screw Terminal	-	-	255 ~ 368gf	0.002" (0.05mm)	113gf	0.015" (0.4mm)	1.500" (38.1mm)	0.125" (3.2mm)	-55°C ~ 85°C
14SX15-T SWITCH SNAP ACTION SPDT 1A 125V Honeywell Sensing and Productivity Solutions	4,800	-	RFQ Sell Excess Inventory	Datasheet	SX	Bulk	Active	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	1A (AC/DC)	Chassis Mount	Solder Turret	-	-	141gf	0.002" (0.05mm)	28gf	0.020" (0.5mm)	0.320" (8.13mm)	0.004" (0.1mm)	-53°C ~ 163°C
XEP3S2W6B529 SWITCH SNAP ACT SPDT 1.5A 240V Telemecanique Sensors	1,883	-	RFQ Sell Excess Inventory	Datasheet	OsiSense XC	Box	Active	SPDT	On-On	240 V	250 V	Lever, Roller	1.5A (AC), 300mA (DC)	Chassis Mount	Cable Leads	IP40	-	-	-	-	-	-	-	-25°C ~ 125°C
