Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature

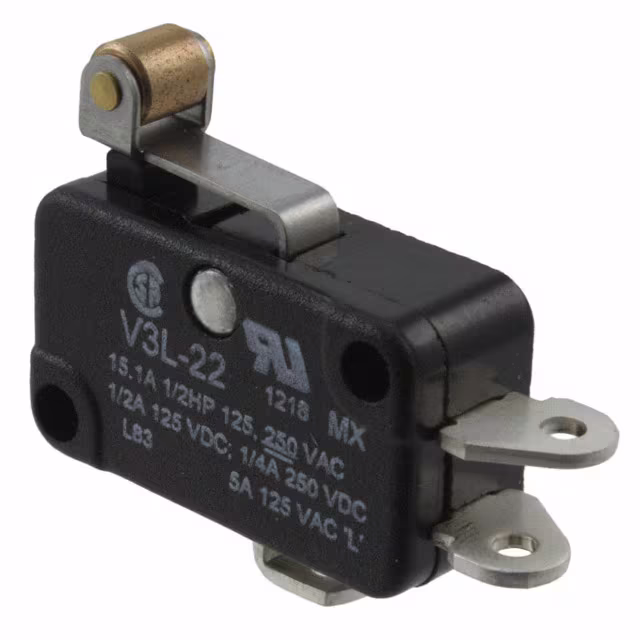

V3L-22 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	4,736	-	RFQ Sell Excess Inventory	Datasheet	V3L	Bulk	Active	SPDT	On-Mom	125 V	125 V	Lever, Roller	15A (AC), 500mA (DC)	Chassis Mount	Solder Lug	-	-	397gf	0.016" (0.4mm)	85gf	0.060" (1.5mm)	0.812" (20.6mm)	0.040" (1.0mm)	-
1ZAP2-3 SWITCH SNAP ACTION SPDT 15A 125V Omron Automation and Safety	3,433	-	RFQ Sell Excess Inventory	Datasheet	1ZAP2	Bulk	Obsolete	SPDT	On-Mom	125 V	-	Push-Pull Plunger	15A (AC)	Chassis Mount	Screw Terminal	IP00	-	2203gf	-	-	-	-	-	-25°C ~ 80°C
L5K13MEP123 SWITCH LIMIT Altech Corporation	1,959	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Z-01HW22S55-B SWITCH SNAP ACT SPDT 0.1A 125V Omron Automation and Safety	2,496	-	RFQ Sell Excess Inventory	Datasheet	Z	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Roller	100mA (AC/DC)	Chassis Mount	Screw Terminal	IP62	-	-	-	-	-	-	-	-15°C ~ 80°C
BZ-2RQ115-A2 SWITCH SNAP ACTION SPDT 10A 125V Honeywell Sensing and Productivity Solutions	1,603	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Overtravel Plunger	10A (AC), 500mA (DC)	Panel Mount	Screw Terminal	-	-	255 ~ 368gf	0.002" (0.05mm)	113gf	0.015" (0.4mm)	0.859" (21.8mm)	0.219" (5.6mm)	-55°C ~ 85°C
BZ-2RQ66-NH SWITCH LARGE BASIC Honeywell Sensing and Productivity Solutions	3,529	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BZ-2RW8255T-S SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	3,834	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Roller	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	Splash Proof	-	99gf	0.040" (1.0mm)	21gf	-	1.188" (30.2mm)	0.156" (3.96mm)	-55°C ~ 85°C
BZ-2RW855T-S SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	3,583	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Straight	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	Splash Proof	-	71gf	0.050" (1.3mm)	14gf	-	0.750" (19.1mm)	0.219" (5.6mm)	-55°C ~ 85°C
83106408 SWITCH SNAP ACTION SPDT 5A 250V Crouzet	1,416	-	RFQ Sell Excess Inventory	Datasheet	83106	Bulk	Active	SPDT (DB/DM)	On-On	250 V	-	Round (Pin Plunger)	5A (AC)	Chassis Mount	Screw Terminal	-	-	46gf	-	-	-	-	-	-20°C ~ 85°C
X0219207 SWITCH SNAP ACTION SPDT 10A 250V Crouzet	3,329	-	RFQ Sell Excess Inventory	Datasheet	83106	Bulk	Active	SPDT (DB/DM)	On-Mom	250 V	-	Ball Bearing Plunger	10A (AC)	Chassis Mount	Solder Lug	-	-	408gf	0.020" (0.5mm)	102gf	0.060" (1.5mm)	-	-	-20°C ~ 85°C
13SX96-T SWITCH SNAP ACTION SPDT 1A 125V Honeywell Sensing and Productivity Solutions	3,399	-	RFQ Sell Excess Inventory	Datasheet	SX	Bulk	Active	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	1A (AC/DC)	Chassis Mount	Solder Turret	-	-	170gf	0.001" (0.025mm)	14gf	0.020" (0.5mm)	0.320" (8.13mm)	0.010" (0.25mm)	-55°C ~ 125°C

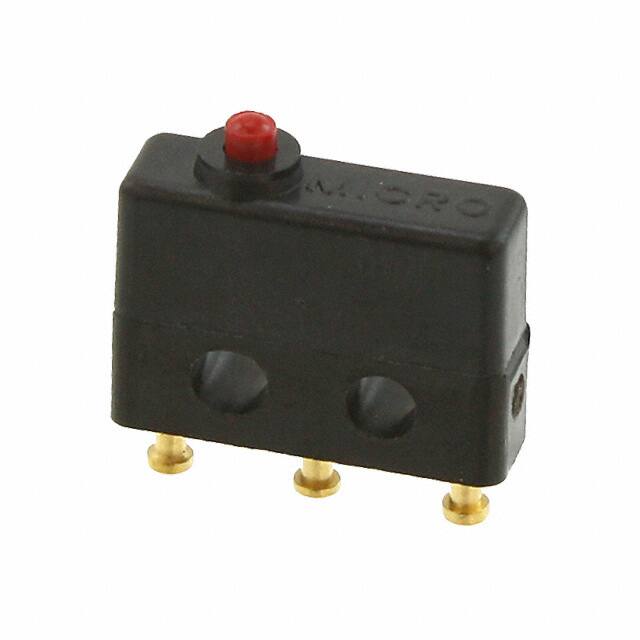

93SX39-T SWITCH SNAP ACTION SPDT 1A 28V Honeywell Sensing and Productivity Solutions	2,008	-	RFQ Sell Excess Inventory	Datasheet	SX	Bulk	Active	SPDT	On-Mom	-	28 V	Round (Pin Plunger)	1A (DC)	Chassis Mount	Solder Turret	-	-	141gf	0.005" (0.13mm)	28gf	0.020" (0.5mm)	0.320" (8.13mm)	0.004" (0.1mm)	-53°C ~ 85°C
Z-15EW22R SWITCH SNAP ACTION SPDT 15A 125V Omron Automation and Safety	2,843	-	RFQ Sell Excess Inventory	Datasheet	Z	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Roller	15A (AC/DC)	Chassis Mount	Solder Lug	IP00	-	-	-	-	-	-	-	-25°C ~ 80°C
BZ-2RQ233-A2 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	3,192	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	125 V	125 V	Overtravel Plunger	15A (AC), 500mA (DC)	Panel Mount	Screw Terminal	-	Steel Plunger	255 ~ 368gf	0.002" (0.05mm)	113gf	0.015" (0.4mm)	0.859" (21.8mm)	0.219" (5.6mm)	-55°C ~ 85°C
BZ-2RW82555111-A46 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	2,430	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	125 V	125 V	Lever, Roller	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	IP64 - Dust Tight, Water Resistant	Nylon Roller	198gf	0.040" (1.0mm)	21gf	-	1.188" (30.2mm)	0.156" (3.96mm)	-55°C ~ 85°C
601.6369.126 SWITCH DOOR CONTACT Altech Corporation	1,576	-	RFQ Sell Excess Inventory	Datasheet	*	Box	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BZ-2RQW10-A2 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	3,592	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	125 V	125 V	Spring, Rod	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	Splash Proof	-	368gf	-	-	0.500" (12.7mm)	-	-	-55°C ~ 85°C
BZ-3A55T SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	4,230	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Round (Pin Plunger)	15A (AC), 1A (DC)	Chassis Mount	Screw Terminal	-	-	454 ~ 794gf	0.005" (0.13mm)	113gf	-	0.625" (15.9mm)	0.005" (0.13mm)	-55°C ~ 85°C
Z-15GQ-AE SWITCH SNAP ACTION BASIC Omron Automation and Safety	1,374	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
313SX30-T SWITCH SNAP ACTION SPDT 1A 125V Honeywell Sensing and Productivity Solutions	1,182	-	RFQ Sell Excess Inventory	Datasheet	SX	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Roller	1A (AC/DC)	Chassis Mount	Solder Turret	-	-	68gf	0.015" (0.38mm)	11gf	0.050" (1.27mm)	0.557" (14.15mm)	0.010" (0.25mm)	-55°C ~ 125°C
