Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
12TL4A2 SWITCH SNAP ACTION SPDT 15A 125V C&K	2,612	-	RFQ Sell Excess Inventory	Datasheet	TL	Bulk	Active	SPDT	On-Mom	125 V	125 V	Push-Pull Plunger	15A (AC), 500mA (DC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	-	-	-	-	-	-	-55°C ~ 150°C
80259-00 SWITCH OPERATOR CNTRLS SHIFTERS Honeywell Sensing and Productivity Solutions	1,793	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Z-15ER-K1 SWITCH SNAP ACTION SPDT 15A 125V Omron Automation and Safety	4,129	-	RFQ Sell Excess Inventory	Datasheet	Z	Bulk	Active	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	15A (AC), 6A (DC)	Chassis Mount	Solder Lug	IP00	-	-	-	-	-	-	-	-25°C ~ 80°C
12SX3-H58 SWITCH SNAP ACTION SPDT 1A 125V Honeywell Sensing and Productivity Solutions	2,267	-	RFQ Sell Excess Inventory	Datasheet	SX	Bulk	Active	SPDT	On-Mom	125 V	28 V	Round (Pin Plunger)	1A (AC/DC)	Chassis Mount	Quick Connect - 0.058" (Round)	-	-	71 ~ 141gf	0.001" (0.025mm)	28gf	0.020" (0.5mm)	0.320" (8.13mm)	0.004" (0.1mm)	-55°C ~ 125°C
BZ-2RDS725551-A2 SWITCH SNAP ACTION SPDT 1A 125V Honeywell Sensing and Productivity Solutions	1,948	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	1A (AC)	Chassis Mount	Screw Terminal	IP64 - Dust Tight, Water Resistant	Steel Plunger	368 ~ 538gf	0.002" (0.05mm)	113gf	-	1.110" (28.2mm)	0.060" (1.5mm)	-55°C ~ 85°C
BZ-2RQ1725-D6 SWITCH LARGE BASIC Honeywell Sensing and Productivity Solutions	1,942	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BZ-2RN730 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	2,864	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Overtravel Plunger	15A (AC), 500mA (DC)	Panel Mount	Screw Terminal	-	Steel Plunger	255 ~ 368gf	0.002" (0.05mm)	113gf	0.015" (0.4mm)	1.720" (43.7mm)	0.219" (5.6mm)	-55°C ~ 85°C

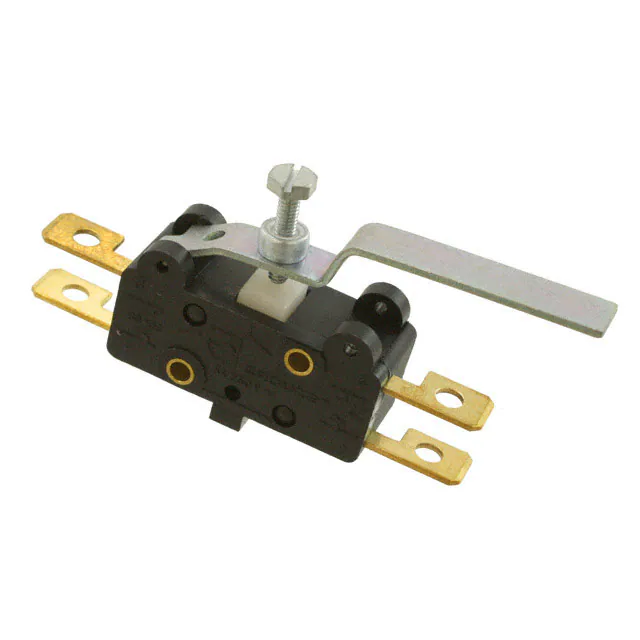

X0230663 SWITCH SNAP ACTION SPDT 10A 250V Crouzet	3,494	-	RFQ Sell Excess Inventory	Datasheet	83106	Bulk	Active	SPDT (DB/DM)	On-Mom	250 V	-	Lever, Straight	10A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	Actuator Mounted Left Side	122gf	0.083" (2.1mm)	25gf	0.244" (6.2mm)	-	-	-20°C ~ 85°C
BZ-3AW82254T SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	3,878	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Roller	15A (AC), 1A (DC)	Chassis Mount	Screw Terminal	-	-	240gf	0.050" (1.3mm)	43gf	-	1.188" (30.2mm)	0.094" (2.4mm)	-55°C ~ 85°C
AZH2324 SWITCH SNAP ACT SPDT 0.1A 125V Panasonic Industrial Automation Sales	3,909	-	RFQ Sell Excess Inventory	Datasheet	AZH	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Roller	100mA (AC/DC)	Chassis Mount	Connector	IP67 - Dust Tight, Waterproof	-	250gf	0.025" (0.6mm)	40gf	0.157" (4.0mm)	1.350" (34.3mm)	0.276" (7.0mm)	-10°C ~ 80°C
AZH2344 SWITCH SNAP ACT SPDT 0.1A 125V Panasonic Industrial Automation Sales	2,912	-	RFQ Sell Excess Inventory	Datasheet	AZH	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Roller	100mA (AC/DC)	Chassis Mount	Connector	IP67 - Dust Tight, Waterproof	-	400gf	0.012" (0.3mm)	80gf	0.080" (2.0mm)	0.909" (23.1mm)	0.158" (4.0mm)	-10°C ~ 80°C
BZ-2RW826 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	1,834	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Roller	15A (AC), 500mA (DC)	Chassis Mount	Solder Lug	-	-	170gf	0.020" (0.5mm)	43gf	-	1.625" (41.3mm)	0.094" (2.4mm)	-55°C ~ 85°C
00721700 SWITCH PLUNGER 3-WAY DIN NC Littelfuse/Commercial Vehicle Products	3,434	-	RFQ Sell Excess Inventory	Datasheet	*	Bag	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BZ-2RQ1824-A2 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	2,668	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Roller Plunger	15A (AC), 500mA (DC)	Panel Mount	Screw Terminal	-	-	255 ~ 368gf	0.002" (0.05mm)	113gf	0.015" (0.4mm)	1.313" (33.4mm)	0.141" (3.6mm)	-55°C ~ 121°C
BZ-2RW8225530-A2-S SWITCH LARGE BASIC Honeywell Sensing and Productivity Solutions	2,040	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BZ-2RQ66 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	1,195	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	125 V	125 V	Overtravel Plunger	15A (AC), 500mA (DC)	Panel Mount	Screw Terminal	-	-	255 ~ 368gf	0.002" (0.05mm)	113gf	0.015" (0.4mm)	1.500" (38.1mm)	0.219" (5.6mm)	-55°C ~ 85°C
BZ-7RQ144T SWITCH LARGE BASIC Honeywell Sensing and Productivity Solutions	2,856	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BZ-2R5528-S SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	1,694	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Round (Pin Plunger)	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	255 ~ 425gf	0.002" (0.05mm)	113gf	-	0.625" (15.9mm)	0.005" (0.13mm)	-55°C ~ 85°C
D2JW-01K32-MD SWITCH SNAP ACT IMMERSION-PROOF Omron Electronics Inc-EMC Div	2,903	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BA-3ST SWITCH SNAP ACTION SPDT 25A 125V Honeywell Sensing and Productivity Solutions	4,436	-	RFQ Sell Excess Inventory	Datasheet	BA	Bulk	Active	SPDT (DB/DM)	On-Mom	125 V	125 V	Round (Pin Plunger)	25A (AC), 1A (DC)	Chassis Mount	Screw Terminal	-	-	737 ~ 1077gf	0.008" (0.2mm)	283gf	0.065" (1.65mm)	0.640" (16.3mm)	0.010" (0.25mm)	-55°C ~ 85°C
