Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
12SM4-T2 SWITCH SNAP ACTION SPDT 1A 125V Honeywell Sensing and Productivity Solutions	3,844	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Active	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	1A (AC/DC)	Chassis Mount	Solder Turret	-	-	141gf	0.004" (0.1mm)	28gf	0.020" (0.5mm)	0.330" (8.4mm)	0.003" (0.076mm)	-55°C ~ 125°C

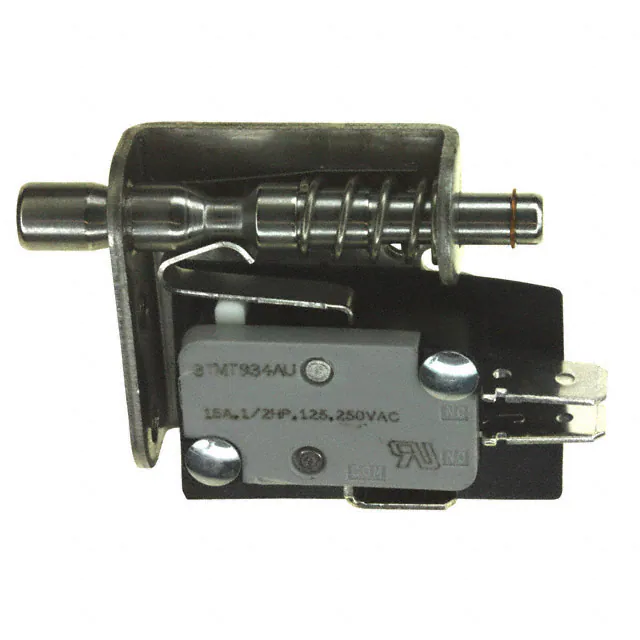

11TL4A2 SWITCH SNAP ACTION SPDT 15A 125V C&K	3,582	-	RFQ Sell Excess Inventory	Datasheet	TL	Bulk	Active	SPDT	On-Mom	125 V	125 V	Push-Pull Plunger	15A (AC), 500mA (DC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	-	-	-	-	-	-	-55°C ~ 150°C
BZ-2RW8223312 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	1,379	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Roller	15A (AC), 500mA (DC)	Chassis Mount	Solder Lug	-	-	170gf	0.020" (0.5mm)	43gf	-	1.188" (30.2mm)	0.094" (2.4mm)	-55°C ~ 85°C
412SX21-H32 SWITCH SNAP ACTION SPDT 1A 125V Honeywell Sensing and Productivity Solutions	3,147	-	RFQ Sell Excess Inventory	Datasheet	SX	Bulk	Active	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	1A (AC/DC)	Through Hole	PC Pin	-	-	141gf	0.003" (0.075mm)	28gf	0.020" (0.5mm)	0.320" (8.13mm)	0.004" (0.1mm)	-53°C ~ 204°C

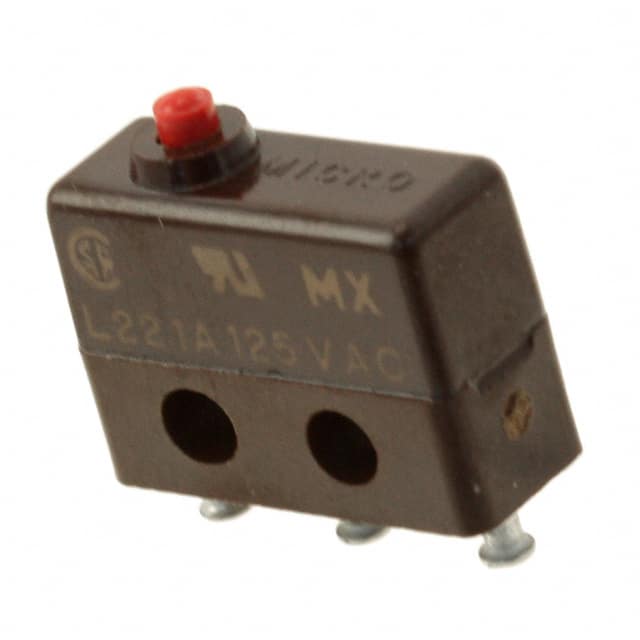

3SX1-T SWITCH SNAP ACTION SPDT 1A 125V Honeywell Sensing and Productivity Solutions	2,598	-	RFQ Sell Excess Inventory	Datasheet	SX	Bulk	Active	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	1A (AC/DC)	Chassis Mount	Solder Turret	-	-	141gf	0.005" (0.13mm)	28gf	0.020" (0.5mm)	0.320" (8.13mm)	0.004" (0.1mm)	-55°C ~ 125°C
GLLC01B SWITCH SNAP ACTION SPDT 10A 300V Honeywell Sensing and Productivity Solutions	2,552	-	RFQ Sell Excess Inventory	Datasheet	GLL	Bulk	Active	SPDT	On-Mom	300 V	250 V	Round (Pin Plunger)	10A (AC/DC)	Chassis Mount	Screw Terminal	IP66 - Dust Tight, Water Resistant	-	1000gf	0.060" (1.5mm)	153gf	0.110" (2.8mm)	0.710" (18.0mm)	0.118" (3.0mm)	-10°C ~ 80°C
GLLC04B SWITCH SNAP ACTION SPDT 10A 300V Honeywell Sensing and Productivity Solutions	3,964	-	RFQ Sell Excess Inventory	Datasheet	GLL	Bulk	Active	SPDT (MBB)	On-Mom	300 V	250 V	Round (Pin Plunger)	10A (AC/DC)	Chassis Mount	Screw Terminal	IP66 - Dust Tight, Water Resistant	-	612gf	0.040" (1.0mm)	153gf	0.100" (2.5mm)	0.710" (18.0mm)	0.130" (3.3mm)	-10°C ~ 80°C
BZ-2RW822725551 SWITCH SNAP ACTION SPDT 1A 125V Honeywell Sensing and Productivity Solutions	3,167	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	125 V	-	Lever, Roller	1A (AC)	Chassis Mount	Solder Lug	IP64 - Dust Tight, Water Resistant	-	170gf	0.020" (0.5mm)	43gf	-	1.188" (30.2mm)	0.094" (2.4mm)	-55°C ~ 85°C
BZ-3RW825515-A2-S SWITCH SNAP ACTION SPDT 10A 125V Honeywell Sensing and Productivity Solutions	2,944	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Roller	10A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	Splash Proof	-	113gf	0.060" (1.5mm)	21gf	-	1.188" (30.2mm)	0.172" (4.4mm)	-55°C ~ 85°C
MMGGD1P0R SWITCH SNAP ACTION SPDT 7A 250V C&K	4,219	-	RFQ Sell Excess Inventory	Datasheet	MM	Bulk	Active	SPDT	On-Mom	250 V	-	Round (Pin Plunger)	7A (AC)	Through Hole, Right Angle	PC Pin	-	-	142gf	0.002" (0.05mm)	28gf	0.020" (0.5mm)	0.320" (8.13mm)	0.004" (0.1mm)	-55°C ~ 135°C
92118-06 SWITCH MOM SPST-NO 5A 24V Cole Hersee	3,264	-	RFQ Sell Excess Inventory	Datasheet	-	Bulk	Active	SPST-NO	Off-Mom	-	24 V	Round (Pin Plunger)	5A (DC)	Panel Mount	Quick Connect - 0.250" (6.3mm)	-	-	-	-	-	-	-	-	-
BZ-2RQ239-A2 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	2,665	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Overtravel Plunger	15A (AC), 500mA (DC)	Panel Mount	Screw Terminal	-	Steel Plunger	255 ~ 368gf	0.002" (0.05mm)	113gf	0.015" (0.4mm)	0.859" (21.8mm)	0.219" (5.6mm)	-55°C ~ 85°C
111SM23-T SWITCH SNAP ACTION SPDT 1A 125V Honeywell Sensing and Productivity Solutions	2,532	-	RFQ Sell Excess Inventory	Datasheet	SM	Tray	Active	SPDT	On-Mom	125 V	30 V	Lever, Roller	1A (AC/DC)	Chassis Mount	Solder Turret	-	-	198gf	0.025" (0.6mm)	57gf	0.218" (5.5mm)	0.562" (14.3mm)	0.030" (0.76mm)	-55°C ~ 125°C
LS-22089 SWITCH LIMIT Honeywell Sensing and Productivity Solutions	3,665	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
SCN-1625SC SWITCH SNAP ACTION SPDT 1A 125V Honeywell Sensing and Productivity Solutions	1,730	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	125 V	-	Lever, Straight	1A (AC)	Chassis Mount	Screw Terminal	Splash Proof	-	71gf	0.050" (1.3mm)	14gf	-	0.750" (19.1mm)	0.219" (5.6mm)	-55°C ~ 85°C
SCN-1632SC SWITCH LARGE BASIC Honeywell Sensing and Productivity Solutions	4,654	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Z-15GM2255 SWITCH SNAP ACTION SPDT 15A 125V Omron Automation and Safety	1,082	-	RFQ Sell Excess Inventory	Datasheet	Z	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Roller	15A (AC), 6A (DC)	Chassis Mount	Solder Lug	IP62	-	538gf	0.011" (0.28mm)	170gf	-	1.156" (29.4mm)	0.079" (2.0mm)	-15°C ~ 80°C
11SM76-T SWITCH SNAP ACTION SPDT 1A 125V Honeywell Sensing and Productivity Solutions	4,831	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Active	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	1A (AC/DC)	Chassis Mount	Solder Turret	-	-	141gf	0.004" (0.1mm)	28gf	0.020" (0.5mm)	0.330" (8.4mm)	0.005" (0.13mm)	-55°C ~ 125°C
00721400 SWITCH PLUNGER 2-WAY DIN NC Littelfuse/Commercial Vehicle Products	2,449	-	RFQ Sell Excess Inventory	Datasheet	*	Bag	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BZ-2AQ784T SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	3,998	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT (DB/DM)	On-Mom	125 V	125 V	Roller Plunger	15A (AC), 1A (DC)	Panel Mount	Screw Terminal	-	-	397 ~ 680gf	0.001" (0.025mm)	113gf	0.025" (0.65mm)	1.953" (49.6mm)	0.141" (3.6mm)	-55°C ~ 85°C
