Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
111SM117-H2 SWITCH SNAP ACTION SPDT 5A 250V Honeywell Sensing and Productivity Solutions	3,448	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Active	SPDT	On-Mom	250 V	30 V	Lever, Straight	5A (AC/DC)	Through Hole	PC Pin	-	-	227gf	0.004" (0.1mm)	57gf	0.150" (3.8mm)	0.350" (8.9mm)	0.011" (0.3mm)	-55°C ~ 125°C
12SX2-T2 SWITCH SNAP ACTION SPDT 1A 125V Honeywell Sensing and Productivity Solutions	3,319	-	RFQ Sell Excess Inventory	Datasheet	SX	Bulk	Obsolete	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	1A (AC/DC)	Chassis Mount	Solder Turret	-	-	71 ~ 141gf	0.002" (0.05mm)	28gf	0.020" (0.5mm)	0.320" (8.13mm)	0.004" (0.1mm)	-55°C ~ 125°C
WA-1RX38-A41 SWITCH SNAP ACT SPST-NC 20A 125V Honeywell Sensing and Productivity Solutions	1,251	-	RFQ Sell Excess Inventory	Datasheet	WA	Bulk	Active	SPST-NC	On-Off	125 V	-	Round (Pin Plunger)	20A (AC)	Chassis Mount	Screw Terminal	-	Reset Plunger on Bottom	113 ~ 454gf	-	-	-	0.660" (16.76mm)	0.010" (0.25mm)	-55°C ~ 85°C
BZ-2RW8055513T SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	3,298	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	125 V	125 V	Lever, Straight	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	IP64 - Dust Tight, Water Resistant	-	71gf	0.050" (1.3mm)	14gf	-	0.750" (19.1mm)	0.219" (5.6mm)	-55°C ~ 85°C
50071755-002-00 SWITCH RED BUTTON Honeywell Sensing and Productivity Solutions	3,737	-	RFQ Sell Excess Inventory	Datasheet	-	-	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
11SM44-H7 SWITCH SUBMINI BASIC Honeywell Sensing and Productivity Solutions	3,791	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Obsolete	SPDT	On-Mom	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-55°C ~ 125°C
HE-10152 SWITCH LIMIT ENVIRONM SEALED Honeywell Sensing and Productivity Solutions	2,747	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
91SX43 SWITCH SNAP ACTION SPDT 7A 115V Honeywell Sensing and Productivity Solutions	1,362	-	RFQ Sell Excess Inventory	Datasheet	SX	Bulk	Active	SPDT	On-Mom	115 V	28 V	Round (Pin Plunger)	7A (AC/DC)	Through Hole	PC Pin	-	-	141gf	0.005" (0.13mm)	28gf	0.020" (0.5mm)	0.320" (8.13mm)	0.004" (0.1mm)	-53°C ~ 85°C
BZ-2RW82725551-D6 SWITCH SNAP ACTION SPDT 1A 125V Honeywell Sensing and Productivity Solutions	1,567	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	-	Lever, Roller	1A (AC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	IP64 - Dust Tight, Water Resistant	-	99gf	0.040" (1.0mm)	21gf	-	1.188" (30.2mm)	0.156" (3.96mm)	-55°C ~ 85°C
BZ-2RW826-A2 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	2,750	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	125 V	125 V	Lever, Roller	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	170gf	0.020" (0.5mm)	43gf	-	1.625" (41.3mm)	0.094" (2.4mm)	-55°C ~ 85°C
Z-15H SWITCH SNAP ACTION SPDT 15A 125V Omron Automation and Safety	4,052	-	RFQ Sell Excess Inventory	Datasheet	Z	Bulk	Active	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	15A (AC), 2A (DC)	Chassis Mount	Solder Lug	IP00	-	200 ~ 280gf	0.001" (0.025mm)	114gf	0.012" (0.3mm)	0.625" (15.9mm)	0.005" (0.13mm)	-25°C ~ 80°C
BZ-RD24-A4 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	3,010	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	15A (AC)	Chassis Mount	Screw Terminal	-	Steel Plunger	170 ~ 269gf	0.0005" (0.013mm)	113gf	0.012" (0.3mm)	0.835" (21.2mm)	0.060" (1.5mm)	-55°C ~ 121°C
81775-00 SWITCH OPERATOR CNTRLS SHIFTERS Honeywell Sensing and Productivity Solutions	1,892	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
NGCPB10AX01Q SWITCH SNAP ACTION DPST 6A 120V Honeywell Sensing and Productivity Solutions	3,433	-	RFQ Sell Excess Inventory	Datasheet	NGC	Bulk	Obsolete	DPST-NO/NC	On-Mom, Off-Mom	120 V	125 V	Cross Roller Plunger	6A (AC), 550mA (DC)	Panel Mount	Cable Leads	IP67 - Dust Tight, Waterproof	-	1122gf	0.047" (1.2mm)	306gf	0.083" (2.1mm)	0.083" (2.1mm)	0.193" (4.9mm)	-25°C ~ 75°C

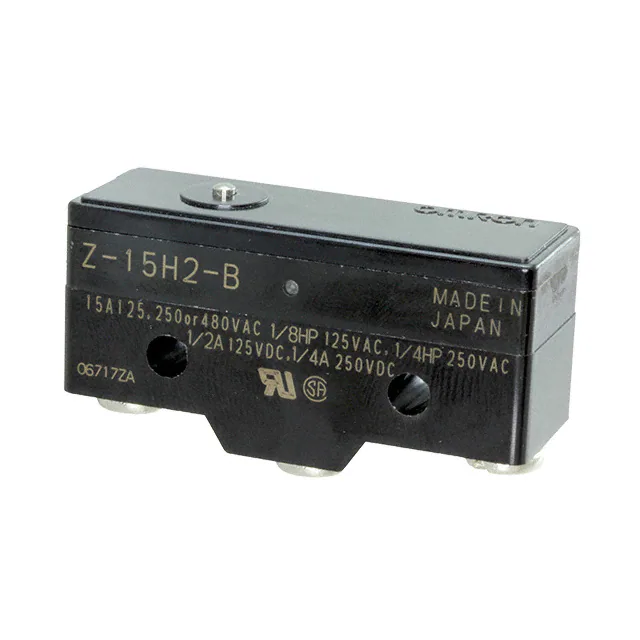

Z-15H2-B SWITCH SNAP ACTION SPDT 10A 125V Omron Automation and Safety	2,490	-	RFQ Sell Excess Inventory	Datasheet	Z	Bulk	Last Time Buy	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	10A (AC), 2A (DC)	Chassis Mount	Screw Terminal	IP00	-	200 ~ 255gf	0.0003" (0.008mm)	114gf	0.012" (0.3mm)	0.625" (15.9mm)	0.005" (0.13mm)	-25°C ~ 80°C
BZ-2RW8222-A2 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	1,152	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Roller	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	71 ~ 184gf	0.020" (0.5mm)	35gf	-	1.250" (31.8mm)	0.141" (3.6mm)	-55°C ~ 85°C
JT-4 SWITCH ROLLER LEVER ASSMBLY Honeywell Sensing and Productivity Solutions	1,290	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

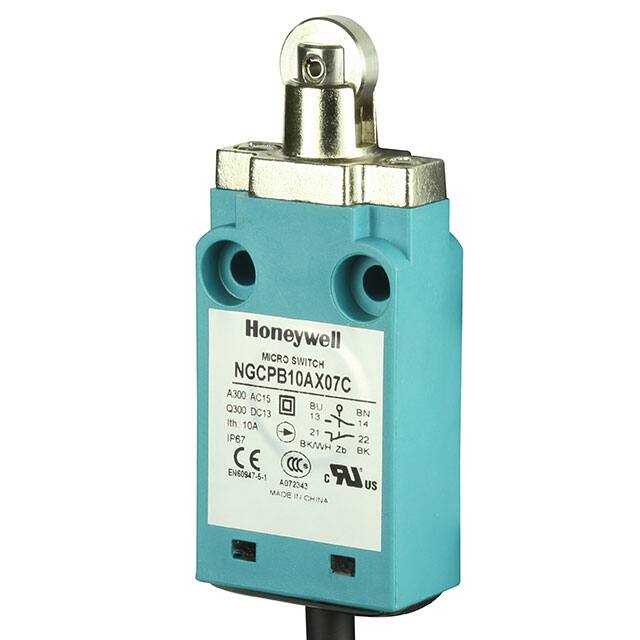

NGCPB10AX07C SWITCH SNAP ACT DPST 10MA 30MV Honeywell Sensing and Productivity Solutions	1,995	-	RFQ Sell Excess Inventory	Datasheet	NGC	Bulk	Obsolete	DPST-NO/NC	On-Mom, Off-Mom	-	30 mV	Roller Plunger	10mA (DC)	Chassis Mount	Cable Leads	IP67 - Dust Tight, Waterproof	-	1122gf	0.047" (1.2mm)	306gf	0.083" (2.1mm)	0.083" (2.1mm)	0.193" (4.9mm)	-25°C ~ 75°C
GLLC06A2Y SWITCH SNAP ACT DPST-NC 10A 300V Honeywell Sensing and Productivity Solutions	1,105	-	RFQ Sell Excess Inventory	Datasheet	GLL	Bulk	Obsolete	DPST-NC	On-Mom	300 V	250 V	Side Rotary, Adjustable Roller	10A (AC/DC)	Chassis Mount	Screw Terminal	IP66 - Dust Tight, Water Resistant	Rubber Roller	8.157gfm	-	2.039gfm	20°	15°	40°	-10°C ~ 80°C
D2VW-5K1B-1M SWITCH SNAP ACTION SPDT 5A 125V Omron Electronics Inc-EMC Div	2,540	-	RFQ Sell Excess Inventory	Datasheet	D2VW	Tray	Active	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	5A (AC/DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	200gf	0.016" (0.4mm)	30gf	0.047" (1.2mm)	0.579" (14.7mm)	0.039" (1.0mm)	-40°C ~ 85°C
