Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
WZ-RX65-A2F1 SWITCH LARGE BASIC Honeywell Sensing and Productivity Solutions	4,375	-	RFQ Sell Excess Inventory	Datasheet	WZ	Bulk	Obsolete	SPST-NC	On-Mom	-	-	Round (Pin Plunger)	15A	Chassis Mount	Screw Terminal	-	-	-	-	-	-	-	-	-55°C ~ 85°C
WA-1RVX132-A4 SWITCH SNAP ACT SPST-NC 20A 125V Honeywell Sensing and Productivity Solutions	1,016	-	RFQ Sell Excess Inventory	Datasheet	WA	Bulk	Obsolete	SPST-NC	On-Off	125 V	-	Round (Pin Plunger)	20A (AC)	Chassis Mount	Screw Terminal	-	Reset Plunger on Bottom	482gf	-	-	-	0.738" (18.7mm)	0.010" (0.25mm)	-55°C ~ 85°C

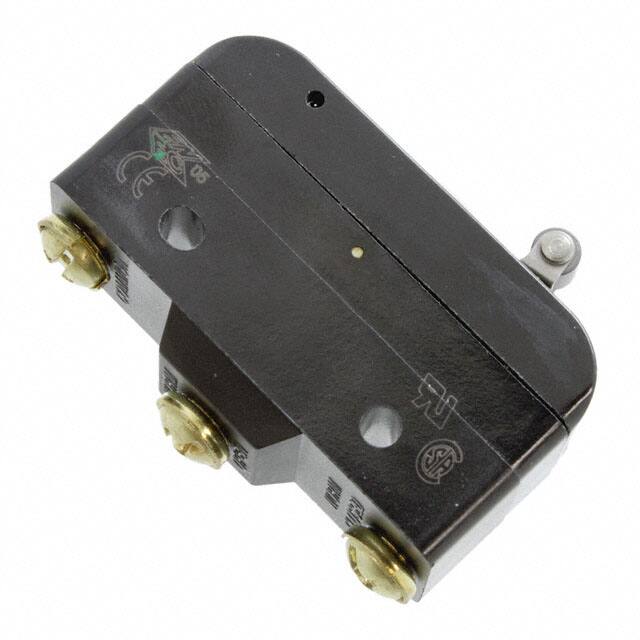

BZ-2RW828-A2 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	2,953	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Roller	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	71gf	0.020" (0.5mm)	7.087gf	0.125" (3.2mm)	0.984" (25.0mm)	0.094" (2.4mm)	-55°C ~ 85°C
BZ-2RQ25272T SWITCH LARGE BASIC Honeywell Sensing and Productivity Solutions	2,717	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
9162-03 SWITCH BALL PLNG SPST-NO 35A 12V Littelfuse/Commercial Vehicle Products	3,728	-	RFQ Sell Excess Inventory	Datasheet	-	Bulk	Active	SPST-NO	Off-Mom	-	12 V	Ball Bearing Plunger	35A (DC)	Panel Mount	Connector	-	-	-	-	-	-	-	-	-
FTN133-X11 ROLLER PLUNGER LIMIT SWITCH, SID ASI-Ez	3,344	-	RFQ Sell Excess Inventory	Datasheet	-	Box	Discontinued	-	-	600 V	-	Roller Plunger	10A	-	-	IP67 - Dust Tight, Waterproof	-	-	-	-	-	-	-	-25°C ~ 80°C
BZ-RQ66 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	1,491	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	-	Overtravel Plunger	15A (AC)	Panel Mount	Screw Terminal	-	Steel Plunger	170 ~ 269gf	0.0005" (0.013mm)	113gf	0.012" (0.3mm)	1.500" (38.1mm)	0.219" (5.6mm)	-55°C ~ 85°C
WW1G03A-D7 SWITCH SNAP ACT DPST-NO 3A 125V Honeywell Sensing and Productivity Solutions	3,272	-	RFQ Sell Excess Inventory	Datasheet	WW	Bulk	Active	DPST-NO	Off-Mom	125 V	-	Round (Pin Plunger)	3A (AC)	Panel Mount, Snap-In	Quick Connect - 0.187" (4.7mm)	-	-	907gf	-	-	-	0.355" (9.0mm)	0.079" (2.0mm)	-
BZ-2RQ13-A2 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	2,885	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Overtravel Plunger	15A (AC), 500mA (DC)	Panel Mount	Screw Terminal	-	Steel Plunger	255 ~ 368gf	0.002" (0.05mm)	113gf	0.015" (0.4mm)	0.859" (21.8mm)	0.219" (5.6mm)	-55°C ~ 85°C
YZ-RX62-D584 SWITCH SNAP ACT SPST-NO 15A 125V Honeywell Sensing and Productivity Solutions	3,612	-	RFQ Sell Excess Inventory	Datasheet	YZ	Bulk	Obsolete	SPST-NO	Off-On	125 V	125 V	Round (Pin Plunger)	15A (AC), 500mA (DC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	Reset Plunger on Bottom	113gf	-	-	0.012" (0.3mm)	0.625" (15.9mm)	0.005" (0.13mm)	-55°C ~ 85°C
BZ-2RL711 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	4,406	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Roller	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	141gf	0.050" (1.3mm)	14gf	-	0.780" (19.8mm)	0.060" (1.5mm)	-55°C ~ 85°C
2SX1-T2 SWITCH SNAP ACTION SPDT 7A 250V Honeywell Sensing and Productivity Solutions	2,193	-	RFQ Sell Excess Inventory	Datasheet	SX	Bulk	Active	SPDT	On-Mom	250 V	28 V	Round (Pin Plunger)	7A (AC/DC)	Chassis Mount	Solder Turret	-	-	85gf	0.005" (0.13mm)	28gf	0.020" (0.5mm)	0.320" (8.13mm)	0.004" (0.1mm)	-55°C ~ 125°C
BZ-2R55156T-S SWITCH SNAP ACTION SPDT 10A 125V Honeywell Sensing and Productivity Solutions	4,748	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Round (Pin Plunger)	10A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	255 ~ 425gf	0.002" (0.05mm)	113gf	-	0.625" (15.9mm)	0.005" (0.13mm)	-55°C ~ 85°C
BZ-2RW80555113-A2 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	4,161	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Straight	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	IP64 - Dust Tight, Water Resistant	-	141gf	0.030" (0.76mm)	21gf	-	0.750" (19.1mm)	0.141" (3.6mm)	-55°C ~ 85°C
D2VW-01L02A-1MS SWITCH SNAP ACT SPDT 0.1A 125V Omron Electronics Inc-EMC Div	1,562	-	RFQ Sell Excess Inventory	Datasheet	D2VW	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Roller	100mA (AC/DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	230gf	0.020" (0.5mm)	20gf	0.063" (1.6mm)	0.815" (20.7mm)	0.030" (0.76mm)	-40°C ~ 85°C
00721600 SWITCH PLUNGER 2-WAY DIN NC Littelfuse/Commercial Vehicle Products	2,327	-	RFQ Sell Excess Inventory	Datasheet	*	Bag	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BE-2R2414-P5 SWITCH BASIC LARGE Honeywell Sensing and Productivity Solutions	1,951	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BZ-2RDS24-S SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	1,772	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Round (Pin Plunger)	15A (AC), 500mA (DC)	Chassis Mount	Solder Lug	-	Steel Plunger	368 ~ 538gf	0.002" (0.05mm)	113gf	-	1.110" (28.2mm)	0.062" (1.6mm)	-55°C ~ 85°C
BZ-2R-P1 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	2,007	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Round (Pin Plunger)	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	255 ~ 368gf	0.002" (0.05mm)	113gf	0.015" (0.4mm)	0.625" (15.9mm)	0.005" (0.13mm)	-55°C ~ 85°C

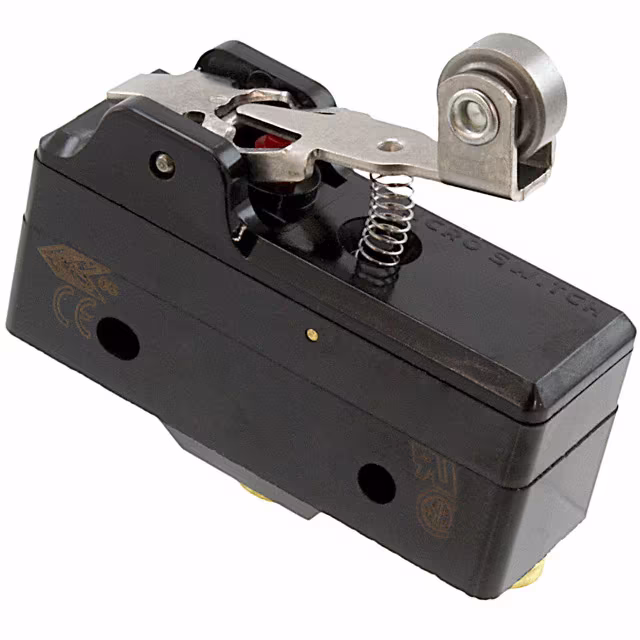

BA-2RV2223-A2 SWITCH SNAP ACTION SPDT 20A 125V Honeywell Sensing and Productivity Solutions	3,722	-	RFQ Sell Excess Inventory	Datasheet	BA	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Roller	20A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	227gf	0.045" (1.1mm)	43gf	-	1.176" (29.9mm)	0.030" (0.76mm)	-55°C ~ 85°C
