Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
BZ-7RW82137T-S SWITCH LARGE BASIC Honeywell Sensing and Productivity Solutions	1,682	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
Z-15G-C SWITCH SNAP ACTION SPDT 15A 125V Omron Automation and Safety	4,360	-	RFQ Sell Excess Inventory	Datasheet	Z	Bulk	Discontinued	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	15A (AC), 6A (DC)	Chassis Mount	Solder Lug	IP00	-	-	-	-	-	-	-	-25°C ~ 80°C
BE-2RV2-A4 SWITCH SNAP ACTION SPDT 25A 125V Honeywell Sensing and Productivity Solutions	3,753	-	RFQ Sell Excess Inventory	Datasheet	BE	Bulk	Active	SPDT	On-Mom	125 V	-	Lever, Roller	25A (AC)	Chassis Mount	Screw Terminal	-	-	99gf	0.085" (2.16mm)	14gf	0.470" (11.9mm)	1.188" (30.2mm)	0.062" (1.6mm)	-55°C ~ 85°C
12TL404 SWITCH SNAP ACTION SPDT 15A 125V C&K	4,687	-	RFQ Sell Excess Inventory	Datasheet	TL	Bulk	Active	SPDT	On-Mom	125 V	125 V	Push-Pull Plunger	15A (AC), 500mA (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	-	-	-	-	-	-	-55°C ~ 150°C
BE-2RV22-A2 SWITCH SNAP ACTION SPDT 25A 125V Honeywell Sensing and Productivity Solutions	3,176	-	RFQ Sell Excess Inventory	Datasheet	BE	Bulk	Active	SPDT	On-Mom	125 V	-	Lever, Roller	25A (AC)	Chassis Mount	Screw Terminal	-	-	170gf	0.045" (1.1mm)	43gf	0.250" (6.35mm)	1.172" (29.8mm)	0.030" (0.76mm)	-55°C ~ 85°C
10BS211 SWITCH SNAP ACTION SPDT 20A 125V Honeywell Sensing and Productivity Solutions	4,821	-	RFQ Sell Excess Inventory	Datasheet	BS	Bulk	Obsolete	SPDT	On-Mom	125 V	-	Adjustable Plunger	20A (AC)	Chassis Mount	Screw Terminal	-	-	312 ~ 567gf	0.007" (0.18mm)	283gf	-	0.640" (16.3mm)	0.010" (0.25mm)	-
4SX19-T SWITCH SNAP ACTION SPDT 7A 250V Honeywell Sensing and Productivity Solutions	1,576	-	RFQ Sell Excess Inventory	Datasheet	SX	Bulk	Active	SPDT	On-Mom	250 V	-	Round (Pin Plunger)	7A (AC)	Chassis Mount	Solder Turret	-	-	141gf	0.002" (0.05mm)	28gf	0.020" (0.5mm)	0.320" (8.13mm)	0.004" (0.1mm)	-55°C ~ 204°C
YZ-RS SWITCH LARGE BASIC Honeywell Sensing and Productivity Solutions	4,417	-	RFQ Sell Excess Inventory	Datasheet	YZ	Bulk	Obsolete	SPST-NO	Off-Mom	-	-	Overtravel Plunger	15A	Chassis Mount	Solder Lug	-	-	-	-	-	-	-	-	-55°C ~ 85°C
BZ-2RW82155551-A2 SWITCH SNAP ACTION SPDT 10A 125V Honeywell Sensing and Productivity Solutions	4,356	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Roller	10A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	IP64 - Dust Tight, Water Resistant	-	99gf	0.045" (1.1mm)	21gf	-	1.188" (30.2mm)	0.156" (3.96mm)	-55°C ~ 85°C
311SM25-T SWITCH SNAP ACTION SPDT 1A 125V Honeywell Sensing and Productivity Solutions	3,532	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Simulated Roller	1A (AC/DC)	Chassis Mount	Solder Turret	-	-	40gf	0.020" (0.5mm)	7.138gf	0.085" (2.16mm)	0.460" (11.7mm)	0.018" (0.45mm)	-55°C ~ 125°C
00721100 SWITCH PLUNGER 2-WAY DIN NO Littelfuse/Commercial Vehicle Products	3,590	-	RFQ Sell Excess Inventory	Datasheet	*	Bag	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

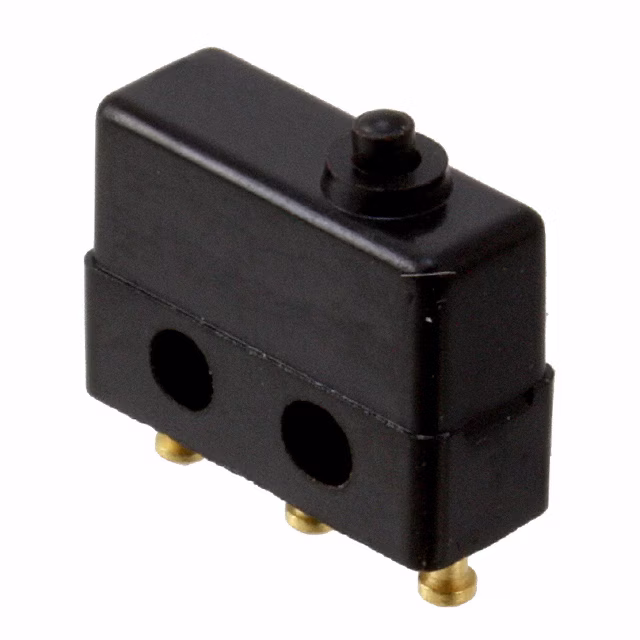

412SX21-T SWITCH SNAP ACTION SPDT 1A 125V Honeywell Sensing and Productivity Solutions	2,357	-	RFQ Sell Excess Inventory	Datasheet	SX	Bulk	Active	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	1A (AC/DC)	Chassis Mount	Solder Turret	-	-	141gf	0.003" (0.075mm)	28gf	0.020" (0.5mm)	0.320" (8.13mm)	0.004" (0.1mm)	-53°C ~ 204°C

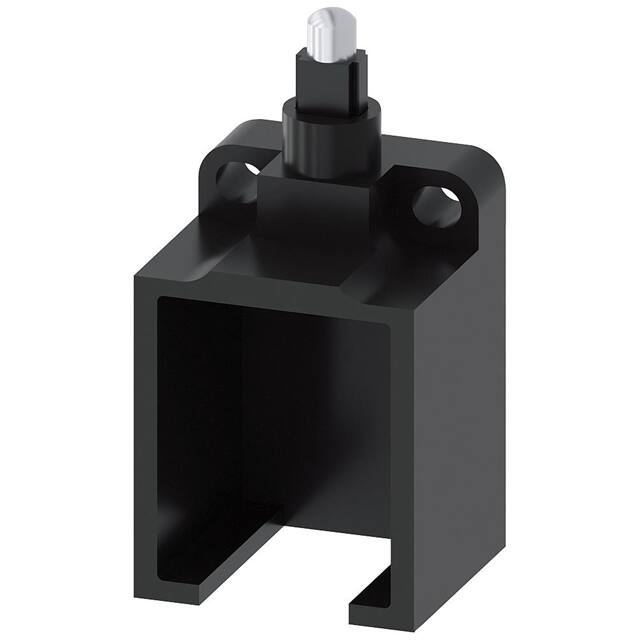

3SE52500AC05 SWITCH LIMIT HSG OPEN W/OUT SW Siemens	4,016	-	RFQ Sell Excess Inventory	Datasheet	3SE5	Box	Active	-	-	-	-	Round (Pin Plunger)	-	-	-	-	-	2039gf	-	-	-	-	-	-25°C ~ 85°C
BZ-2RW822725551-A2 SWITCH SNAP ACTION SPDT 1A 125V Honeywell Sensing and Productivity Solutions	4,010	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	-	Lever, Roller	1A (AC)	Chassis Mount	Screw Terminal	IP64 - Dust Tight, Water Resistant	-	170gf	0.020" (0.5mm)	43gf	-	1.188" (30.2mm)	0.094" (2.4mm)	-55°C ~ 85°C
12SM4 SWITCH SNAP ACTION SPDT 1A 125V Honeywell Sensing and Productivity Solutions	3,002	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Active	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	1A (AC/DC)	Chassis Mount	Solder Lug	-	-	141gf	0.004" (0.1mm)	28gf	0.020" (0.5mm)	0.330" (8.4mm)	0.003" (0.076mm)	-55°C ~ 125°C
12BS201 SWITC ADJ PLUNGER SPDT 15A SCREW Honeywell Sensing and Productivity Solutions	1,982	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BZ-2RW82212-A2 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	3,903	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	125 V	125 V	Lever, Roller	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	170gf	0.020" (0.5mm)	43gf	-	1.188" (30.2mm)	0.094" (2.4mm)	-55°C ~ 85°C
2SX27-T SWITCH SNAP ACTION SPDT 7A 250V Honeywell Sensing and Productivity Solutions	4,568	-	RFQ Sell Excess Inventory	Datasheet	SX	Bulk	Active	SPDT	On-Mom	250 V	28 V	Round (Pin Plunger)	7A (AC/DC)	Chassis Mount	Solder Turret	-	-	85gf	0.005" (0.13mm)	28gf	0.020" (0.5mm)	0.320" (8.13mm)	0.004" (0.1mm)	-55°C ~ 125°C
BZ-2AW84223T SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	2,131	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT (DB/DM)	On-Mom	125 V	125 V	Lever, Roller	15A (AC), 1A (DC)	Chassis Mount	Screw Terminal	-	-	99gf	0.025" (0.6mm)	7.087gf	0.200" (5.1mm)	1.188" (30.2mm)	0.094" (2.4mm)	-55°C ~ 85°C
Z-15HW52-B SWITCH SNAP ACTION SPDT 10A 125V Omron Automation and Safety	3,954	-	RFQ Sell Excess Inventory	Datasheet	Z	Bulk	Last Time Buy	SPDT	On-Mom	125 V	30 V	Wire Lever	10A (AC/DC)	Chassis Mount	Screw Terminal	IP00	-	6.000gf	0.026" (0.65mm)	0.500gf	0.328" (8.3mm)	0.748" (19.0mm)	0.219" (5.6mm)	-25°C ~ 80°C
