Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
91SX41 SWITCH SNAP ACTION SPDT 7A 115V Honeywell Sensing and Productivity Solutions	3,671	-	RFQ Sell Excess Inventory	Datasheet	SX	Bulk	Active	SPDT	On-Mom	115 V	28 V	Round (Pin Plunger)	7A (AC/DC)	Chassis Mount	Solder Turret	-	-	141gf	0.005" (0.13mm)	28gf	0.020" (0.5mm)	0.320" (8.13mm)	0.004" (0.1mm)	-53°C ~ 85°C
91113 SWITCH BALL PLNG SPST-NO 20A 12V Cole Hersee	2,129	-	RFQ Sell Excess Inventory	Datasheet	-	Bulk	Active	SPST-NO	Off-Mom	-	12 V	Ball Bearing Plunger	20A (DC)	Panel Mount	Screw Terminal	-	-	-	-	-	-	-	-	-
BZ-7RW2T04 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	2,635	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Roller	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	28 ~ 127gf	0.150" (3.8mm)	21gf	0.470" (11.9mm)	1.188" (30.2mm)	0.156" (3.96mm)	-55°C ~ 85°C
BZ-RW8422-P4 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	1,786	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	-	Lever, Roller	15A (AC)	Chassis Mount	Screw Terminal	-	-	56gf	0.006" (0.15mm)	7.087gf	0.094" (2.4mm)	1.188" (30.2mm)	0.094" (2.4mm)	-55°C ~ 85°C
11SX24 SWITCH SNAP ACTION SPDT 5A 115V Honeywell Sensing and Productivity Solutions	4,028	-	RFQ Sell Excess Inventory	Datasheet	SX	Bulk	Active	SPDT	On-Mom	115 V	28 V	Round (Pin Plunger)	5A (AC/DC)	Through Hole	PC Pin	-	-	71 ~ 141gf	0.002" (0.05mm)	28gf	0.020" (0.5mm)	0.320" (8.13mm)	0.004" (0.1mm)	-55°C ~ 125°C
YZ-2RW805551T SWITCH SNAP ACT SPST-NO 15A 125V Honeywell Sensing and Productivity Solutions	1,781	-	RFQ Sell Excess Inventory	Datasheet	YZ	Bulk	Obsolete	SPST-NO	Off-Mom	125 V	125 V	Lever, Straight	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	Splash Proof	-	71gf	0.050" (1.3mm)	14gf	-	0.750" (19.1mm)	0.219" (5.6mm)	-55°C ~ 85°C
BZ-7RW204 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	4,776	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	125 V	125 V	Lever, Roller	15A (AC), 500mA (DC)	Chassis Mount	Solder Lug	-	-	28 ~ 127gf	0.150" (3.8mm)	21gf	0.470" (11.9mm)	1.188" (30.2mm)	0.156" (3.96mm)	-55°C ~ 85°C
92102 SWITCH BALL PLNG SPST-NO 15A 12V Littelfuse Inc.	3,821	-	RFQ Sell Excess Inventory	Datasheet	-	Bulk	Obsolete	SPST-NO	Off-Mom	-	12 V	Ball Bearing Plunger	15A (DC)	Panel Mount	Solder Turret	-	-	-	-	-	-	-	-	-
91SX48 SWITCH SNAP ACTION SPDT 7A 115V Honeywell Sensing and Productivity Solutions	4,764	-	RFQ Sell Excess Inventory	Datasheet	SX	Bulk	Active	SPDT	On-Mom	115 V	28 V	Round (Pin Plunger)	7A (AC/DC)	Through Hole	PC Pin	-	-	141gf	0.005" (0.13mm)	28gf	0.020" (0.5mm)	0.320" (8.13mm)	0.004" (0.1mm)	-53°C ~ 85°C
12TL602 SWITCH SNAP ACTION SPDT 15A 125V C&K	3,357	-	RFQ Sell Excess Inventory	Datasheet	TL	Bulk	Active	SPDT	On-Mom	125 V	125 V	Push-Pull Plunger	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	-	-	-	-	-	-	-55°C ~ 150°C
BZ-2RW8255517-T SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	1,493	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	125 V	125 V	Lever, Roller	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	IP64 - Dust Tight, Water Resistant	-	99gf	0.040" (1.0mm)	21gf	-	1.188" (30.2mm)	0.156" (3.96mm)	-55°C ~ 85°C
BZ-2RW82443-A2 SWITCH SNAP ACTION SPDT 5A 125V Honeywell Sensing and Productivity Solutions	4,395	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Straight	5A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	127gf	0.035" (0.9mm)	21gf	-	0.792" (20.1mm)	0.141" (3.6mm)	-55°C ~ 85°C
Z-15GW22S-K SWITCH SNAP ACTION SPDT 15A 125V Omron Automation and Safety	4,498	-	RFQ Sell Excess Inventory	Datasheet	Z	Bulk	Obsolete	SPDT	On-Mom	125 V	30 V	Lever, Roller	15A (AC), 6A (DC)	Chassis Mount	Solder Lug	IP00	-	-	-	-	-	-	-	-25°C ~ 80°C

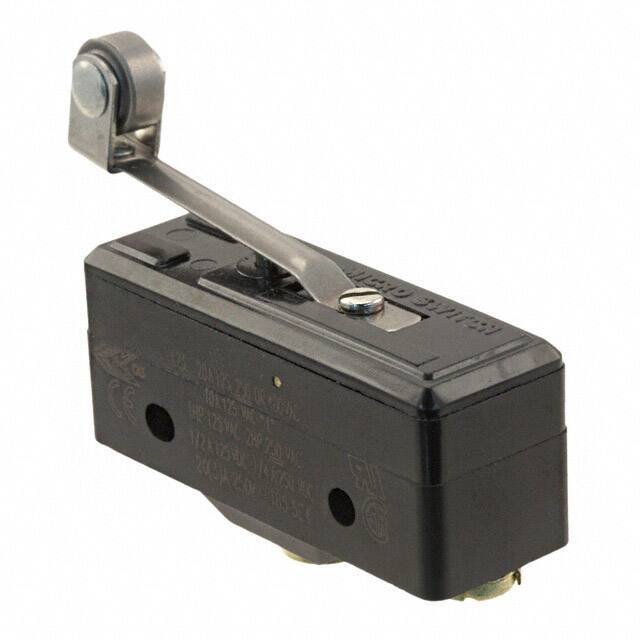

BA-2RL2-A2 SWITCH SNAP ACTION SPDT 20A 125V Honeywell Sensing and Productivity Solutions	4,303	-	RFQ Sell Excess Inventory	Datasheet	BA	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Roller	20A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	255gf	0.065" (1.7mm)	28gf	-	1.125" (28.6mm)	0.060" (1.5mm)	-55°C ~ 85°C
BZ-2RW82128-T SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	3,021	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Roller	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	368gf	0.040" (1.0mm)	113gf	-	1.188" (30.2mm)	0.156" (3.96mm)	-55°C ~ 85°C
GLDB03B SWITCH SNAP ACTION SPDT 6A 120V Honeywell Sensing and Productivity Solutions	4,409	-	RFQ Sell Excess Inventory	Datasheet	GLS	Bulk	Obsolete	SPDT (BBM)	On-Mom	120 V	125 V	Round (Pin Plunger)	6A (AC), 550mA (DC)	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	-	1632gf	0.035" (0.9mm)	-	0.120" (3.0mm)	0.710" (18.0mm)	0.118" (3.0mm)	-40°C ~ 85°C
BZ-2RW8055517-A2 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	1,197	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Straight	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	IP64 - Dust Tight, Water Resistant	-	71gf	0.050" (1.3mm)	14gf	-	0.750" (19.1mm)	0.219" (5.6mm)	-55°C ~ 85°C
V3L-2170 SWITCH SNAP ACTION SPDT 10A 125V Honeywell Sensing and Productivity Solutions	3,923	-	RFQ Sell Excess Inventory	Datasheet	V3L	Bulk	Active	SPDT	On-Mom	125 V	125 V	Lever, Roller	10A (AC), 500mA (DC)	Chassis Mount	Solder Lug	-	-	45gf	0.025" (0.6mm)	4.000gf	0.101" (2.57mm)	0.808" (20.52mm)	0.058" (1.47mm)	-

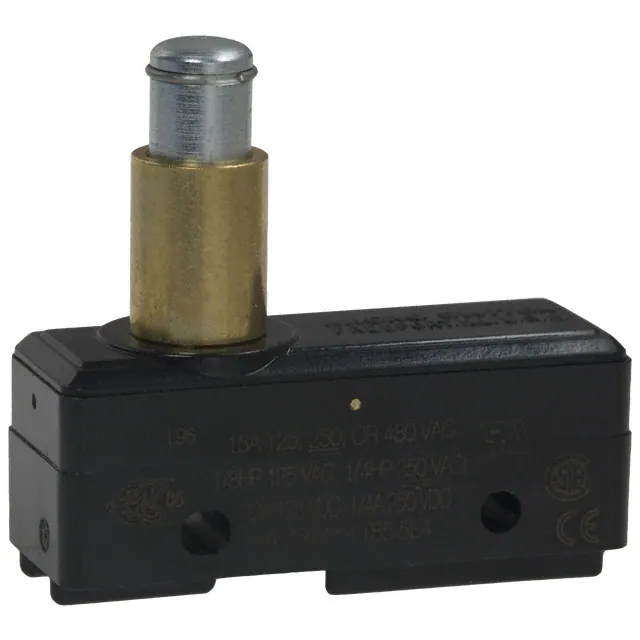

BZ-2RQ SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	3,024	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Overtravel Plunger	15A (AC), 500mA (DC)	Chassis Mount	Solder Lug	-	Steel Plunger	255 ~ 368gf	0.002" (0.05mm)	113gf	0.015" (0.4mm)	1.500" (38.1mm)	0.219" (5.6mm)	-55°C ~ 85°C
BZ-2RW84429-P52 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	2,351	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Straight	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	21gf	0.219" (5.6mm)	-	0.625" (15.9mm)	0.720" (18.3mm)	0.141" (3.6mm)	-55°C ~ 85°C
