Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
BZ-2RL204 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	3,589	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Roller	15A (AC), 500mA (DC)	Chassis Mount	Solder Lug	-	-	170gf	0.050" (1.3mm)	14gf	-	1.125" (28.6mm)	0.060" (1.5mm)	-55°C ~ 85°C
91SX40-H58 SWITCH SNAP ACTION SPDT 7A 115V Honeywell Sensing and Productivity Solutions	1,780	-	RFQ Sell Excess Inventory	Datasheet	SX	Bulk	Active	SPDT	On-Mom	115 V	28 V	Round (Pin Plunger)	7A (AC/DC)	Chassis Mount	Quick Connect - 0.058" (Round)	-	-	141gf	0.005" (0.13mm)	28gf	0.020" (0.5mm)	0.320" (8.13mm)	0.004" (0.1mm)	-53°C ~ 85°C
413SX21-T SWITCH SNAP ACTION SPDT 1A 125V Honeywell Sensing and Productivity Solutions	1,131	-	RFQ Sell Excess Inventory	Datasheet	SX	Bulk	Active	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	1A (AC/DC)	Chassis Mount	Solder Turret	-	-	141gf	0.002" (0.05mm)	28gf	0.020" (0.5mm)	0.320" (8.13mm)	0.004" (0.1mm)	-53°C ~ 204°C

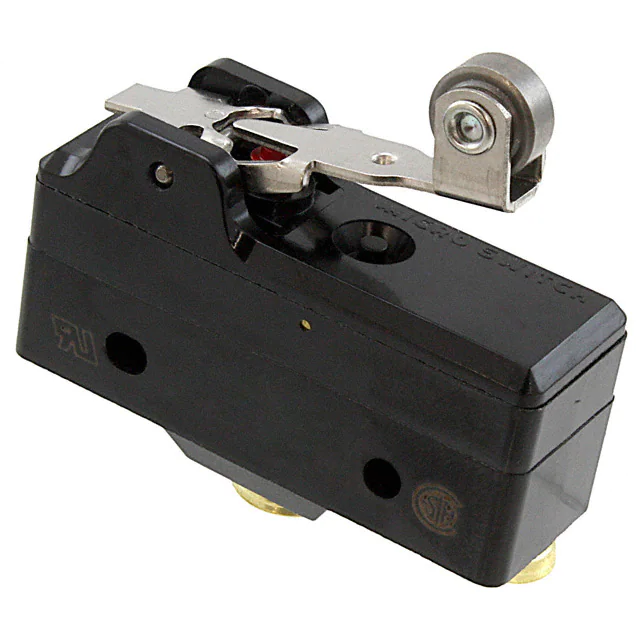

BE-2RV22-A4 SWITCH SNAP ACTION SPDT 25A 125V Honeywell Sensing and Productivity Solutions	3,317	-	RFQ Sell Excess Inventory	Datasheet	BE	Bulk	Active	SPDT	On-Mom	125 V	-	Lever, Roller	25A (AC)	Chassis Mount	Screw Terminal	-	-	170gf	0.045" (1.1mm)	43gf	0.250" (6.35mm)	1.172" (29.8mm)	0.030" (0.76mm)	-55°C ~ 85°C
BZ-2RQ174-A2 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	4,195	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Overtravel Plunger	15A (AC), 500mA (DC)	Panel Mount	Screw Terminal	-	-	255 ~ 368gf	0.002" (0.05mm)	113gf	0.015" (0.4mm)	0.859" (21.8mm)	0.219" (5.6mm)	-55°C ~ 85°C
BZ-R7216-P5 SWITCH SNAP ACTION SPDT 1A 125V Honeywell Sensing and Productivity Solutions	2,021	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	1A (AC)	Chassis Mount	Screw Terminal	-	-	198 ~ 255gf	0.0003" (0.008mm)	113gf	0.012" (0.3mm)	0.625" (15.9mm)	0.005" (0.13mm)	-55°C ~ 85°C
A-20GV-K SWITCH SNAP ACTION SPDT 20A 125V Omron Automation and Safety	4,520	-	RFQ Sell Excess Inventory	Datasheet	A	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Straight	20A (AC), 6A (DC)	Chassis Mount	Solder Lug	IP00	-	70gf	0.094" (2.4mm)	14gf	0.625" (15.9mm)	0.748" (19.0mm)	0.158" (4.0mm)	-25°C ~ 80°C
12SM604-T SWITCH SNAP ACT SPDT 0.1A 125V Honeywell Sensing and Productivity Solutions	3,537	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Active	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	100mA (AC/DC)	Chassis Mount	Solder Turret	-	-	141gf	0.004" (0.1mm)	28gf	0.020" (0.5mm)	0.330" (8.4mm)	0.003" (0.076mm)	-55°C ~ 125°C
1SM263 SWITCH SNAP ACTION SPDT 5A 250V Honeywell Sensing and Productivity Solutions	3,128	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Obsolete	SPDT	On-Mom	250 V	30 V	Round (Pin Plunger)	5A (AC/DC)	Chassis Mount	Solder Lug	-	-	141gf	0.004" (0.1mm)	28gf	0.030" (0.8mm)	0.330" (8.4mm)	0.005" (0.13mm)	-55°C ~ 125°C
BZ-2RQ241-D5 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	4,031	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	125 V	125 V	Overtravel Plunger	15A (AC), 500mA (DC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	-	-	255 ~ 368gf	0.002" (0.05mm)	113gf	0.015" (0.4mm)	1.500" (38.1mm)	0.219" (5.6mm)	-55°C ~ 121°C
HBS2KCB4SJ011C SWITCH SNAP ACTION SPDT 20A 125V C&K	1,768	-	RFQ Sell Excess Inventory	Datasheet	HB	Bulk	Active	SPDT	On-Mom	125 V	125 V	Overtravel Plunger	20A (AC), 500mA (DC)	Panel Mount	Solder Lug	IP65 - Dust Tight, Water Resistant	-	368gf	-	113gf	0.020" (0.5mm)	0.860" (21.84mm)	0.219" (5.6mm)	-55°C ~ 150°C
111SM17-T SWITCH SNAP ACTION SPDT 1A 125V Honeywell Sensing and Productivity Solutions	3,749	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Straight	1A (AC/DC)	Chassis Mount	Solder Turret	-	-	198gf	0.030" (0.76mm)	57gf	0.218" (5.5mm)	0.350" (8.9mm)	0.030" (0.76mm)	-55°C ~ 125°C
BZ-RW822 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	4,441	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	-	Lever, Roller	15A (AC)	Chassis Mount	Solder Lug	-	-	156gf	0.006" (0.15mm)	43gf	-	1.188" (30.2mm)	0.094" (2.4mm)	-55°C ~ 85°C
13BS16 SWITCH SNAP ACTION 20A 125V Honeywell Sensing and Productivity Solutions	1,959	-	RFQ Sell Excess Inventory	Datasheet	BS	Bulk	Active	-	-	125 V	-	Adjustable Plunger	20A (AC)	Chassis Mount	Screw Terminal	-	-	-	-	-	-	-	-	-55°C ~ 85°C
BA-R122-A4 SWITCH BASIC LARGE Honeywell Sensing and Productivity Solutions	3,473	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
V7-1C17E9-048-S SWITCH V BASIC Honeywell Sensing and Productivity Solutions	2,486	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BE-2RQ1-A2 SWITCH SNAP ACTION SPDT 25A 125V Honeywell Sensing and Productivity Solutions	1,015	-	RFQ Sell Excess Inventory	Datasheet	BE	Bulk	Active	SPDT	On-Mom	125 V	-	Overtravel Plunger	25A (AC)	Panel Mount	Screw Terminal	-	Steel Plunger	397 ~ 624gf	0.007" (0.18mm)	283gf	0.050" (1.27mm)	0.859" (21.8mm)	0.094" (2.4mm)	-55°C ~ 85°C
BZ-7RW855T-S SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	4,615	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Straight	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	Splash Proof	-	113gf	0.125" (3.2mm)	14gf	-	0.750" (19.1mm)	0.219" (5.6mm)	-55°C ~ 85°C
BZ-2R55 SWITCH LARGE BASIC Honeywell Sensing and Productivity Solutions	3,030	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
1SX81 SWITCH SNAP ACTION SPDT 7A 250V Honeywell Sensing and Productivity Solutions	4,308	-	RFQ Sell Excess Inventory	Datasheet	SX	Bulk	Active	SPDT	On-Mom	250 V	28 V	Round (Pin Plunger)	7A (AC/DC)	Through Hole, Right Angle	PC Pin	-	-	141gf	0.005" (0.13mm)	28gf	0.020" (0.5mm)	0.320" (8.13mm)	0.004" (0.1mm)	-55°C ~ 125°C
