Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
WA-2RQ1-D6 SWITCH LARGE BASIC Honeywell Sensing and Productivity Solutions	2,335	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BZ-2RW8255516-A2 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	1,989	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Roller	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	IP64 - Dust Tight, Water Resistant	-	99gf	0.040" (1.0mm)	21gf	-	1.188" (30.2mm)	0.155" (3.9mm)	-55°C ~ 85°C
BE-2RV24-A2 SWITCH SNAP ACTION SPDT 25A 125V Honeywell Sensing and Productivity Solutions	1,942	-	RFQ Sell Excess Inventory	Datasheet	BE	Bulk	Obsolete	SPDT	On-Mom	125 V	-	Lever, Straight	25A (AC)	Chassis Mount	Screw Terminal	-	-	71gf	0.110" (2.8mm)	14gf	0.625" (15.9mm)	0.750" (19.1mm)	0.079" (2.0mm)	-55°C ~ 121°C
MMGGF5W0C SWITCH SNAP ACTION SPDT 1A 125V C&K	2,744	-	RFQ Sell Excess Inventory	Datasheet	MM	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Roller	1A (AC/DC)	Chassis Mount	Solder Turret	-	-	115gf	0.026" (0.65mm)	20gf	0.090" (2.3mm)	0.531" (13.5mm)	0.045" (1.1mm)	-55°C ~ 135°C
88672-00 SWITCH AUTO OPERATOR CONTROL Honeywell Sensing and Productivity Solutions	2,893	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Not For New Designs	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
D2VW-01-3MS SWITCH SNP ACT SPST-NO 0.1A 125V Omron Electronics Inc-EMC Div	1,233	-	RFQ Sell Excess Inventory	Datasheet	D2VW	Bulk	Active	SPST-NO	Off-Mom	125 V	30 V	Round (Pin Plunger)	100mA (AC/DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	200gf	0.016" (0.4mm)	30gf	0.047" (1.2mm)	0.579" (14.7mm)	0.040" (1.0mm)	-40°C ~ 85°C
BA-2R-P1 SWITCH SNAP ACTION SPDT 20A 125V Honeywell Sensing and Productivity Solutions	4,487	-	RFQ Sell Excess Inventory	Datasheet	BA	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Round (Pin Plunger)	20A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	397 ~ 624gf	0.002" (0.05mm)	283gf	0.050" (1.27mm)	0.640" (16.3mm)	0.010" (0.25mm)	-55°C ~ 85°C
X0224163 SWITCH SNAP ACTION 10A SLDR RLR Crouzet	1,737	-	RFQ Sell Excess Inventory	Datasheet	83106	Bulk	Active	SPDT (DB/DM)	On-Mom	250 V	24 V	Lever, Roller	16A	-	-	IP40	-	765gf	-	-	-	-	0.026" (0.7mm)	-40°C ~ 125°C
BA-2RQ1 SWITCH SNAP ACTION SPDT 20A 125V Honeywell Sensing and Productivity Solutions	2,224	-	RFQ Sell Excess Inventory	Datasheet	BA	Bulk	Active	SPDT	On-Mom	125 V	125 V	Overtravel Plunger	20A (AC), 500mA (DC)	Panel Mount	Solder Lug	-	-	397 ~ 624gf	0.002" (0.05mm)	283gf	0.050" (1.27mm)	0.859" (21.8mm)	0.219" (5.6mm)	-55°C ~ 85°C
YA-2RQ1-A2 SWITCH SNAP ACT SPST-NO 20A 125V Honeywell Sensing and Productivity Solutions	4,912	-	RFQ Sell Excess Inventory	Datasheet	YA	Bulk	Obsolete	SPST-NO	Off-Mom	125 V	125 V	Overtravel Plunger	20A (AC), 500mA (DC)	Panel Mount	Screw Terminal	-	Steel Plunger	397 ~ 624gf	0.007" (0.18mm)	283gf	0.050" (1.27mm)	0.859" (21.8mm)	0.219" (5.6mm)	-55°C ~ 85°C
93SX41 SWITCH SUBMINI BASIC Honeywell Sensing and Productivity Solutions	4,885	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

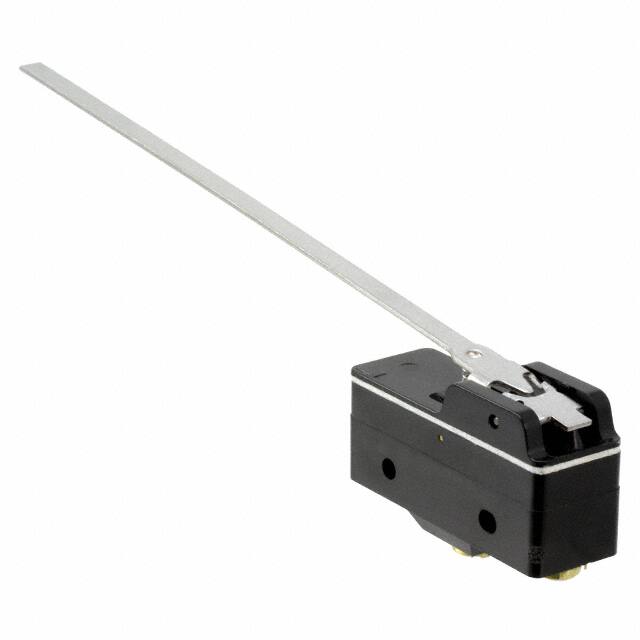

BZ-2RW8635551-A2 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	4,691	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Straight	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	IP64 - Dust Tight, Water Resistant	-	28gf	0.145" (3.7mm)	-	-	0.750" (19.1mm)	0.500" (12.7mm)	-55°C ~ 85°C
HBS2KHB6SJ055C SWITCH SNAP ACTION SPDT 20A 125V C&K	3,802	-	RFQ Sell Excess Inventory	Datasheet	HB	Bulk	Active	SPDT	On-Mom	125 V	125 V	Overtravel Plunger	20A (AC), 500mA (DC)	Panel Mount	Screw Terminal	IP65 - Dust Tight, Water Resistant	-	567gf	-	113gf	0.025" (0.65mm)	0.860" (21.84mm)	0.219" (5.6mm)	-55°C ~ 150°C
BZ-2RW825518-A2-S SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	3,937	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Roller	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	Splash Proof	-	99gf	0.040" (1.0mm)	21gf	-	1.188" (30.2mm)	0.156" (3.96mm)	-55°C ~ 85°C
BA-2RV22-D81 SWITCH SNAP ACTION SPDT 20A 125V Honeywell Sensing and Productivity Solutions	3,281	-	RFQ Sell Excess Inventory	Datasheet	BA	Bulk	Active	SPDT	On-Mom	125 V	125 V	Lever, Roller	20A (AC), 500mA (DC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	170gf	0.045" (1.1mm)	43gf	0.250" (6.35mm)	1.176" (29.9mm)	0.030" (0.76mm)	-55°C ~ 85°C
XEP3S1W3 SWITCH SNAP ACT SPDT 1.5A 240V Telemecanique Sensors	3,594	-	RFQ Sell Excess Inventory	Datasheet	OsiSense XC	Box	Active	SPDT	On-On	240 V	250 V	Round (Pin Plunger)	1.5A (AC), 100mA (DC)	Chassis Mount	Cable Leads	IP40	-	-	-	-	-	-	-	-25°C ~ 125°C
HBS2KCF5SD055C SWITCH SNAP ACTION SPDT 1A 125V C&K	3,127	-	RFQ Sell Excess Inventory	Datasheet	HB	Bulk	Active	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	1A (AC/DC)	Chassis Mount	Screw Terminal	IP65 - Dust Tight, Water Resistant	-	368gf	0.002" (0.05mm)	113gf	0.020" (0.5mm)	0.844" (21.44mm)	0.055" (1.4mm)	-55°C ~ 150°C
GLLC06A2B SWITCH SNAP ACT DPST-NC 10A 300V Honeywell Sensing and Productivity Solutions	1,510	-	RFQ Sell Excess Inventory	Datasheet	GLL	Bulk	Active	DPST-NC	On-Mom	300 V	250 V	Side Rotary, Adjustable Roller	10A (AC/DC)	Chassis Mount	Screw Terminal	IP66 - Dust Tight, Water Resistant	Metal Roller	8.157gfm	-	2.039gfm	20°	15°	40°	-10°C ~ 80°C
9096-02 SWITCH SNAP ACT SPST-NC 15A 12V Littelfuse Inc.	3,852	-	RFQ Sell Excess Inventory	Datasheet	-	Bulk	Obsolete	SPST-NC	On-Mom	-	12 V	Round (Pin Plunger)	15A (DC)	Chassis Mount	Wire Leads	-	-	-	-	-	-	-	-	-
YA-2RQ1250-A2 SWITCH SNAP ACT SPST-NO 20A 125V Honeywell Sensing and Productivity Solutions	4,880	-	RFQ Sell Excess Inventory	Datasheet	YA	Bulk	Active	SPST-NO	Off-Mom	125 V	125 V	Overtravel Plunger	20A (AC), 500mA (DC)	Panel Mount	Screw Terminal	-	Steel Plunger	397 ~ 624gf	0.007" (0.18mm)	283gf	0.050" (1.27mm)	0.859" (21.8mm)	0.219" (5.6mm)	-55°C ~ 121°C
