Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
BZ-2RQ1020-A2 SWITCH LARGE BASIC Honeywell Sensing and Productivity Solutions	4,469	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BZ-2RQ104 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	4,037	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Overtravel Plunger	15A (AC), 500mA (DC)	Panel Mount	Solder Lug	-	Steel Plunger	255 ~ 368gf	0.002" (0.05mm)	170gf	0.015" (0.4mm)	0.859" (21.8mm)	0.219" (5.6mm)	-55°C ~ 85°C
BZ-RQ-A2 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	1,778	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	-	Overtravel Plunger	15A (AC)	Chassis Mount	Screw Terminal	-	Steel Plunger	170 ~ 269gf	0.0005" (0.013mm)	113gf	0.012" (0.3mm)	1.500" (38.1mm)	0.219" (5.6mm)	-55°C ~ 85°C
4SX5-T SWITCH SUBMINI BASIC Honeywell Sensing and Productivity Solutions	3,782	-	RFQ Sell Excess Inventory	Datasheet	SX	Bulk	Obsolete	SPDT	On-Mom	-	-	Round (Pin Plunger)	-	Chassis Mount	Solder Turret	-	-	-	-	-	-	-	-	-55°C ~ 125°C
BZ-2RQ18 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	4,575	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Roller Plunger	15A (AC), 500mA (DC)	Panel Mount	Solder Lug	-	-	255 ~ 368gf	0.002" (0.05mm)	113gf	0.015" (0.4mm)	1.313" (33.4mm)	0.141" (3.6mm)	-55°C ~ 85°C
Z-15GM255-B SWITCH SNAP ACTION SPDT 15A 125V Omron Automation and Safety	2,531	-	RFQ Sell Excess Inventory	Datasheet	Z	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Roller	15A (AC), 6A (DC)	Chassis Mount	Screw Terminal	IP62	-	270gf	0.026" (0.65mm)	56gf	-	1.188" (30.2mm)	0.158" (4.0mm)	-15°C ~ 80°C
Z-15GW2377 SWITCH SNAP ACTION SPDT 15A 125V Omron Automation and Safety	1,931	-	RFQ Sell Excess Inventory	Datasheet	Z	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Roller	15A (AC), 6A (DC)	Chassis Mount	Solder Lug	IP00	-	-	-	-	-	-	-	-25°C ~ 80°C
Z-15GW2377-B SWITCH SNAP ACTION SPDT 15A 125V Omron Automation and Safety	1,063	-	RFQ Sell Excess Inventory	Datasheet	Z	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Roller	15A (AC), 6A (DC)	Chassis Mount	Screw Terminal	IP00	-	-	-	-	-	-	-	-25°C ~ 80°C
BA-2RQ1250-A2 SWITCH BASIC LARGE Honeywell Sensing and Productivity Solutions	2,522	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
311SX146-H391 SWITCH SNAP ACTION SPDT 5A 125V Honeywell Sensing and Productivity Solutions	4,423	-	RFQ Sell Excess Inventory	Datasheet	SX	Bulk	Active	SPDT	On-Mom	125 V	28 V	Lever, Simulated Roller	5A (AC/DC)	Through Hole, Right Angle	PC Pin	-	-	45gf	0.015" (0.38mm)	11gf	0.050" (1.27mm)	0.557" (14.15mm)	0.010" (0.25mm)	-55°C ~ 125°C
313SX4-H33 SWITCH SNAP ACTION SPDT 1A 125V Honeywell Sensing and Productivity Solutions	1,547	-	RFQ Sell Excess Inventory	Datasheet	SX	Bulk	Active	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	1A (AC/DC)	Through Hole	PC Pin	-	-	60gf	0.015" (0.38mm)	11gf	0.050" (1.27mm)	0.557" (14.15mm)	0.010" (0.25mm)	-55°C ~ 125°C
GLLA01D-4 LIMIT SWITCH Honeywell Sensing and Productivity Solutions	1,469	-	RFQ Sell Excess Inventory	Datasheet	-	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
LSZ65AB SWITCH LIMIT Honeywell Sensing and Productivity Solutions	1,704	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
GLLA01F-5 SWITCH LIMIT Honeywell Sensing and Productivity Solutions	3,114	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

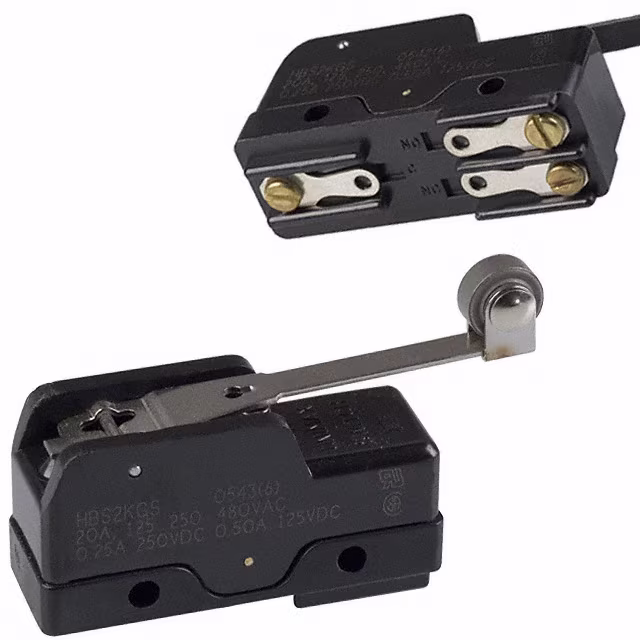

HBS2KGB4SA011C SWITCH SNAP ACTION SPDT 20A 125V C&K	1,459	-	RFQ Sell Excess Inventory	Datasheet	HB	Bulk	Active	SPDT	On-Mom	125 V	125 V	Lever, Roller	20A (AC), 500mA (DC)	Chassis Mount	Solder Lug	IP65 - Dust Tight, Water Resistant	-	99gf	0.062" (1.6mm)	21gf	0.312" (7.9mm)	1.120" (28.45mm)	0.156" (3.96mm)	-55°C ~ 150°C
83261110 SWITCH SNAP ACTION MICRO Crouzet	4,951	-	RFQ Sell Excess Inventory	Datasheet	-	-	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
23AC80-UL SWITCH SNAP ACTION SPDT 5A 125V Honeywell Sensing and Productivity Solutions	3,381	-	RFQ Sell Excess Inventory	Datasheet	AC	Bulk	Obsolete	SPDT	On-Mom	125 V	-	Push-Pull Plunger	5A (AC)	Chassis Mount	Quick Connect - 0.187" (4.7mm)	-	-	1814gf	-	-	-	0.203" (5.2mm)	0.125" (3.2mm)	-18°C ~ 82°C
BZ-7RST SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	1,051	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Overtravel Plunger	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	Steel Plunger	624 ~ 794gf	0.005" (0.13mm)	113gf	0.030" (0.8mm)	1.110" (28.2mm)	0.060" (1.5mm)	-55°C ~ 85°C
BZ-2ADT1 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	2,114	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT (DB/DM)	On-Mom	125 V	125 V	Round (Pin Plunger)	15A (AC), 1A (DC)	Chassis Mount	Screw Terminal	-	-	397 ~ 680gf	0.001" (0.025mm)	113gf	0.025" (0.65mm)	0.865" (22.0mm)	0.060" (1.5mm)	-55°C ~ 85°C
BZ-2RW8225-A2-S SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	2,415	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Roller	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	170gf	0.020" (0.5mm)	43gf	-	1.188" (30.2mm)	0.094" (2.4mm)	-55°C ~ 85°C
