Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
FTN140-Z11 ROLLER LEVER LIMIT SWITCH, EXTEN ASI-Ez	2,625	-	RFQ Sell Excess Inventory	Datasheet	-	Box	Discontinued	-	-	600 V	-	Lever, Roller	10A	-	-	IP67 - Dust Tight, Waterproof	-	-	-	-	-	-	-	-25°C ~ 80°C
Z-15GW2S55-B7-K SWITCH SNAP ACTION SPDT 15A 125V Omron Automation and Safety	4,790	-	RFQ Sell Excess Inventory	Datasheet	Z	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Roller	15A (AC), 6A (DC)	Chassis Mount	Screw Terminal	IP62	-	-	-	-	-	-	-	-15°C ~ 80°C
Z-15HQ SWITCH SNAP ACTION SPDT 15A 125V Omron Automation and Safety	3,403	-	RFQ Sell Excess Inventory	Datasheet	Z	Bulk	Active	SPDT	On-Mom	125 V	30 V	Overtravel Plunger	15A (AC), 2A (DC)	Panel Mount	Solder Lug	IP00	-	200 ~ 285gf	0.001" (0.025mm)	114gf	0.012" (0.3mm)	0.859" (21.8mm)	0.217" (5.5mm)	-25°C ~ 80°C
Z-15HW42184 SWITCH SNAP ACTION SPDT 15A 125V Omron Automation and Safety	1,645	-	RFQ Sell Excess Inventory	Datasheet	Z	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Straight	15A (AC), 6A (DC)	Chassis Mount	Solder Lug	IP00	-	-	-	-	-	-	-	-25°C ~ 80°C
BZ-3RW80552-A2-S SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	1,018	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Roller	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	Splash Proof	-	113gf	0.060" (1.5mm)	21gf	-	1.188" (30.2mm)	0.172" (4.4mm)	-55°C ~ 85°C
93SX50 SWITCH SUBMINI BASIC Honeywell Sensing and Productivity Solutions	3,154	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BZ-3RW80551-A2-S SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	3,718	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Lever, Straight	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	Splash Proof	-	106gf	0.060" (1.5mm)	21gf	-	0.750" (19.1mm)	0.172" (4.4mm)	-55°C ~ 85°C

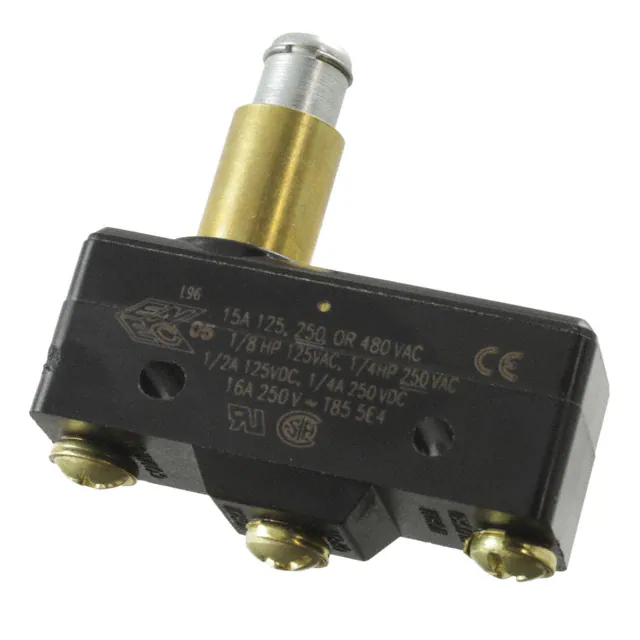

BZ-2RQ24-A2 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	4,126	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	125 V	Overtravel Plunger	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	-	-	255 ~ 368gf	0.002" (0.05mm)	113gf	0.015" (0.4mm)	1.500" (38.1mm)	0.219" (5.6mm)	-55°C ~ 121°C
13SX21-H58 SWITCH SNAP ACTION SPDT 1A 125V Honeywell Sensing and Productivity Solutions	4,477	-	RFQ Sell Excess Inventory	Datasheet	SX	Bulk	Active	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	1A (AC/DC)	Chassis Mount	Quick Connect - 0.058" (Round)	-	-	71 ~ 141gf	0.002" (0.05mm)	28gf	0.020" (0.5mm)	0.320" (8.13mm)	0.004" (0.1mm)	-53°C ~ 85°C
SCN-2419SC SWITCH SNAP ACTION SPDT 10A 125V Honeywell Sensing and Productivity Solutions	1,009	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	-	Lever, Roller	10A (AC)	Chassis Mount	Screw Terminal	Splash Proof	-	198gf	0.050" (1.3mm)	43gf	-	1.188" (30.2mm)	0.094" (2.4mm)	-55°C ~ 85°C
D2VW-01K2-1MS SWITCH SNAP ACT SPDT 0.1A 125V Omron Electronics Inc-EMC Div	2,616	-	RFQ Sell Excess Inventory	Datasheet	D2VW	Tray	Active	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	100mA (AC/DC)	Chassis Mount	Wire Leads	IP67 - Dust Tight, Waterproof	-	200gf	0.016" (0.4mm)	30gf	0.047" (1.2mm)	0.579" (14.7mm)	0.039" (1.0mm)	-40°C ~ 85°C
111SM1053-H58 SWITCH SNAP ACT SPDT 0.1A 125V Honeywell Sensing and Productivity Solutions	1,050	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Active	SPDT	On-Mom	125 V	30 V	Lever, Straight	100mA (AC/DC)	Chassis Mount	Quick Connect - 0.058" (Round)	-	-	170gf	0.050" (1.3mm)	28gf	-	0.350" (8.9mm)	0.030" (0.76mm)	-55°C ~ 125°C
BZ-2RW82272100-A2 SWITCH SNAP ACTION SPDT 1A 125V Honeywell Sensing and Productivity Solutions	4,406	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	125 V	-	Lever, Roller	1A (AC)	Chassis Mount	Screw Terminal	-	-	170gf	0.020" (0.5mm)	43gf	-	1.188" (30.2mm)	0.094" (2.4mm)	-55°C ~ 85°C
A-20GV2S-B SWITCH SNAP ACTION SPDT 20A 125V Omron Automation and Safety	1,877	-	RFQ Sell Excess Inventory	Datasheet	A	Bulk	Obsolete	SPDT	On-Mom	125 V	30 V	Lever, Roller	20A (AC), 6A (DC)	Chassis Mount	Screw Terminal	IP00	-	-	-	-	-	-	-	-25°C ~ 80°C
6SX1-H58 SWITCH SNAP ACTION SPDT 1A 125V Honeywell Sensing and Productivity Solutions	3,170	-	RFQ Sell Excess Inventory	Datasheet	SX	Bulk	Obsolete	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	1A (AC/DC)	Chassis Mount	Quick Connect - 0.058" (Round)	-	-	141gf	0.005" (0.13mm)	28gf	0.020" (0.5mm)	0.320" (8.13mm)	0.004" (0.1mm)	-55°C ~ 204°C
Z-15ER SWITCH SNAP ACTION SPDT 15A 125V Omron Automation and Safety	1,217	-	RFQ Sell Excess Inventory	Datasheet	Z	Bulk	Active	SPDT	On-On	125 V	30 V	Round (Pin Plunger)	15A (AC/DC)	Chassis Mount	Solder Lug	IP00	Reset Plunger on Bottom	200 ~ 255gf	-	56 ~ 285gf	0.015" (0.4mm)	0.625" (15.9mm)	0.005" (0.13mm)	-25°C ~ 80°C
2SX1-H58 SWITCH SNAP ACTION SPDT 7A 250V Honeywell Sensing and Productivity Solutions	3,578	-	RFQ Sell Excess Inventory	Datasheet	SX	Bulk	Active	SPDT	On-Mom	250 V	28 V	Round (Pin Plunger)	7A (AC/DC)	Chassis Mount	Quick Connect - 0.058" (Round)	-	-	85gf	0.005" (0.13mm)	28gf	0.020" (0.5mm)	0.320" (8.13mm)	0.004" (0.1mm)	-55°C ~ 125°C
BZ-2RQ722-A2 SWITCH SNAP ACTION SPDT 1A 125V Honeywell Sensing and Productivity Solutions	1,238	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Obsolete	SPDT	On-Mom	125 V	-	Overtravel Plunger	1A (AC)	Chassis Mount	Screw Terminal	-	-	255 ~ 368gf	0.002" (0.05mm)	113gf	0.015" (0.4mm)	1.500" (38.1mm)	0.219" (5.6mm)	-55°C ~ 85°C
17AC34-T SWITCH SNAP ACTION SPDT 5A 250V Honeywell Sensing and Productivity Solutions	2,456	-	RFQ Sell Excess Inventory	Datasheet	AC	Bulk	Obsolete	SPDT	On-Mom	250 V	30 V	Push-Pull Plunger	5A (AC/DC)	Chassis Mount	Solder Turret	-	-	907gf	-	-	-	0.220" (5.6mm)	0.175" (4.5mm)	-53°C ~ 121°C
XEP3S1W6B529 SWITCH SNAP ACT SPDT 1.5A 240V Telemecanique Sensors	3,567	-	RFQ Sell Excess Inventory	Datasheet	OsiSense XC	Box	Active	SPDT	On-On	240 V	250 V	Lever, Roller	1.5A (AC), 100mA (DC)	Chassis Mount	Cable Leads	IP40	-	-	-	-	-	-	-	-25°C ~ 125°C
