Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Part Status	Circuit	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Mounting Style	Termination Style	Ingress Protection	Features	Operating Force	Differential Travel	Release Force	Pretravel	Operating Position	Overtravel	Operating Temperature
XCMH2115L1 LS PL MINI PLASTIC RLLR LVR NCNO Telemecanique Sensors	4,794	-	RFQ Sell Excess Inventory	Datasheet	XCMH	Bulk	Active	DPST-NO/NC	On-Off, Off-On	240 V	250 V	Side Rotary, Roller	750mA (AC), 100mA (DC)	Chassis Mount	Cable Leads	IP66/IP67 - Dust Tight, Water Resistant, Waterproof	-	-	-	-	-	-	-	-25°C ~ 70°C
83169015 SWITCH SNAP ACTION SPDT 8A 125V Crouzet	4,286	-	RFQ Sell Excess Inventory	Datasheet	83169	Bulk	Active	SPDT	On-Mom	125 V	-	Round (Pin Plunger)	8A (AC)	Chassis Mount	Cable Leads	IP67 - Dust Tight, Waterproof	Cable Length 0.5m	408gf	0.014" (0.35mm)	102gf	-	0.579" (14.7mm)	0.040" (1.0mm)	-20°C ~ 85°C
GLDA03A1B SWITCH SNAP ACTION SPDT 6A 120V Honeywell Sensing and Productivity Solutions	2,050	-	RFQ Sell Excess Inventory	Datasheet	GLS	Bulk	Obsolete	SPDT (BBM)	On-Mom	120 V	125 V	Side Rotary, Roller	6A (AC), 550mA (DC)	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	Steel Roller	12gfm	12°	-	26°	26°	49°	-40°C ~ 85°C
Z-15H2-B7-K SWITCH SNAP ACTION SPDT 15A 125V Omron Automation and Safety	4,392	-	RFQ Sell Excess Inventory	Datasheet	Z	Bulk	Last Time Buy	SPDT	On-Mom	125 V	30 V	Round (Pin Plunger)	15A (AC), 6A (DC)	Chassis Mount	Screw Terminal	IP00	-	-	-	-	-	-	-	-25°C ~ 80°C
NGCPB07AX07A6B SWITCH COMPACT LIMIT Honeywell Sensing and Productivity Solutions	2,810	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
83240000 SWITCH SNAP ACTION DPST 6A 250V Crouzet	3,877	-	RFQ Sell Excess Inventory	Datasheet	PBX	Bulk	Active	DPST-NO/NC	On-Mom, Off-Mom	250 V	250 V	Round (Pin Plunger)	6A (AC), 600mA (DC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	IP40	-	459gf	0.040" (1.0mm)	-	-	0.260" (6.6mm)	-	-50°C ~ 85°C
83242000 SWITCH SNAP ACTION DPST 6A 250V Crouzet	1,953	-	RFQ Sell Excess Inventory	Datasheet	PBX	Bulk	Active	DPST-NO/NC	On-Mom, Off-Mom	250 V	250 V	Round (Pin Plunger)	6A (AC), 600mA (DC)	Chassis Mount	Quick Connect - 0.250" (6.3mm)	IP40	-	663gf	0.040" (1.0mm)	-	-	0.260" (6.6mm)	-	-50°C ~ 85°C
XCKS101 SWITCH LIMIT DPST 3A 240V Telemecanique Sensors	1,134	-	RFQ Sell Excess Inventory	Datasheet	XC	Box	Active	DPST-NO/NC	On-Mom, Off-Mom	240 V	250 V	Round (Pin Plunger)	3A (AC), 270mA (DC)	Chassis Mount	Screw Terminal	IP66/IP67 - Dust Tight, Water Resistant, Waterproof	-	-	-	-	-	-	-	-25°C ~ 70°C
XCKS101H29 SWITCH LIMIT DPST 3A 240V Telemecanique Sensors	2,814	-	RFQ Sell Excess Inventory	Datasheet	XC	Box	Active	DPST-NO/NC	On-Mom, Off-Mom	240 V	250 V	Round (Pin Plunger)	3A (AC), 270mA (DC)	Chassis Mount	Screw Terminal	IP66/IP67 - Dust Tight, Water Resistant, Waterproof	-	-	-	-	-	-	-	-25°C ~ 70°C
BZ-2RW8055513-A2 SWITCH SNAP ACTION SPDT 15A 125V Honeywell Sensing and Productivity Solutions	1,669	-	RFQ Sell Excess Inventory	Datasheet	BZ	Bulk	Active	SPDT	On-Mom	125 V	125 V	Lever, Straight	15A (AC), 500mA (DC)	Chassis Mount	Screw Terminal	IP64 - Dust Tight, Water Resistant	-	71gf	0.050" (1.3mm)	14gf	-	0.750" (19.1mm)	0.219" (5.6mm)	-55°C ~ 85°C
D4V-8169Z-N SWITCH SNAP ACTION SPDT 5A 125V Omron Automation and Safety	2,901	-	RFQ Sell Excess Inventory	Datasheet	D4V	Bulk	Active	SPDT	On-Mom	125 V	24 V	Spring, Wire	5A (AC/DC)	Chassis Mount	Screw Terminal	IP65 - Dust Tight, Water Resistant	-	90gf	-	-	1.181" (30.0mm)	-	-	-20°C ~ 60°C
D4V-8111Z-N SWITCH SNAP ACTION SPDT 5A 125V Omron Automation and Safety	4,501	-	RFQ Sell Excess Inventory	Datasheet	D4V	Bulk	Active	SPDT	On-Mom	125 V	24 V	Roller Plunger	5A (AC/DC)	Chassis Mount	Screw Terminal	IP65 - Dust Tight, Water Resistant	-	999gf	0.047" (1.2mm)	300gf	0.060" (1.5mm)	1.024" (26.0mm)	0.157" (4.0mm)	-20°C ~ 60°C
608.3000.251 SWITCH LIMIT Altech Corporation	4,804	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
608.3000.252 SWITCH LIMIT BODY ONLY Altech Corporation	1,514	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
608.3000.253 SWITCH LIMIT Altech Corporation	4,158	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
608.3000.270 SWITCH LIMIT Altech Corporation	3,251	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

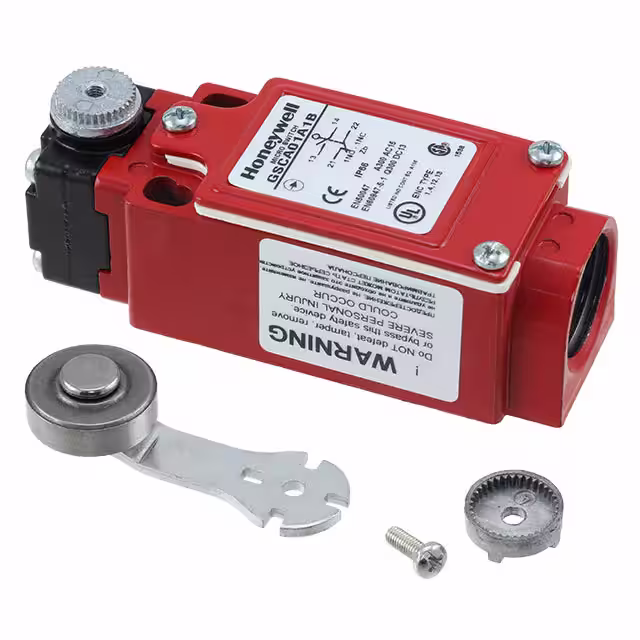

GSCA01A1B SWITCH SNAP ACTION DPST 6A 120V Honeywell Sensing and Productivity Solutions	2,781	-	RFQ Sell Excess Inventory	Datasheet	GSC	Bulk	Obsolete	DPST-NO/NC	On-Mom, Off-Mom	120 V	125 V	Side Rotary, Roller	6A (AC), 550mA (DC)	Chassis Mount	Screw Terminal	IP66 - Dust Tight, Water Resistant	Metal Roller	12gfm	11.5°	15gfm	-	-	75°	-25°C ~ 85°C
NGCPA10AX01C SWITCH LIMIT Honeywell Sensing and Productivity Solutions	3,151	-	RFQ Sell Excess Inventory	Datasheet	*	Bulk	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
D4N-312G SWITCH SNAP ACTION DPST 3A 240V Omron Automation and Safety	2,415	-	RFQ Sell Excess Inventory	Datasheet	D4N	Bulk	Obsolete	DPST-NO/NC	On-Mom, Off-Mom	240 V	250 V	Side Rotary, Adjustable Roller	3A (AC), 270mA (DC)	Chassis Mount	Screw Terminal	IP67 - Dust Tight, Waterproof	Metal Lever, Resin Roller	459gf	14°	41gf	18°	-	40°	-30°C ~ 70°C
111SM47-T2 SWITCH SNAP ACTION SPDT 5A 250V Honeywell Sensing and Productivity Solutions	1,620	-	RFQ Sell Excess Inventory	Datasheet	SM	Bulk	Obsolete	SPDT	On-Mom	250 V	30 V	Lever, Straight	5A (AC/DC)	Chassis Mount	Solder Turret	-	-	85gf	0.020" (0.5mm)	7.138gf	-	0.350" (8.9mm)	0.030" (0.76mm)	-55°C ~ 125°C
