| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Number of Channels | Inputs - Side 1/Side 2 | Common Mode Transient Immunity (Min) | Input Type | Output Type | Voltage - Isolation | Current - Output / Channel | Data Rate | Propagation Delay tpLH / tpHL (Max) | Rise / Fall Time (Typ) | Voltage - Forward (Vf) (Typ) | Qualification | Current - DC Forward (If) (Max) | Grade | Voltage - Supply | Operating Temperature | Mounting Style | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VO0661TOPTOISO 4KV 2CH OPEN DRAIN 8SOIC |
6,269 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 2/0 | 15kV/µs | DC | Open Drain | 4000Vrms | 50 mA | 10MBd | 100ns, 100ns | 23ns, 7ns | 1.4V | - | 15mA | - | 4.5V ~ 5.5V | -40°C ~ 100°C | Surface Mount | 8-SOIC |
|
ACPL-M46T-000EOPTOISO 4KV OPEN COLLECTOR 5SO |
10,207 |
|
Datasheet |
R²Coupler™ | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tube | Active | 1 | 1/0 | 15kV/µs | DC | Open Collector, Schottky Clamped | 4000Vrms | 15 mA | - | 550ns, 550ns | - | 1.5V | AEC-Q100 | 20mA | Automotive | 4.5V ~ 30V | -40°C ~ 125°C | Surface Mount | 5-SO |
|
HCPL0638R2OPTOISO 3.75KV 2CH OPEN COLL 8SO |
6,569 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 2/0 | 10kV/µs | DC | Open Collector, Schottky Clamped | 3750Vrms | 15 mA | 10Mbps | 75ns, 75ns | 17ns, 5ns | 1.75V (Max) | - | - | - | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount | 8-SOIC |
|
HCPL-0466-500EOPTOISO 3.75KV OPN COLLECTOR 8SO |
3,252 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 15kV/µs | DC | Open Collector, Schottky Clamped | 3750Vrms | 15 mA | - | 550ns, 400ns | - | 1.5V | - | 25mA | - | 4.5V ~ 30V | -40°C ~ 100°C | Surface Mount | 8-SO Tall |
|
|
HCPL-061A-000EOPTOISO 3.75KV OPN COLLECTOR 8SO |
4,315 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 1 | 1/0 | 1kV/µs | DC | Open Collector, Schottky Clamped | 3750Vrms | 50 mA | 10MBd | 100ns, 100ns | 42ns, 12ns | 1.3V | - | 10mA | - | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
|
FOD060LR2OPTOISO 3.75KV OPN COLLECTOR 8SO |
7,396 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 25kV/µs | DC | Open Collector, Schottky Clamped | 3750Vrms | 50 mA | 10Mbps | 90ns, 75ns | 22ns, 3ns | 1.4V | - | 50mA | - | 3V ~ 5.5V | -40°C ~ 85°C | Surface Mount | 8-SOIC |
|
|
HCPL-0211-000EOPTOISO 3.75KV PUSH PULL 8SO |
1,126 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 1 | 1/0 | 5kV/µs, 10kV/µs | DC | Push-Pull, Totem Pole | 3750Vrms | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | - | 10mA | - | 4.5V ~ 20V | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
ACPL-W61L-500EOPTOISO 5KV PUSH PULL 6SO |
3,862 |
|
Datasheet |
- | 6-SOIC (0.180", 4.58mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 20kV/µs | DC | Push-Pull, Totem Pole | 5000Vrms | 10 mA | 10MBd | 80ns, 80ns | 12ns, 12ns | 1.3V | - | 8mA | - | 2.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount | 6-SO Stretched |
|
|
HCPL-0211-500EOPTOISO 3.75KV PUSH PULL 8SO |
4,440 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 5kV/µs, 10kV/µs | DC | Push-Pull, Totem Pole | 3750Vrms | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | - | 10mA | - | 4.5V ~ 20V | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
|
ACPL-W61L-560EOPTOISO 5KV PUSH PULL 6SO |
10,570 |
|
Datasheet |
- | 6-SOIC (0.180", 4.58mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 20kV/µs | DC | Push-Pull, Totem Pole | 5000Vrms | 10 mA | 10MBd | 80ns, 80ns | 12ns, 12ns | 1.3V | - | 8mA | - | 2.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount | 6-SO Stretched |
.JPG)
|
EL0631(TA)OPTOISO 3.75KV 2CH OPEN COL 8SOP |
2,187 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 2/0 | 10kV/µs | DC | Open Collector | 3750Vrms | 50 mA | 10Mbps | 100ns, 100ns | 40ns, 10ns | 1.4V | - | 20mA | - | 7V | -40°C ~ 100°C | Surface Mount | 8-SOP |
|
HCPL-2200-000EOPTOISO 3.75KV TRI-STATE 8DIP |
8,202 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 1kV/µs | DC | Tri-State | 3750Vrms | 25 mA | 2.5MBd | 300ns, 300ns | 55ns, 15ns | 1.5V | - | 10mA | - | 4.5V ~ 20V | -40°C ~ 85°C | Through Hole | 8-DIP |
|
|
HCPL-061N-500EOPTOISO 3.75KV OPN COLLECTOR 8SO |
8,294 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 1kV/µs | DC | Open Collector, Schottky Clamped | 3750Vrms | 50 mA | 10MBd | 100ns, 100ns | 42ns, 12ns | 1.3V | - | 10mA | - | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
HCNW4506-300EOPTOISO 5KV OPEN COLL 8DIP GW |
3,718 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 15kV/µs | DC | Open Collector, Schottky Clamped | 5000Vrms | 15 mA | - | 550ns, 400ns | - | 1.6V | - | 25mA | - | 4.5V ~ 30V | -40°C ~ 100°C | Surface Mount | 8-DIP Gull Wing |
|
|
HCPL-2200-300EOPTOISO 3.75KV TRI-STATE 8DIP GW |
4,694 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 1kV/µs | DC | Tri-State | 3750Vrms | 25 mA | 2.5MBd | 300ns, 300ns | 55ns, 15ns | 1.5V | - | 10mA | - | 4.5V ~ 20V | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
ACPL-W61L-000EOPTOISO 5KV PUSH PULL 6SO |
3,919 |
|
Datasheet |
- | 6-SOIC (0.180", 4.58mm Width) | Tube | Active | 1 | 1/0 | 20kV/µs | DC | Push-Pull, Totem Pole | 5000Vrms | 10 mA | 10MBd | 80ns, 80ns | 12ns, 12ns | 1.3V | - | 8mA | - | 2.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount | 6-SO Stretched |
|
|
ACPL-W70L-500EOPTOISO 5KV PUSH PULL 6SSO |
1,726 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 10kV/µs | DC | Push-Pull, Totem Pole | 5000Vrms | 10 mA | 15MBd | 55ns, 55ns | 3.5ns, 3.5ns | 1.5V | - | 10mA | - | 3V ~ 3.6V, 4.5V ~ 5.5V | -40°C ~ 105°C | Surface Mount | 6-SSO |
.jpg)
|

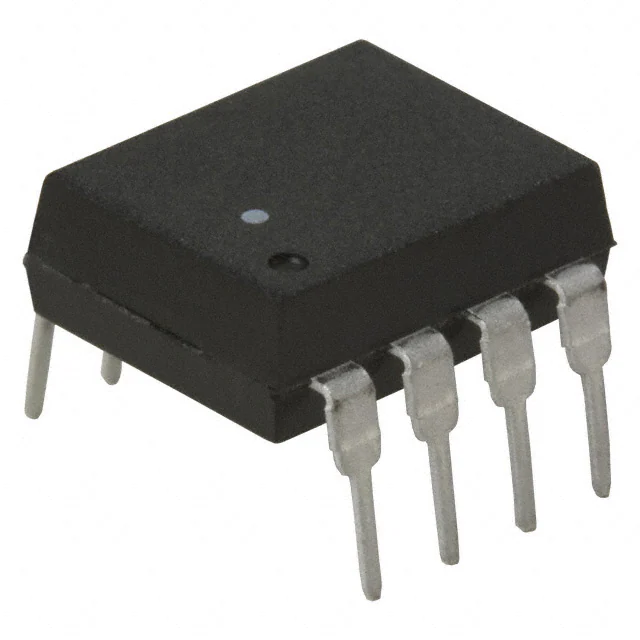

HCNW2611-000EOPTOISO 5KV OPEN COLLECTOR 8DIP |
2,430 |
|
Datasheet |
- | 8-DIP (0.400", 10.16mm) | Tube | Active | 1 | 1/0 | 15kV/µs | DC | Open Collector, Schottky Clamped | 5000Vrms | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.64V | - | 20mA | - | 4.5V ~ 5.5V | -40°C ~ 85°C | Through Hole | 8-DIP |
|
|
ACPL-W484-000EOPTOISO 5KV PUSH PULL 6SO |
1,051 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Tube | Active | 1 | 1/0 | 30kV/µs | DC | Push-Pull, Totem Pole | 5000Vrms | 50 mA | - | 120ns, 150ns | 6ns, 6ns | 1.5V | - | 10mA | - | 4.5V ~ 30V | -40°C ~ 105°C | Surface Mount | 6-SO |
|
|
HCPL-2211-000EOPTOISO 3.75KV PUSH PULL 8DIP |
2,250 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 5kV/µs, 10kV/µs | DC | Push-Pull, Totem Pole | 3750Vrms | 25 mA | 5MBd | 300ns, 300ns | 30ns, 7ns | 1.5V | - | 10mA | - | 4.5V ~ 20V | -40°C ~ 85°C | Through Hole | 8-DIP |
