| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Number of Channels | Inputs - Side 1/Side 2 | Common Mode Transient Immunity (Min) | Input Type | Output Type | Voltage - Isolation | Current - Output / Channel | Data Rate | Propagation Delay tpLH / tpHL (Max) | Rise / Fall Time (Typ) | Voltage - Forward (Vf) (Typ) | Qualification | Current - DC Forward (If) (Max) | Grade | Voltage - Supply | Operating Temperature | Mounting Style | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACSL-6210-00REOPTOISO 2.5KV 2CH OPEN COLL 8SO |
2,607 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 2 | 1/1 | 10kV/µs | DC | Open Collector, Schottky Clamped | 2500Vrms | 50 mA | 15MBd | 100ns, 100ns | 30ns, 12ns | 1.52V | - | 15mA | - | 3V ~ 5.5V | -40°C ~ 100°C | Surface Mount | 8-SO |
|
|
ACSL-6210-50REOPTOISO 2.5KV 2CH OPEN COLL 8SO |
4,754 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 1/1 | 10kV/µs | DC | Open Collector, Schottky Clamped | 2500Vrms | 50 mA | 15MBd | 100ns, 100ns | 30ns, 12ns | 1.52V | - | 15mA | - | 3V ~ 5.5V | -40°C ~ 100°C | Surface Mount | 8-SO |
|
|
ACPL-064L-500EOPTOISO 3.75KV 2CH PUSH PULL 8SO |
1,603 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 2/0 | 20kV/µs | DC | Push-Pull, Totem Pole | 3750Vrms | 10 mA | 10MBd | 80ns, 80ns | 12ns, 12ns | 1.3V | - | 8mA | - | 2.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount | 8-SO Tall |
|
|
ACPL-064L-560EOPTOISO 3.75KV 2CH PUSH PULL 8SO |
11,782 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 2/0 | 20kV/µs | DC | Push-Pull, Totem Pole | 3750Vrms | 10 mA | 10MBd | 80ns, 80ns | 12ns, 12ns | 1.3V | - | 8mA | - | 2.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount | 8-SO Tall |
|
|
HCPL-0630-000EOPTOISO 3.75KV 2CH OPEN COLL 8SO |
8,124 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 2 | 2/0 | 5kV/µs | DC | Open Collector, Schottky Clamped | 3750Vrms | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | - | 15mA | - | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
|
HCPL-0630-500EOPTOISO 3.75KV 2CH OPEN COLL 8SO |
14,538 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 2/0 | 5kV/µs | DC | Open Collector, Schottky Clamped | 3750Vrms | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | - | 15mA | - | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
ACPL-M61T-500EOPTOISO 4KV OPN COLLECTOR 5SO |
11,483 |
|
Datasheet |
R²Coupler™ | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 15kV/µs | DC | Open Collector, Schottky Clamped | 4000Vrms | 50 mA | 10MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | AEC-Q100 | 20mA | Automotive | 4.5V ~ 5.5V | -40°C ~ 125°C | Surface Mount | 5-SO |
|
|
ACPL-074L-000EOPTOISO 3.75KV 2CH PUSH PULL 8SO |
3,839 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 2 | 2/0 | 10kV/µs | DC | Push-Pull, Totem Pole | 3750Vrms | 10 mA | 15MBd | 50ns, 50ns | 20ns, 25ns | 1.5V | - | 20mA | - | 3V ~ 3.6V, 4.5V ~ 5.5V | -40°C ~ 105°C | Surface Mount | 8-SO Tall |
|
|
HCPL-0631-000EOPTOISO 3.75KV 2CH OPEN COLL 8SO |
2,287 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 2 | 2/0 | 10kV/µs | DC | Open Collector, Schottky Clamped | 3750Vrms | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | - | 15mA | - | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
|
HCPL-0631-500EOPTOISO 3.75KV 2CH OPEN COLL 8SO |
5,011 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 2/0 | 10kV/µs | DC | Open Collector, Schottky Clamped | 3750Vrms | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | - | 15mA | - | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
HCPL0611R2OPTOISO 3.75KV OPN COLLECTOR 8SO |
882 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 15kV/µs | DC | Open Collector | 3750Vrms | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.75V (Max) | - | 50mA | - | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount | 8-SOIC |
|
|
HCPL-0710-000EOPTOISO 3.75KV PUSH PULL 8SO |
2,331 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 1 | 1/0 | 10kV/µs | Logic | Push-Pull, Totem Pole | 3750Vrms | 10 mA | 12.5MBd | 40ns, 40ns | 13ns, 5ns | - | - | - | - | 4.5V ~ 5.5V | -40°C ~ 100°C | Surface Mount | 8-SO Tall |
|
|
HCPL-0710-500EOPTOISO 3.75KV PUSH PULL 8SO |
9,691 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 10kV/µs | Logic | Push-Pull, Totem Pole | 3750Vrms | 10 mA | 12.5MBd | 40ns, 40ns | 13ns, 5ns | - | - | - | - | 4.5V ~ 5.5V | -40°C ~ 100°C | Surface Mount | 8-SO Tall |
|
|
HCPL-063L-000EOPTOISO 3.75KV 2CH OPEN COLL 8SO |
4,621 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 2 | 2/0 | 10kV/µs | DC | Open Collector, Schottky Clamped | 3750Vrms | 50 mA | 15MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | - | 15mA | - | 2.7V ~ 3.6V, 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
|
HCPL-063L-500EOPTOISO 3.75KV 2CH OPEN COLL 8SO |
1,768 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 2/0 | 10kV/µs | DC | Open Collector, Schottky Clamped | 3750Vrms | 50 mA | 15MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | - | 15mA | - | 2.7V ~ 3.6V, 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|

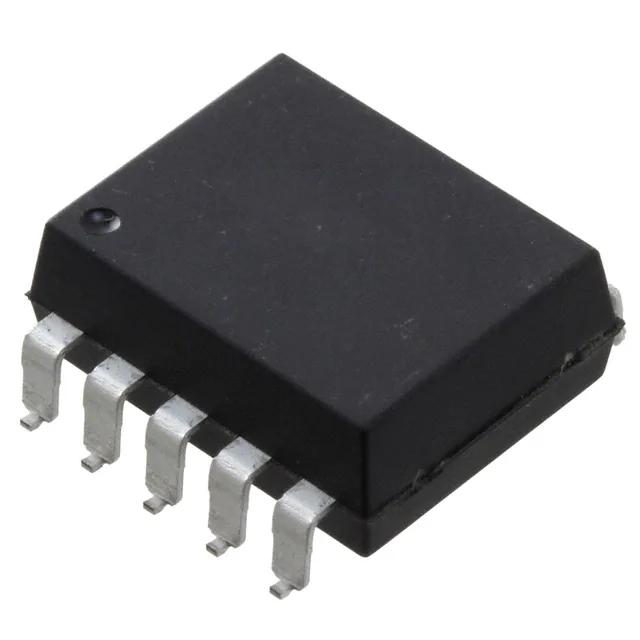

ACNV2601-500EOPTOISO 7.5KV OPEN COLL 10DIP GW |
653 |
|
Datasheet |
- | 10-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 20kV/µs | DC | Open Collector, Schottky Clamped | 7500Vrms | 50 mA | 10MBd | 80ns, 80ns | 25ns, 10ns | 1.64V | - | 20mA | - | 4.5V ~ 5.5V | -40°C ~ 105°C | Surface Mount | 10-DIP Gull Wing |
|
HCPL-2630OPTOISO 3.75KV 2CH OPEN COL 8DIP |
2,250 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 2 | 2/0 | 5kV/µs | DC | Open Collector, Schottky Clamped | 3750Vrms | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | - | 15mA | - | 4.5V ~ 5.5V | -40°C ~ 85°C | Through Hole | 8-DIP |
|
|
HCPL-7710-000EOPTOISO 3.75KV PUSH PULL 8DIP |
1,899 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 10kV/µs | Logic | Push-Pull, Totem Pole | 3750Vrms | 10 mA | 12.5MBd | 40ns, 40ns | 13ns, 5ns | - | - | - | - | 4.5V ~ 5.5V | -40°C ~ 100°C | Through Hole | 8-DIP |
|
HCPL-7710-300EOPTOISO 3.75KV PUSH PULL 8DIP GW |
3,065 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 10kV/µs | Logic | Push-Pull, Totem Pole | 3750Vrms | 10 mA | 12.5MBd | 40ns, 40ns | 13ns, 5ns | - | - | - | - | 4.5V ~ 5.5V | -40°C ~ 100°C | Surface Mount | 8-DIP Gull Wing |
|
ACPL-K64L-560EOPTOISO 5KV 2CH PUSH PULL 8SO |
11,672 |
|
Datasheet |
- | 8-SOIC (0.268", 6.81mm Width) | Tape & Reel (TR) | Active | 2 | 2/0 | 20kV/µs | DC | Push-Pull, Totem Pole | 5000Vrms | 10 mA | 10MBd | 80ns, 80ns | 12ns, 12ns | 1.3V | - | 8mA | - | 2.7V ~ 5.5V | -40°C ~ 105°C | Surface Mount | 8-SO Stretched |
