| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Contact Timing | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Switch Function | Actuator Length | Contact Material | Contact Finish | Mounting Style | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TG39Y000050SLIDE SWITCH TG PCB MOUNT |
2,515 |
|
Datasheet |
TG | Bulk | Active | SPDT | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard | 3.00mm | Brass | Gold | Through Hole | PC Pin | - |
|
|
ASE22RGSWITCH SLIDE DPDT 0.4VA 20V |
3,682 |
|
Datasheet |
ASE | Bulk | Active | DPDT | Shorting (MBB) | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard | 2.67mm | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | - |
|
1201M2S3V4BE2SWITCH SLIDE DPDT 0.4VA 20V |
1,866 |
|
Datasheet |
1000 | Bulk | Active | DPDT | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard | 4.72mm | Copper | Gold | Through Hole | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|
|
S202031SS03GESWITCH SLIDE DPDT 0.4VA 20V |
1,283 |
|
Datasheet |
S | Bulk | Active | DPDT | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard | 8.51mm | Copper | Gold | Panel Mount, Snap-In | Solder Lug | - |
|
1825011-2SWITCH SLIDE DPDT 0.4VA 20V |
3,818 |
|
Datasheet |
ASF | Tube | Active | DPDT | Shorting (MBB) | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Screwdriver Slot | Flush | Copper Alloy | Gold | Through Hole | PC Pin | Tape Seal |
|
|
TG36Y010050SWITCH SLIDE SPDT 500MA 48V |
2,241 |
|
Datasheet |
TG | Tray | Active | SPDT | Not Specified | 500mA (AC/DC) | 48 V | 48 V | On-On | Standard | 3.00mm | Brass | Silver | Through Hole | PC Pin | Washable |
|

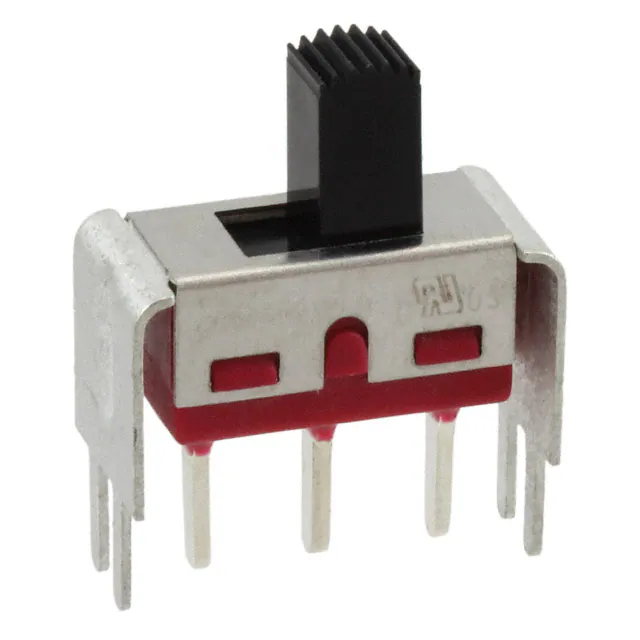

1108M2S4V3QE2SWITCH SLIDE SPDT 6A 120V |
3,987 |
|
Datasheet |
1000 | Bulk | Active | SPDT | Not Specified | 6A (AC/DC) | 120 V | 28 V | On-Mom | Standard | 6.88mm | Copper | Silver | Through Hole | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|
|
1201M2S4V3BE2SWITCH SLIDE DPDT 0.4VA 20V |
2,752 |
|
Datasheet |
1000 | Bulk | Active | DPDT | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard | 6.88mm | Copper | Gold | Through Hole | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|

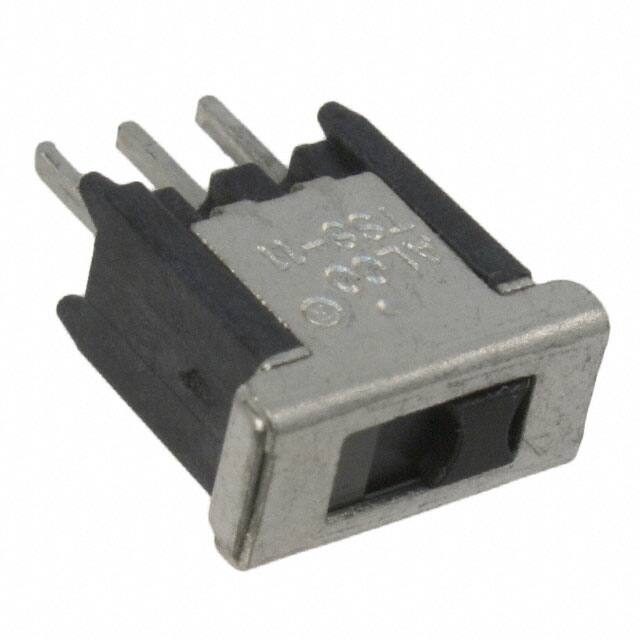

1571982-2SWITCH SLIDE SPDT 0.4VA 20V |
2,038 |
|
Datasheet |
TSS | Bulk | Active | SPDT | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Flush | Flush | Copper | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
S602121MS04GSWITCH SLIDE DPDT 12A 125V |
4,934 |
|
Datasheet |
S | Bulk | Active | DPDT | Not Specified | 12A (AC), 1A (DC) | 125 V | 125 V | On-On (Line Voltage Selector) | Screwdriver Slot | 1.27mm | Copper | Gold | Through Hole | PC Pin | 115V-230V Marking |
|
|
MPS101TACT SWITCH |
1,556 |
|
Datasheet |
MPS | Bulk | Active | SP3T | Not Specified | 300mA (AC/DC) | 125 V | 30 V | On-Off-On | Standard | 4.00mm | - | Silver | Through Hole, Right Angle | PC Pin | - |
|

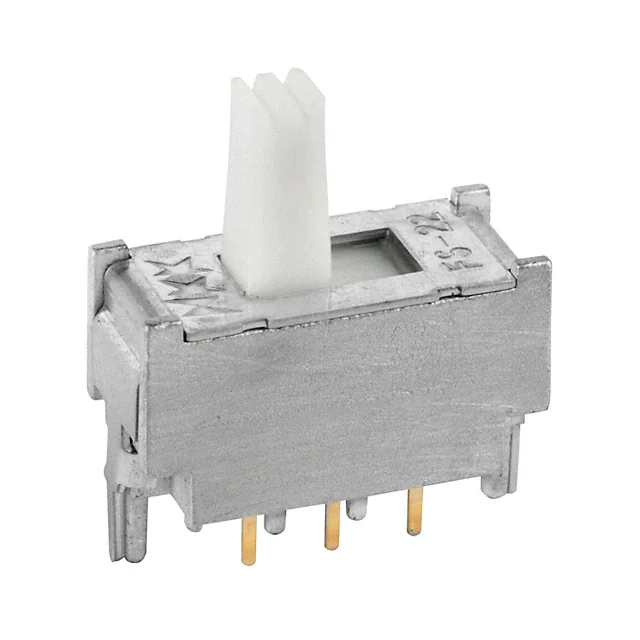

FS22AAPSWITCH SLIDE DPDT 0.4VA 28V |
3,978 |
|
Datasheet |
FS | Bulk | Active | DPDT | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard | 7.40mm | - | - | Through Hole | PC Pin | High Frequency |
|
TS03AQESWITCH SLIDE SPDT 1A 120V |
2,224 |
|
Datasheet |
TS | Bulk | Active | SPDT | Not Specified | 1A (AC/DC) | 120 V | 28 V | On-Off-On | Standard | 3.10mm | Silver (Ag) | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
S602031SS03GESWITCH SLIDE DPDT 12A 125V |
2,185 |
|
Datasheet |
S | Bulk | Active | DPDT | Not Specified | 12A (AC), 1A (DC) | 125 V | 125 V | On-On | Standard | 8.51mm | Copper | Gold | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
|
|
1825031-3SWITCH SLIDE DPDT 0.4VA 20V |
3,253 |
|
Datasheet |
SE | Bulk | Active | DPDT | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard | 3.50mm | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | IP67 - Dust Tight, Waterproof |
|
|
TG36WS81065SLIDE SWITCH TG PCB MOUNT |
4,713 |
|
Datasheet |
TG | Bulk | Active | SPDT | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Flush | Flush | Brass | Gold | Surface Mount, Right Angle | Gull Wing | - |
|
|
AS22CPSWITCH SLIDE DPDT 0.4VA 28V |
4,807 |
|
Datasheet |
AS | Tray | Active | DPDT | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard | 3.80mm | Phosphor Bronze | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
1201M2S6ABE2SWITCH SLIDE DPDT 0.4VA 20V |
4,894 |
|
Datasheet |
1000 | Bulk | Active | DPDT | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard | 11.96mm | Copper | Gold | Through Hole, Right Angle | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|
|
1825011-8SWITCH SLIDE DPDT 300MA 115V |
1,049 |
|
Datasheet |
ASF | Tape & Reel (TR) | Active | DPDT | Shorting (MBB) | 300mA (AC) | 115 V | - | On-On | Screwdriver Slot | Flush | Copper Alloy | Silver | Surface Mount | Gull Wing | Tape Seal |
|
|
1201M1S1ZBE2SWITCH SLIDE DPDT 0.4VA 20V |
1,564 |
|
Datasheet |
1000 | Bulk | Active | DPDT | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard | 1.02mm | Copper | Gold | Panel Mount | Solder Lug | Black Actuator, Epoxy Sealed Terminals |
