Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Contact Timing | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Switch Function | Actuator Length | Contact Material | Contact Finish | Mounting Style | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EG8202SWITCH SLIDE 8PDT 300MA 30V |
4,861 |
|
Datasheet |
EG | Bulk | Obsolete | 8PDT | Not Specified | 300mA (DC) | - | 30 V | On-On | Standard | 6.00mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | - |
|
|
EG8402SWITCH SLIDE 8P4T 300MA 30V |
1,317 |
|
Datasheet |
EG | Bulk | Active | 8P4T | Not Specified | 300mA (DC) | - | 30 V | On-On-On-On | Standard | 10.00mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | - |
|
LP02C21T203DQSWITCH SLIDE SPDT 6A 125V |
3,002 |
|
Datasheet |
LP | Tray | Obsolete | SPDT | Not Specified | 6A (AC/DC) | 125 V | 28 V | On-On | Snap on Cap | 9.55mm | Copper | Silver | Panel Mount, Snap-In | Solder Lug | On-Off Marking on Housing |
|

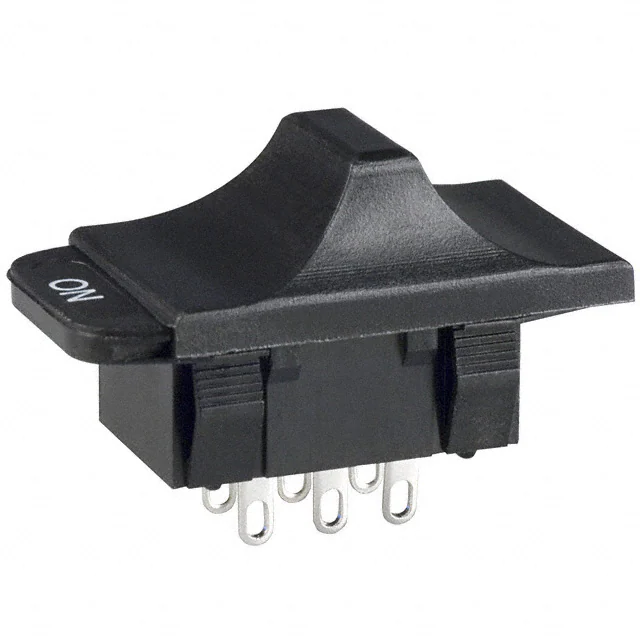

LP22C21T203DQSWITCH SLIDE DPDT 6A 125V |
2,059 |
|
Datasheet |
LP | Tray | Obsolete | DPDT | Not Specified | 6A (AC/DC) | 125 V | 28 V | On-On | Snap on Cap | 9.55mm | Copper | Silver | Panel Mount, Snap-In | Solder Lug | On-Off Marking on Housing |
|

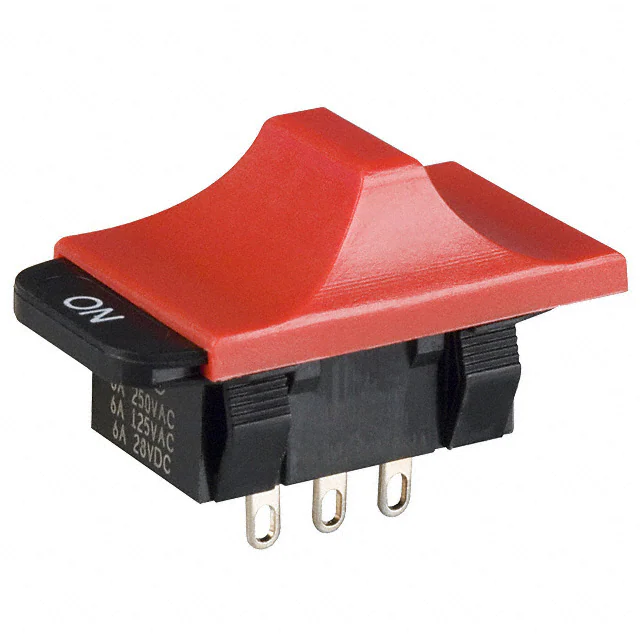

LP02C31T203DQSWITCH SLIDE SPDT 6A 125V |
4,289 |
|
Datasheet |
LP | Tray | Obsolete | SPDT | Not Specified | 6A (AC/DC) | 125 V | 28 V | On-On | Snap on Cap | 9.55mm | Copper | Silver | Panel Mount, Snap-In | Solder Lug | On-Off Marking on Housing |
|

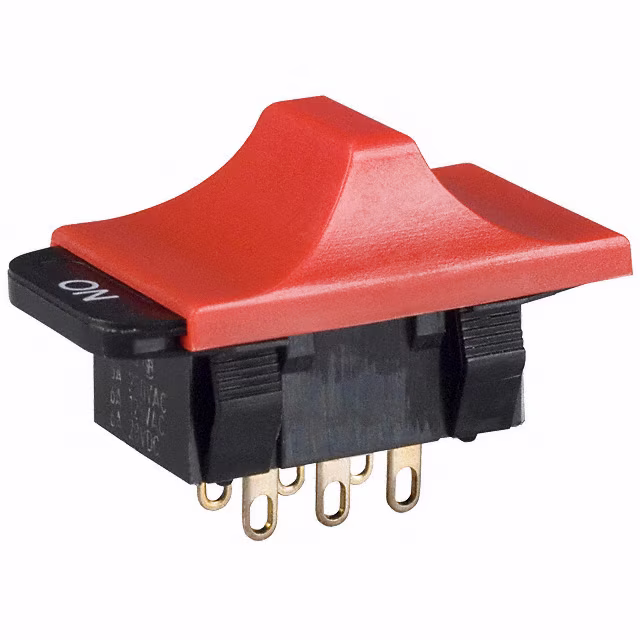

LP22C31T203DQSWITCH SLIDE DPDT 6A 125V |
2,269 |
|
Datasheet |
LP | Tray | Obsolete | DPDT | Not Specified | 6A (AC/DC) | 125 V | 28 V | On-On | Snap on Cap | 9.55mm | Copper | Silver | Panel Mount, Snap-In | Solder Lug | On-Off Marking on Housing |
|
|
EG4302SWITCH SLIDE 4P3T 300MA 30V |
1,477 |
|
Datasheet |
EG | Bulk | Obsolete | 4P3T | Not Specified | 300mA (DC) | - | 30 V | On-On-On | Standard | 6.00mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
|
EG4305SWITCH SLIDE 4P3T 300MA 30V |
3,581 |
|
Datasheet |
EG | Bulk | Obsolete | 4P3T | Not Specified | 300mA (DC) | - | 30 V | On-On-On | Standard | 6.00mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
|
ES02MCKESWITCH SLIDE SPST 0.4VA 20V |
4,473 |
|
Datasheet |
ES | Bag | Obsolete | SPST | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-Off | Standard | 3.07mm | Phosphor Bronze | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals, IP57 |
|
|
ES03MCKESWITCH SLIDE SPDT 0.4VA 20V |
2,622 |
|
Datasheet |
ES | Bag | Obsolete | SPDT | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard | 3.07mm | Phosphor Bronze | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals, IP57 |
|
|
ES22MCKESWITCH SLIDE DPST 0.4VA 20V |
2,694 |
|
Datasheet |
ES | Bag | Obsolete | DPST | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-Off | Standard | 3.07mm | Phosphor Bronze | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals, IP57 |
|
|
ES23MCKESWITCH SLIDE DPDT 0.4VA 20V |
4,602 |
|
Datasheet |
ES | Bag | Obsolete | DPDT | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard | 3.07mm | Phosphor Bronze | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals, IP57 |
|
|
ES02MAKESWITCH SLIDE SPST 0.4VA 20V |
1,928 |
|
Datasheet |
ES | Bag | Obsolete | SPST | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-Off | Standard | 3.07mm | Phosphor Bronze | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals, IP57 |
|
|
ES03MAKESWITCH SLIDE SPDT 0.4VA 20V |
2,835 |
|
Datasheet |
ES | Bag | Obsolete | SPDT | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard | 3.07mm | Phosphor Bronze | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals, IP57 |
|
EPS1SL1SWITCH SLIDE DPDT 4A 125V |
3,393 |
|
Datasheet |
EPS1 | Bulk | Active | DPDT | Not Specified | 4A (AC) | 125 V | - | On-On (Line Voltage Selector) | Screwdriver Slot | Flush | Copper Alloy | Silver | Panel Mount | Solder Lug | 115V-230V Marking |
|
|
ES22MAKESWITCH SLIDE DPST 0.4VA 20V |
3,460 |
|
Datasheet |
ES | Bag | Obsolete | DPST | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-Off | Standard | 3.07mm | Phosphor Bronze | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals, IP57 |
|
|
ES23MAKESWITCH SLIDE DPDT 0.4VA 20V |
2,120 |
|
Datasheet |
ES | Bag | Obsolete | DPDT | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-Off-On | Standard | 3.07mm | Phosphor Bronze | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals, IP57 |
|
|
ES22MAVKESWITCH SLIDE DPST 0.4VA 20V |
3,220 |
|
Datasheet |
ES | Bag | Obsolete | DPST | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-Off | Standard | 3.07mm | Phosphor Bronze | Gold | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals, IP57 |
|

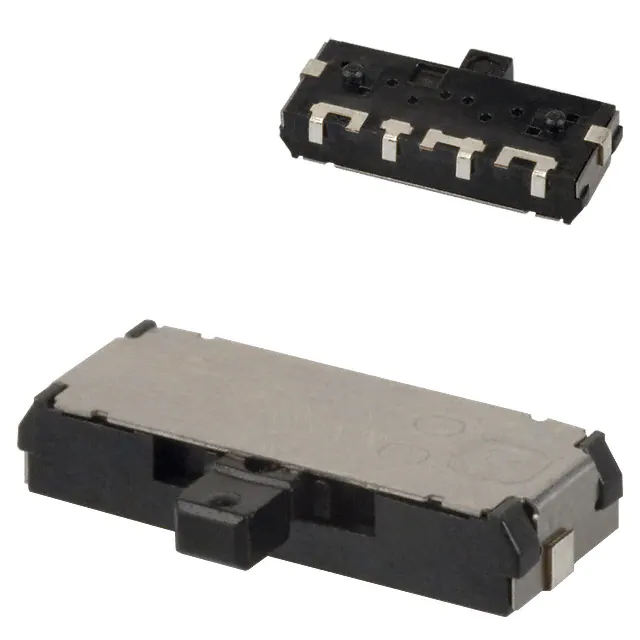

ESE-15700SWITCH SLIDE SPDT 1MA 10V |
4,739 |
|
Datasheet |
ESE | Tape & Reel (TR) | Obsolete | SPDT | Not Specified | 1mA (DC) | - | 10 V | Mom-Off-Mom | Standard | 2.60mm | - | - | Surface Mount, Right Angle | SMD (SMT) Tab | Push On Switch |
|
ESD-165225SWITCH SLIDE SPDT 200MA 5V |
1,039 |
|
Datasheet |
ESD | Tape & Reel (TR) | Obsolete | SPDT | Non-Shorting (BBM) | 200mA (DC) | - | 5 V | On-Mom | Standard | 2.00mm | - | - | Surface Mount, Right Angle | Gull Wing | Board Guide |
