Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Contact Timing | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Switch Function | Actuator Length | Contact Material | Contact Finish | Mounting Style | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESD-165226SWITCH SLIDE SPDT 200MA 5V |
1,978 |
|
Datasheet |
ESD | Tape & Reel (TR) | Obsolete | SPDT | Non-Shorting (BBM) | 200mA (DC) | - | 5 V | On-Mom | Standard | 2.50mm | - | - | Surface Mount, Right Angle | Gull Wing | Board Guide |
|
|
ESD-165235SWITCH SLIDE SPDT 200MA 5V |
1,773 |
|
Datasheet |
ESD | Tape & Reel (TR) | Obsolete | SPDT | Non-Shorting (BBM) | 200mA (DC) | - | 5 V | On-Mom | Standard | 2.00mm | - | - | Surface Mount, Right Angle | Gull Wing | Board Guide |
|
|
ESD-165236SWITCH SLIDE SPDT 200MA 5V |
1,930 |
|
Datasheet |
ESD | Tape & Reel (TR) | Obsolete | SPDT | Non-Shorting (BBM) | 200mA (DC) | - | 5 V | On-Mom | Standard | 2.50mm | - | - | Surface Mount, Right Angle | SMD (SMT) Tab | Board Guide |
|
G-128L-0101SWITCH SLIDE DP3T 3A 125V |
3,333 |
|
Datasheet |
G | Bulk | Active | DP3T | Not Specified | 3A (AC), 500mA (DC) | 125 V | 125 V | On-On-On | Standard | 8.33mm | Copper Alloy | Silver | Panel Mount | PC Pin | - |
|
EG2324SWITCH SLIDE DP3T 300MA 30V |
1,874 |
|
Datasheet |
EG | Bulk | Active | DP3T | Not Specified | 300mA (DC) | - | 30 V | On-On-On | Standard | 7.00mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | - |
|
|
TS01CLESWITCH SLIDE SPDT 3A 120V |
2,371 |
|
Datasheet |
TS | Bulk | Obsolete | SPDT | Not Specified | 3A (AC/DC) | 120 V | 28 V | On-On | Standard | 3.10mm | Silver (Ag) | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
1101M2S4AKE2SWITCH SLIDE SPDT 0.4VA 20V |
1,236 |
|
Datasheet |
1000 | Tray | Obsolete | SPDT | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard | 6.88mm | Copper | Gold | Through Hole, Right Angle | PC Pin | Black Actuator, Epoxy Sealed Terminals |
|
GS01MAKESWITCH SLIDE SPDT 0.4VA 20V |
2,066 |
|
Datasheet |
GS | Bag | Obsolete | SPDT | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard | 1.27mm | Beryllium Copper | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
GS02MAKESWITCH SLIDE SPST 0.4VA 20V |
1,624 |
|
Datasheet |
GS | Bag | Obsolete | SPST | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-Off | Standard | 1.27mm | Beryllium Copper | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|

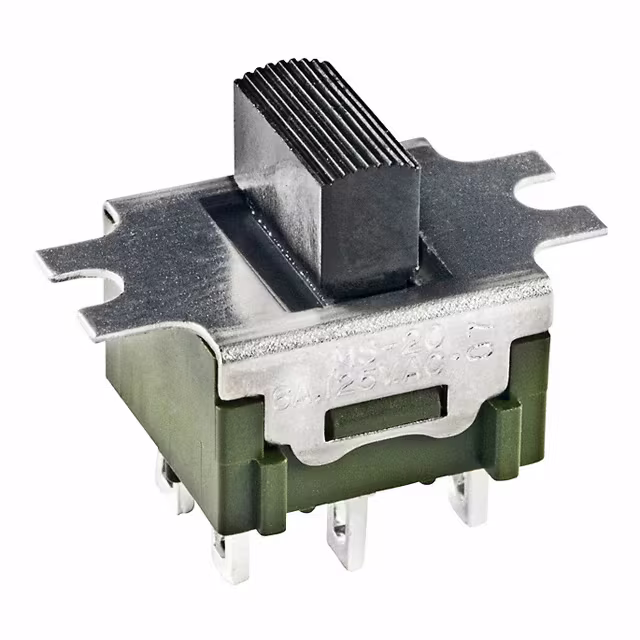

MS20BFW01SWITCH SLIDE SP3T 6A 125V |
4,920 |
|
Datasheet |
MS | Tray | Obsolete | SP3T | Non-Shorting (BBM) | 6A (AC) | 125 V | - | On-On-On | Standard | 5.10mm | Silver Alloy | Silver | Panel Mount | Solder Lug | Jumper needed to achieve triple throw |
|
|
EG1253SWITCH SLIDE SPDT 100MA 12V |
2,731 |
|
Datasheet |
EG | Bulk | Obsolete | SPDT | Not Specified | 100mA (DC) | - | 12 V | On-Mom | Standard | 2.00mm | Copper Alloy | Silver | Surface Mount | Gull Wing | - |
|
|
ES01MABESWITCH SLIDE SPDT 0.4VA 20V |
1,896 |
|
Datasheet |
ES | Tray | Obsolete | SPDT | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard | 3.07mm | Bronze | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals, IP57 |
|
|
EG2601SWITCH SLIDE DP6T 300MA 30V |
4,287 |
|
Datasheet |
EG | Bulk | Obsolete | DP6T | Not Specified | 300mA (DC) | - | 30 V | - | Standard | 9.80mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|
|
EG2601ASWITCH SLIDE DP6T 300MA 30V |
2,746 |
|
Datasheet |
EG | Bulk | Active | DP6T | Not Specified | 300mA (DC) | - | 30 V | - | Standard | 9.80mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|

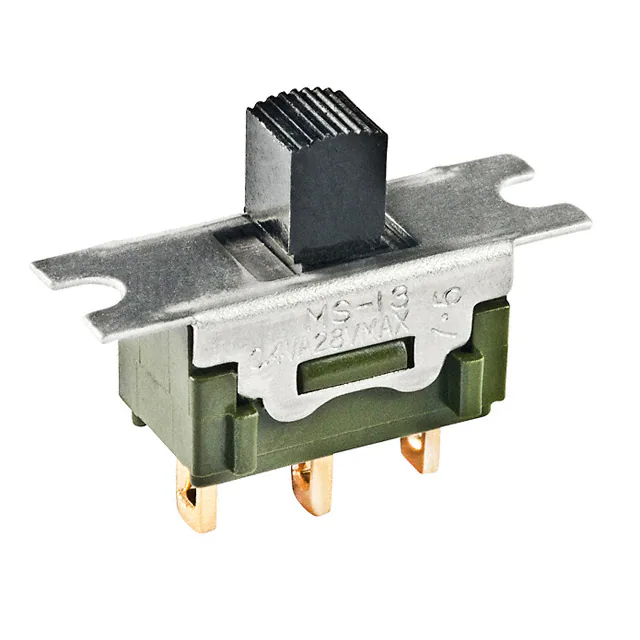

MS13AFG01SWITCH SLIDE SPDT 0.4VA 28V |
3,869 |
|
Datasheet |
MS | Tray | Obsolete | SPDT | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | On-Off-On | Standard | 5.10mm | Copper | Gold | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
|
|
MS22ASW40SWITCH SLIDE DPDT 6A 125V |
2,107 |
|
Datasheet |
MS | Tray | Obsolete | DPDT | Non-Shorting (BBM) | 6A (AC) | 125 V | - | On-On | Standard | 5.10mm | Silver Alloy | Silver | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|
MS12LFW01FSWITCH SLIDE SPDT 6A 125V |
1,928 |
|
Datasheet |
MS | Tray | Obsolete | SPDT | Non-Shorting (BBM) | 6A (AC) | 125 V | - | On-On | Illuminated | 5.10mm | Silver Alloy | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
|

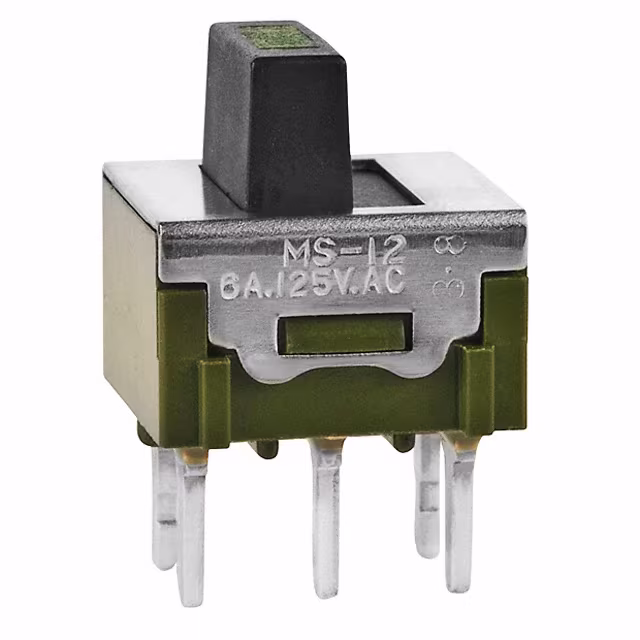

MS12LNW03FSWITCH SLIDE SPDT 6A 125V |
2,321 |
|
Datasheet |
MS | Tray | Obsolete | SPDT | Non-Shorting (BBM) | 6A (AC) | 125 V | - | On-On | Illuminated | 5.10mm | Silver Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

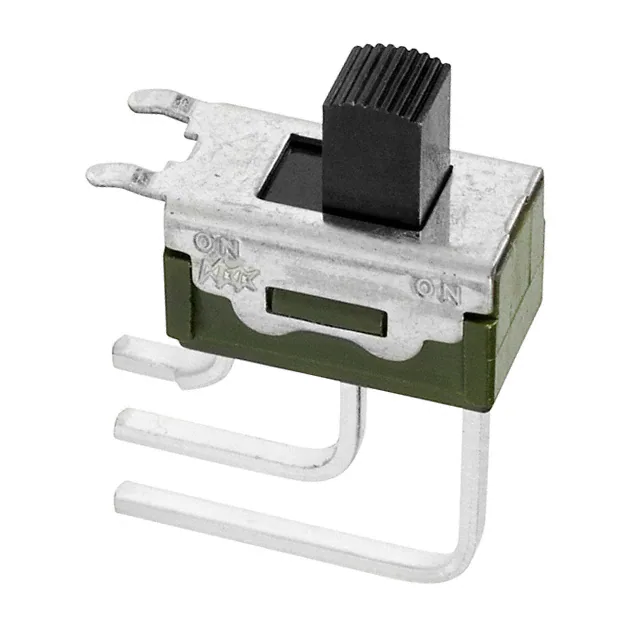

MS12ASW40SWITCH SLIDE SPDT 6A 125V |
4,822 |
|
Datasheet |
MS | Bulk | Obsolete | SPDT | Non-Shorting (BBM) | 6A (AC) | 125 V | - | On-On | Standard | 5.10mm | Silver Alloy | Silver | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|

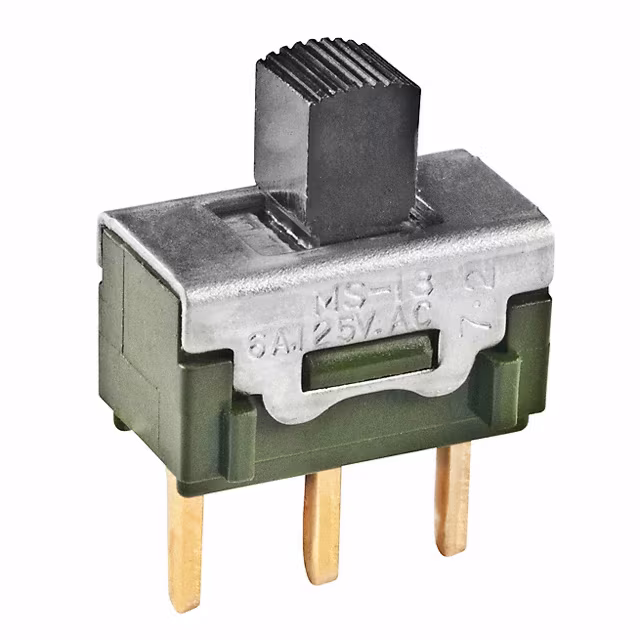

MS13ANA03SWITCH SLIDE SPDT 6A 125V |
4,149 |
|
Datasheet |
MS | Tray | Obsolete | SPDT | Non-Shorting (BBM) | 6A (AC) | 125 V | - | On-Off-On | Standard | 5.10mm | Silver Alloy | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
