Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Contact Timing | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Switch Function | Actuator Length | Contact Material | Contact Finish | Mounting Style | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSSA104D1SWITCH SLIDE SPDT 3A 115V |
4,520 |
|
Datasheet |
MSSA-01 | Bulk | Active | SPDT | Non-Shorting (BBM) | 3A (AC) | 115 V | - | On-On | Flush | Flush | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
MSSA104DRASWITCH SLIDE SPDT 3A 115V |
3,558 |
|
Datasheet |
MSSA-01 | Bulk | Obsolete | SPDT | Non-Shorting (BBM) | 3A (AC) | 115 V | - | On-On | Standard | 2.16mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
MSSA111DGSWITCH SLIDE SPDT 0.4VA 20V |
3,227 |
|
Datasheet |
MSSA-01 | Bulk | Active | SPDT | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard | 2.79mm | Copper Alloy | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
MSSA114DSWITCH SLIDE SPDT 3A 115V |
4,462 |
|
Datasheet |
MSSA-01 | Bulk | Obsolete | SPDT | Non-Shorting (BBM) | 3A (AC) | 115 V | - | On-On | Standard | 2.79mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
MSSA201NGRASWITCH SLIDE DPDT 0.4VA 20V |
3,630 |
|
Datasheet |
MSSA-01 | Bulk | Active | DPDT | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard | 2.16mm | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
MSSA204NSWITCH SLIDE DPDT 3A 115V |
3,765 |
|
Datasheet |
MSSA-01 | Bulk | Active | DPDT | Non-Shorting (BBM) | 3A (AC) | 115 V | - | On-On | Standard | 2.79mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
MSSA204N1SWITCH SLIDE DPDT 3A 115V |
2,935 |
|
Datasheet |
MSSA-01 | Bulk | Active | DPDT | Non-Shorting (BBM) | 3A (AC) | 115 V | - | On-On | Flush | Flush | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
MSSA204P1SWITCH SLIDE DPDT 3A 115V |
2,379 |
|
Datasheet |
MSSA-01 | Bulk | Active | DPDT | Non-Shorting (BBM) | 3A (AC) | 115 V | - | On-On | Flush | Flush | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
ASE42GSWITCH SLIDE 4PDT 0.4VA 20V |
2,091 |
|
Datasheet |
ASE | Bulk | Active | 4PDT | Shorting (MBB) | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard | 2.79mm | Copper Alloy | Gold | Through Hole | PC Pin | - |
|

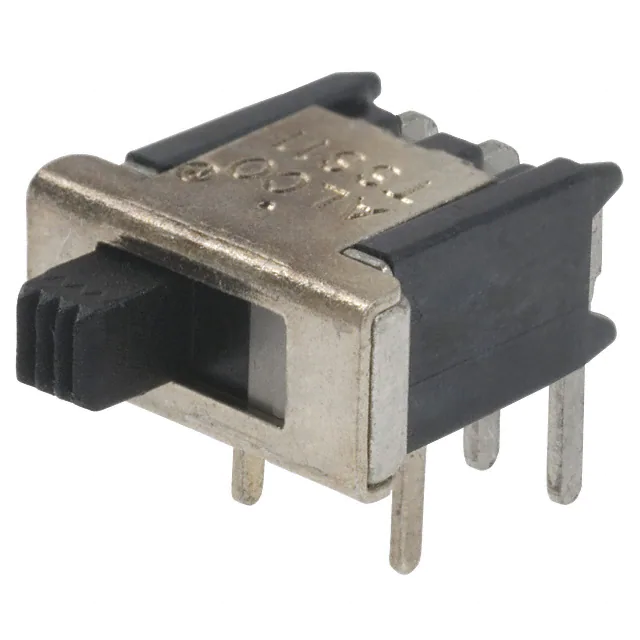

TSS11DGRASWITCH SLIDE SPDT 0.4VA 20V |
2,317 |
|
Datasheet |
TSS | Bulk | Obsolete | SPDT | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard | 2.79mm | Copper | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
MSSA2450GSWITCH SLIDE DP4T 0.4VA 20V |
4,316 |
|
Datasheet |
MSSA | Bulk | Active | DP4T | Shorting (MBB) | 0.4VA (AC/DC) | 20 V | 20 V | On-On-On-On | Standard | 10.41mm | Copper Alloy | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
MSSA3350GSWITCH SLIDE 3P3T 0.4VA 20V |
1,628 |
|
Datasheet |
MSSA | Bulk | Active | 3P3T | Shorting (MBB) | 0.4VA (AC/DC) | 20 V | 20 V | On-On-On | Standard | 10.41mm | Copper Alloy | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
MSSA3350RGSWITCH SLIDE 3P3T 0.4VA 20V |
2,191 |
|
Datasheet |
MSSA | Bulk | Active | 3P3T | Shorting (MBB) | 0.4VA (AC/DC) | 20 V | 20 V | On-On-On | Standard | 9.02mm | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
ASE43SWITCH SLIDE 4P3T 300MA 115V |
1,074 |
|
Datasheet |
ASE | Bulk | Active | 4P3T | Shorting (MBB) | 300mA (AC) | 115 V | - | On-On-On | Standard | 2.79mm | Copper Alloy | Silver | Through Hole | PC Pin | - |
|

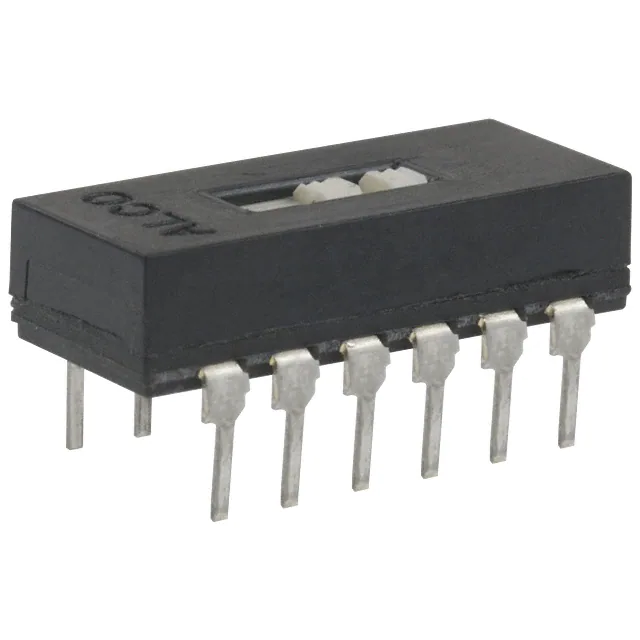

ASF42GSWITCH SLIDE 4PDT 0.4VA 20V |
1,797 |
|
Datasheet |
ASF | Tube | Active | 4PDT | Shorting (MBB) | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Screwdriver Slot | Flush | Copper Alloy | Gold | Through Hole | PC Pin | Tape Seal |
|
ASE62GSWITCH SLIDE 6PDT 0.4VA 20V |
4,762 |
|
Datasheet |
ASE | Bulk | Active | 6PDT | Shorting (MBB) | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard | 2.79mm | Copper Alloy | Gold | Through Hole | PC Pin | - |
|
|
ASF43GSWITCH SLIDE 4P3T 0.4VA 20V |
1,420 |
|
Datasheet |
ASF | Tube | Active | 4P3T | Shorting (MBB) | 0.4VA (AC/DC) | 20 V | 20 V | On-On-On | Screwdriver Slot | Flush | Copper Alloy | Gold | Through Hole | PC Pin | Tape Seal |
|
ASF62GSWITCH SLIDE 6PDT 0.4VA 20V |
3,813 |
|
Datasheet |
ASF | Tube | Active | 6PDT | Shorting (MBB) | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Screwdriver Slot | Flush | Copper Alloy | Gold | Through Hole | PC Pin | Tape Seal |
|
|
1571423-2SWITCH SLIDE SP4T 300MA 125V |
1,805 |
|
Datasheet |
MSS | Bulk | Active | SP4T | Shorting (MBB) | 300mA (AC) | 125 V | - | On-On-On-On | Standard | 3.50mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
1571630-3SWITCH SLIDE DPDT 0.4VA 20V |
4,587 |
|
Datasheet |
MSS | Bulk | Obsolete | DPDT | Shorting (MBB) | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard | 9.50mm | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
