| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Contact Timing | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Switch Function | Actuator Length | Contact Material | Contact Finish | Mounting Style | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1825161-2SWITCH SLIDE SP4T 300MA 125V |
4,483 |
|
Datasheet |
STS | Bulk | Obsolete | SP4T | Shorting (MBB) | 300mA (AC) | 125 V | - | On-On-On-On | Standard | 4.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
1825162-1SWITCH SLIDE SP3T 300MA 125V |
2,083 |
|
Datasheet |
STS | Bulk | Obsolete | SP3T | Shorting (MBB) | 300mA (AC) | 125 V | - | On-On-On | Standard | 4.00mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
1825163-1SWITCH SLIDE DPDT 300MA 125V |
3,969 |
|
Datasheet |
STS | Bulk | Obsolete | DPDT | Shorting (MBB) | 300mA (AC) | 125 V | - | On-On | Standard | 4.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

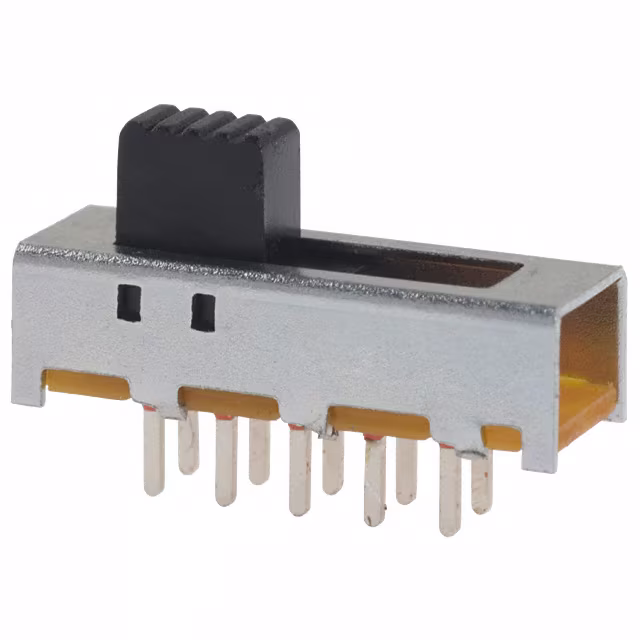

1825163-3SWITCH SLIDE DP4T 300MA 125V |
4,593 |
|
Datasheet |
STS | Bulk | Obsolete | DP4T | Shorting (MBB) | 300mA (AC) | 125 V | - | On-On-On-On | Standard | 4.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
1825163-4SWITCH SLIDE DP5T 300MA 125V |
2,062 |
|
Datasheet |
STS | Bulk | Active | DP5T | Shorting (MBB) | 300mA (AC) | 125 V | - | - | Standard | 4.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
1825166-1SWITCH SLIDE DPDT 300MA 125V |
3,529 |
|
Datasheet |
STSA | Bulk | Active | DPDT | Shorting (MBB) | 300mA (AC) | 125 V | - | On-On | Standard | 5.00mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
1825202-2SWITCH SLIDE 3P3T 0.4VA 20V |
2,462 |
|
Datasheet |
MSSA | Bulk | Active | 3P3T | Shorting (MBB) | 0.4VA (AC/DC) | 20 V | 20 V | On-On-On | Standard | 10.39mm | Copper Alloy | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
1825255-2SWITCH SLIDE SPDT 0.4VA 20V |
4,724 |
|
Datasheet |
MHS | Bulk | Active | SPDT | Shorting (MBB) | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard | 4.50mm | Copper Alloy | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
1825255-6SWITCH SLIDE SPDT 300MA 125V |
3,234 |
|
Datasheet |
MHS | Bulk | Active | SPDT | Shorting (MBB) | 300mA (AC) | 125 V | - | On-Off-On | Baton | 10.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
1825259-1SWITCH SLIDE SP3T 300MA 125V |
4,999 |
|
Datasheet |
MSS | Bulk | Active | SP3T | Shorting (MBB) | 300mA (AC) | 125 V | - | On-On-On | Standard | 3.80mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
1825270-1SWITCH SLIDE 4P3T 300MA 125V |
2,294 |
|
Datasheet |
MSS | Bulk | Active | 4P3T | Shorting (MBB) | 300mA (AC) | 125 V | - | On-On-On | Standard | 14.00mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
1825271-1SWITCH SLIDE 6PDT 300MA 125V |
3,471 |
|
Datasheet |
MSS | Bulk | Active | 6PDT | Shorting (MBB) | 300mA (AC) | 125 V | - | On-On | Standard | 6.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
1825289-7SWITCH SLIDE DPDT 300MA 125V |
1,475 |
|
Datasheet |
MHS | Bulk | Active | DPDT | Shorting (MBB) | 300mA (AC) | 125 V | - | On-Off-On | Baton | 10.00mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
2-1825010-6SWITCH SLIDE 4P3T 0.4VA 20V |
3,961 |
|
Datasheet |
ASE | Bulk | Active | 4P3T | Shorting (MBB) | 0.4VA (AC/DC) | 20 V | 20 V | On-On-On | Standard | 2.79mm | Copper Alloy | Gold | Through Hole | PC Pin | - |
|
MLL1300SSWITCH SLIDE SP3T 300MA 4V |
2,383 |
|
Datasheet |
MLL | Bulk | Obsolete | SP3T | Not Specified | 300mA (DC) | - | 4 V | On-On-On | Standard | 1.50mm | Copper Alloy | Silver | Surface Mount, Right Angle | Gull Wing | Epoxy Sealed Terminals |
|
46311LDRXSWITCH SLIDE SP3T 3A 125V |
3,030 |
|
Datasheet |
46300R | Bulk | Active | SP3T | Non-Shorting (BBM) | 3A (AC), 500mA (DC) | 125 V | 125 V | On-On-On | Standard | 8.74mm | Copper Alloy | Silver | Panel Mount | Solder Lug | - |
|

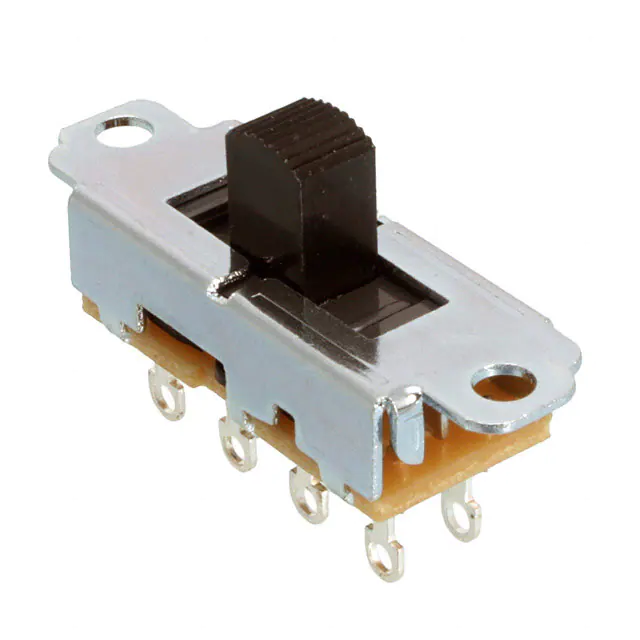

46313TDRXSWITCH SLIDE DP3T 3A 125V |
3,003 |
|
Datasheet |
46300R | Bulk | Active | DP3T | Non-Shorting (BBM) | 3A (AC), 500mA (DC) | 125 V | 125 V | On-On-Mom | Standard | 8.74mm | Copper Alloy | Silver | Panel Mount | Solder Lug | - |
|
56313L2XSWITCH SLIDE DP3T 500MA 125V |
4,923 |
|
Datasheet |
56300 | Bulk | Active | DP3T | Non-Shorting (BBM) | 500mA (AC/DC) | 125 V | 125 V | On-On-On | Standard | 4.75mm | Copper Alloy | Silver | Panel Mount | Solder Lug | - |
|

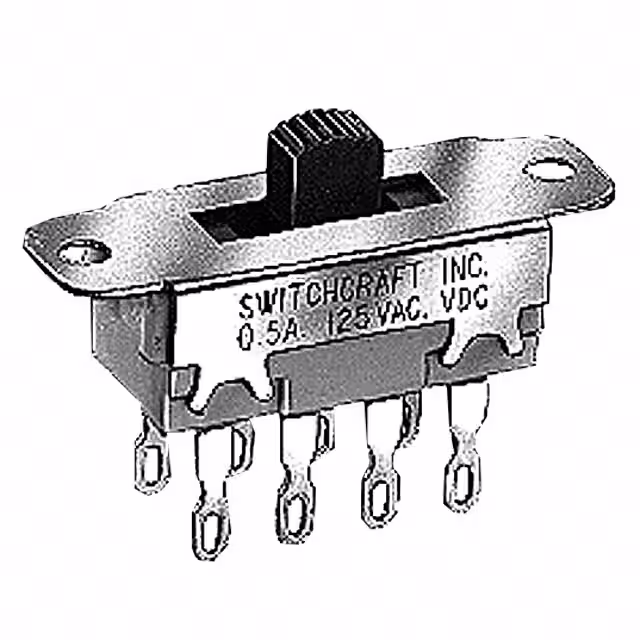

56313L1XSWITCH SLIDE DP3T 500MA 125V |
2,608 |
|
Datasheet |
56300 | Bulk | Active | DP3T | Non-Shorting (BBM) | 500mA (AC/DC) | 125 V | 125 V | On-On-On | Standard | 4.75mm | Copper Alloy | Silver | Panel Mount | Solder Lug | - |
|
|
EPS4PC1SWITCH SLIDE DPDT 10A 125V |
1,273 |
|
Datasheet |
EPS4 | Bulk | Active | DPDT | Not Specified | 10A (AC) | 125 V | - | On-On (Line Voltage Selector) | Screwdriver Slot | Flush | Copper Alloy | - | Through Hole | PC Pin | 115V-230V Marking |
