| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Switch Function | Actuator Type | Mounting Style | Actuator Height off PCB, Vertical | Contact Rating @ Voltage | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Ingress Protection | Illumination Type, Color | Operating Force | Illumination Voltage (Nominal) | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

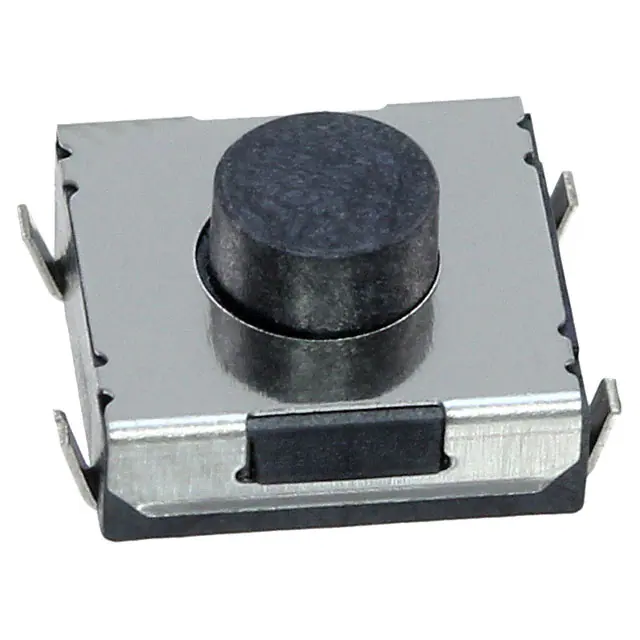

430773051825SWITCH TACTILE SPST-NO 0.05A 12V |
658 |
|
Datasheet |
WS-TASV | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 5.10mm | 0.05A @ 12VDC | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | - | - | 250gf | - | - | -40°C ~ 85°C |
|
430783051816SWITCH TACTILE SPST-NO 0.05A 12V |
563 |
|
Datasheet |
WS-TASV | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 5.10mm | 0.05A @ 12VDC | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
|
430783034816SWITCH TACTILE SPST-NO 0.05A 12V |
299 |
|
Datasheet |
WS-TASV | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 3.40mm | 0.05A @ 12VDC | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
TL3303F160QGSWITCH TACTILE SPST-NO 0.05A 12V |
928 |
|
Datasheet |
TL3303 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 3.10mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 6.20mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
7914G-1-000SWITCH TACTILE SPST-NO 0.1A 16V |
2,482 |
|
Datasheet |
7914 | Tube | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 4.19mm | 0.1A @ 16VAC/DC | - | Top Actuated | Gull Wing | 5.00mm x 5.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 300gf | - | - | -55°C ~ 125°C |
|
LL3301DF065QJSWITCH TACTILE SPST-NO 0.05A 12V |
848 |
|
Datasheet |
LL3301 | Bulk | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 13.00mm | 0.05A @ 12VDC | - | Top Actuated | J Lead | 6.00mm x 6.00mm | Non-Illuminated | - | - | 65gf | - | - | -30°C ~ 85°C |
|
ILS TA250 10SWITCH TACTILE SPST-NO 0.1A 30V |
635 |
|
Datasheet |
ILS | Bulk | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | 7.20mm | 0.1A @ 30VDC | - | Top Actuated | PC Pin | 6.70mm x 6.10mm | Illuminated | - | LED, Red | 250gf | 2.6 VDC | - | -40°C ~ 85°C |
|
ILS TA180 30SWITCH TACTILE SPST-NO 0.1A 30V |
260 |
|
Datasheet |
ILS | Bulk | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | 7.20mm | 0.1A @ 30VDC | - | Top Actuated | PC Pin | 6.70mm x 6.10mm | Illuminated | - | LED, Green/Yellow | 180gf | 2.3 VDC | - | -40°C ~ 85°C |
|
TL9100AF350QSWITCH TACTILE SPST-NO 0.05A 12V |
453 |
|
Datasheet |
TL9100 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Round Button | Surface Mount | 5.00mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 350gf | - | - | -40°C ~ 85°C |
|
STJVF200QSWITCH TACTILE SPST-NO 0.05A 48V |
1,720 |
|
Datasheet |
STJV | Tube | Active | SPST-NO | Off-Mom | Spherical | Through Hole, Right Angle | - | 0.05A @ 48VDC | 5.30mm | Side Actuated | PC Pin | 8.00mm x 6.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 200gf | - | - | -40°C ~ 85°C |
|
KSS233G LFGSWITCH TACTILE SPST-NO 0.01A 50V |
1,844 |
|
Datasheet |
KSS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Rectangular Button | Surface Mount, Right Angle | - | 0.01A @ 50VDC | - | Side Actuated | Gull Wing | 7.60mm x 3.70mm | Non-Illuminated | IP40 | - | 250gf | - | Tactile Feedback | -40°C ~ 125°C |
|
|
KSR213G LFGSWITCH TACTILE SPST-NO 0.01A 32V |
3,281 |
|
Datasheet |
KSR | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 2.50mm | 0.01A @ 32VDC | - | Top Actuated | Gull Wing | 6.00mm x 3.80mm | Non-Illuminated | IP50 - Dust Protected | - | 180gf | - | - | -40°C ~ 125°C |
|
95CW06E3GWTSWITCH TACTILE SPST-NO 0.05A 12V |
4,331 |
|
Datasheet |
95C | Tube | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 5.20mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 6.30mm x 6.20mm | Non-Illuminated | - | - | 260gf | - | Washable | -25°C ~ 70°C |
|
HP0315AFKP4SWITCH TACTILE SPST-NO 0.4VA 28V |
2,645 |
|
Datasheet |
HP03 | Box | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 4.40mm | 0.4VA @ 28VAC/DC | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | Sealed - Flux Protection | -20°C ~ 70°C |
|
FSMIJM65BG04SWITCH TACTILE SPST-NO 0.05A 12V |
2,153 |
|
Datasheet |
FSMIJ | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Plunger for Cap | Surface Mount | - | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Illuminated | - | LED, Green/Yellow | 520gf | - | Tactile/Audible Feedback | -25°C ~ 70°C |
|
ME0115.0F3502SWITCH TACTILE SPST-NO 0.05A 24V |
3,885 |
|
Datasheet |
ME | Tube | Active | SPST-NO | Off-Mom | Standard | Through Hole | 15.00mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 350gf | - | - | -40°C ~ 85°C |
|
ADTS63NVSWITCH TACTILE SPST-NO 0.05A 12V |
2,856 |
|
Datasheet |
ADTS | Bulk | Active | SPST-NO | Off-Mom | Standard | Through Hole | 7.00mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | Tactile Feedback | -25°C ~ 70°C |
|
ME0112.0F3502SWITCH TACTILE SPST-NO 0.05A 24V |
1,192 |
|
Datasheet |
ME | Tube | Active | SPST-NO | Off-Mom | Standard | Through Hole | 12.00mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 350gf | - | - | -40°C ~ 85°C |
|

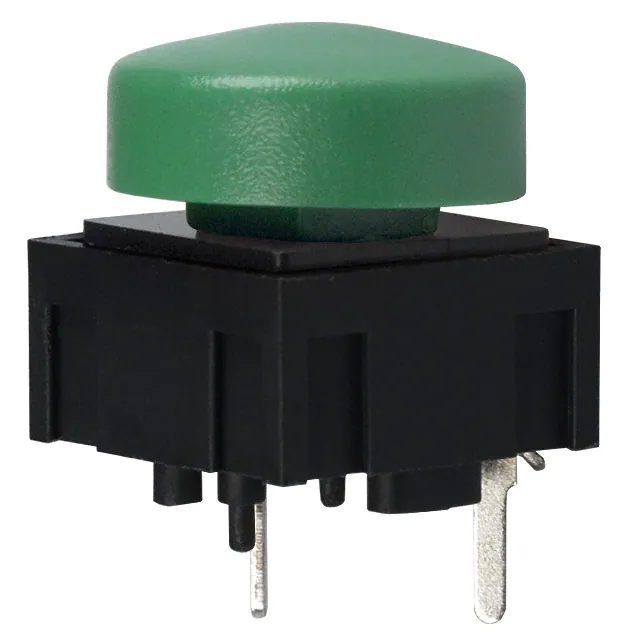

320.02E11.08GRNSWITCH TACT SPST-NO 0.025A 50V |
3,951 |
|
Datasheet |
320 | Bulk | Active | SPST-NO | Off-Mom | Round Button | Through Hole | 14.40mm | 0.025A @ 50VDC | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Green Cap | -20°C ~ 70°C |
|
1241.1072SWITCH TACT SPST-NO 0.125A 48V |
2,352 |
|
Datasheet |
MTG Green | Bulk | Active | SPST-NO | Off-Mom | Standard | Through Hole | 7.75mm | 0.125A @ 48VDC | - | Top Actuated | PC Pin | 12.65mm x 12.65mm | Non-Illuminated | IP40 | - | 250gf | - | Tactile Feedback | -25°C ~ 85°C |
