| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Switch Function | Actuator Type | Mounting Style | Actuator Height off PCB, Vertical | Contact Rating @ Voltage | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Ingress Protection | Illumination Type, Color | Operating Force | Illumination Voltage (Nominal) | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JB15KP-1CSWITCH TACTILE SPST-NO 0.05A 24V |
2,746 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 11.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 176gf | - | Process Sealed | -25°C ~ 70°C |
|
|
JB15KP-1BSWITCH TACTILE SPST-NO 0.05A 24V |
2,077 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 11.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 176gf | - | Process Sealed | -25°C ~ 70°C |
|
B3W-9000-G1GSWITCH TACTILE SPST-NO 0.05A 24V |
3,507 |
|
Datasheet |
B3W-9 | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 10.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | - | LED, Green | 160gf | 2.1 VDC | Sealed - Fully | -25°C ~ 70°C |
|
1241.1082.81SWITCH TACT SPST-NO 0.125A 48V |
4,130 |
|
Datasheet |
MTG Green | Bulk | Active | SPST-NO | Off-Mom | Round Button | Through Hole | 19.75mm | 0.125A @ 48VDC | - | Top Actuated | PC Pin | 12.65mm x 12.65mm | Non-Illuminated | IP40 | - | 250gf | - | Tactile Feedback | -25°C ~ 85°C |
|
JB15KP-2CSWITCH TACTILE SPST-NO 0.05A 24V |
1,106 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 11.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 176gf | - | Process Sealed | -25°C ~ 70°C |
|
TL1265GQRGRNSWITCH TACTILE SPST-NO 0.05A 12V |
1,440 |
|
Datasheet |
TL1265 | Bulk | Active | SPST-NO | Off-Mom | Round Button | Through Hole | 8.50mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 7.00mm x 6.80mm | Illuminated | - | LED, Green | 160gf | 2.3 VDC | Green Cap | -20°C ~ 70°C |
|
|
JB15KP-4CCSWITCH TACTILE SPST-NO 0.05A 24V |
3,541 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 11.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 176gf | - | Process Sealed | -25°C ~ 70°C |
|
B3W-9010-R1NSWITCH TACTILE SPST-NO 0.05A 24V |
3,739 |
|
Datasheet |
B3W-9 | Box | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 10.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | - | LED, Red | 160gf | 1.8 VDC | Sealed - Fully | -25°C ~ 70°C |
|
|
JF15SP2DSWITCH TACTILE SPST-NO 0.05A 24V |
100 |
|
Datasheet |
JF | Tray | Active | SPST-NO | Off-Mom | Round Button | Through Hole | 5.08mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 17.70mm x 17.70mm | Non-Illuminated | - | - | 300gf | - | Process Sealed | -25°C ~ 85°C |
|

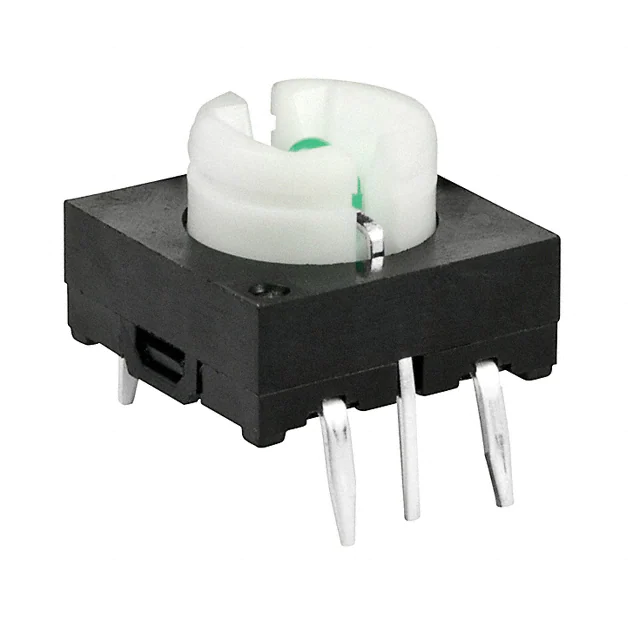

JB15LPFSWITCH TACTILE SPST-NO 0.05A 24V |
2,243 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | - | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Green | 176gf | 2.1 VDC | Process Sealed | -25°C ~ 70°C |
|
B3W-9010-G1GSWITCH TACTILE SPST-NO 0.05A 24V |
2,593 |
|
Datasheet |
B3W-9 | Box | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 10.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Illuminated | - | LED, Green | 160gf | 2.1 VDC | Sealed - Fully | -25°C ~ 70°C |
|
FSMIJ63AW04SWITCH TACTILE SPST-NO 0.05A 12V |
2,434 |
|
Datasheet |
FSMIJ | Tube | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | - | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Illuminated | - | LED, White | 260gf | - | Tactile/Audible Feedback | -25°C ~ 70°C |
|

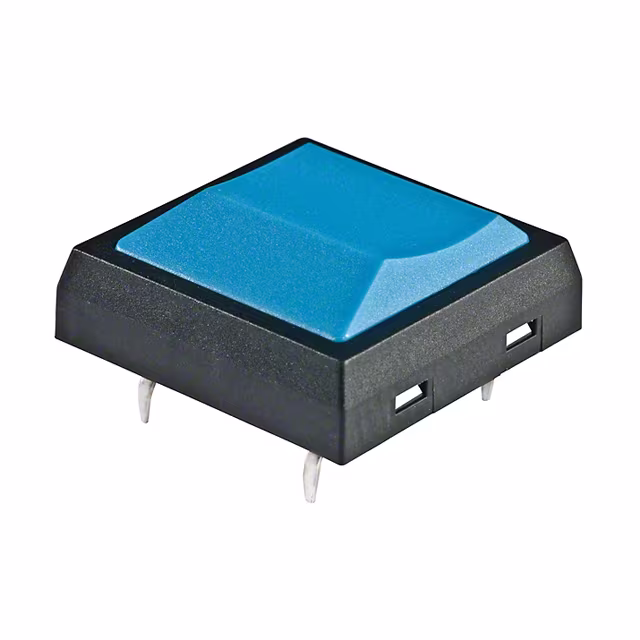

JF15SP3GSWITCH TACTILE SPST-NO 0.05A 24V |
4,867 |
|
Datasheet |
JF | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 6.78mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 17.70mm x 17.70mm | Non-Illuminated | - | - | 196gf | - | Process Sealed | -25°C ~ 85°C |
|

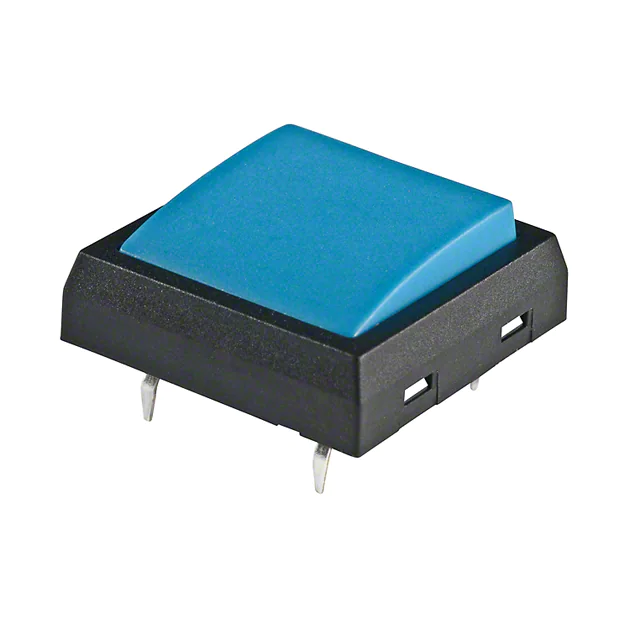

JF15SP4GSWITCH TACTILE SPST-NO 0.05A 24V |
4,910 |
|
Datasheet |
JF | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 6.98mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 17.70mm x 17.70mm | Non-Illuminated | - | - | 200gf | - | Process Sealed | -25°C ~ 85°C |
|
|
JB15HAP-2FSWITCH TACT SPST-NO 0.125A 24V |
2,928 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 14.70mm | 0.125A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 265gf | - | Process Sealed | -25°C ~ 70°C |
|
|
JB15HAP-2GSWITCH TACT SPST-NO 0.125A 24V |
3,148 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 14.70mm | 0.125A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 265gf | - | Process Sealed | -25°C ~ 70°C |
|
|
JB15HAP-2CSWITCH TACT SPST-NO 0.125A 24V |
4,149 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 14.70mm | 0.125A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 265gf | - | Process Sealed | -25°C ~ 70°C |
|
JB15HAP-2ASWITCH TACT SPST-NO 0.125A 24V |
1,409 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 14.70mm | 0.125A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 265gf | - | Process Sealed | -25°C ~ 70°C |
|

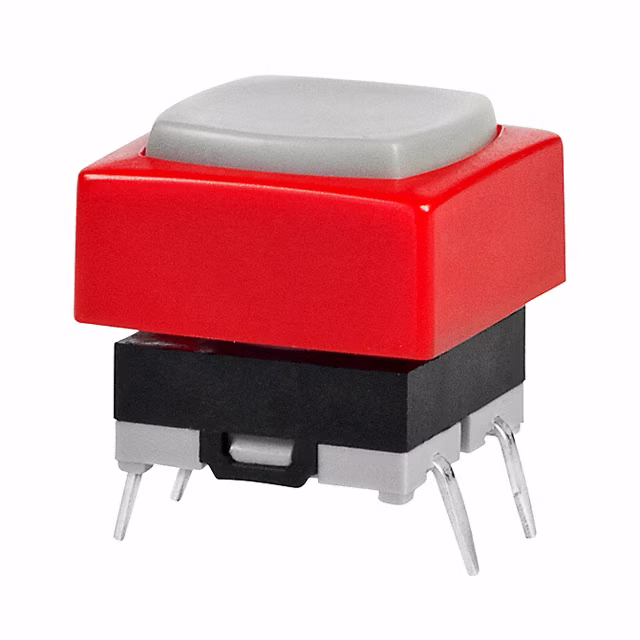

JB15HKP-4HCSWITCH TACT SPST-NO 0.125A 24V |
1,378 |
|
Datasheet |
JB | Box | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 11.20mm | 0.125A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 265gf | - | Process Sealed | -25°C ~ 70°C |
|
|
JB15HAP-4CCSWITCH TACT SPST-NO 0.125A 24V |
4,250 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 14.70mm | 0.125A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 265gf | - | Process Sealed | -25°C ~ 70°C |
