| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Switch Function | Actuator Type | Mounting Style | Actuator Height off PCB, Vertical | Contact Rating @ Voltage | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Ingress Protection | Illumination Type, Color | Operating Force | Illumination Voltage (Nominal) | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JB15LPC-BSWITCH TACTILE SPST-NO 0.05A 24V |
1,882 |
|
Datasheet |
JB | Box | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 11.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Red | 176gf | 1.8 VDC | Process Sealed | -25°C ~ 70°C |
|
JB15LPE-JESWITCH TACTILE SPST-NO 0.05A 24V |
1,071 |
|
Datasheet |
JB | Bulk | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 11.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Yellow | 176gf | 2 VDC | Process Sealed | -25°C ~ 70°C |
|

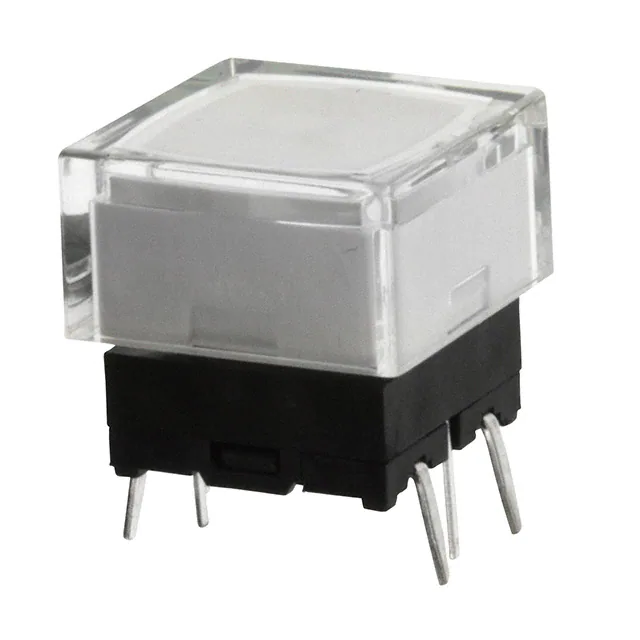

JB15LPC-JBSWITCH TACTILE SPST-NO 0.05A 24V |
3,751 |
|
Datasheet |
JB | Bulk | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 11.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Red | 176gf | 1.8 VDC | Process Sealed | -25°C ~ 70°C |
|
JB15LPF-JFSWITCH TACTILE SPST-NO 0.05A 24V |
2,828 |
|
Datasheet |
JB | Bulk | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 11.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Green | 176gf | 2.1 VDC | Process Sealed | -25°C ~ 70°C |
|
|
JB15LPF-BBSWITCH TACTILE SPST-NO 0.05A 24V |
2,177 |
|
Datasheet |
JB | Box | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 11.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Green | 176gf | 2.1 VDC | Process Sealed | -25°C ~ 70°C |
|
JB15LPF-BFSWITCH TACTILE SPST-NO 0.05A 24V |
2,666 |
|
Datasheet |
JB | Box | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 11.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Green | 176gf | 2.1 VDC | Process Sealed | -25°C ~ 70°C |
|
|
JB15LPC-BCSWITCH TACTILE SPST-NO 0.05A 24V |
4,351 |
|
Datasheet |
JB | Box | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 11.20mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Red | 176gf | 1.8 VDC | Process Sealed | -25°C ~ 70°C |
|

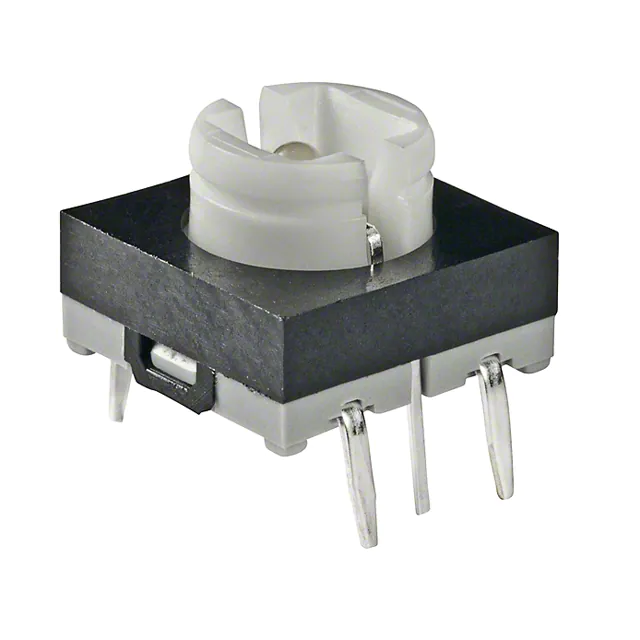

JB15HLPESWITCH TACT SPST-NO 0.125A 24V |
3,195 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | - | 0.125A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Yellow | 265gf | 2 VDC | Process Sealed | -25°C ~ 70°C |
|
|
JF15RP2GESWITCH TACTILE SPST-NO 0.05A 24V |
1,907 |
|
Datasheet |
JF | Bulk | Active | SPST-NO | Off-Mom | Round Button | Through Hole | 5.08mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 22.80mm x 17.70mm | Illuminated | - | LED, Yellow | 300gf | 1.9 VDC | Process Sealed | -25°C ~ 70°C |
|
|
JF15RP1FESWITCH TACTILE SPST-NO 0.05A 24V |
2,812 |
|
Datasheet |
JF | Bulk | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 5.08mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 22.80mm x 17.70mm | Illuminated | - | LED, Yellow | 300gf | 1.9 VDC | Process Sealed | -25°C ~ 70°C |
|
|
5GSH96522SWITCH TACTILE SPST-NO 0.05A 24V |
4,879 |
|
Datasheet |
Multimec® 5 | Tray | Active | SPST-NO | Off-Mom | Plunger for Cap | Surface Mount | 6.40mm | 0.05A @ 24VDC | - | Top Actuated | Gull Wing | 10.10mm x 10.10mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Green | 650gf | 2.2 VDC | Sealed - Flux Protection | -40°C ~ 160°C |
|

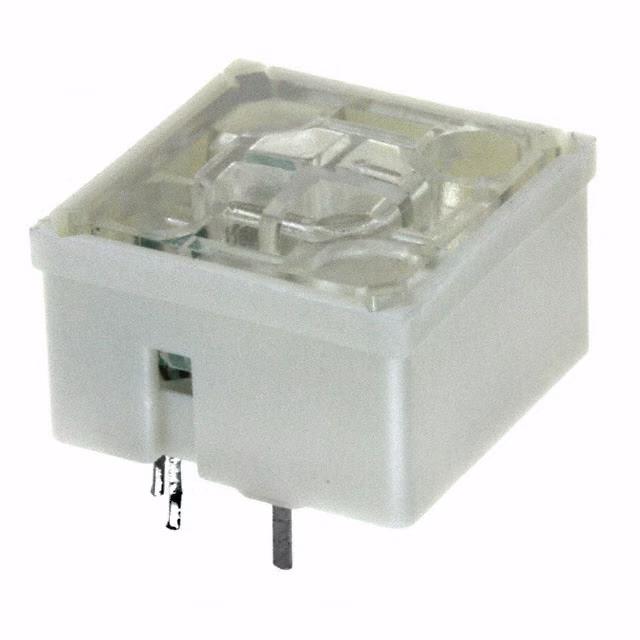

3.14.100.042/0000SWITCH TACTILE SPST-NO 0.25A 35V |
3,726 |
|
Datasheet |
RF15 | Tube | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 9.70mm | 0.25A @ 35VAC/DC | - | Top Actuated | PC Pin | 15.00mm x 15.00mm | Illuminated | - | LED, Green | 296gf | - | - | -25°C ~ 70°C |
|
3.14.100.041/0000SWITCH TACTILE SPST-NO 0.25A 35V |
1,625 |
|
Datasheet |
RF15 | Tube | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 9.70mm | 0.25A @ 35VAC/DC | - | Top Actuated | PC Pin | 15.00mm x 15.00mm | Illuminated | - | LED, Red | 296gf | - | - | -25°C ~ 70°C |
|

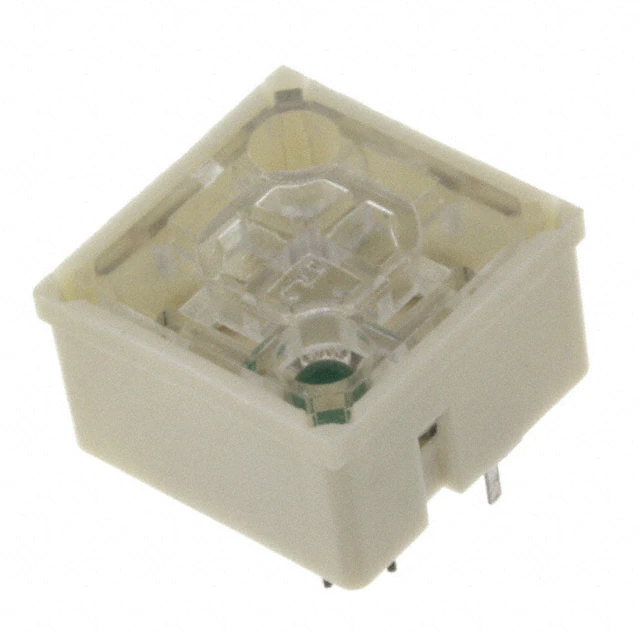

3.14.100.032/0000SWITCH TACTILE SPST-NO 0.1A 35V |
3,669 |
|
Datasheet |
RF15 | Tube | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 9.70mm | 0.1A @ 35VAC/DC | - | Top Actuated | PC Pin | 15.00mm x 15.00mm | Illuminated | - | LED, Green | 296gf | - | - | -25°C ~ 70°C |
|
JB15HBPBSWITCH TACT SPST-NO 0.125A 24V |
2,267 |
|
Datasheet |
JB | Box | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | - | 0.125A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, White | 265gf | - | Process Sealed | -25°C ~ 70°C |
|

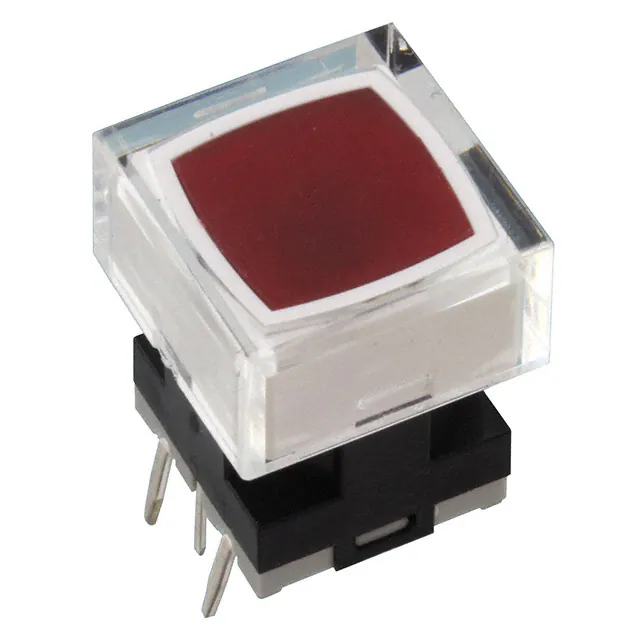

JB15HBPC-JCSWITCH TACT SPST-NO 0.125A 24V |
2,683 |
|
Datasheet |
JB | Bulk | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 14.70mm | 0.125A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Red | 265gf | 1.8 VDC | Process Sealed | -25°C ~ 70°C |
|
JB15HBPE-JESWITCH TACT SPST-NO 0.125A 24V |
4,331 |
|
Datasheet |
JB | Bulk | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 14.70mm | 0.125A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Yellow | 265gf | 2 VDC | Process Sealed | -25°C ~ 70°C |
|
|
JB15HBPC-BBSWITCH TACT SPST-NO 0.125A 24V |
1,104 |
|
Datasheet |
JB | Box | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 14.70mm | 0.125A @ 24VDC | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | IP67 - Dust Tight, Waterproof | LED, Red | 265gf | 1.8 VDC | Process Sealed | -25°C ~ 70°C |
|
3.14.200.023/0000SWITCH TACTILE SPST-NO 0.25A 35V |
2,171 |
|
Datasheet |
RF15 | Tube | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 9.70mm | 0.25A @ 35VAC/DC | - | Top Actuated | PC Pin | 15.00mm x 15.00mm | Illuminated | - | LED, Yellow | 296gf | - | - | -25°C ~ 70°C |
|
3.14.200.021/0000SWITCH TACTILE SPST-NO 0.25A 35V |
4,689 |
|
Datasheet |
RF15 | Tube | Active | SPST-NO | Off-Mom | Square Button | Through Hole | 9.70mm | 0.25A @ 35VAC/DC | - | Top Actuated | PC Pin | 15.00mm x 15.00mm | Illuminated | - | LED, Red | 296gf | - | - | -25°C ~ 70°C |
