| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Switch Function | Actuator Type | Mounting Style | Actuator Height off PCB, Vertical | Contact Rating @ Voltage | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Ingress Protection | Illumination Type, Color | Operating Force | Illumination Voltage (Nominal) | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TL6120CF300QGSWITCH TACTILE SPST-NO 0.05A 12V |
5,235 |
|
Datasheet |
TL6120 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 6.90mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 7.40mm x 7.40mm | Non-Illuminated | - | - | 300gf | - | - | -40°C ~ 85°C |
|
KSA0M332 LFTSWITCH TACTILE SPST-NO 0.01A 32V |
3,241 |
|
Datasheet |
KSA MKII | Bulk | Active | SPST-NO | Off-Mom | Standard | Through Hole | 4.70mm | 0.01A @ 32VDC | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | IP65 - Dust Tight, Water Resistant | - | 130gf | - | - | -40°C ~ 125°C |
|
B3FS-1005SWITCH TACTILE SPST-NO 0.05A 24V |
2,907 |
|
Datasheet |
B3FS | Bulk | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 3.10mm | 0.05A @ 24VDC | - | Top Actuated | Gull Wing | 6.30mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -25°C ~ 70°C |
|
ADTS21NVSWITCH TACTILE SPST-NO 0.05A 12V |
1,000 |
|
Datasheet |
ADTS | Bulk | Active | SPST-NO | Off-Mom | Standard | Through Hole | 4.30mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 160gf | - | Tactile Feedback | -25°C ~ 70°C |
|

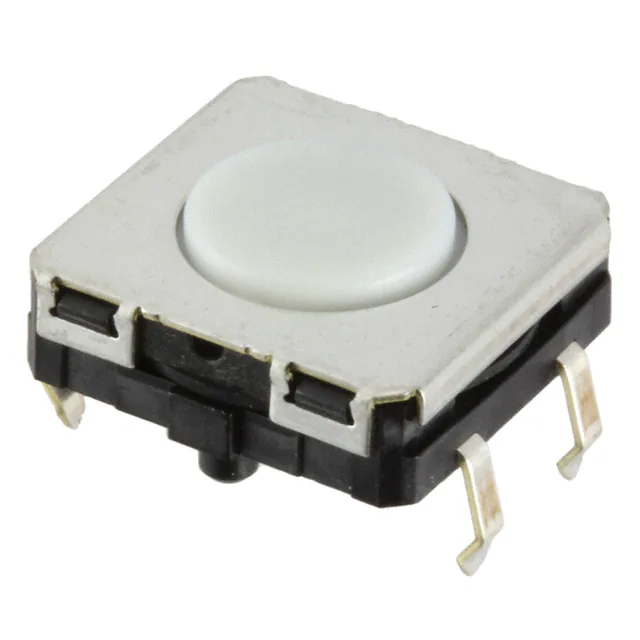

B3W-4000SSWITCH TACTILE SPST-NO 0.05A 24V |
771 |
|
Datasheet |
B3W | Tube | Active | SPST-NO | Off-Mom | Standard | Through Hole | 4.30mm | 0.05A @ 24VDC | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 200gf | - | - | -25°C ~ 70°C |
|
TL6100AF160QPSWITCH TACTILE SPST-NO 0.05A 12V |
9,960 |
|
Datasheet |
TL6100 | Tube | Active | SPST-NO | Off-Mom | Standard | Through Hole | 4.70mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 7.20mm x 7.20mm | Non-Illuminated | - | - | 160gf | - | Process Sealed | -40°C ~ 85°C |
|
TL6100CF130QPSWITCH TACTILE SPST-NO 0.05A 12V |
3,494 |
|
Datasheet |
TL6100 | Tube | Active | SPST-NO | Off-Mom | Standard | Through Hole | 6.90mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 7.20mm x 7.20mm | Non-Illuminated | - | - | 130gf | - | Process Sealed | -40°C ~ 85°C |
|
EVP-AA902QSWITCH TACTILE SPST-NO 0.02A 15V |
7,150 |
|
Datasheet |
EVPAA | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Rectangular Button | Surface Mount | 1.70mm | 0.02A @ 15VDC | - | Top Actuated | J Lead | 3.50mm x 2.90mm | Non-Illuminated | - | - | 500gf | - | Grounding Pin | -40°C ~ 85°C |
|
|
B3FS-1005PSWITCH TACTILE SPST-NO 0.05A 24V |
5,795 |
|
Datasheet |
B3FS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 3.10mm | 0.05A @ 24VDC | - | Top Actuated | Gull Wing | 6.30mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -25°C ~ 70°C |
|
FSM2JELGXLTRSWITCH TACTILE SPST-NO 0.05A 12V |
1,499 |
|
Datasheet |
Extended Life | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 2.50mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 50gf | - | - | -35°C ~ 85°C |
|
KMR441NG ULC LFSSWITCH TACTILE SPST-NO 0.05A 32V |
19,432 |
|
Datasheet |
KMR4 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 2.50mm | 0.05A @ 32VDC | - | Top Actuated | Gull Wing | 4.60mm x 2.80mm | Non-Illuminated | - | - | 400gf | - | - | -40°C ~ 85°C |
|
|
KMR431G ULC LFSSWITCH TACTILE SPST-NO 0.05A 32V |
17,890 |
|
Datasheet |
KMR4 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 2.50mm | 0.05A @ 32VDC | - | Top Actuated | Gull Wing | 4.60mm x 2.80mm | Non-Illuminated | - | - | 300gf | - | Grounding Pin | -40°C ~ 85°C |
|
FSMJMLPTRSWITCH TACTILE SPST-NO 0.05A 32V |
6,494 |
|
Datasheet |
FSMJMLP | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 2.50mm | 0.05A @ 32VDC | - | Top Actuated | J Lead | 6.00mm x 4.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
ILS TC180 60SWITCH TACTILE SPST-NO 0.1A 30V |
977 |
|
Datasheet |
ILS | Bulk | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | 7.00mm | 0.1A @ 30VDC | - | Top Actuated | PC Pin | 7.20mm x 6.80mm | Illuminated | - | LED, Green | 180gf | 3.4 VDC | - | -40°C ~ 85°C |
|
ADTS24RVSWITCH TACTILE SPST-NO 0.05A 12V |
426 |
|
Datasheet |
ADTS | Bulk | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | 7.30mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 260gf | - | Tactile Feedback | -25°C ~ 70°C |
|
KSC461G 70SH LFS PFSWITCH TACTILE SPST-NO 0.05A 32V |
1,832 |
|
Datasheet |
KSC-PF | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 5.20mm | 0.05A @ 32VDC | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 637gf | - | - | -40°C ~ 85°C |
|
|
KSC421J 70SH LFS PFSWITCH TACTILE SPST-NO 0.05A 32V |
663 |
|
Datasheet |
KSC-PF | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 5.20mm | 0.05A @ 32VDC | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 173gf | - | - | -40°C ~ 85°C |
|
|
KSS223G LFGSWITCH TACTILE SPST-NO 0.01A 50V |
22,559 |
|
Datasheet |
KSS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Rectangular Button | Surface Mount, Right Angle | - | 0.01A @ 50VDC | - | Side Actuated | Gull Wing | 7.60mm x 3.70mm | Non-Illuminated | IP40 | - | 200gf | - | Tactile Feedback | -40°C ~ 125°C |
|
MJTP1162ATRSWITCH TACTILE SPST-NO 0.05A 12V |
2,388 |
|
Datasheet |
MJTP | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 3.40mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | Tactile Feedback | -20°C ~ 70°C |
|
|
ILS TA250 40SWITCH TACTILE SPST-NO 0.1A 30V |
1,000 |
|
Datasheet |
ILS | Bulk | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | 7.20mm | 0.1A @ 30VDC | - | Top Actuated | PC Pin | 6.70mm x 6.10mm | Illuminated | - | LED, Blue | 250gf | 3.2 VDC | - | -40°C ~ 85°C |
