| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Switch Function | Actuator Type | Mounting Style | Actuator Height off PCB, Vertical | Contact Rating @ Voltage | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Ingress Protection | Illumination Type, Color | Operating Force | Illumination Voltage (Nominal) | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ILS TA180 40SWITCH TACTILE SPST-NO 0.1A 30V |
621 |
|
Datasheet |
ILS | Bulk | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | 7.20mm | 0.1A @ 30VDC | - | Top Actuated | PC Pin | 6.70mm x 6.10mm | Illuminated | - | LED, Blue | 180gf | 3.2 VDC | - | -40°C ~ 85°C |
|
KSC XA 40 J LFSSWITCH TACT SPST-NO 0.042A 24V |
43,486 |
|
Datasheet |
KSC-XA | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 4.90mm | 0.042A @ 24VDC | - | Top Actuated | J Lead | 6.30mm x 6.20mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 408gf | - | - | -40°C ~ 95°C |
|
|
TL6110BF500QPSWITCH TACTILE SPST-NO 0.05A 12V |
5,296 |
|
Datasheet |
TL6110 | Tube | Active | SPST-NO | Off-Mom | Standard | Through Hole, Right Angle | - | 0.05A @ 12VDC | 4.00mm | Side Actuated | PC Pin | 8.30mm x 5.80mm | Non-Illuminated | - | - | 500gf | - | - | -40°C ~ 85°C |
|
TL6110DF160QPSWITCH TACTILE SPST-NO 0.05A 12V |
4,164 |
|
Datasheet |
TL6110 | Tube | Active | SPST-NO | Off-Mom | Standard | Through Hole, Right Angle | - | 0.05A @ 12VDC | 8.80mm | Side Actuated | PC Pin | 8.30mm x 5.80mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
GS10.00F130QPSWITCH TACTILE SPST-NO 0.05A 50V |
1,058 |
|
Datasheet |
GS | Tube | Active | SPST-NO | Off-Mom | Standard | Through Hole | 10.00mm | 0.05A @ 50VDC | - | Top Actuated | PC Pin | 7.20mm x 7.20mm | Non-Illuminated | - | - | 130gf | - | - | -40°C ~ 85°C |
|
GS10.00F300QPSWITCH TACTILE SPST-NO 0.05A 50V |
419 |
|
Datasheet |
GS | Bulk | Active | SPST-NO | Off-Mom | Standard | Through Hole | 10.00mm | 0.05A @ 50VDC | - | Top Actuated | PC Pin | 7.20mm x 7.20mm | Non-Illuminated | - | - | 300gf | - | - | -40°C ~ 85°C |
|

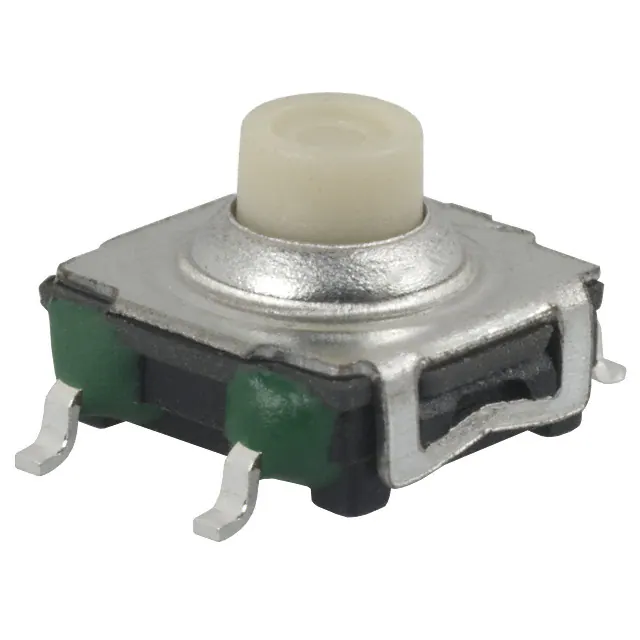

TL6120BF130QGSWITCH TACTILE SPST-NO 0.05A 12V |
6,799 |
|
Datasheet |
TL6120 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 5.20mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 7.40mm x 7.40mm | Non-Illuminated | - | - | 130gf | - | - | -40°C ~ 85°C |
|
PTS850VR18SMTR LFSSWITCH TACTILE SPST-NO 0.05A 12V |
4,694 |
|
Datasheet |
PTS850 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Rectangular Button | Surface Mount, Right Angle | - | 0.05A @ 12VDC | - | Side Actuated | Gull Wing | 5.40mm x 5.00mm | Non-Illuminated | - | - | 350gf | - | - | -40°C ~ 85°C |
|

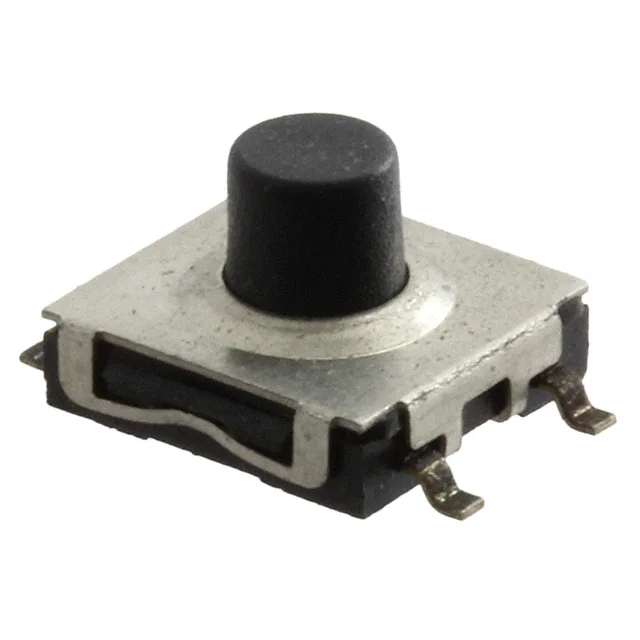

1571294-3SWITCH TACTILE SPST-NO 0.05A 24V |
3,328 |
|
Datasheet |
- | Bag | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 5.00mm | 0.05A @ 24VDC | - | Top Actuated | Gull Wing | 7.60mm x 7.30mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 160gf | - | Sealed - Fully | -35°C ~ 85°C |
|
|
SBH-01AMT77MSWITCH TACTILE SPST-NO 0.1A 12V |
1,690 |
|
Datasheet |
SBH | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Snap Dome | Surface Mount | - | 0.1A @ 12VDC | - | Top Actuated | Circular Contact | - | Non-Illuminated | - | - | 438gf | - | - | -20°C ~ 80°C |
|
ILS TB250 30SWITCH TACTILE SPST-NO 0.1A 30V |
924 |
|
Datasheet |
ILS | Bulk | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | 9.00mm | 0.1A @ 30VDC | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Illuminated | - | LED, Green/Yellow | 250gf | 2.3 VDC | - | -40°C ~ 85°C |
|
FSM2JSSMTRSWITCH TACTILE SPST-NO 0.05A 24V |
759 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 4.30mm | 0.05A @ 24VDC | - | Top Actuated | Gull Wing | 7.60mm x 7.30mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 160gf | - | Sealed - Fully | -35°C ~ 85°C |
|
ILS TB180 10SWITCH TACTILE SPST-NO 0.1A 30V |
269 |
|
Datasheet |
ILS | Bulk | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | 9.00mm | 0.1A @ 30VDC | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Illuminated | - | LED, Red | 180gf | 2.6 VDC | - | -40°C ~ 85°C |
|
|
KMS223G LFGSWITCH TACTILE SPST-NO 0.01A 50V |
8,495 |
|
Datasheet |
KMS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Rectangular Button | Surface Mount, Right Angle | - | 0.01A @ 50VDC | - | Side Actuated | Gull Wing | 4.60mm x 2.80mm | Non-Illuminated | IP40 | - | 200gf | - | - | -40°C ~ 125°C |
|
|
KSS323G LFGSWITCH TACTILE SPST-NO 0.01A 50V |
10,948 |
|
Datasheet |
KSS | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Rectangular Button | Surface Mount, Right Angle | - | 0.01A @ 50VDC | - | Side Actuated | Gull Wing | 7.60mm x 3.70mm | Non-Illuminated | IP40 | - | 200gf | - | Tactile Feedback | -40°C ~ 125°C |
|
|
ATM534VTRSWITCH TACTILE SPST-NO 0.05A 12V |
3,980 |
|
Datasheet |
ATM | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 1.50mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 5.20mm x 5.20mm | Non-Illuminated | - | - | 260gf | - | - | -25°C ~ 70°C |
|
|
ATM533VTRSWITCH TACTILE SPST-NO 0.05A 12V |
3,975 |
|
Datasheet |
ATM | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 1.50mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 5.20mm x 5.20mm | Non-Illuminated | - | - | 160gf | - | - | -25°C ~ 70°C |
|
MJTP1119ASWITCH TACTILE SPST-NO 0.05A 12V |
1,983 |
|
Datasheet |
MJTP | Bulk | Active | SPST-NO | Off-Mom | Standard | Through Hole | 9.00mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 7.20mm x 7.20mm | Non-Illuminated | - | - | 200gf | - | Tactile Feedback | -20°C ~ 70°C |
|
|
MJTP1119SWITCH TACTILE SPST-NO 0.05A 12V |
1,316 |
|
Datasheet |
MJTP | Bulk | Active | SPST-NO | Off-Mom | Standard | Through Hole | 5.00mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 7.20mm x 7.20mm | Non-Illuminated | - | - | 200gf | - | Tactile Feedback | -20°C ~ 70°C |
|
ADTS25NVSWITCH TACTILE SPST-NO 0.05A 12V |
1,301 |
|
Datasheet |
ADTS | Bulk | Active | SPST-NO | Off-Mom | Standard | Through Hole | 8.50mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 160gf | - | Tactile Feedback | -25°C ~ 70°C |
