| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Switch Function | Actuator Type | Mounting Style | Actuator Height off PCB, Vertical | Contact Rating @ Voltage | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Ingress Protection | Illumination Type, Color | Operating Force | Illumination Voltage (Nominal) | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GSR6.34F130QPSWITCH TACTILE SPST-NO 0.05A 50V |
704 |
|
Datasheet |
GS | Bulk | Active | SPST-NO | Off-Mom | Standard | Through Hole, Right Angle | - | 0.05A @ 50VDC | 3.80mm | Side Actuated | PC Pin | 8.00mm x 8.54mm | Non-Illuminated | - | - | 130gf | - | - | -40°C ~ 80°C |
|
ILS TA180 60SWITCH TACTILE SPST-NO 0.1A 30V |
1,064 |
|
Datasheet |
ILS | Bulk | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | 7.20mm | 0.1A @ 30VDC | - | Top Actuated | PC Pin | 6.70mm x 6.10mm | Illuminated | - | LED, Green | 180gf | 3.4 VDC | - | -40°C ~ 85°C |
|
ILS TA250 60SWITCH TACTILE SPST-NO 0.1A 30V |
992 |
|
Datasheet |
ILS | Bulk | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | 7.20mm | 0.1A @ 30VDC | - | Top Actuated | PC Pin | 6.70mm x 6.10mm | Illuminated | - | LED, Green | 250gf | 3.4 VDC | - | -40°C ~ 85°C |
|
|
ILS TA250 50SWITCH TACTILE SPST-NO 0.1A 30V |
967 |
|
Datasheet |
ILS | Bulk | Active | SPST-NO | Off-Mom | Plunger for Cap | Through Hole | 7.20mm | 0.1A @ 30VDC | - | Top Actuated | PC Pin | 6.70mm x 6.10mm | Illuminated | - | LED, White | 250gf | 3.6 VDC | - | -40°C ~ 85°C |
|
MJTP1129ASWITCH TACTILE SPST-NO 0.05A 12V |
2,187 |
|
Datasheet |
MJTP | Bulk | Active | SPST-NO | Off-Mom | Standard | Through Hole, Right Angle | - | 0.05A @ 12VDC | 8.35mm | Side Actuated | PC Pin | 8.00mm x 7.90mm | Non-Illuminated | - | - | 200gf | - | Tactile Feedback | -20°C ~ 70°C |
|
MJTP1129SWITCH TACTILE SPST-NO 0.05A 12V |
1,986 |
|
Datasheet |
MJTP | Bulk | Active | SPST-NO | Off-Mom | Standard | Through Hole, Right Angle | - | 0.05A @ 12VDC | 4.35mm | Side Actuated | PC Pin | 8.00mm x 7.90mm | Non-Illuminated | - | - | 200gf | - | Tactile Feedback | -20°C ~ 70°C |
|
MJTP2205DSWITCH TACT SPSTX2 0.05A 12V |
338 |
|
Datasheet |
MJTP | Bulk | Active | SPST x 2 | Off-Mom | Dual | Through Hole, Right Angle | - | 0.05A @ 12VDC | 11.85mm | Side Actuated | PC Pin | 8.40mm x 10.55mm | Non-Illuminated | - | - | 160gf | - | Tactile Feedback | -20°C ~ 70°C |
|
95CW06D2GWTSWITCH TACTILE SPST-NO 0.05A 12V |
466 |
|
Datasheet |
95C | Tube | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 3.80mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 6.30mm x 6.20mm | Non-Illuminated | - | - | 180gf | - | Washable | -25°C ~ 70°C |
|
TL6110BF130QPSWITCH TACTILE SPST-NO 0.05A 12V |
2,835 |
|
Datasheet |
TL6110 | Tube | Active | SPST-NO | Off-Mom | Standard | Through Hole, Right Angle | - | 0.05A @ 12VDC | 4.00mm | Side Actuated | PC Pin | 8.30mm x 5.80mm | Non-Illuminated | - | - | 130gf | - | - | -40°C ~ 85°C |
|
TL6110AF300QPSWITCH TACTILE SPST-NO 0.05A 12V |
4,593 |
|
Datasheet |
TL6110 | Tube | Active | SPST-NO | Off-Mom | Standard | Through Hole, Right Angle | - | 0.05A @ 12VDC | 3.50mm | Side Actuated | PC Pin | 8.30mm x 5.80mm | Non-Illuminated | - | - | 300gf | - | - | -40°C ~ 85°C |
|
AMPTFP2VTRSWITCH TACTILE SPST-NO 0.05A 12V |
1,464 |
|
Datasheet |
AMPT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 2.00mm | 0.05A @ 12VDC | - | Top Actuated | Gull Wing | 3.90mm x 2.90mm | Non-Illuminated | - | - | 160gf | - | - | -25°C ~ 70°C |
|
TL6100AF300QPSWITCH TACTILE SPST-NO 0.05A 12V |
4,121 |
|
Datasheet |
TL6100 | Tube | Active | SPST-NO | Off-Mom | Standard | Through Hole | 4.70mm | 0.05A @ 12VDC | - | Top Actuated | PC Pin | 7.20mm x 7.20mm | Non-Illuminated | - | - | 300gf | - | Process Sealed | -40°C ~ 85°C |
|

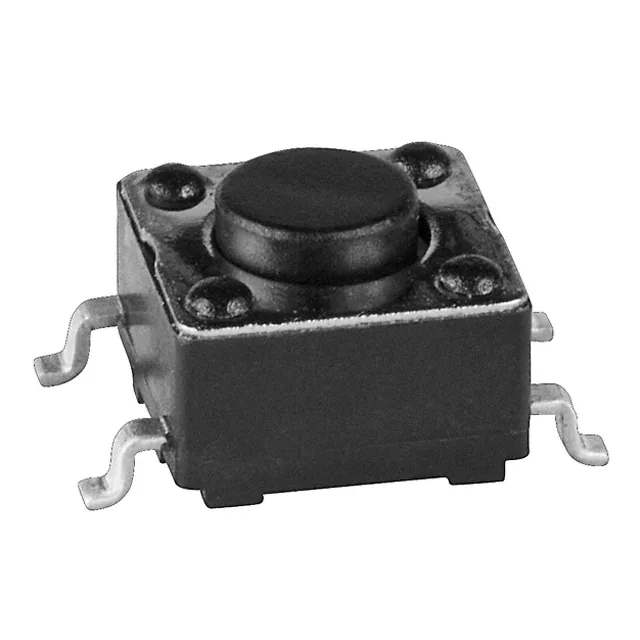

HP0315AFKP2SWITCH TACTILE SPST-NO 3VA 28V |
257 |
|
Datasheet |
HP03 | Box | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 4.40mm | 3VA @ 28VDC | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | Sealed - Flux Protection | -20°C ~ 70°C |
|
HP0315AFKP2-SSWITCH TACTILE SPST-NO 3VA 28V |
157 |
|
Datasheet |
HP03 | Tube | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 4.40mm | 3VA @ 28VDC | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | Sealed - Flux Protection | -20°C ~ 70°C |
|

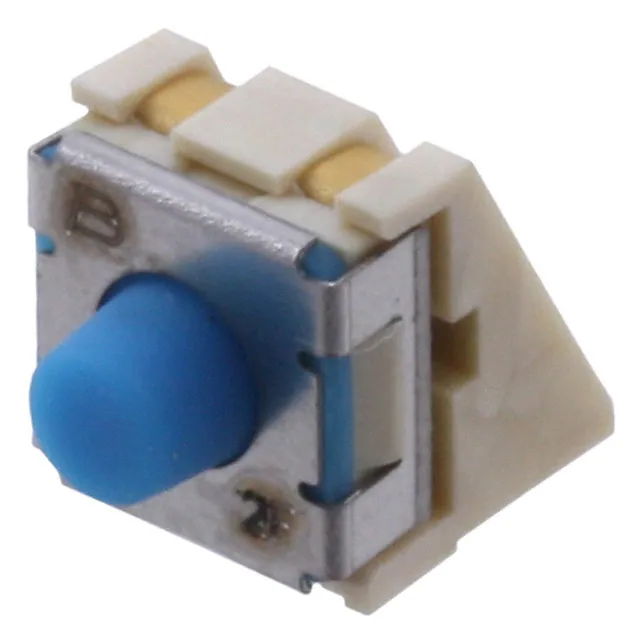

7914S-1-000SWITCH TACTILE SPST-NO 0.1A 16V |
120 |
|
Datasheet |
7914 | Tube | Active | SPST-NO | Off-Mom | Standard | Surface Mount, Right Angle | - | 0.1A @ 16VAC/DC | - | Side Actuated | SMD (SMT) Tab | 5.00mm x 5.18mm | Non-Illuminated | IP67 - Dust Tight, Waterproof | - | 300gf | - | - | -55°C ~ 125°C |
|
|
KSL0M312 LFTSWITCH TACTILE SPST-NO 0.05A 32V |
2,938 |
|
Datasheet |
KSL MKII | Bulk | Active | SPST-NO | Off-Mom | Standard | Through Hole | 9.90mm | 0.05A @ 32VDC | - | Top Actuated | PC Pin | 7.40mm x 7.40mm | Non-Illuminated | IP65 - Dust Tight, Water Resistant | - | 130gf | - | - | -40°C ~ 90°C |
|
KSI0M011 LFTRSWITCH TACTILE SPST-NO 0.05A 32V |
914 |
|
Datasheet |
KSI | Bulk | Active | SPST-NO | Off-Mom | Standard | Through Hole | 5.40mm | 0.05A @ 32VDC | - | Top Actuated | PC Pin | 7.40mm x 7.40mm | Non-Illuminated | IP65 - Dust Tight, Water Resistant | - | 110gf | - | - | -40°C ~ 90°C |
|
|
KST221G LFSSWITCH TACTILE SPST-NO 0.05A 32V |
11,524 |
|
Datasheet |
KST | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 5.00mm | 0.05A @ 32VDC | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | IP40 | - | 200gf | - | - | -40°C ~ 85°C |
|
|
KST241J LFSSWITCH TACTILE SPST-NO 0.05A 32V |
7,642 |
|
Datasheet |
KST | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Standard | Surface Mount | 5.00mm | 0.05A @ 32VDC | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | IP40 | - | 350gf | - | - | -40°C ~ 85°C |
|
TL3215AF160YQSWITCH TACTILE SPST-NO 0.05A 12V |
2,324 |
|
Datasheet |
TL3215 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | Plunger for Cap | Surface Mount | 2.00mm | 0.05A @ 12VDC | - | Top Actuated | SMD (SMT) Tab | 4.90mm x 4.90mm | Illuminated | - | LED, Yellow | 160gf | 2.05 VDC | - | -40°C ~ 85°C |
