Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

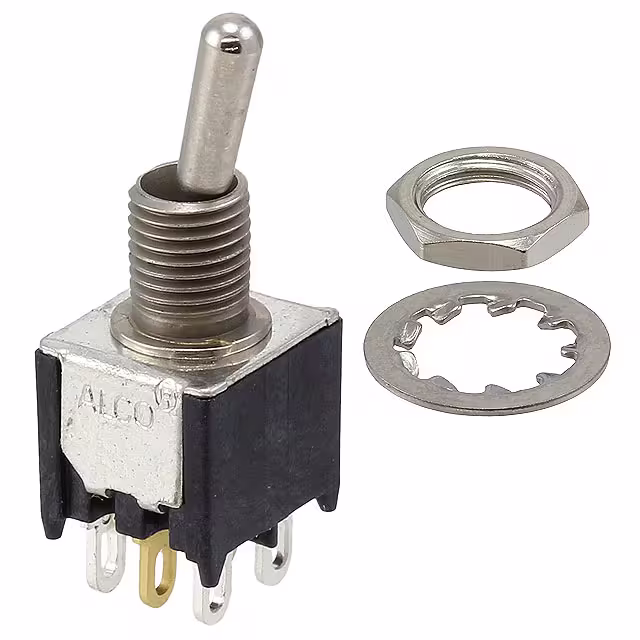

1825222-7SWITCH TOGGLE DPDT 3A 125V |
3,663 |
|
Datasheet |
TT | Bulk | Active | Panel Mount | DPDT | 3A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 7.52mm | Non-Illuminated | - | - | - | Solder Lug | 10-48 | Circular - 4.83mm Dia | - | -30°C ~ 85°C |
|

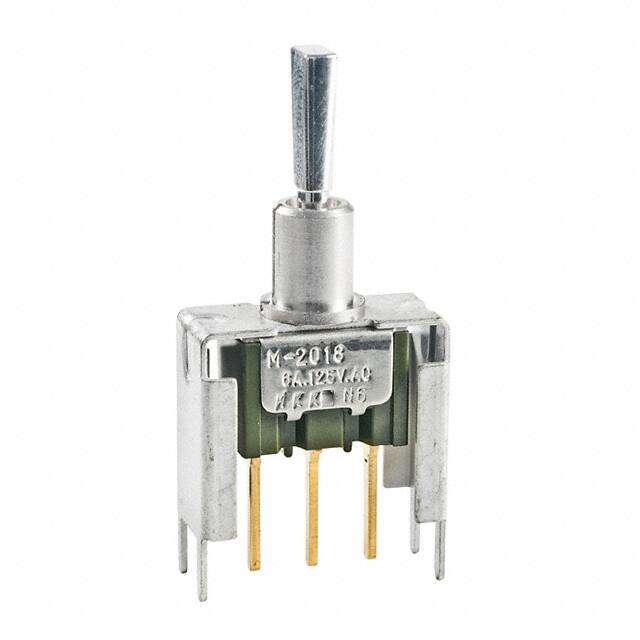

M2018ES2A25SWITCH TOGGLE SPDT 6A 125V |
1,927 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | Mom-Off-Mom | Flatted | 11.40mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
S31F/CUL-AT402ASWITCH TOGGLE 3PST 20A 125V |
1,648 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 3PST | 20A (AC/DC) | 125 V | 30 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
S31F-AT402ASWITCH TOGGLE 3PST 20A 125V |
1,456 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 3PST | 20A (AC/DC) | 125 V | 30 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
S31F/CUL-AT402HSWITCH TOGGLE 3PST 20A 125V |
1,338 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 3PST | 20A (AC/DC) | 125 V | 30 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
S31F-AT402HSWITCH TOGGLE 3PST 20A 125V |
1,322 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 3PST | 20A (AC/DC) | 125 V | 30 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
S31F-AT402CSWITCH TOGGLE 3PST 20A 125V |
1,596 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 3PST | 20A (AC/DC) | 125 V | 30 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
S31F/CUL-AT402CSWITCH TOGGLE 3PST 20A 125V |
3,014 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 3PST | 20A (AC/DC) | 125 V | 30 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
3-6437630-9SWITCH TOGGLE DPDT 6A 250V |
1,283 |
|
Datasheet |
F | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC) | 250 V | - | On-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | M6 x 0.75 | Circular - 6.20mm Dia | - | -20°C ~ 70°C |
|
|
FTN5904SWITCH TOGGLE DPDT |
2,755 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
M2042B2B1W01SWITCH TOGGLE 4PDT 6A 125V |
4,376 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 4PDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2042SA2W23SWITCH TOGGLE 4PDT 6A 125V |
1,028 |
|
Datasheet |
M | Tray | Obsolete | Through Hole | 4PDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 12.28mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
S31F/CUL-AT401SSWITCH TOGGLE 3PST 20A 125V |
3,016 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 3PST | 20A (AC/DC) | 125 V | 30 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
S31F-AT401SSWITCH TOGGLE 3PST 20A 125V |
2,994 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 3PST | 20A (AC/DC) | 125 V | 30 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
S41F/CULSWITCH TOGGLE 4PST 20A 125V |
4,924 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 4PST | 20A (AC/DC) | 125 V | 30 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
S332F-AT401ASWITCH TOGGLE DPDT 20A 125V |
2,637 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | 20A (AC/DC) | 125 V | 30 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
S332F-AT401HSWITCH TOGGLE DPDT 20A 125V |
1,414 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | 20A (AC/DC) | 125 V | 30 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
S32F/CULSWITCH TOGGLE 3PDT 20A 125V |
2,159 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 3PDT | 20A (AC/DC) | 125 V | 30 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
12TS95127-3SWITCH TOGGLE DPDT 15A 125V |
1,554 |
|
Datasheet |
TS | Bulk | Obsolete | Panel Mount | DPDT | 15A (AC) | 125 V | - | On-On | Standard Round | 16.51mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.40mm Dia | - | -54°C ~ 71°C |
|
|
S332F-AT402HSWITCH TOGGLE DPDT 20A 125V |
4,294 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | 20A (AC/DC) | 125 V | 30 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
