Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S332F-AT402ASWITCH TOGGLE DPDT 20A 125V |
3,808 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | 20A (AC/DC) | 125 V | 30 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
S332F-AT402CSWITCH TOGGLE DPDT 20A 125V |
1,160 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | 20A (AC/DC) | 125 V | 30 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
M2122TCFW01SWITCH TOGGLE DPDT 6A 125V |
1,377 |
|
Datasheet |
M2100 | Bulk | Obsolete | Panel Mount | DPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-On | Standard Round | 14.70mm | Illuminated | LED, Green/Red | 1.7, 2 VDC | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
|
S332F-AT401SSWITCH TOGGLE DPDT 20A 125V |
2,404 |
|
Datasheet |
S | Bulk | Active | Panel Mount | DPDT | 20A (AC/DC) | 125 V | 30 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
S33F/CULSWITCH TOGGLE 3PDT 20A 125V |
2,889 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 3PDT | 20A (AC/DC) | 125 V | 30 V | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
M2042B2B1W01-AT401ASWITCH TOGGLE 4PDT 6A 125V |
2,234 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 4PDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
M2022B2B1A03-AT401ABUSHING MOUNT MINIATURE TOGGLE |
864 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | PC Pin | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
M2113TFW01/CULSWITCH TOGGLE SPDT 6A 125V |
239 |
|
Datasheet |
M2100 | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 14.70mm | Illuminated | LED, Green | 2.2 VDC | - | Solder Lug | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
|
M2042B2B1W01-AT401SSWITCH TOGGLE 4PDT 6A 125V |
1,503 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 4PDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
M2042B2B1W01-AT401HSWITCH TOGGLE 4PDT 6A 125V |
3,815 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | 4PDT | 6A (AC), 4A (DC) | 125 V | 30 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder Lug | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
M2022B2B1A03-AT401SBUSHING MOUNT MINIATURE TOGGLE |
864 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | PC Pin | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|
|
S41F/CUL-AT401ASWITCH TOGGLE 4PST 20A 125V |
1,567 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 4PST | 20A (AC/DC) | 125 V | 30 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
S41F-AT401ASWITCH TOGGLE 4PST 20A 125V |
3,389 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 4PST | 20A (AC/DC) | 125 V | 30 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
S41F/CUL-AT401HSWITCH TOGGLE 4PST 20A 125V |
3,243 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 4PST | 20A (AC/DC) | 125 V | 30 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
S41F-AT401HSWITCH TOGGLE 4PST 20A 125V |
1,050 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 4PST | 20A (AC/DC) | 125 V | 30 V | On-Off | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
M2022B2B1A03-AT401HBUSHING MOUNT MINIATURE TOGGLE |
218 |
|
Datasheet |
M | Bulk | Obsolete | Panel Mount | DPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | PC Pin | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 85°C |
|

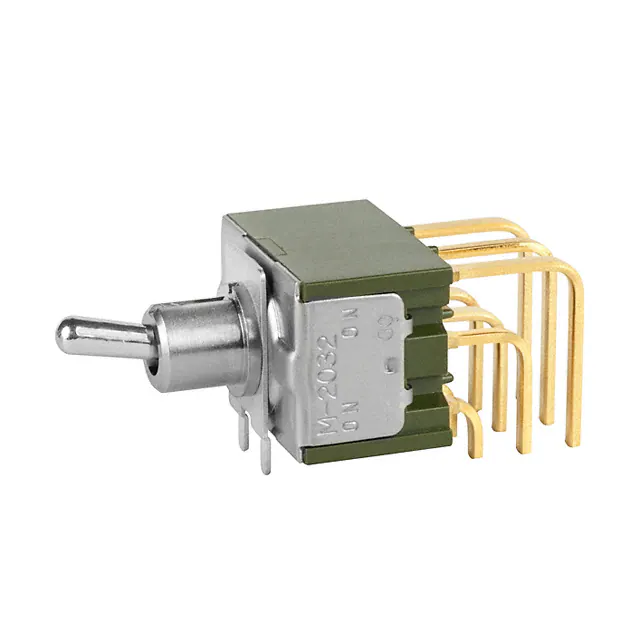

M2032S2A2G40SWITCH TOGGLE 3PDT 0.4VA 28V |
2,523 |
|
Datasheet |
M | Tray | Obsolete | Through Hole, Right Angle, Vertical | 3PDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 6.86mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
S32F/CUL-AT401ASWITCH TOGGLE 3PDT 20A 125V |
4,464 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 3PDT | 20A (AC/DC) | 125 V | 30 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 70°C |
|
|
S32F-AT401ASWITCH TOGGLE 3PDT 20A 125V |
1,750 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 3PDT | 20A (AC/DC) | 125 V | 30 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 70°C |
|
|
S32F/CUL-AT401HSWITCH TOGGLE 3PDT 20A 125V |
2,359 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 3PDT | 20A (AC/DC) | 125 V | 30 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
