Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S32F-AT401SSWITCH TOGGLE 3PDT 20A 125V |
1,866 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 3PDT | 20A (AC/DC) | 125 V | 30 V | On-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -30°C ~ 70°C |
|

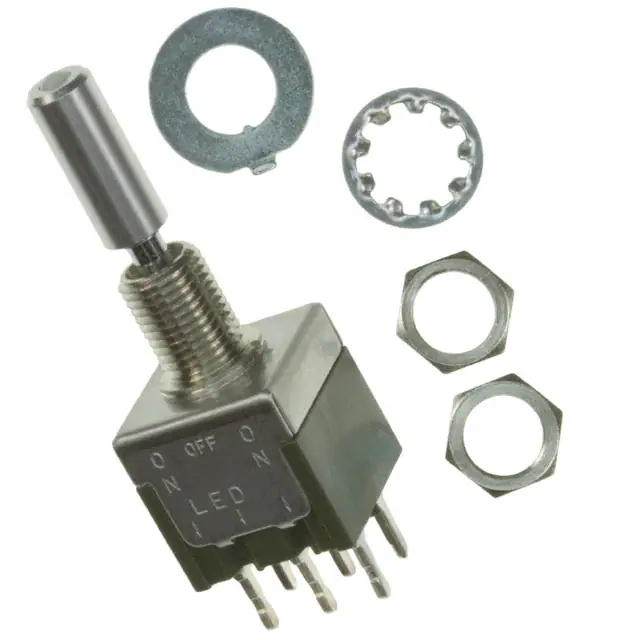

M2113TCFW03SWITCH TOGGLE SPDT 6A 125V |
3,109 |
|
Datasheet |
M2100 | Bulk | Obsolete | Panel Mount | SPDT | 6A (AC), 3A (DC) | 125 V | 30 V | On-Off-On | Standard Round | 14.70mm | Illuminated | LED, Green/Red | 1.7, 2 VDC | - | PC Pin | 1/4-40 | Circular - 6.50mm Dia | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
PT103SSQSWITCH TOGGLE SPDT 15A 277V |
479 |
|
Datasheet |
PT | Tray | Active | Panel Mount | SPDT | 15A (AC/DC) | 277 V | 28 V | On-Off-On | Standard Round | 17.20mm | Non-Illuminated | - | - | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | Sealed | -40°C ~ 85°C |
|
|
PT105SSQSWITCH TOGGLE SPDT 10A 277V |
383 |
|
Datasheet |
PT | Tray | Active | Panel Mount | SPDT | 10A (AC/DC) | 277 V | 28 V | Mom-Off-Mom | Standard Round | 17.20mm | Non-Illuminated | - | - | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | Screw Terminal | 15/32-32 | Circular - 12.40mm Dia | Sealed | -40°C ~ 85°C |
|
PT103SQQSWITCH TOGGLE SPDT 15A 277V |
387 |
|
Datasheet |
PT | Tray | Active | Panel Mount | SPDT | 15A (AC/DC) | 277 V | 28 V | On-Off-On | Standard Round | 17.20mm | Non-Illuminated | - | - | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.40mm Dia | Sealed | -40°C ~ 85°C |
|
|
S43F/CULSWITCH TOGGLE 4PDT 20A 125V |
1,779 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 4PDT | 20A (AC/DC) | 125 V | 30 V | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
PT105SQQSWITCH TOGGLE SPDT 10A 277V |
345 |
|
Datasheet |
PT | Tray | Active | Panel Mount | SPDT | 10A (AC/DC) | 277 V | 28 V | Mom-Off-Mom | Standard Round | 17.20mm | Non-Illuminated | - | - | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | Quick Connect - 0.250" (6.3mm) | 15/32-32 | Circular - 12.40mm Dia | Sealed | -40°C ~ 85°C |
|
|
2MT1-6SWITCH TOGGLE DPST-NO 5A 28V |
2,296 |
|
Datasheet |
MT | Bulk | Obsolete | Panel Mount | DPST-NO | 5A (DC) | - | 28 V | Off-Mom | Standard Round | 16.87mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder, Quick Connect - 0.110" (2.8mm) | 15/32-32 | Circular - 12.45mm Dia | - | -40°C ~ 85°C |
|
|
2MT1-4SWITCH TOGGLE DPST-NC 5A 28V |
1,142 |
|
Datasheet |
MT | Bulk | Obsolete | Panel Mount | DPST-NC | 5A (DC) | - | 28 V | On-Mom | Standard Round | 16.87mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder, Quick Connect - 0.110" (2.8mm) | 15/32-32 | Circular - 12.45mm Dia | - | -40°C ~ 85°C |
|
|
3-6437630-5SWITCH TOGGLE 4PDT 6A 250V |
398 |
|
Datasheet |
F | Bulk | Obsolete | Panel Mount | 4PDT | 6A (AC) | 250 V | - | On-On | Standard Round | 10.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | M6 x 0.75 | Circular - 6.20mm Dia | - | -20°C ~ 70°C |
|

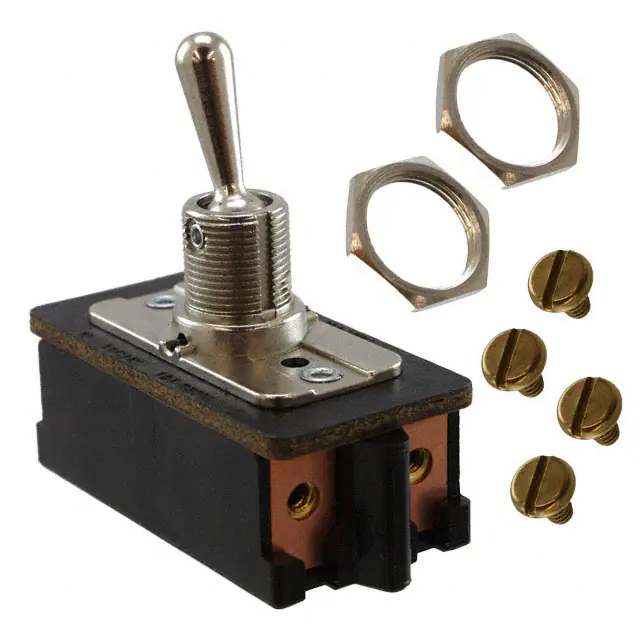

1520228-4SWITCH TOGGLE DPST 20A 125V |
1,071 |
|
Datasheet |
- | Bulk | Last Time Buy | Panel Mount | DPST | 20A (AC) | 125 V | - | On-Off | Standard Round | 17.02mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | - | - | - |
|
6-6437630-1SWITCH TOGGLE DPDT 0.4VA 20V |
1,929 |
|
Datasheet |
F | Bulk | Obsolete | Panel Mount | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Locking Lever | 16.50mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | M6 x 0.75 | Circular - 6.20mm Dia | - | -20°C ~ 70°C |
|
|
S43F/CUL-AT401HSWITCH TOGGLE 4PDT 20A 125V |
1,824 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 4PDT | 20A (AC/DC) | 125 V | 30 V | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
S43F/CUL-AT401ASWITCH TOGGLE 4PDT 20A 125V |
4,693 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 4PDT | 20A (AC/DC) | 125 V | 30 V | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
S43F-AT401HSWITCH TOGGLE 4PDT 20A 125V |
4,994 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 4PDT | 20A (AC/DC) | 125 V | 30 V | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
S43F-AT401ASWITCH TOGGLE 4PDT 20A 125V |
1,892 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 4PDT | 20A (AC/DC) | 125 V | 30 V | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
1520237-2SWITCH TOGGLE DPST 16A 125V |
298 |
|
Datasheet |
- | Bulk | Last Time Buy | Panel Mount | DPST | 16A (AC) | 125 V | - | On-Off | Standard Round | 16.66mm | Non-Illuminated | - | - | - | Screw Terminal | 15/32-32 | - | - | - |
|
|
S43F-AT402ASWITCH TOGGLE 4PDT 20A 125V |
1,476 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 4PDT | 20A (AC/DC) | 125 V | 30 V | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
S43F-AT402HSWITCH TOGGLE 4PDT 20A 125V |
4,707 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 4PDT | 20A (AC/DC) | 125 V | 30 V | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
|
|
S43F/CUL-AT402HSWITCH TOGGLE 4PDT 20A 125V |
2,106 |
|
Datasheet |
S | Bulk | Active | Panel Mount | 4PDT | 20A (AC/DC) | 125 V | 30 V | On-Off-On | Standard Round | 17.50mm | Non-Illuminated | - | - | - | Solder, Quick Connect - 0.250" (6.3mm) | M12 x 1 | Circular - 12.50mm Dia | - | -10°C ~ 70°C |
