Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Circuit | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Switch Function | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Ingress Protection | Termination Style | Bushing Thread | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
200MSP4T1B1M1QESWITCH TOGGLE SPDT 3A 120V |
380 |
|
Datasheet |
200 | Bulk | Active | Panel Mount | SPDT | 3A (AC/DC) | 120 V | 28 V | Mom-Off-Mom | Standard Round | 9.40mm | Non-Illuminated | - | - | - | Solder Lug | 10-48 | Circular - 4.95mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
200AWMSP1T1A1M2QESWITCH TOGGLE SPDT 3A 120V |
237 |
|
Datasheet |
200A | Bulk | Active | Through Hole | SPDT | 3A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 10.16mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
200MDP1T2B2M2QESWITCH TOGGLE DPDT 3A 120V |
129 |
|
Datasheet |
200 | Bulk | Active | Through Hole | DPDT | 3A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 5.33mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
2M1-SP1-T1-B1-M1QESWITCH TOGGLE SPDT 5A 125V |
522 |
|
Datasheet |
2M | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 125 V | 28 V | On-On | Standard Round | 10.40mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
3-1825136-8SWITCH TOGGLE SPDT 5A 120V |
1,190 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 12.19mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100DP2T1B1M1QEHSWITCH TOGGLE DPDT 5A 120V |
113 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DPDT | 5A (AC/DC) | 120 V | 28 V | On-Mom | Standard Round | 10.41mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
2-1825138-4SWITCH TOGGLE DPDT 0.4VA 20V |
271 |
|
Datasheet |
Gemini A | Bulk | Active | Panel Mount | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100SP1T8B13M1QEHSWITCH TOGGLE SPDT 5A 120V |
4,880 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 18.00mm | Non-Illuminated | - | - | - | Solder Lug | 15/32-32 | Circular - 11.91mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100SP2T6B11M1QEHSWITCH TOGGLE SPDT 5A 120V |
372 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Mom | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100SP1T1B4M6RESWITCH TOGGLE SPDT 0.4VA 20V |
232 |
|
Datasheet |
100 | Bulk | Active | Through Hole, Right Angle | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100SP1T6B11M1REHSWITCH TOGGLE SPDT 0.4VA 20V |
227 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP1T1B1M7QEHSWITCH TOGGLE SPDT 5A 120V |
583 |
|
Datasheet |
100 | Bulk | Active | Panel Mount, Right Angle, Vertical | SPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100DP1T1B1M6QEHSWITCH TOGGLE DPDT 5A 120V |
111 |
|
Datasheet |
100 | Bulk | Active | Panel Mount, Right Angle | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100DP1T1B1M1REHSWITCH TOGGLE DPDT 0.4VA 20V |
444 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | DPDT | 0.4VA (AC/DC) | 20 V | 20 V | On-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
200MSP1T1B1M7QESWITCH TOGGLE SPDT 3A 120V |
478 |
|
Datasheet |
200 | Bulk | Active | Panel Mount, Right Angle, Vertical | SPDT | 3A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 9.40mm | Non-Illuminated | - | - | - | PC Pin | 10-48 | Circular - 4.95mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100SP3T6B11M1QEHSWITCH TOGGLE SPDT 5A 120V |
946 |
|
Datasheet |
100 | Bulk | Active | Panel Mount | SPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | - | Solder Lug | 1/4-40 | Circular - 6.35mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100AWDP1T2B4M2QESWITCH TOGGLE DPDT 5A 120V |
1,386 |
|
Datasheet |
100A | Bulk | Active | Through Hole | DPDT | 5A (AC/DC) | 120 V | 28 V | On-On | Standard Round | 7.62mm | Non-Illuminated | - | - | IP67 - Dust Tight, Waterproof | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100DP3T1B2M2QESWITCH TOGGLE DPDT 5A 120V |
910 |
|
Datasheet |
100 | Bulk | Active | Through Hole | DPDT | 5A (AC/DC) | 120 V | 28 V | On-Off-On | Standard Round | 10.41mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

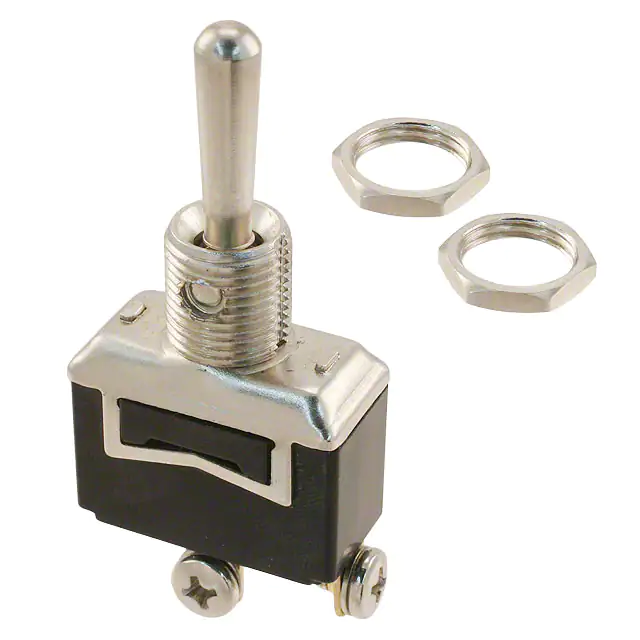

ST164D00SWITCH TOGGLE SPST-NO 20A 125V |
887 |
|
Datasheet |
ST1 | Bulk | Active | Panel Mount | SPST-NO | 20A (AC) | 125 V | - | Off-Mom | Standard Round | 19.50mm | Non-Illuminated | - | - | - | Screw Terminal | M12 x 1 | Circular - 12.00mm Dia | - | 0°C ~ 85°C |
|
CFT2-1DC-AWSWITCH TOGGLE SPDT 0.4VA 28V |
1,272 |
|
Datasheet |
CFT2 | Tray | Active | Through Hole | SPDT | 0.4VA (AC/DC) | 28 V | 28 V | On-On | Standard Round | 3.80mm | Non-Illuminated | - | - | - | PC Pin | Unthreaded | - | Washable, Gray Actuator | -40°C ~ 85°C |
